Amazon Echo Show 15 Voice Remote 3rd Gen Holder - Free 3D Print Model

Search models, users, collections, and posts

FKA_Prints

Hobby & DIY>Electronics

IP Report

Print Profile(1)

All

A1 mini

X1E

P2S

X1 Carbon

H2C

P1P

P1S

H2D Pro

H2S

H2D

X2D

A2L

0.16mm layer, 2 walls, 15% infill

Designer

1.2 h

1 plate

4.6(20)

Open in Bambu Studio

Boost

201

613

456

385

Released

Bill of Materials

Bambu Filaments

Select all

Matte Charcoal (11101) / Filament with spool / 1kg

PLA Matte

Description

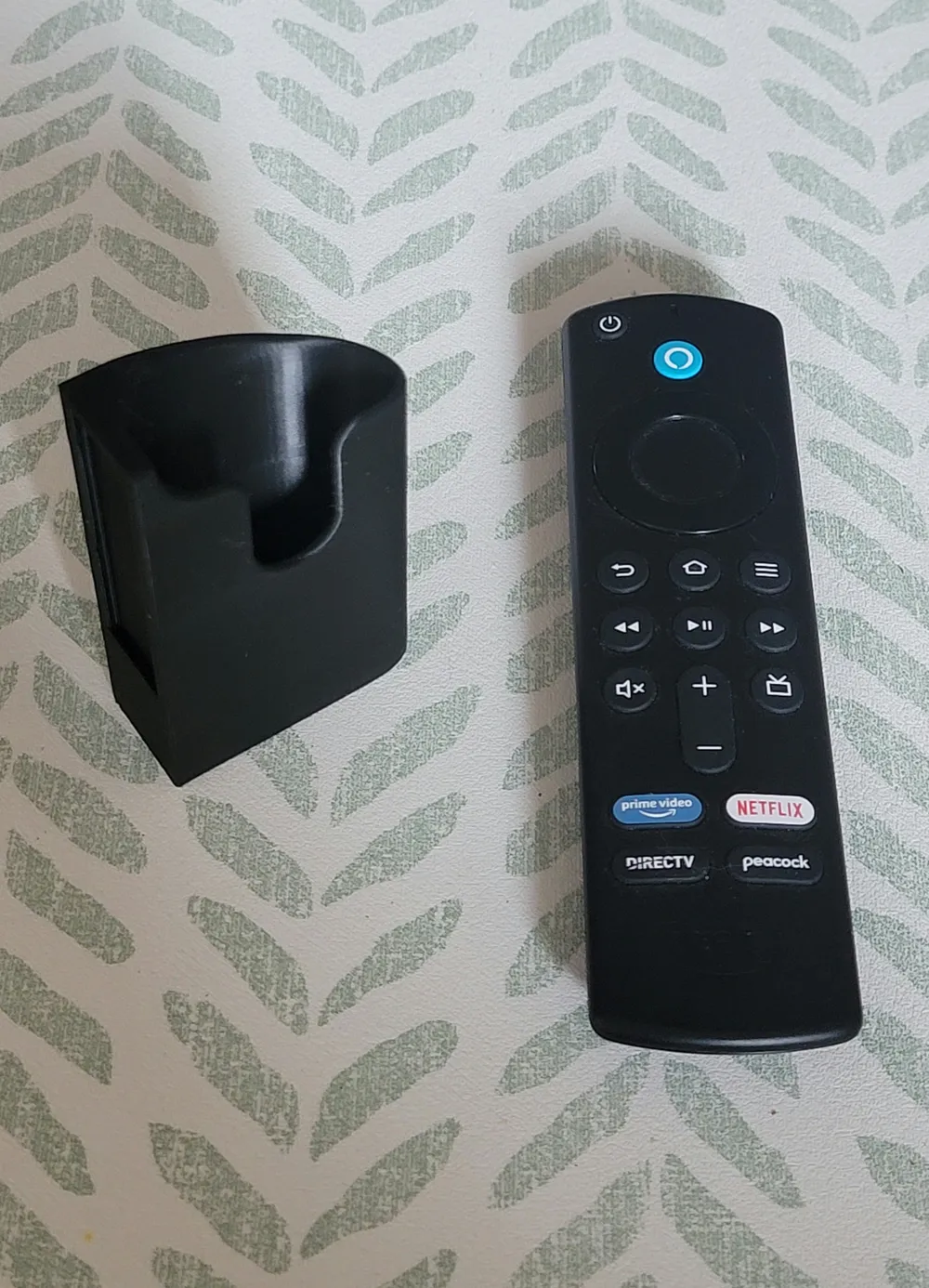

I created this so our Echo Show remote was always available. I also made a notch so the volume controls are always accessible.

There are three STL versions of the file. The original allows the remote to fit with a little wiggle room. This is the print profile. The snug version holds the remote more firmly, but if you plan to remove it frequently, that may wear down the text on the application buttons over time. The short version is a snug fit without the taller back guide and foam tape recess.

Due to adding weight to one side of the screen, you may wish to adjust the screen rotation if your Echo Show is mounted.

The holder mounts to the screen with double sided foam tape. Specifically, I used 3M 9448A 2mm thick tape, which is easily cut to size (15mm x 50mm). If you want to use thinner tape or adhesive, you can modify the pocket in Bambu studio.

Some printing tips - if you enable adaptive layers, the sloped section will come out smoother, but it may result in some banding at the bottom of the notch. Since that part of the holder isn't visible with the remote holstered, I suggest not doing that.

If you'd like to see any minor changes, feel free to reach out, and I'll see if I can make it happen. Thanks for viewing my model!

Boost Me (for free)

If you found this model useful, please give it a boost!

remote control accessory

Comment & Rating (27)

@user_1149717526

Print Profile

0.16mm layer, 2 walls, 15% infill

too snug, pushes bottons

(Edited)

The profile uploader has replied

@user_1149717526

this is an echo show 15 remote

@FKA_Prints

Replying to @user_1149717526 :

That remote is clearly a different version than the one I modeled this for. Sorry it didn't work out for you.

@user_1149717526

understand. Trying at 103%.

@Coconut

Print Profile

0.16mm layer, 2 walls, 15% infill

I prints fine, but does not fit.

(Edited)

The profile uploader has replied

@FKA_Prints

You could try scaling it up little. Amazon has produced so many different remotes, it's possible yours is slightly different, even though it looks the same as the one I created it for.

@Coconut

Replying to @FKA_Prints :

it is very close, but causes buttons to be depressed when you slide it in. I will try scaling.

@ThreeDPro

Print Profile

0.16mm layer, 2 walls, 15% infill

printed well in natural asa filament. scaled up 105 for the echo show 21 remote.

@TheEngineer

For those of you who might be curious if you have a echo show 21 or the 2nd gen show 15 with the remote you may want to increase the scale to 106%.

@Chrisperry1

Print Profile

0.16mm layer, 2 walls, 15% infill

took a little adjustment but the print was great

@user_4250850235

Print Profile

0.16mm layer, 2 walls, 15% infill

fits right on the inside of the cabinet door! great print

@The_Huckleberry

Print Profile

0.16mm layer, 2 walls, 15% infill

great print just didn’t fit my remote.

@user_810659616

Print Profile

0.16mm layer, 2 walls, 15% infill

First print little small, but then scaled it and it was perfect!

@BroCast

Print Profile

0.16mm layer, 2 walls, 15% infill

@Sascha1111

Boosted

Print Profile

0.16mm layer, 2 walls, 15% infill
