Zhenwang Seestar s30 Star Pointer Bracket

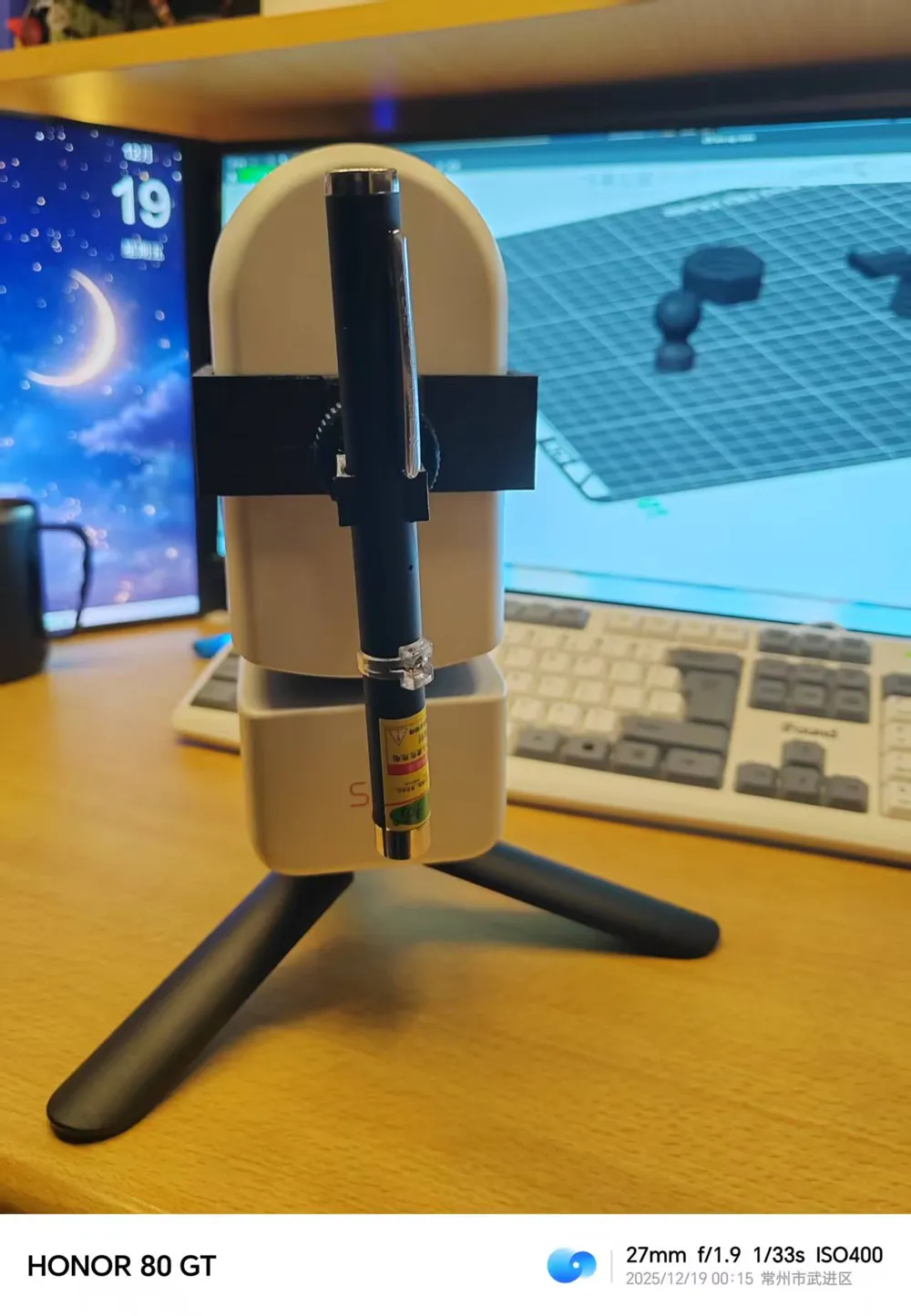

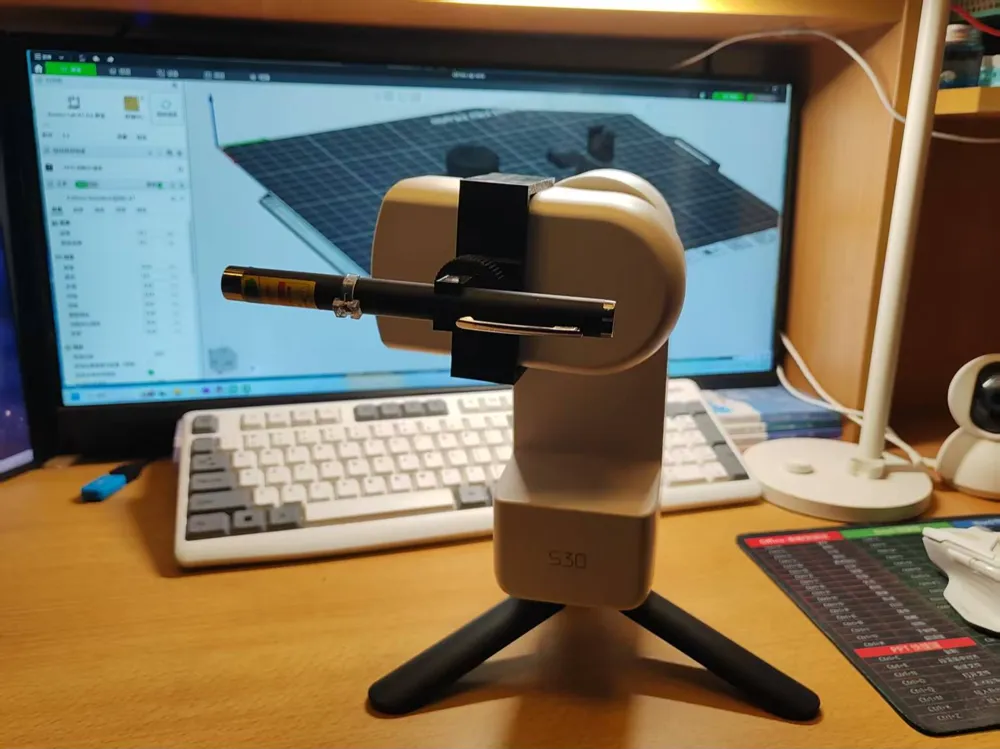

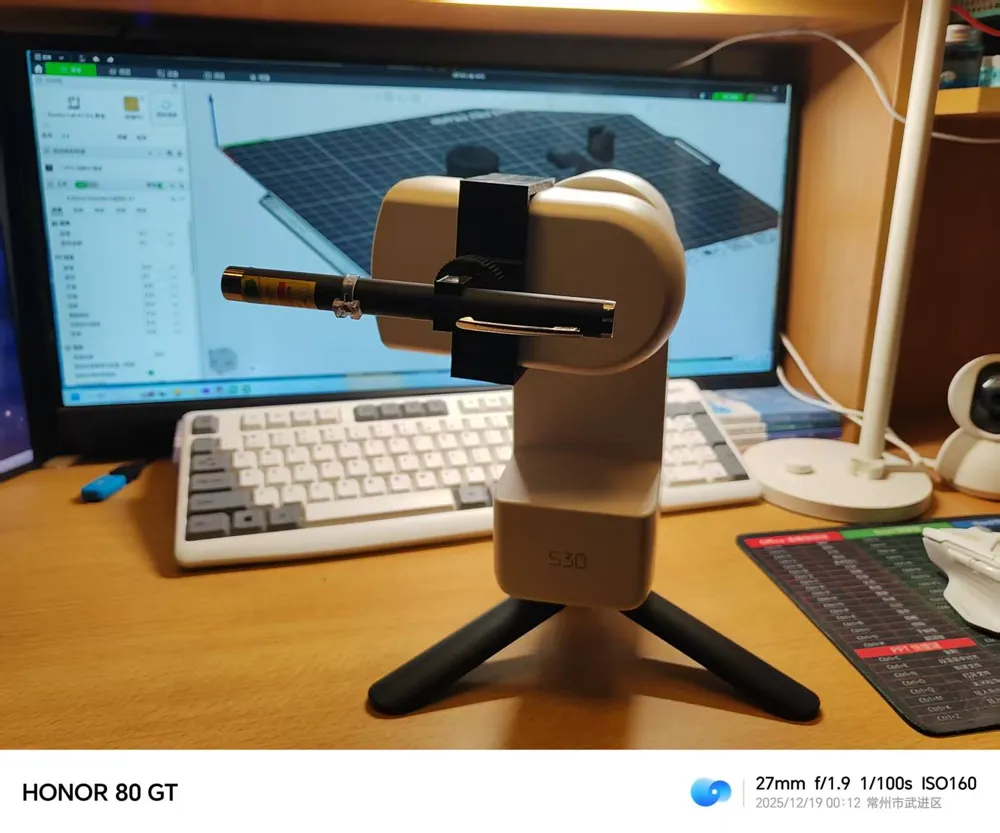

This is a star pointer bracket that can be used with the Seestar s30. The s30 does not allow for direct visual observation, but this bracket can be used to guide astronomical telescopes/binoculars to find observation targets.

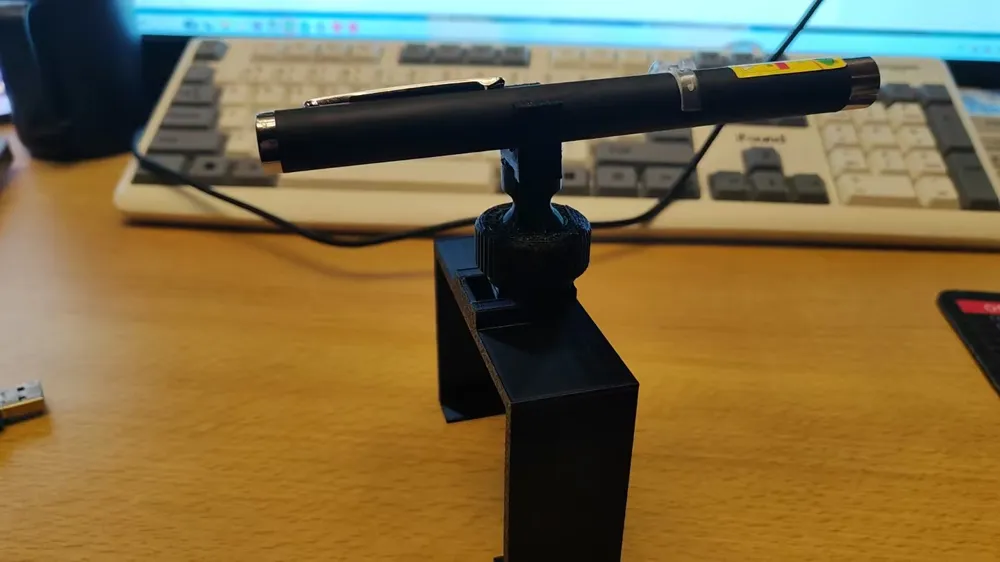

It consists of three parts: the s30 connection bracket, a pan-tilt head with a locking structure, and a star pointer clip. The s30 bracket and the pan-tilt head are connected using a universal hot shoe interface, which facilitates future modifications and upgrades.

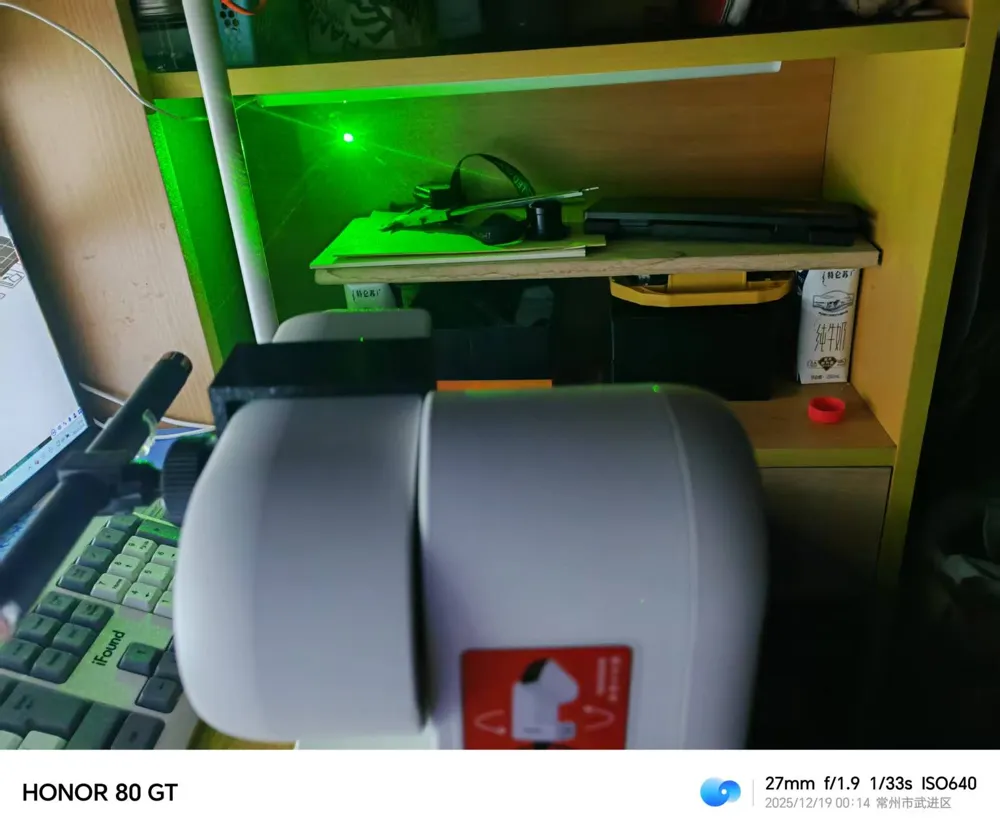

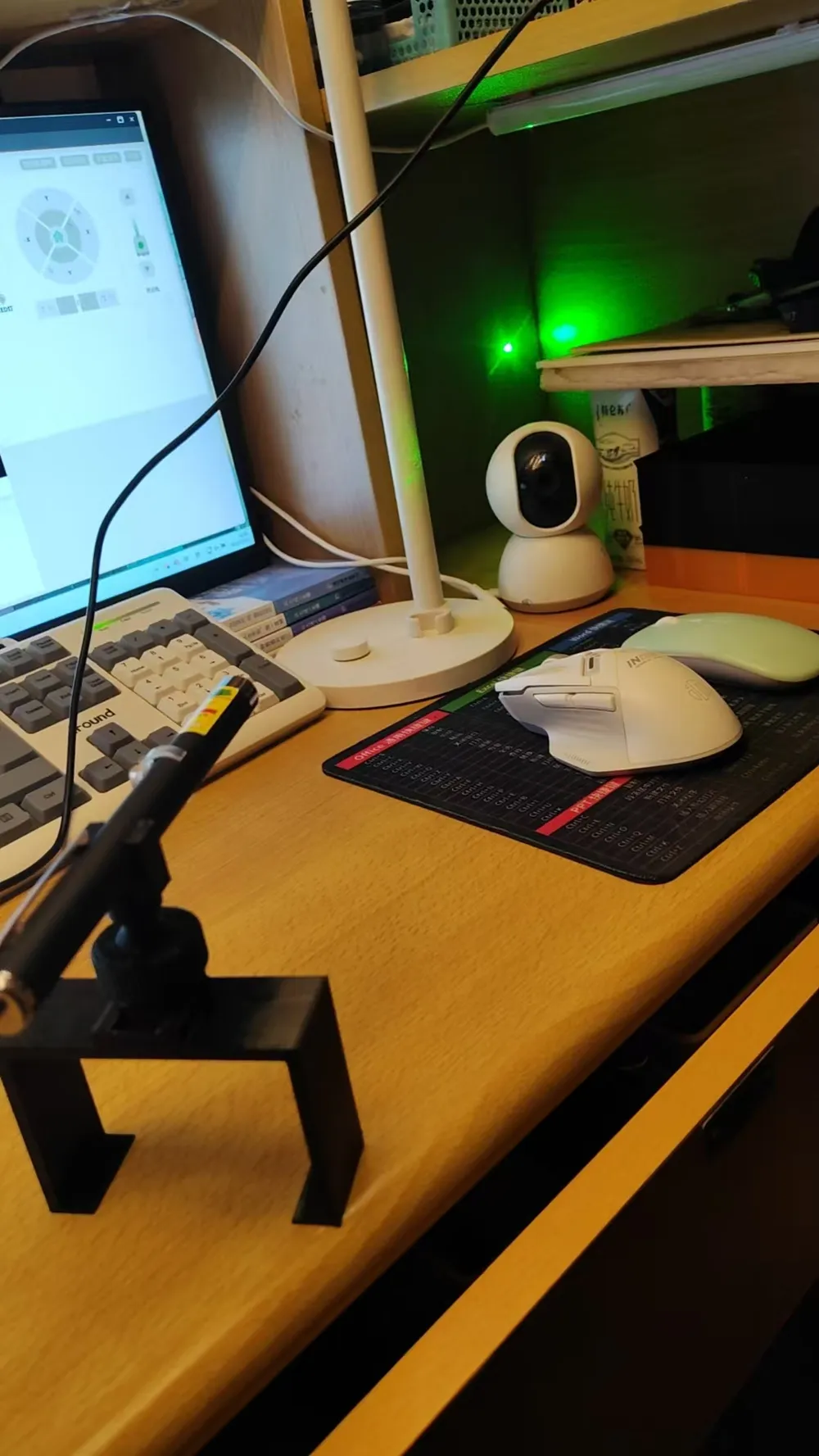

Before use, the star pointer and s30 need to be coaxially calibrated (turn on viewing mode on the s30 and point it at a landscape, loosen the locking pan-tilt head to align the star pointer with the s30's central target, then tighten the pan-tilt head). During use, the bracket may slide, so you can place some tissue paper between the bracket and the s30's optical tube to solve this problem.
