ESP8266 & HC-SR04 Housing
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 15% infill
Designer
1.5 h
1 plate
Open in Bambu Studio
Boost
8
23
0
0
37
29
Released
Description

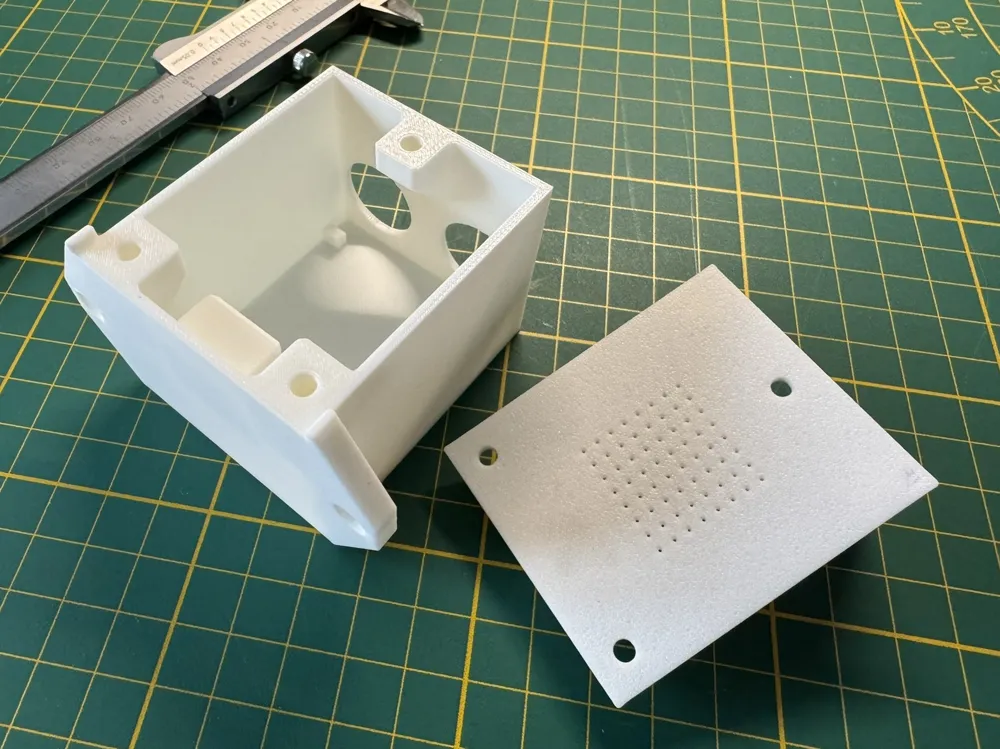

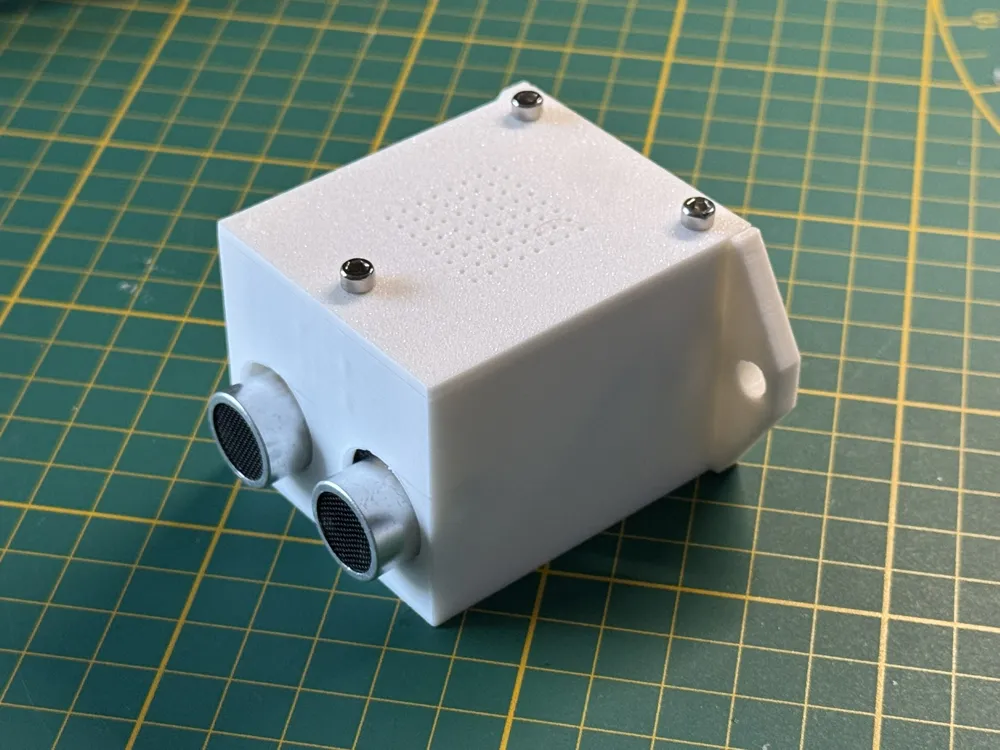

Compact housing for DIY distance sensors (e.g. garage door).
Optimized for the ESP8266 and the HC-SR04 ultrasonic sensor.
Highlights:
- Easy Mounting: Integrated flange for simple attachment to walls.

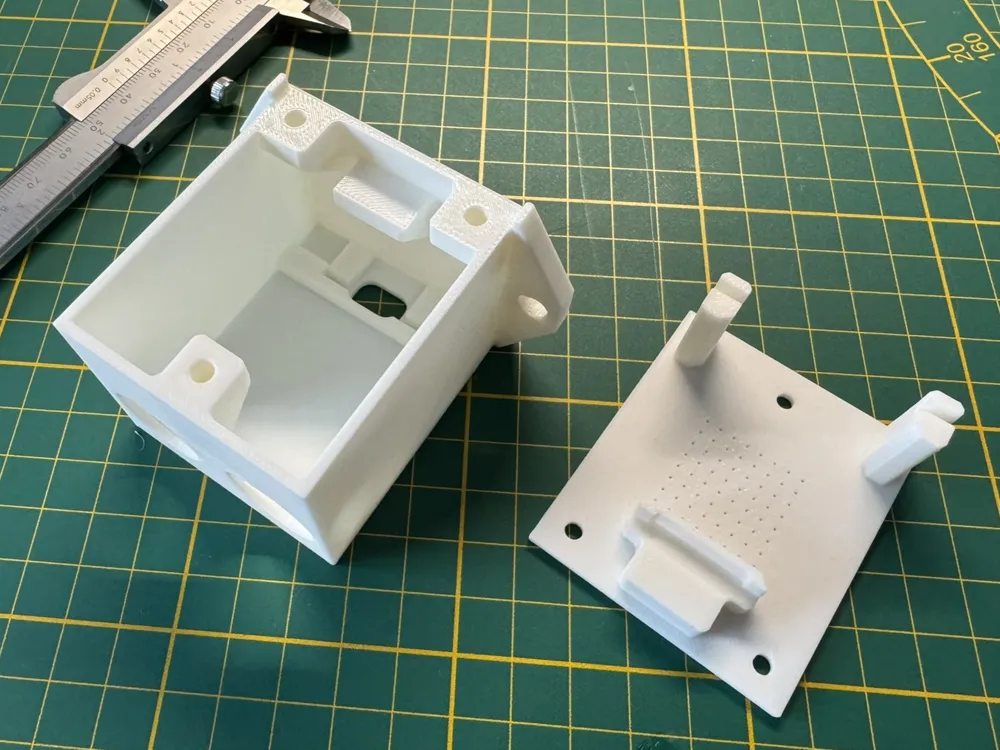

- Secure Fit: The lid locks the electronics firmly in place – no rattling.

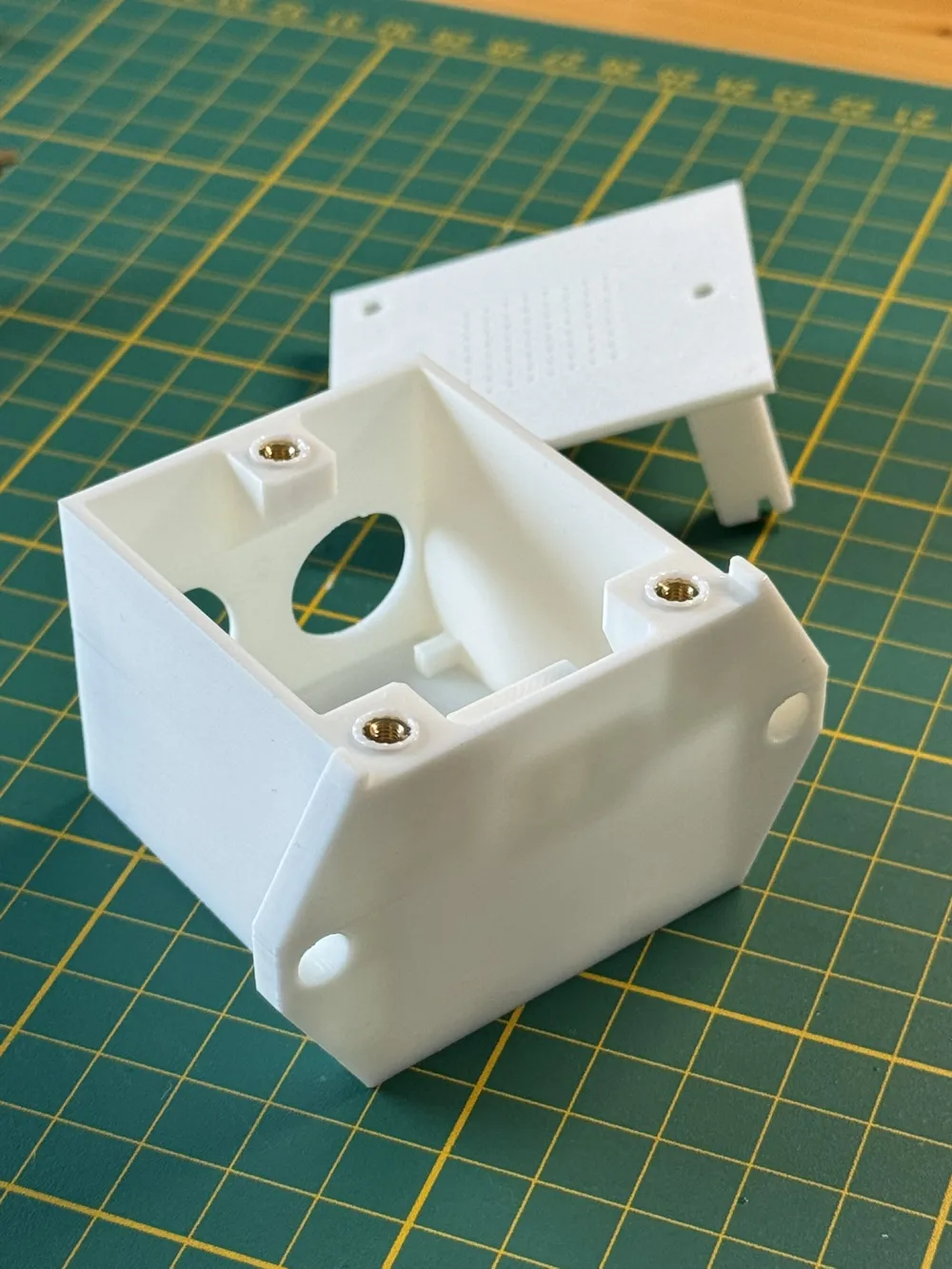

- Pro Finish: Designed for M3 heat-set inserts in the base for maximum durability.
- Solid Closure: Easy assembly using standard M3 screws.
Bill of Materials:
- 3x M3 Threaded Inserts (Einschmelzgewinde)
- 3x M3 Screws (6-8mm length)
- 1x ESP8266
- 1x HC-SR04 Ultrasonic Sensor
