Description

I was tired of my trashbin for food waste not being easy available, so I made a holder for the trashbin we got from the city (in Denmark).



It is easy to place in the holder and take out again, if you need the trashbin on the tabletop or similar while preparing food.



I recommend using PETG, ABS or ASA filament, but PLA might do. I have not tested PLA!

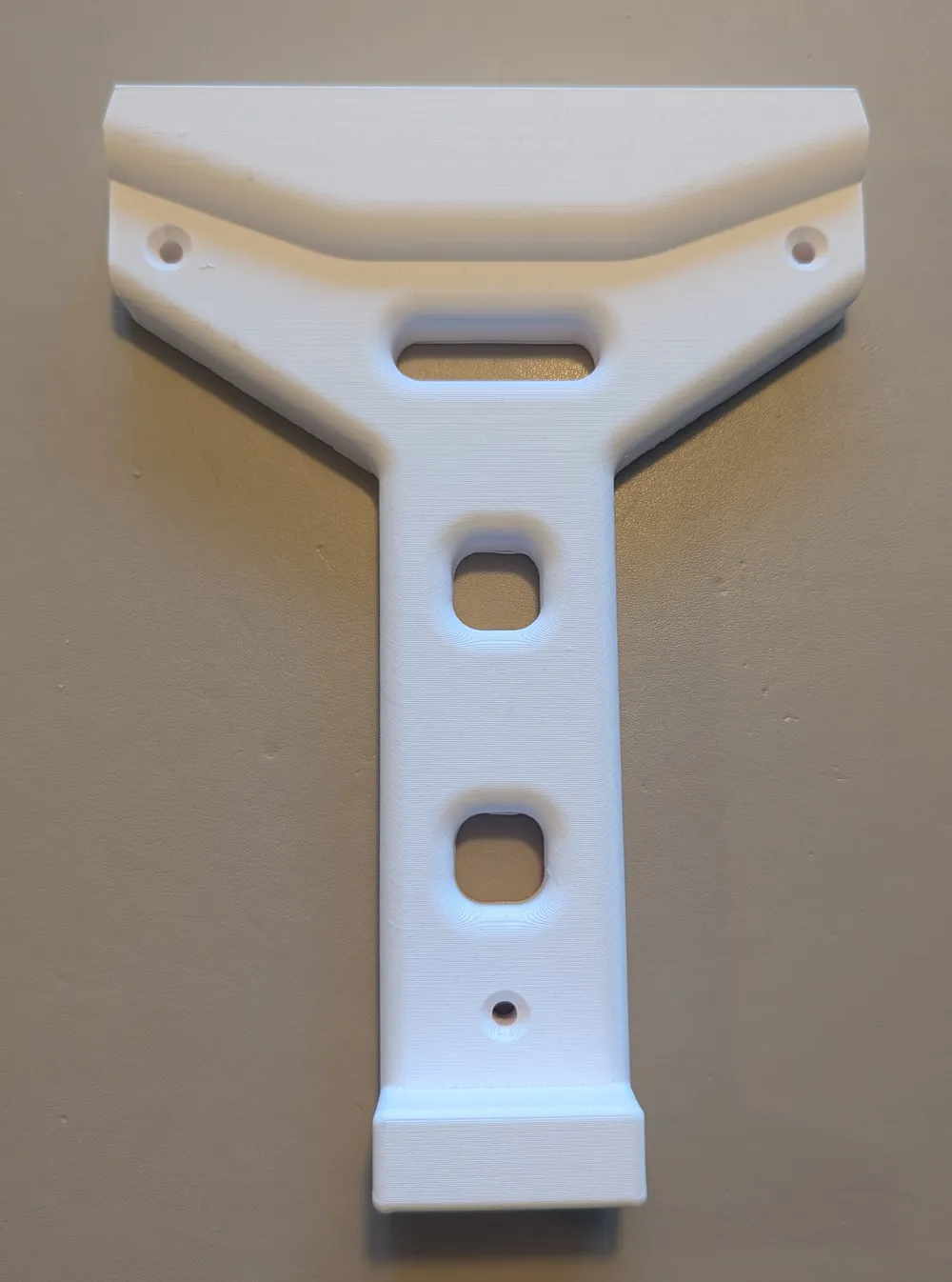

The holder can be printed flat, but it will mess up the most important surface where it holds the trashbin, so I don't recommend that orientation. Instead print it at 45 degrees (as in the 3mf), this way the layer lines will not split at the mounting holes and the part holding the trashbin will be stronger.

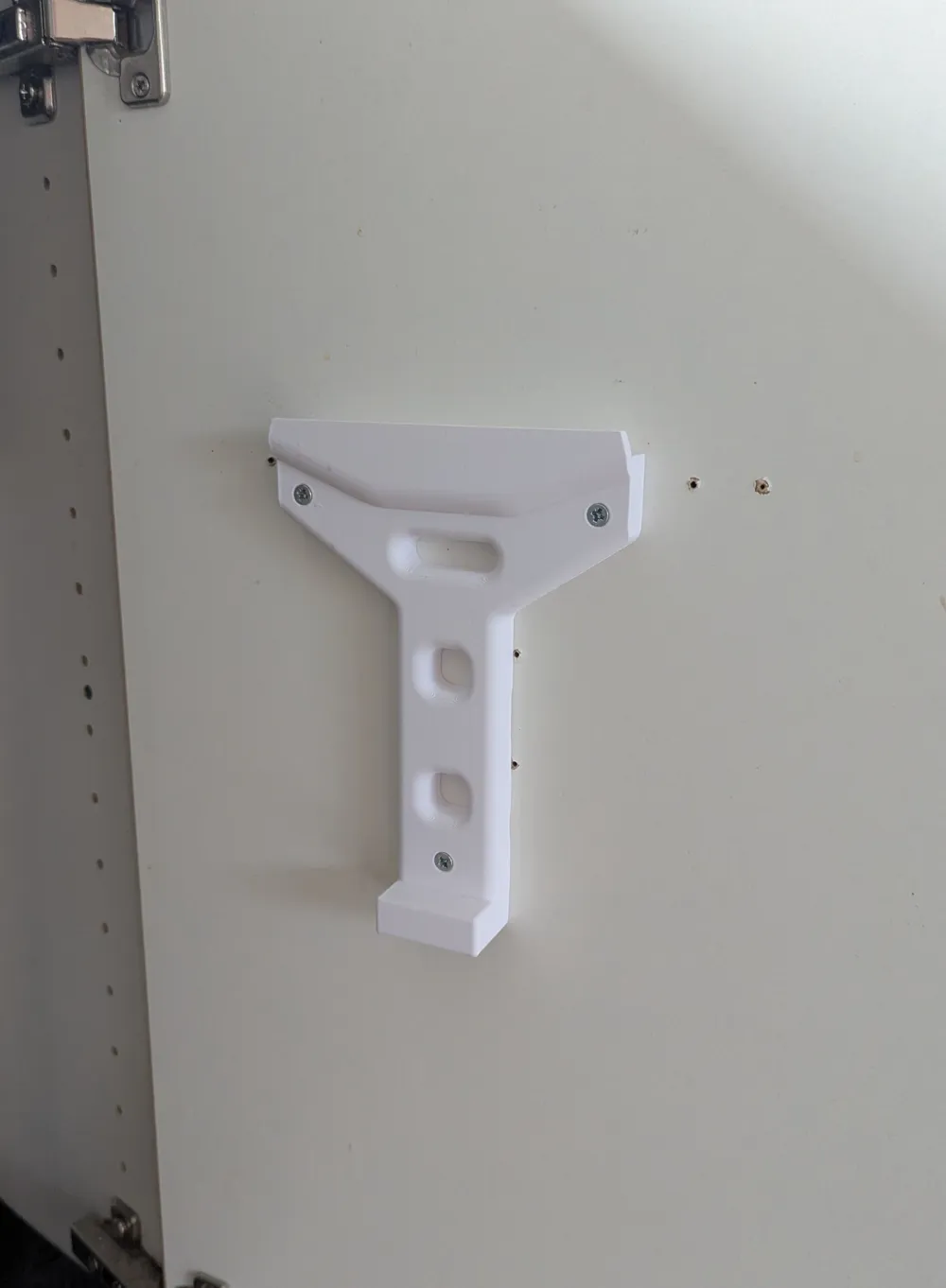

I have used 3mmx20mm screws, but it depends on what you mount it one.

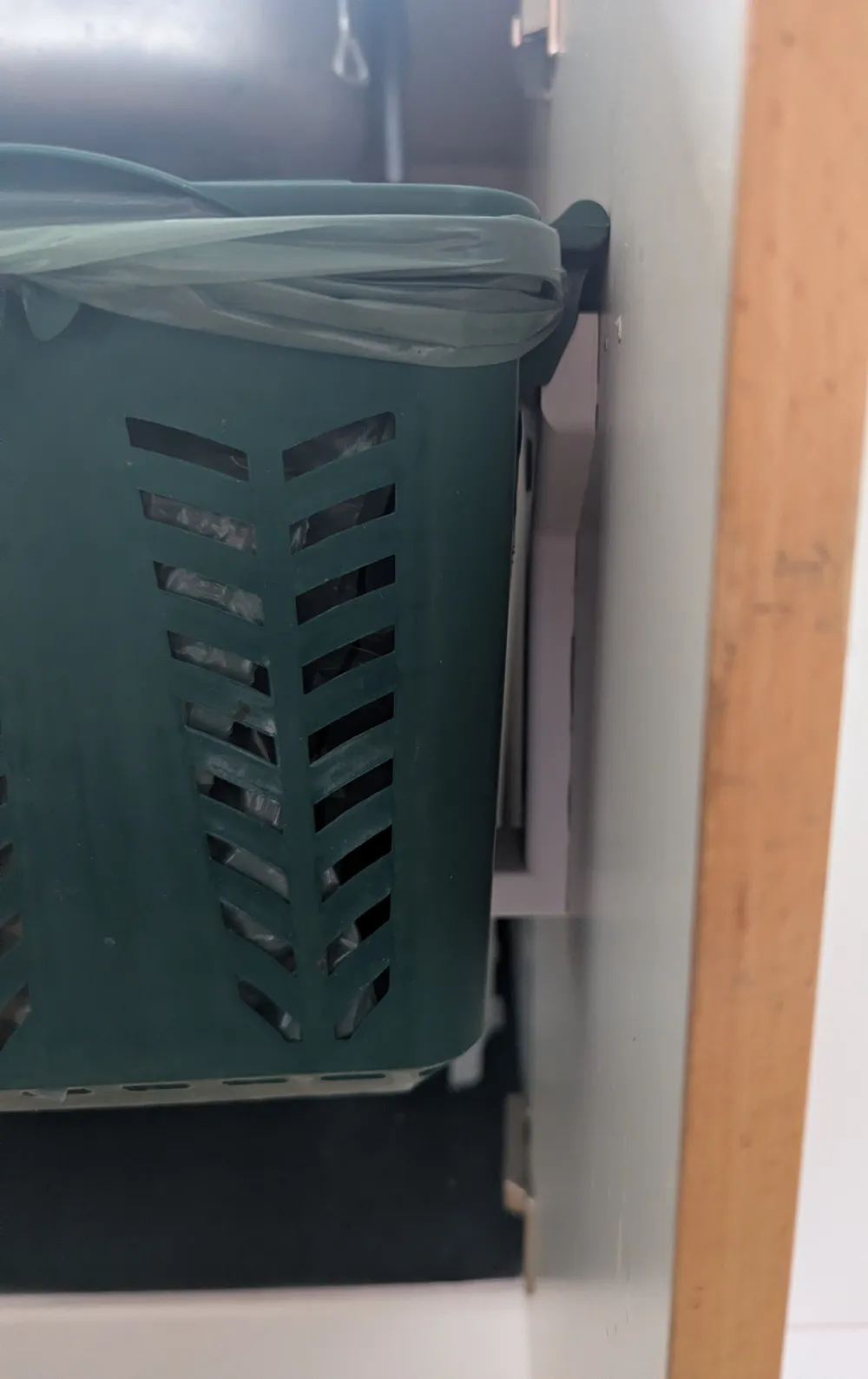

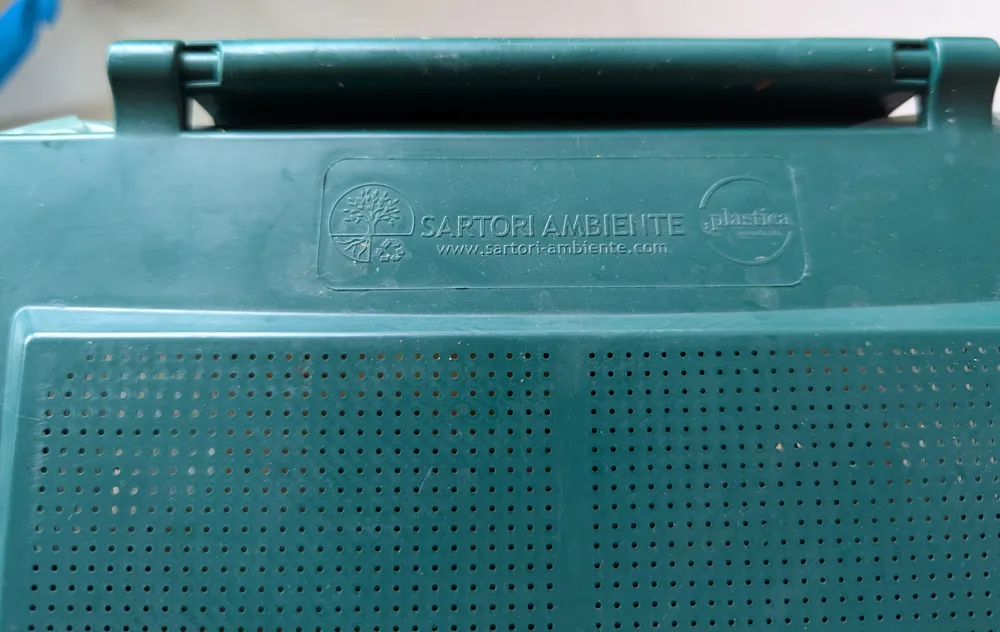

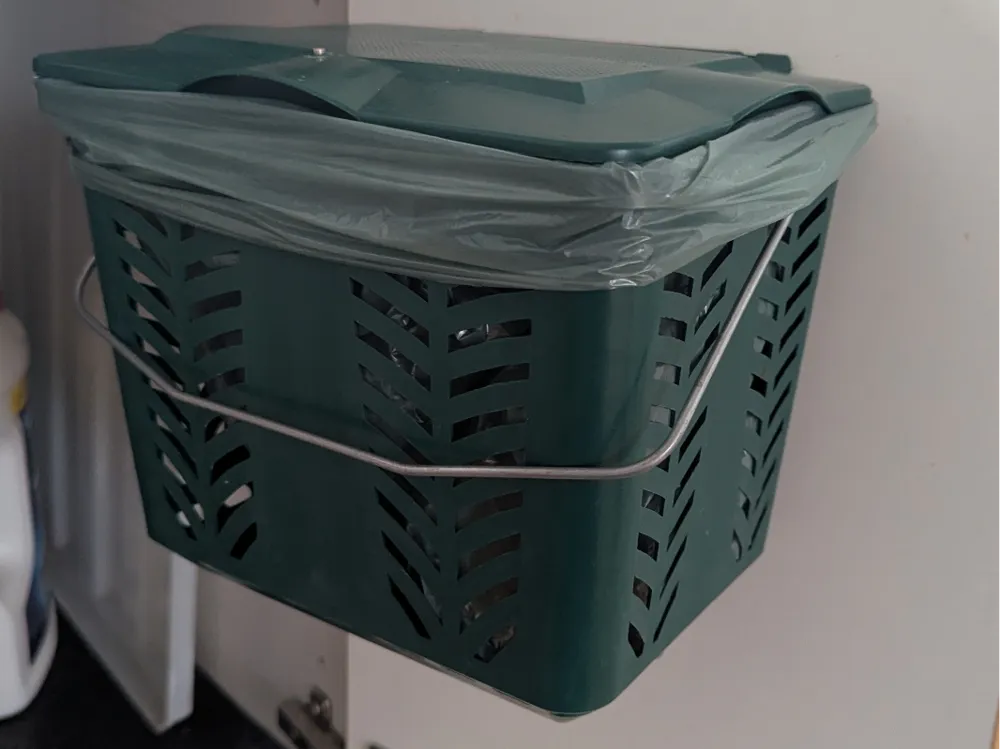

It fits the green bio trashbin from "sartori ambiente" (see the pictures).

PS: I have glued a small magnet to the top of the lid, so it stays open.
