AiO House enclosure piping

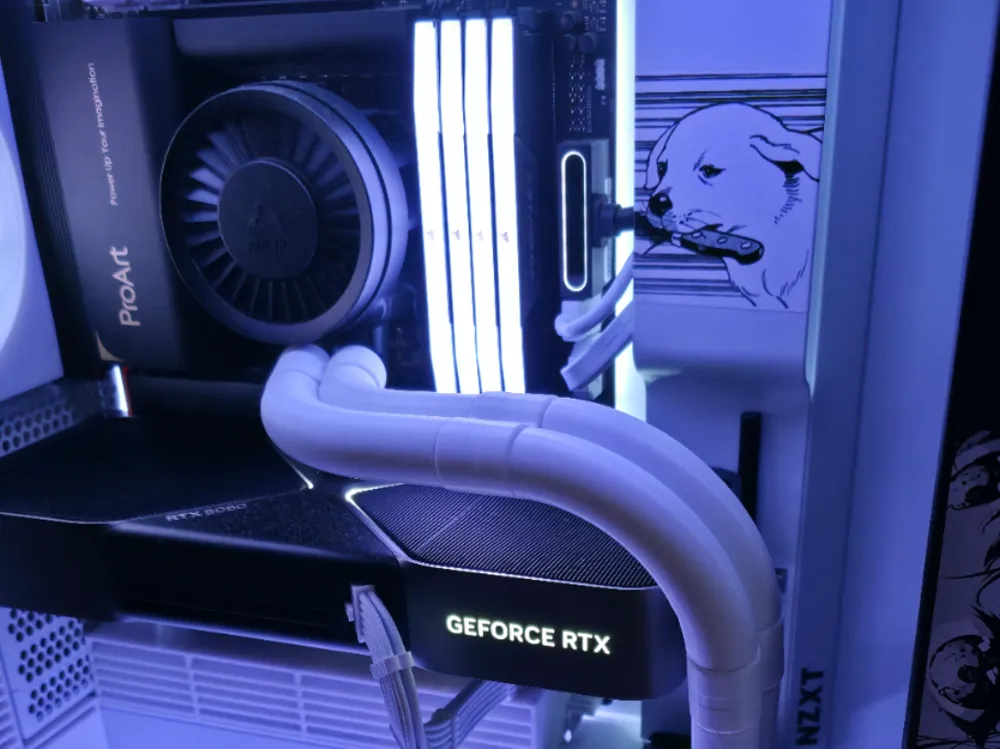

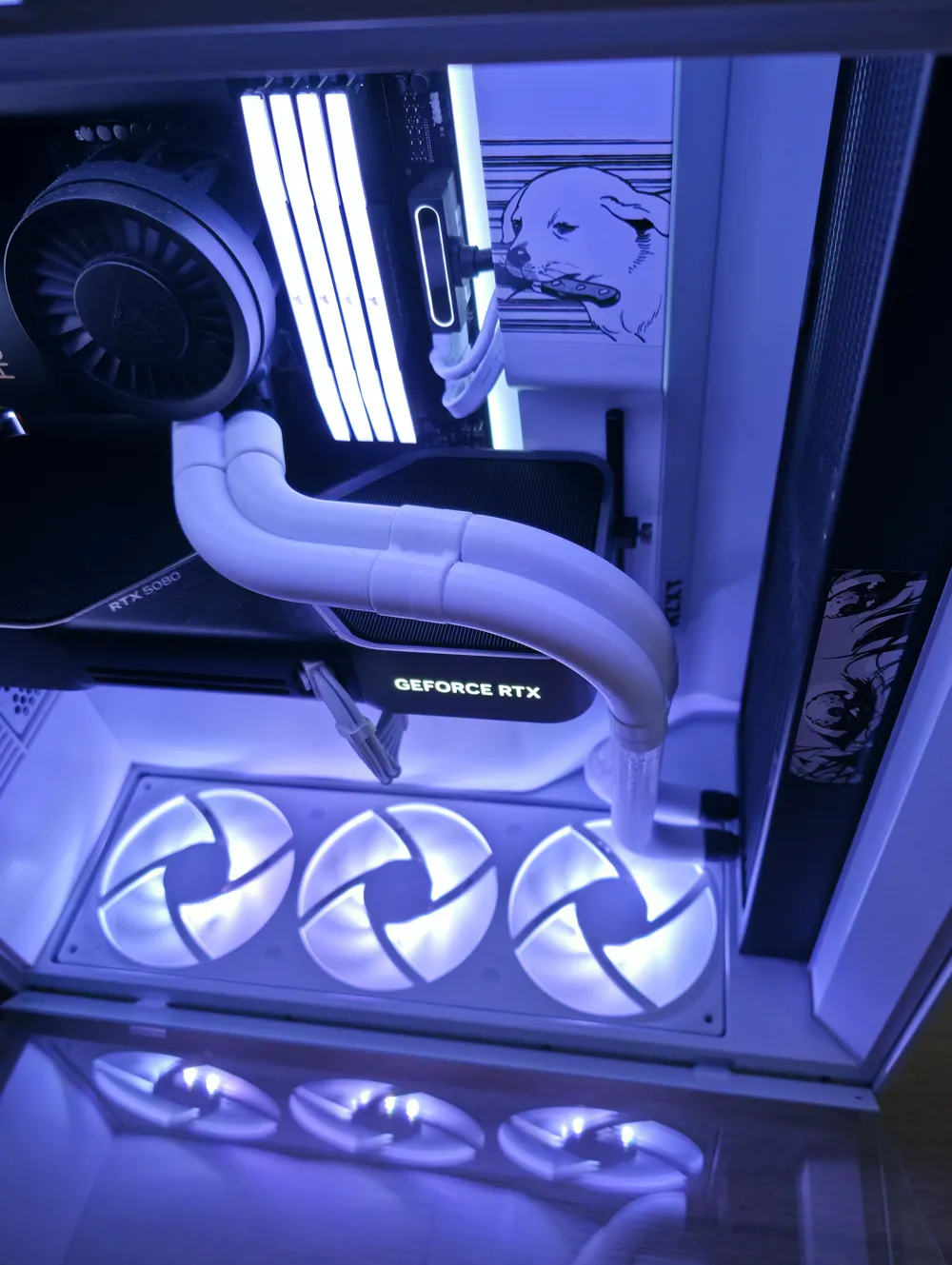

This hard-piping system neatly routes your AiO hoses from the CPU to the vertically mounted Arctic Liquid Freezer 3 420mm radiator inside the NZXT H7 case. The interlocking components cover the soft hoses, acting as a heat shield and routing channel. The design minimizes bends to prevent kinking and provides clearance from other components. Once assembled, the pieces are hidden, creating the appearance of two hard lines secured by three straps without additional hardware or bracing.

I made it specifically specifically for my build because there is nothing else out there like it for AiOs out there… so this checks my boxes for functionality, form, and function. At the moment, this design is semi-modular and can be tweaked for other offsets in skilled hands, but I plan to make it fully modular and adaptable to any case in the future.

Please feel free to adapt it to your build and share your ideas on how I can make it better for everyone!
