🎶 Golden Tune Jukebox – 3D Printable Enclosure

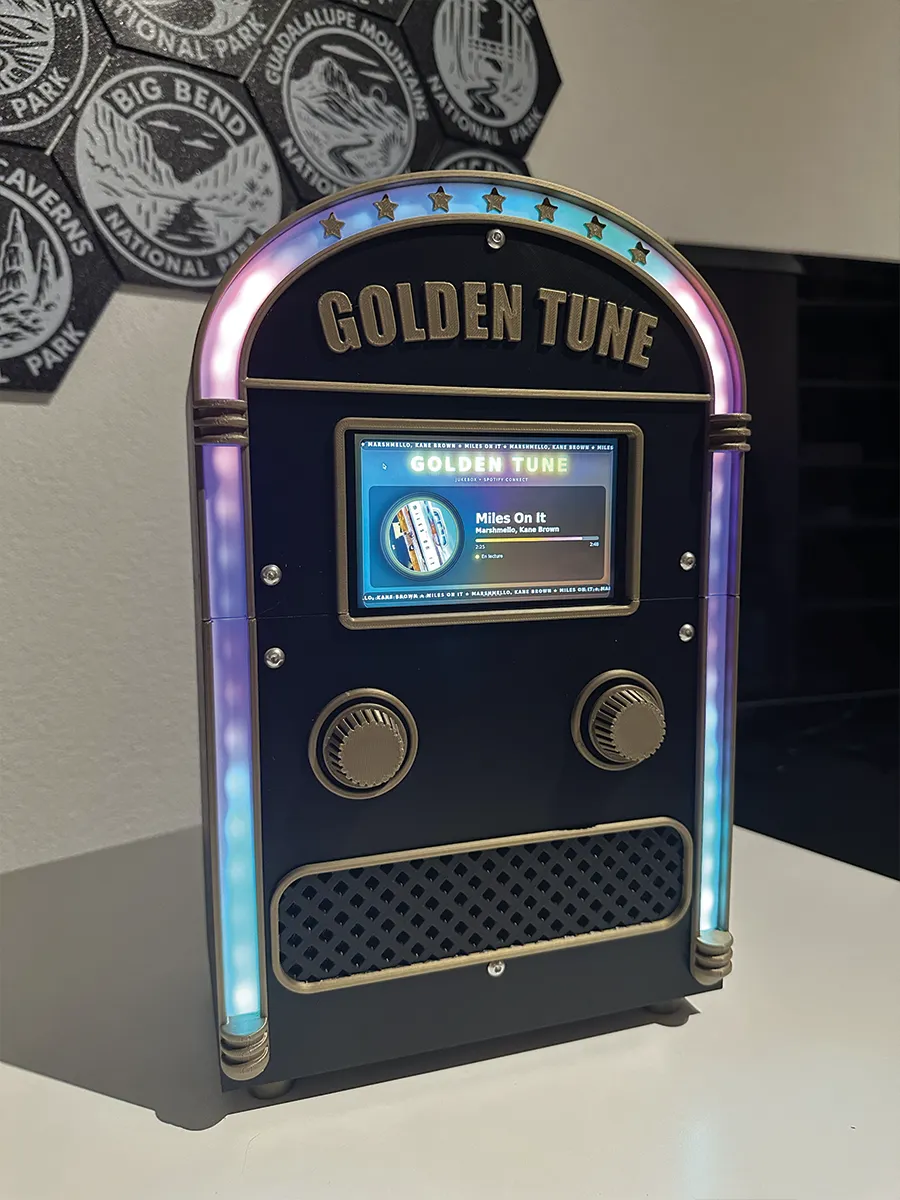

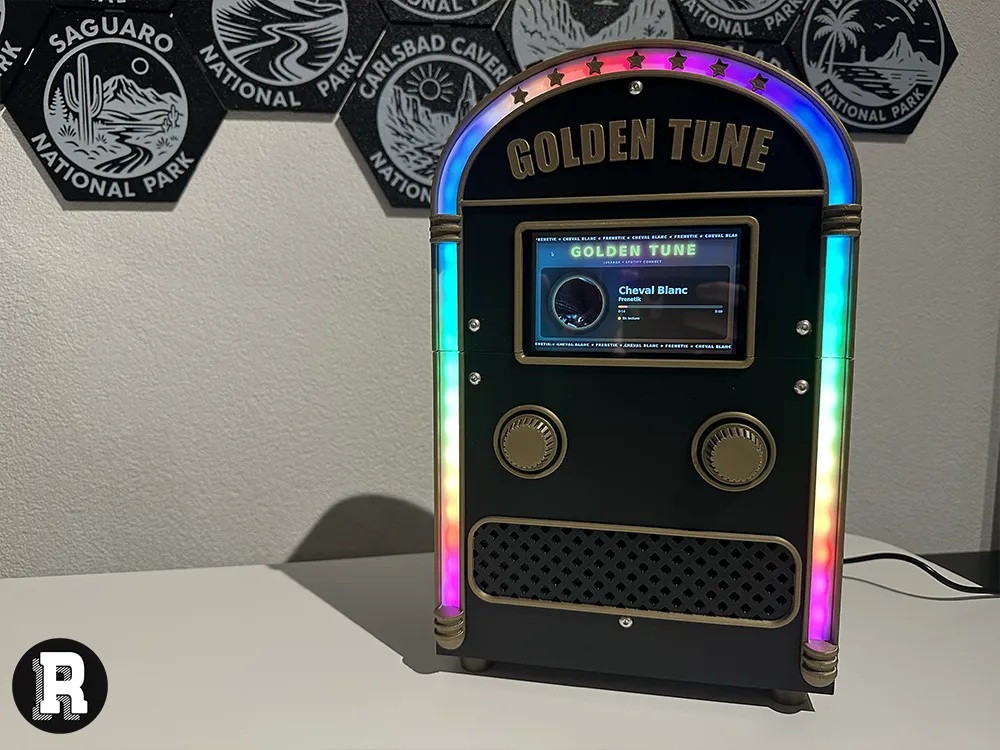

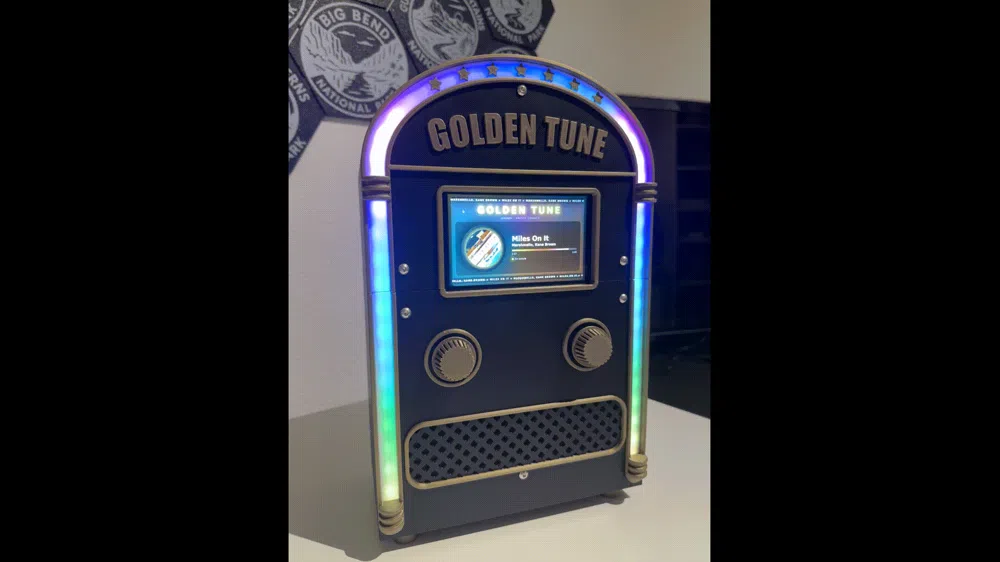

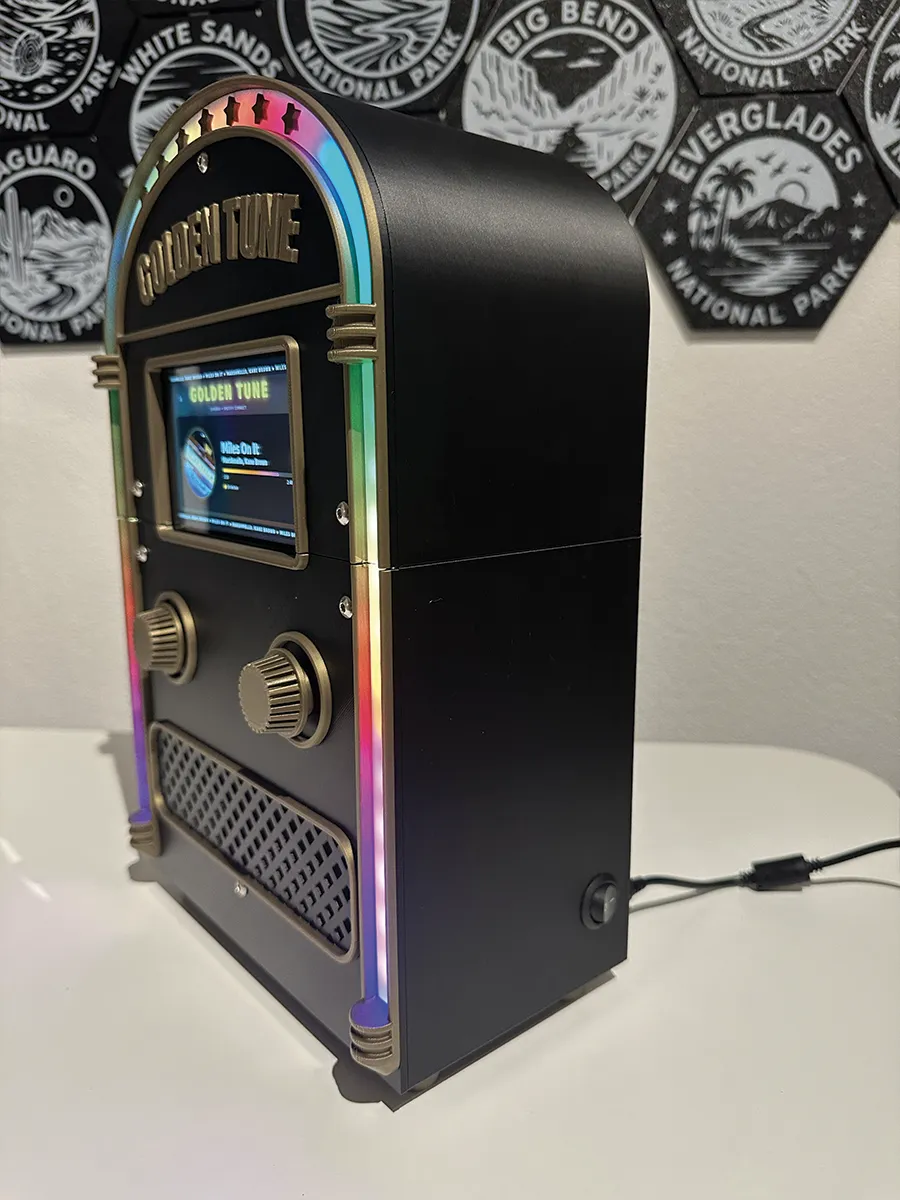

Golden Tune is a custom-designed DIY jukebox enclosure made for a Raspberry Pi–based connected jukebox. It blends a retro-inspired look with modern features like addressable LEDs, a touchscreen display and physical controls. This project is made for makers who enjoy combining 3D printing, electronics and software into a single interactive build.

🧩 What’s inside this model

This enclosure includes custom-designed parts to securely mount:
• Raspberry Pi
• 5” HDMI touchscreen
• USB speaker
• WS2812B addressable LED strip
• Rotary encoder with push button
• Switches and internal wiring

The design focuses on clean cable routing, modularity, and easy assembly, while remaining simple to customize or remix.

🖨️ 3D Printing information

• Designed for standard FDM printers
• PLA or PETG recommended
• No exotic materials required
• Optimized tolerances for home printers

Only the 3D printable parts are included in this download.

🔌 Electronics & Software

Electronics, wiring and software are not included in this model.

Full documentation is available here (for free):
👉 GitHub project: https://github.com/Raphael77777/GoldenTuneJukebox

The GitHub repository contains:
• Bill of materials (shopping list)
• Wiring diagrams
• Raspberry Pi scripts and setup

⚠️ Important – Please read before building

This is not a beginner project.

To successfully build Golden Tune, you should be comfortable with:
• Electronics and wiring
• Raspberry Pi & Linux
• GPIO configuration
• Basic soldering
• Troubleshooting hardware and software

This project is shared as-is. I cannot guarantee compatibility with all hardware variants, and I may not have time to provide individual support. Please build responsibly and at your own risk.

🔧 Customization & Remixing

Feel free to modify, adapt or remix this design for your own project. If you share your version publicly, credit is appreciated 🙏

📸 Share your build

If you print and build Golden Tune:
• Upload photos
• Share your setup
• Inspire other makers

Seeing real builds is always motivating!

❤️ Final note

Golden Tune is shared for learning, creativity and fun. Take your time, read the documentation carefully, and enjoy the build process. Happy printing & building! 🛠️🎶
