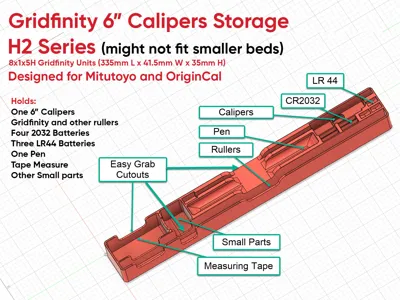

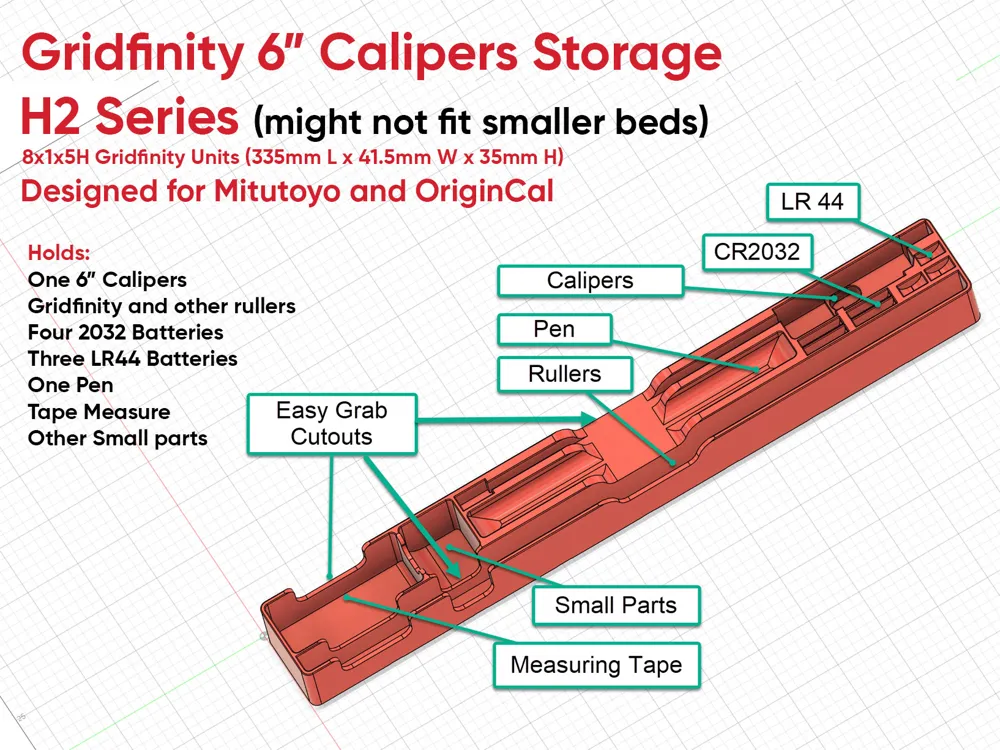

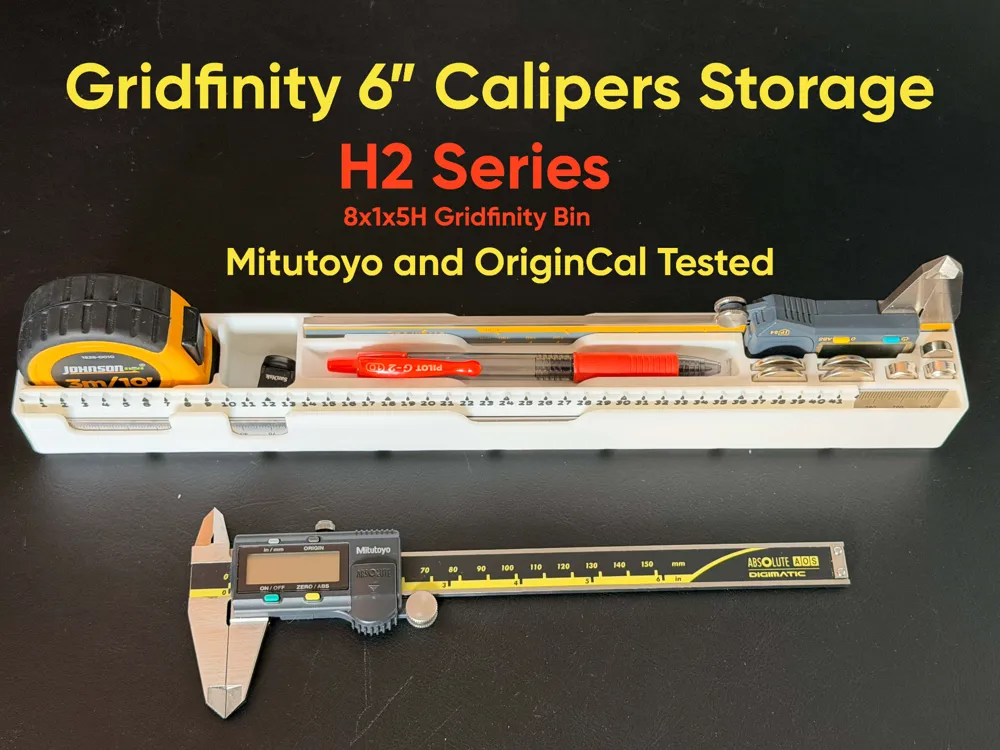

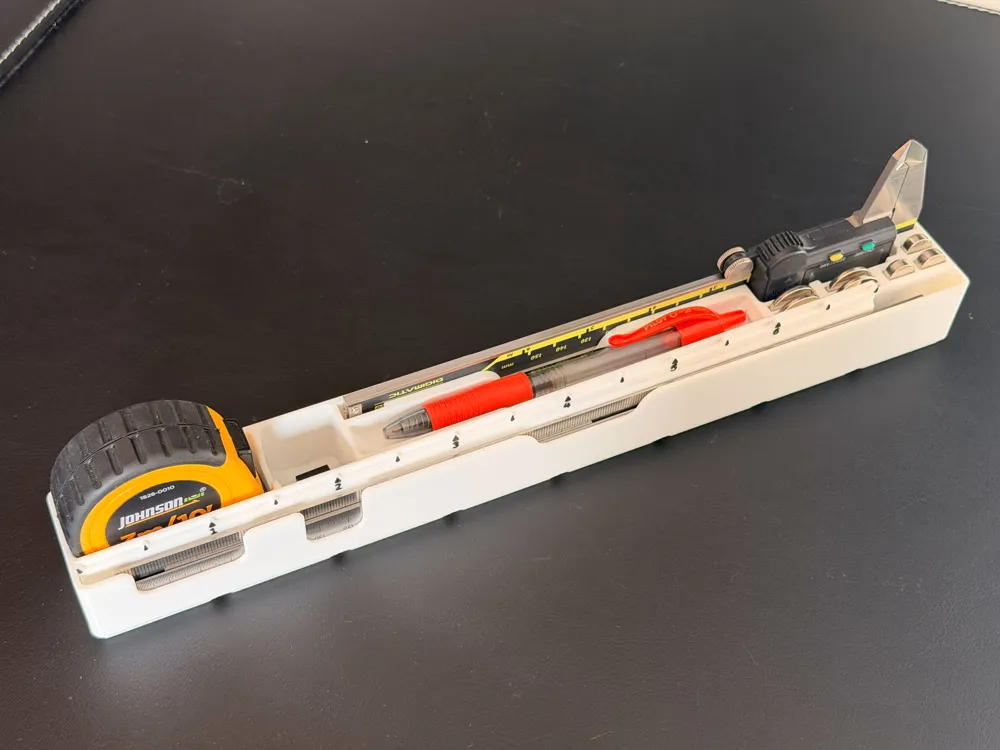

Gridfinity Calipers and Accessories Holder

Designed for Mitutoyo and OriginCal 6in Calipers

8x1x5H Gridfinity Units (335mm L x 41.5mm W x 35mm H)

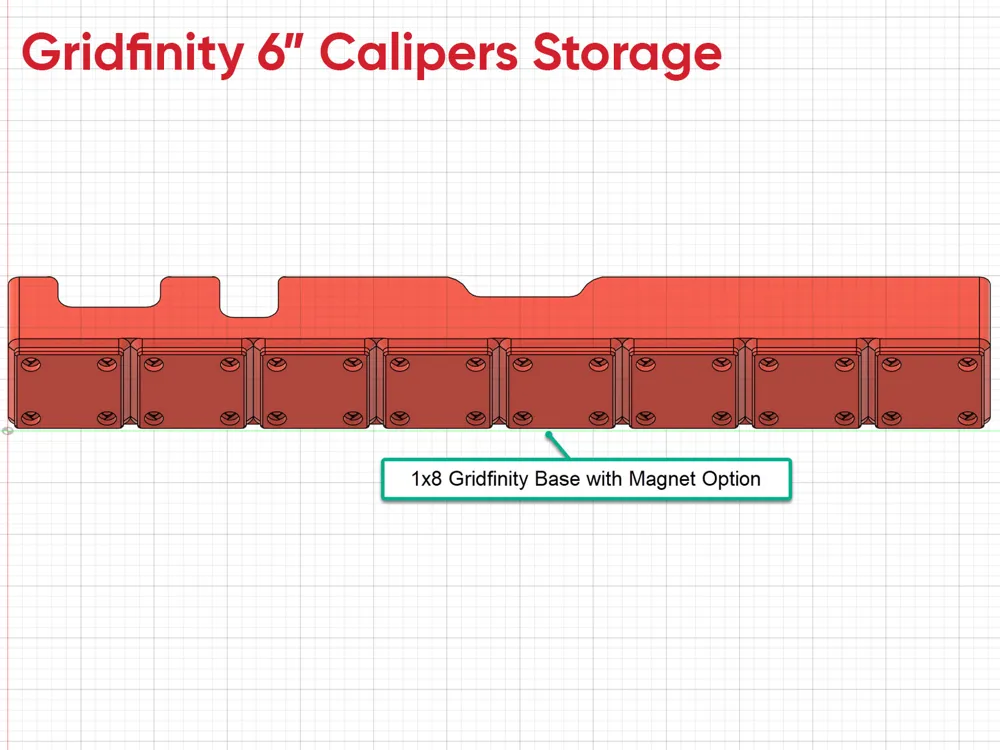

I wanted to keep several measuring tools at hand together in an IKEA Alex Drawer. Could not find a desing that would make use of the most space, so I designed my own. The gridfinity base has magnet and screw hole options.

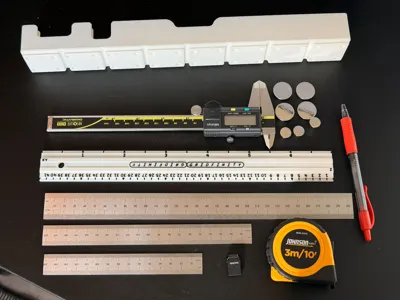

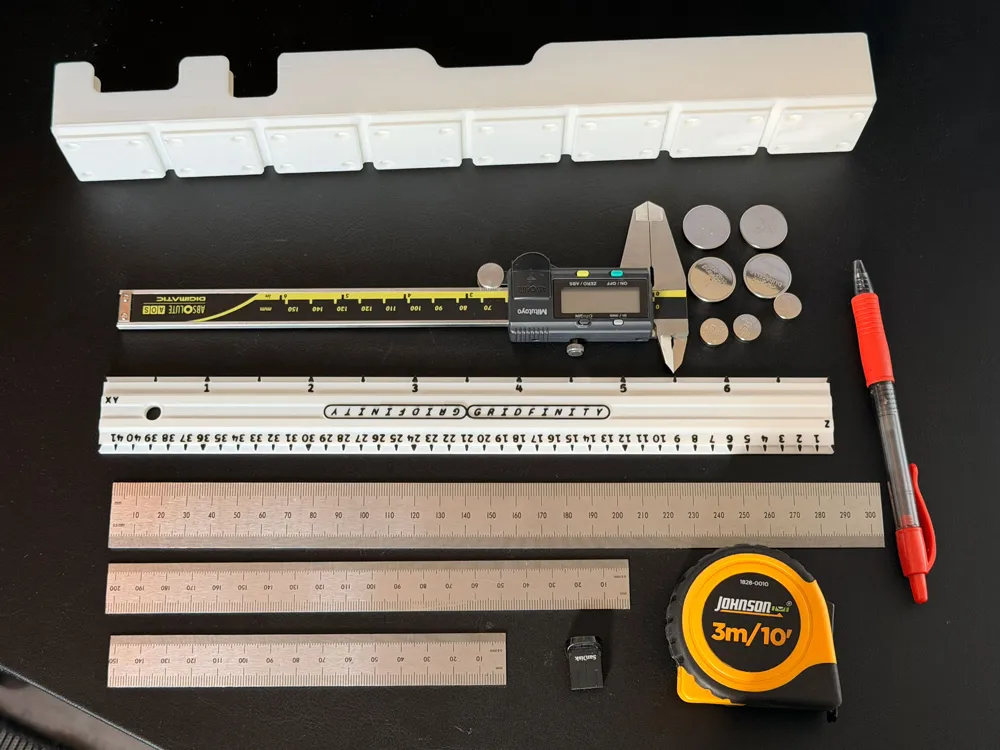

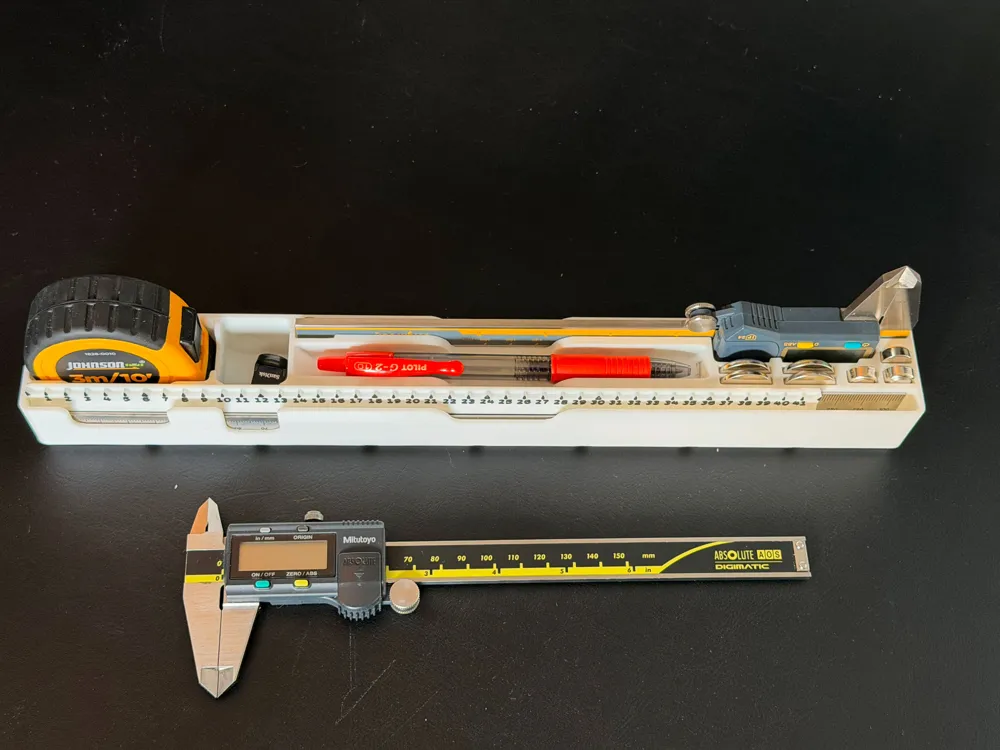

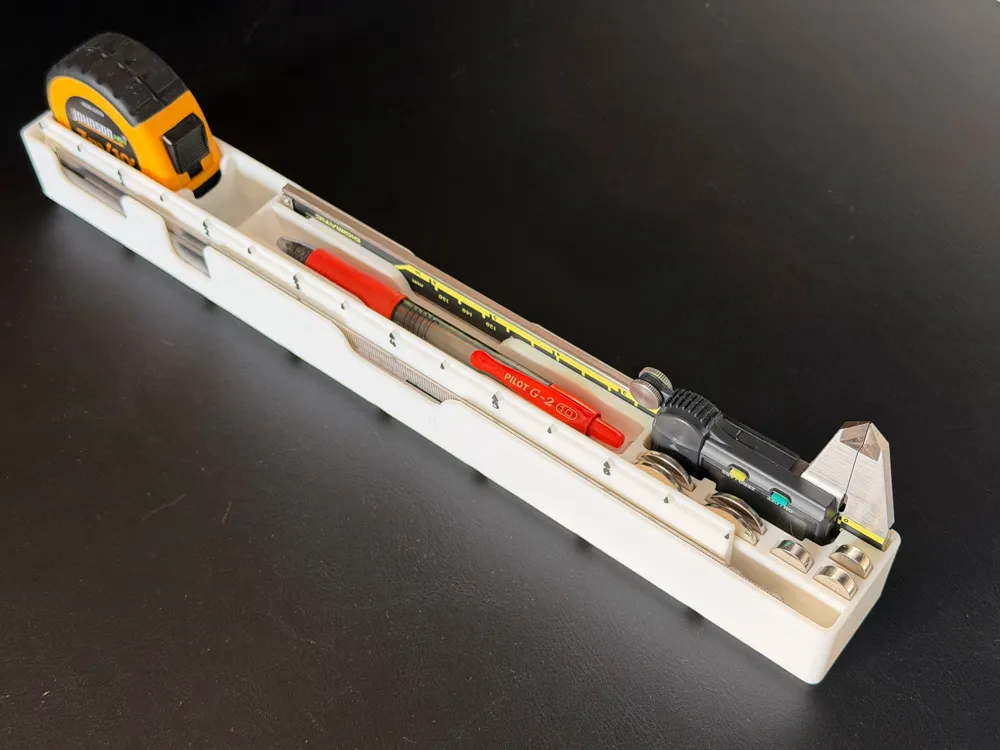

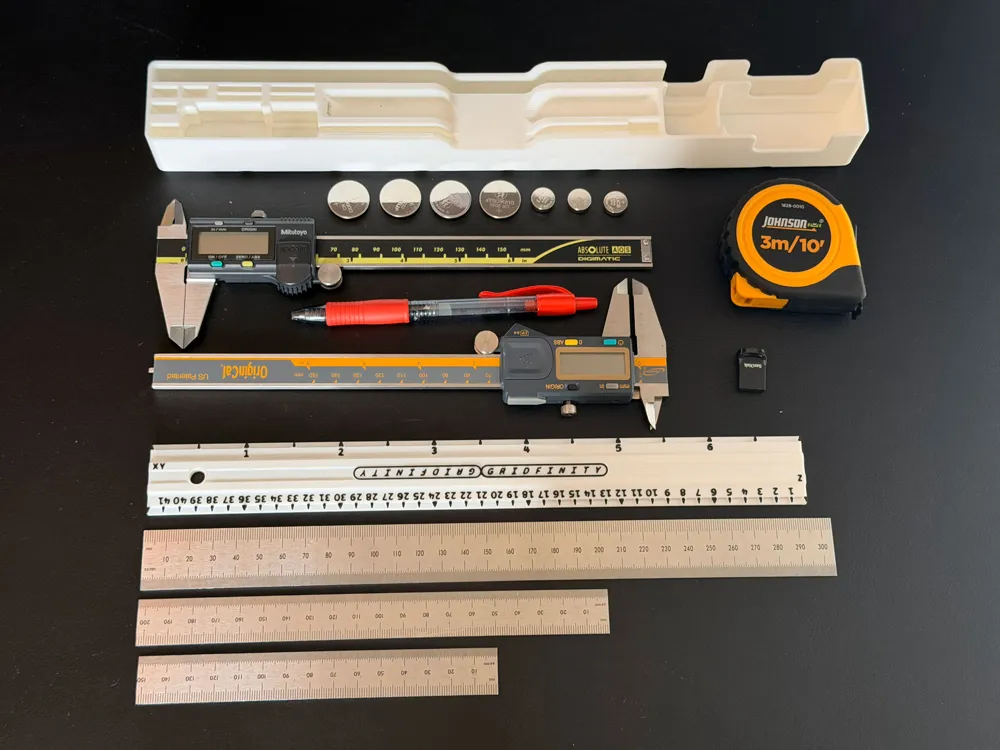

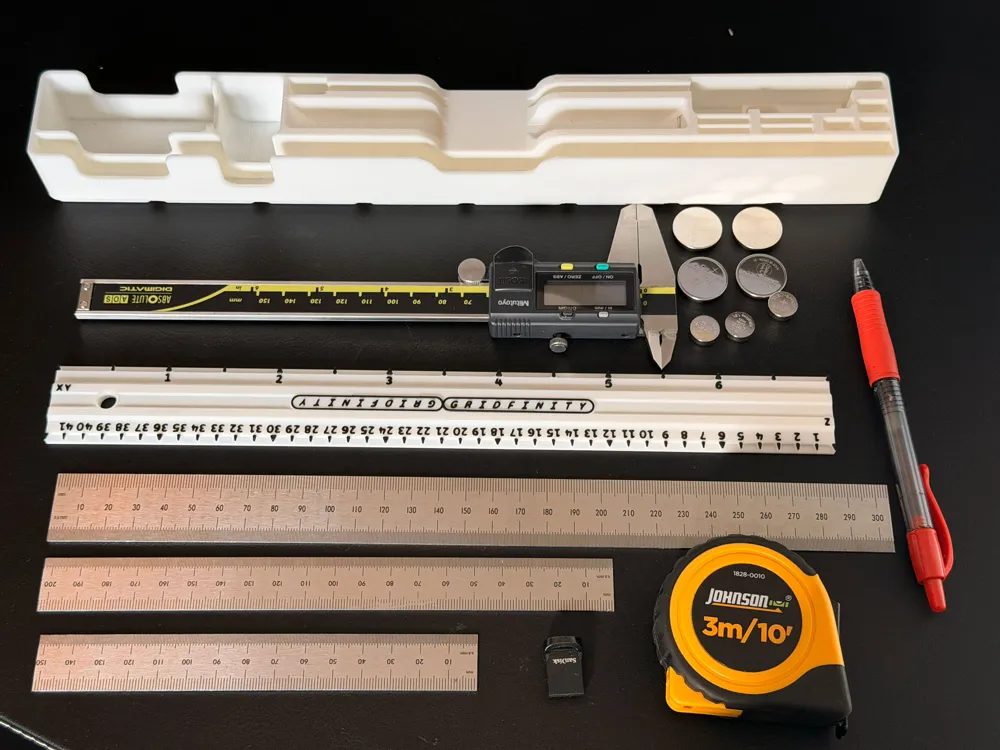

Holds:

One 6” Calipers
Gridfinity Ruler (units or smaller)
Three-Four Metal Rulers
Pen
Four CR2032 Batteries
Three LR44 Batteries
Tape Measure
A compartment for small parts

I designed it with some tolerances in mind, so it might fit other brands of calipers.

I printed it on an H2D as it fits diagonally on the bed. I have no smaller version for smaller beds. I assume it will fit perfectly on a H2D Pro, H2S, or H2C.

0.4 nozzle
0.2 layer height
2 walls
10% Gyroid infill

No support, no brim.

Uses about 122g filament and prints in about 3h using standard settings for PLA.

The Machnist Rullers that I store here (except the bigger one): https://amzn.to/4oXsyc5
The Metric/Standard Measuring Tape I designed the slot for: https://amzn.to/4p5fYqZ

The above are Amazon affiliates links.

Comment & Rating (7)

@user_1375573664

Print Profile

H2 Series 0.2mm layer, 2 walls, 10% infill Gyroid

Piece printed fine. I wound up cutting it in Bambu Studio so it would fit on my P1S bed. Worked great!

@Bobandy88

I am new to using bambu studio I see you can cut horizontal how does someone change it to vertical

@Dracos_Ice

Replying to @Bobandy88 :

After selecting the cut tool you can select the rotate tool and change the cut area to any angle that you want.

@ACX.13

Is there a P1S version or a way to cut it in half?

The designer has replied

@SeCeRatOr

Not at the moment, but I'm planning to make a shorter version for just 6 or 7 slots instead of 8.

@user_2905677831

Print Profile

H2 Series 0.2mm layer, 2 walls, 10% infill Gyroid

She's awesome, perfect fit !!!

@user_2566649144

Print Profile

H2 Series 0.2mm layer, 2 walls, 10% infill Gyroid
