Clear Tape Lint Remover
Print Profile(3)
Description
Boost Me (for free)

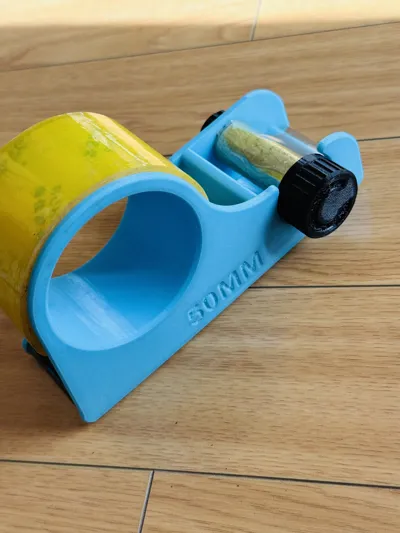

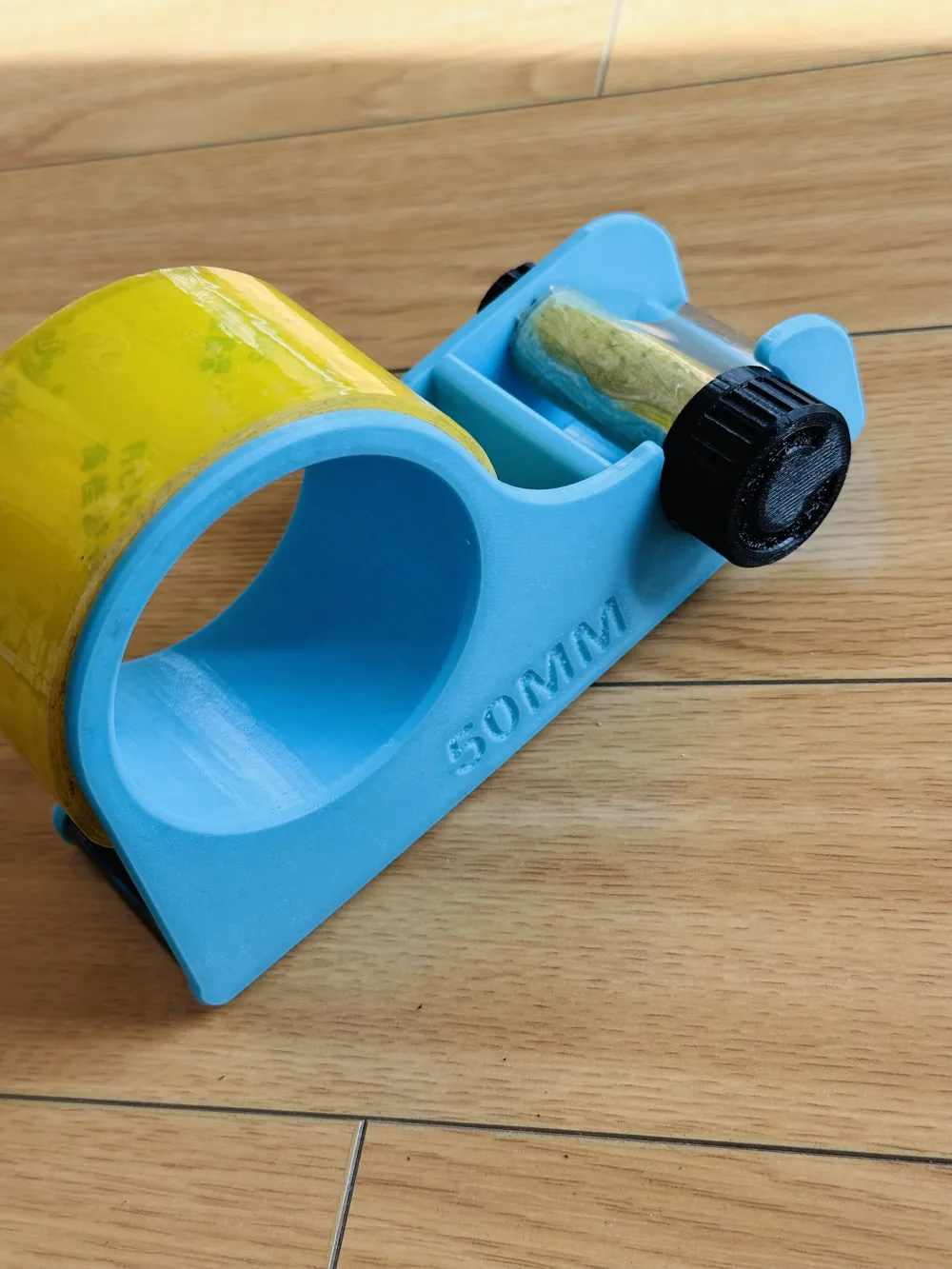

This device solves the awkward situation of finding the tape end after using tape to remove lint,

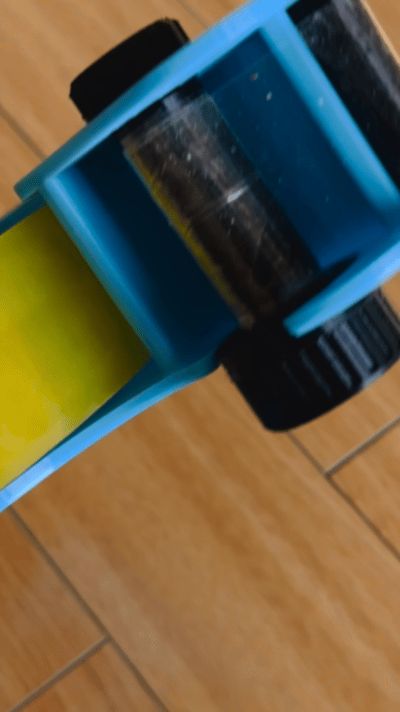

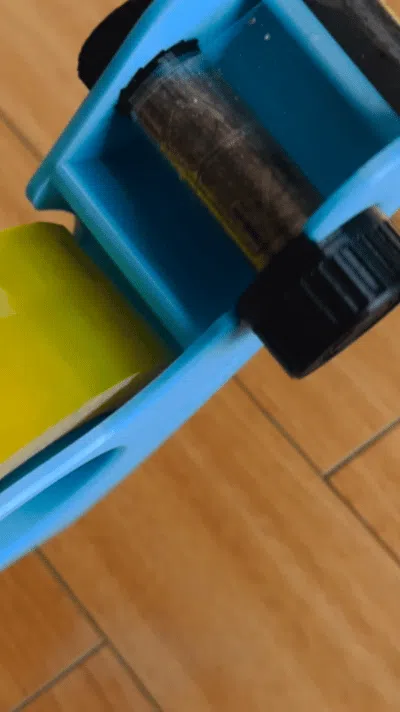

Simply turn the knob to wind the used tape into the storage compartment,
No need to search for the tape end or cut the tape; it saves time and effort, improving efficiency.

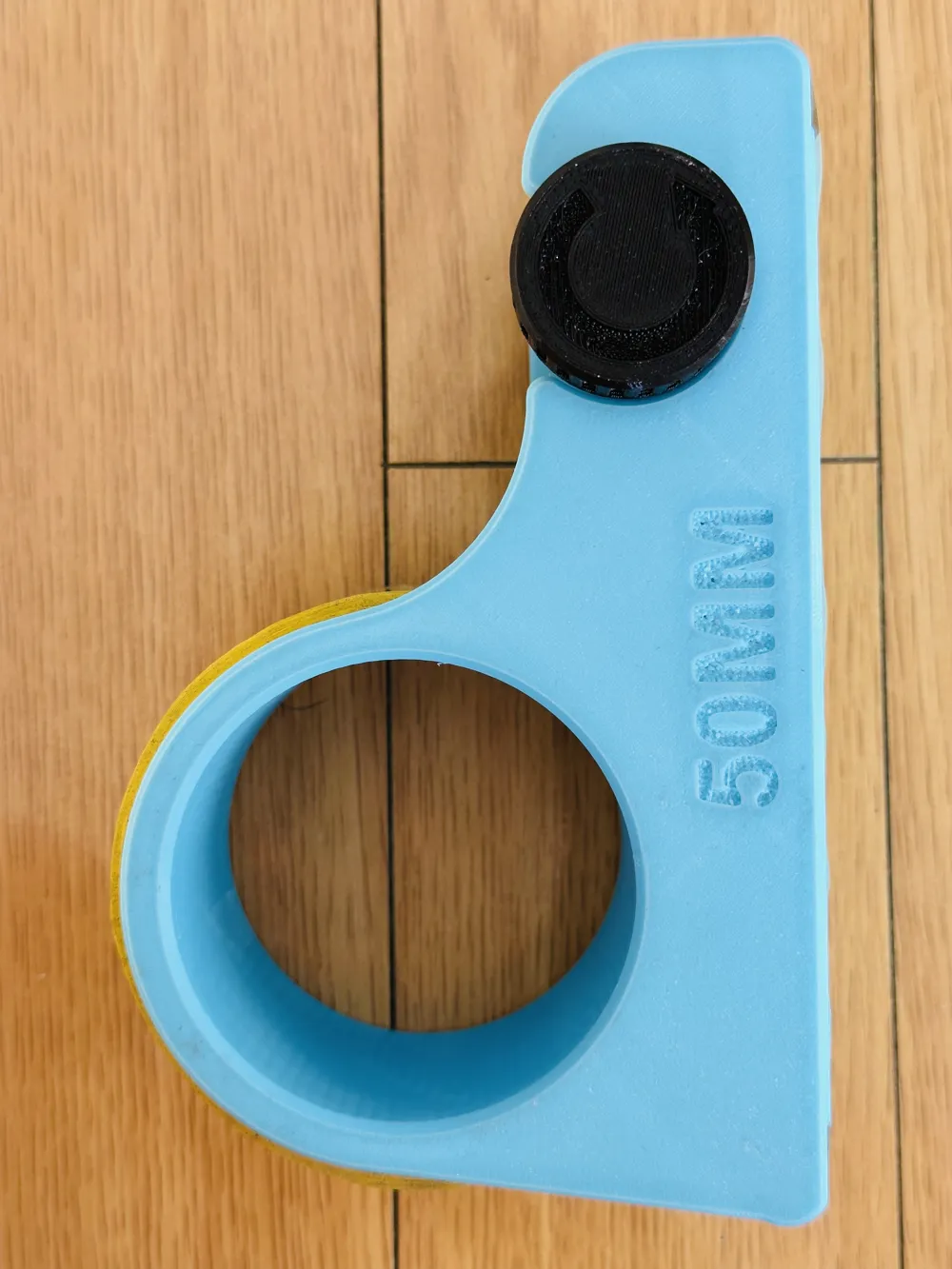

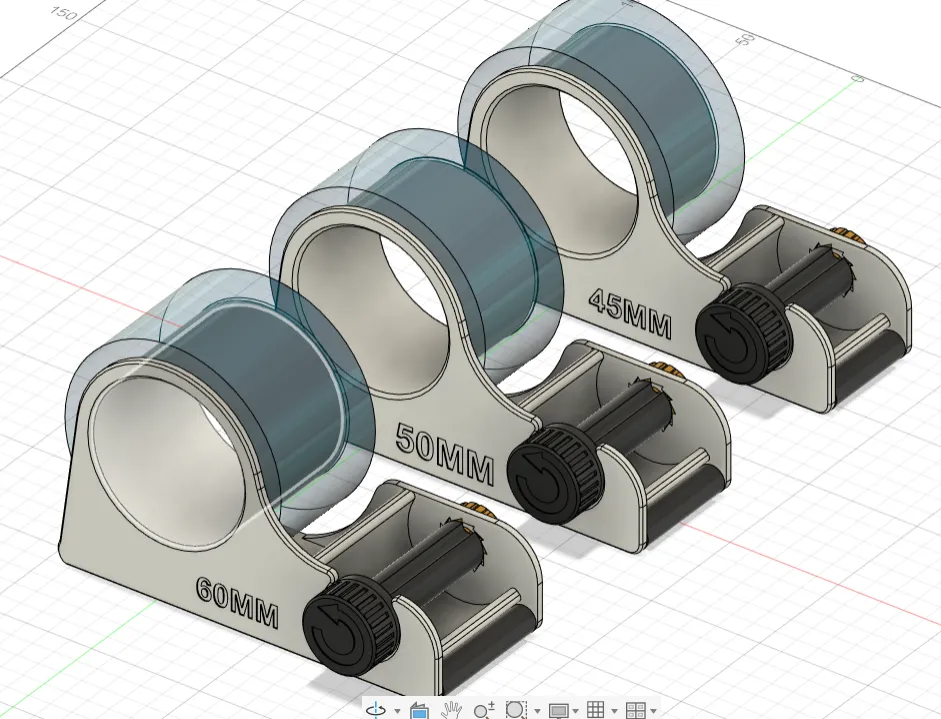

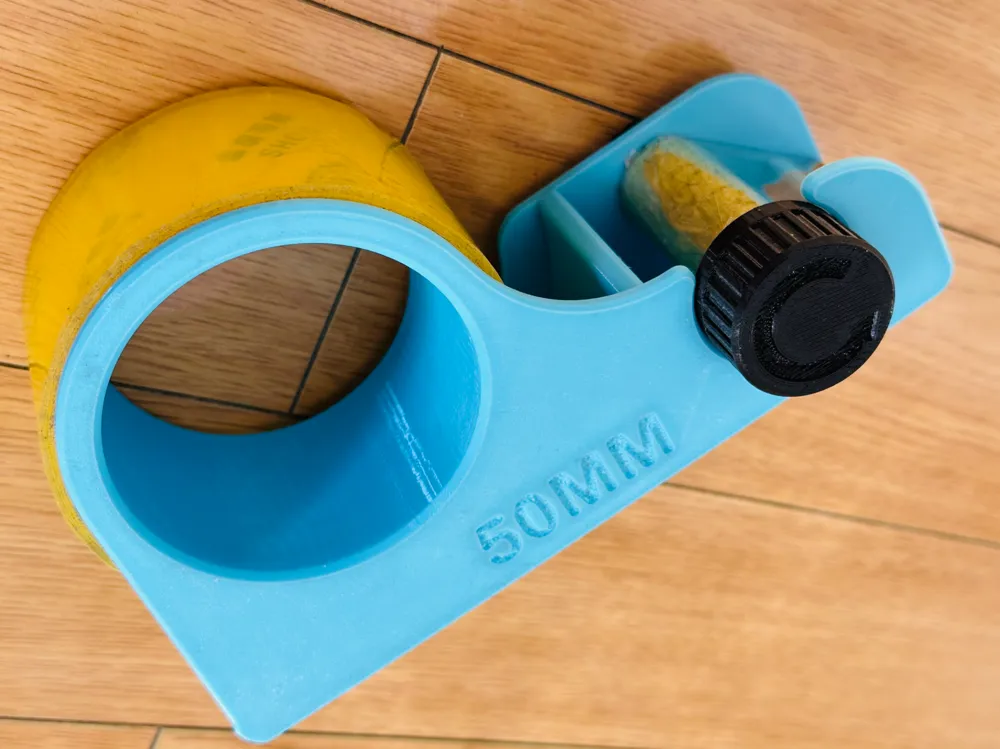

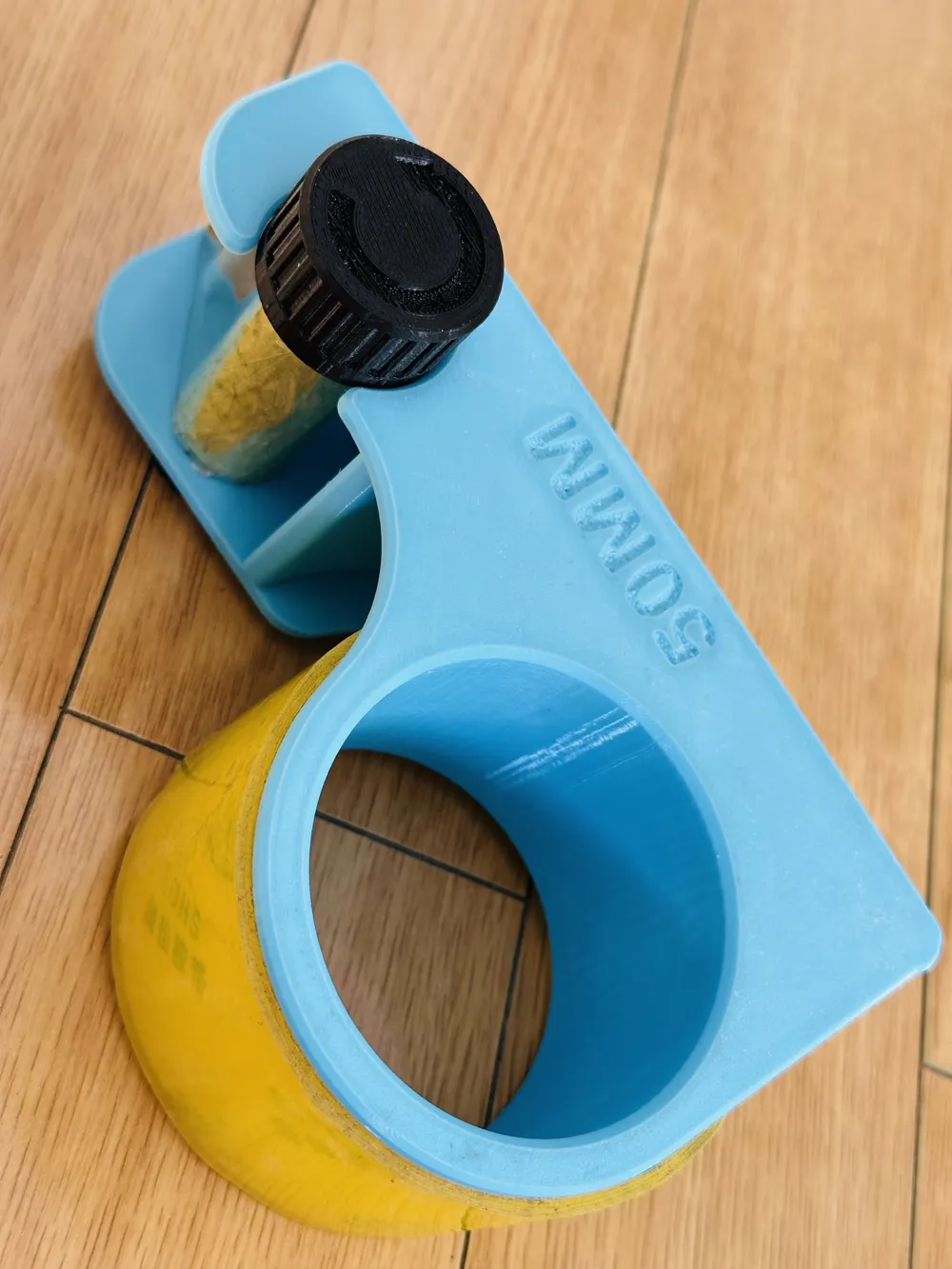

There are 3 tape width sizes: 45MM, 50MM, 60MM.

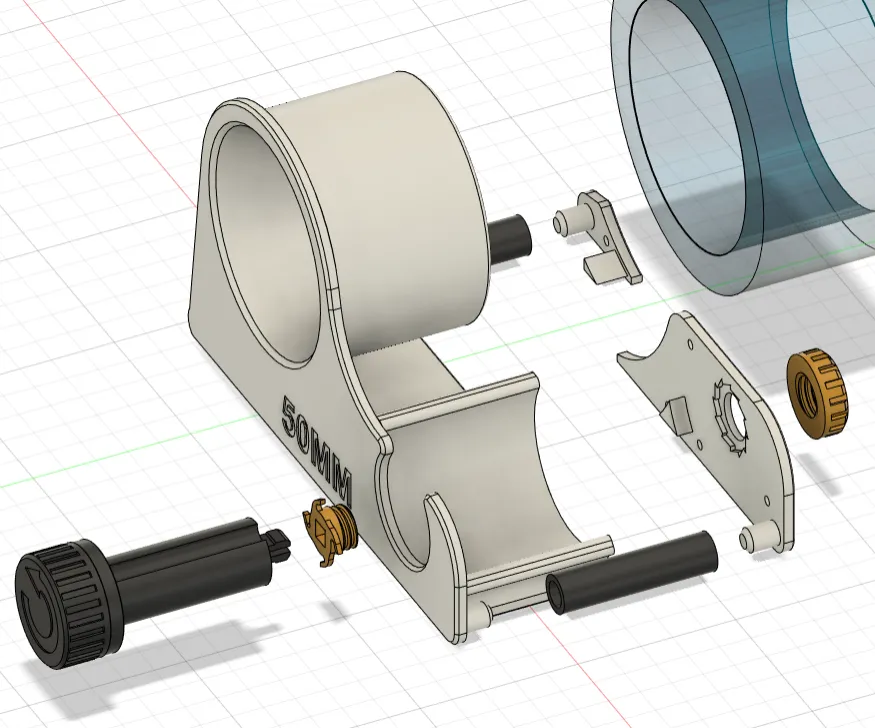

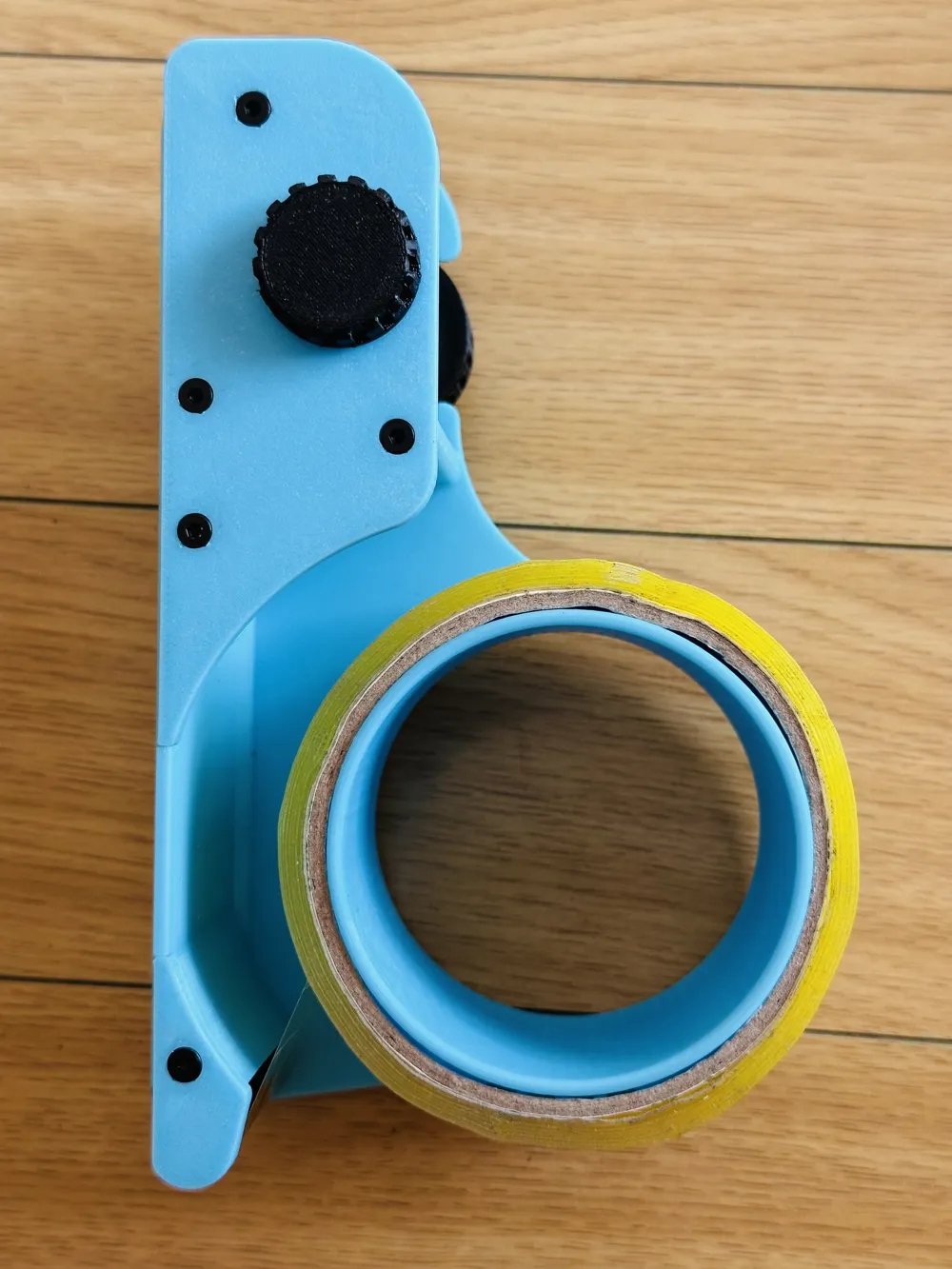

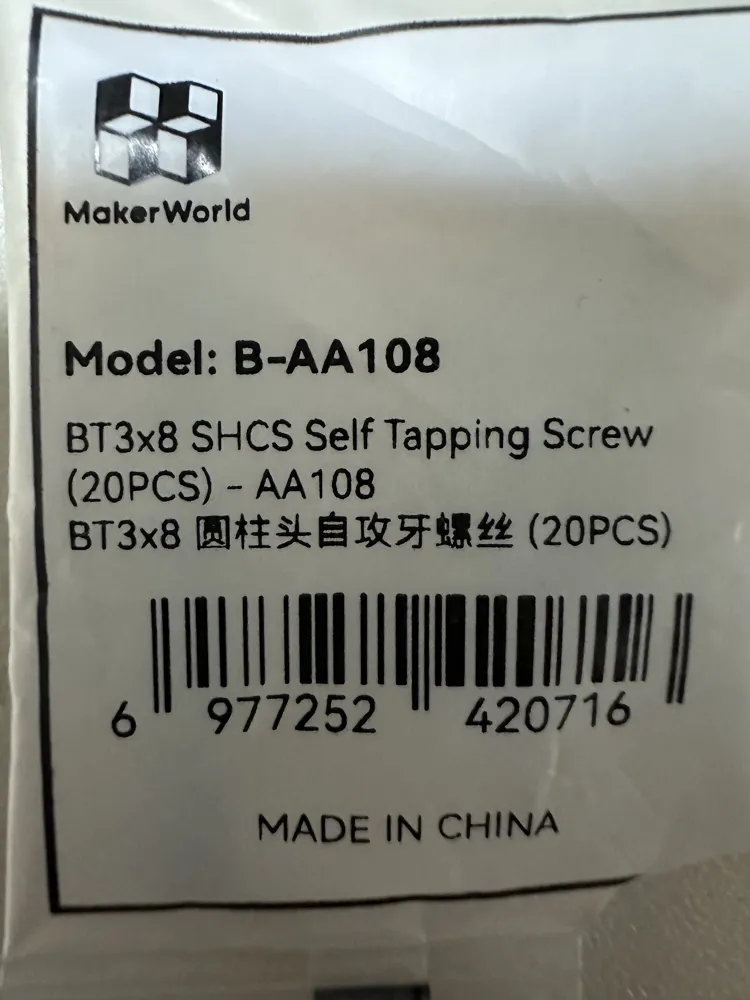

Installation requires 5 BT3*8 self-tapping screws, or a piece of filament can be inserted into the screw hole and fixed with glue.
Note that the insertion direction is not square. If the foot breaks, it can be fixed with glue.

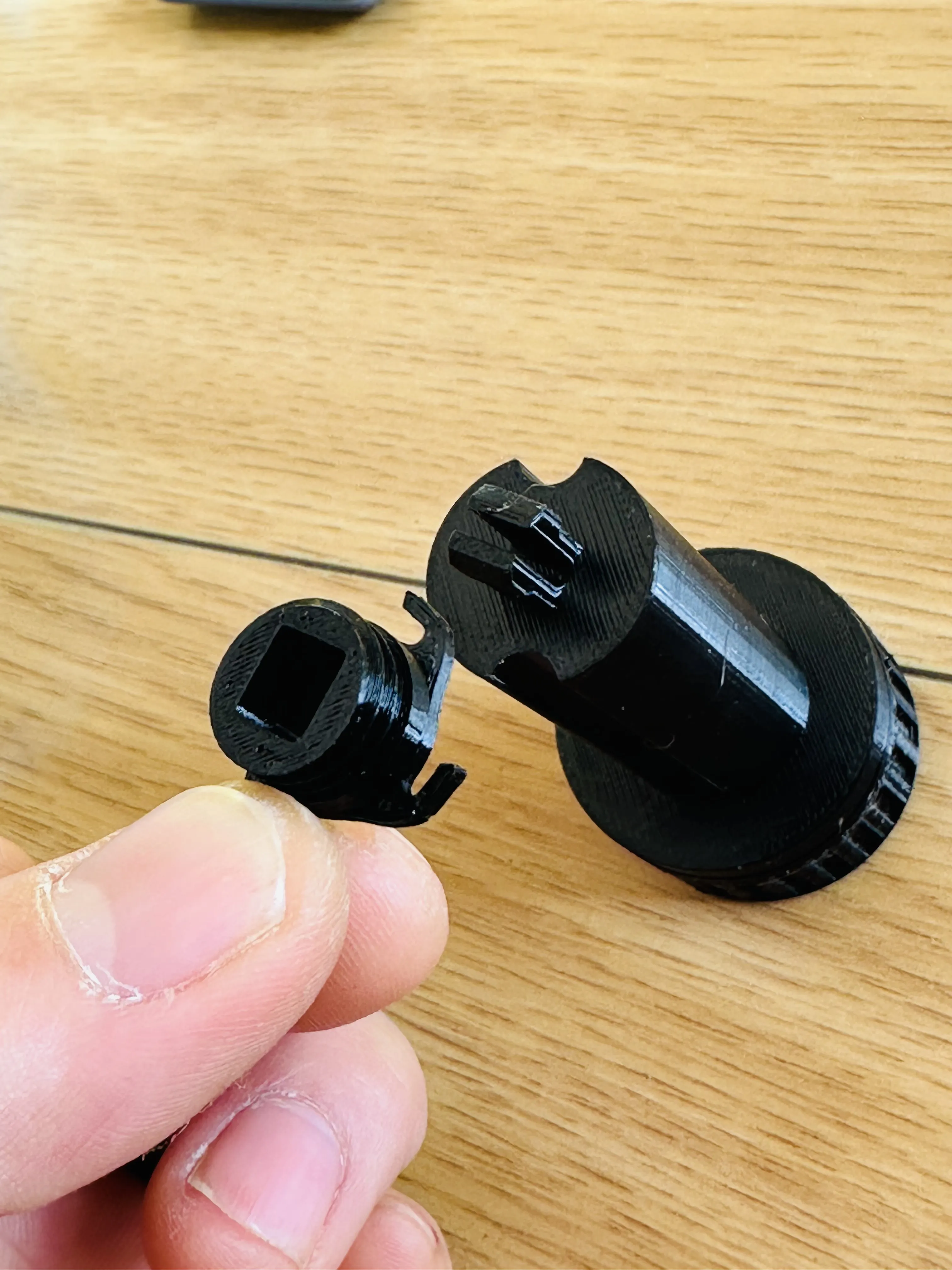

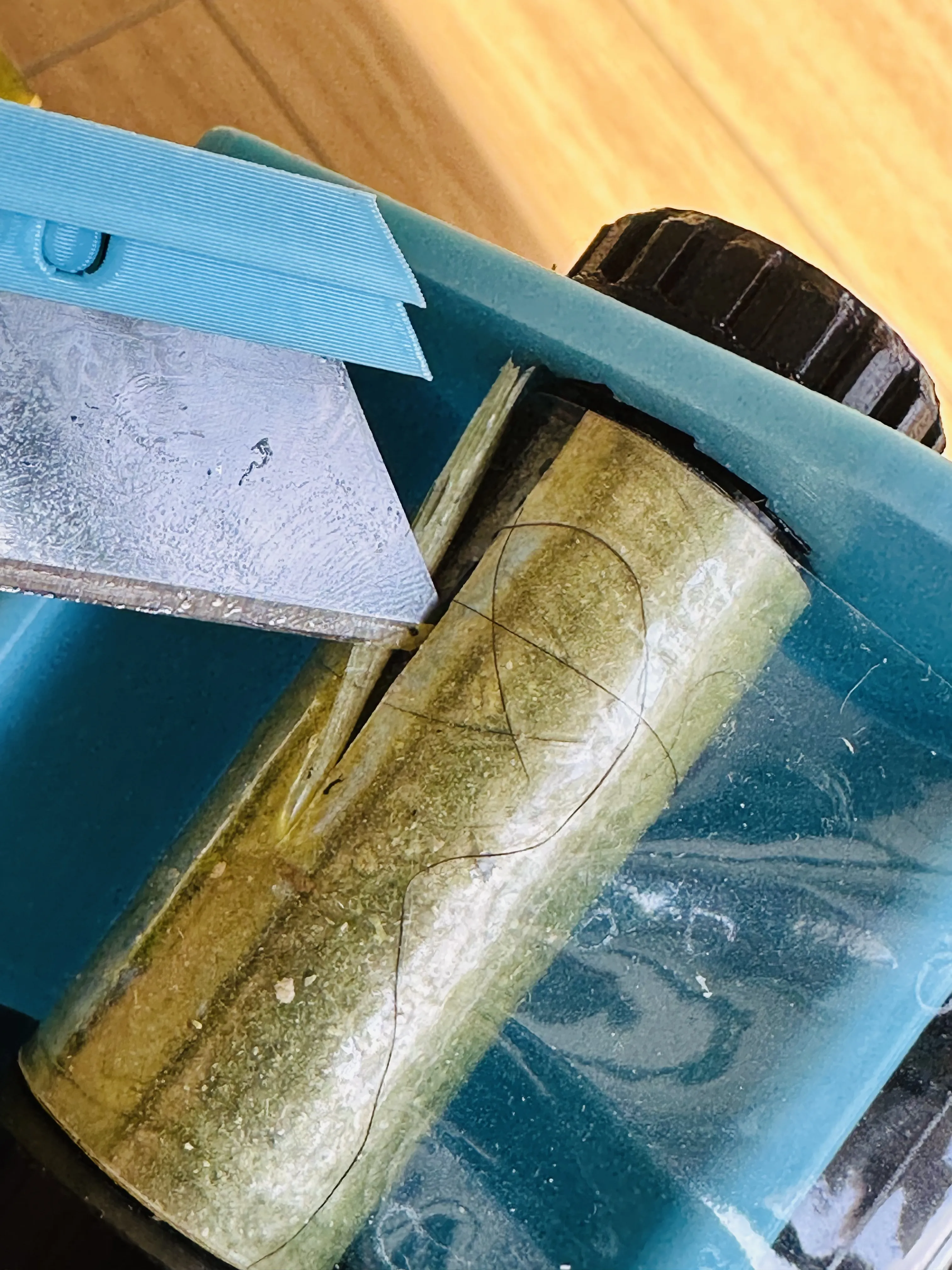

The used tape can be removed with a knife or scissors. A groove is reserved for easy removal. To use scissors, the shaft needs to be removed.

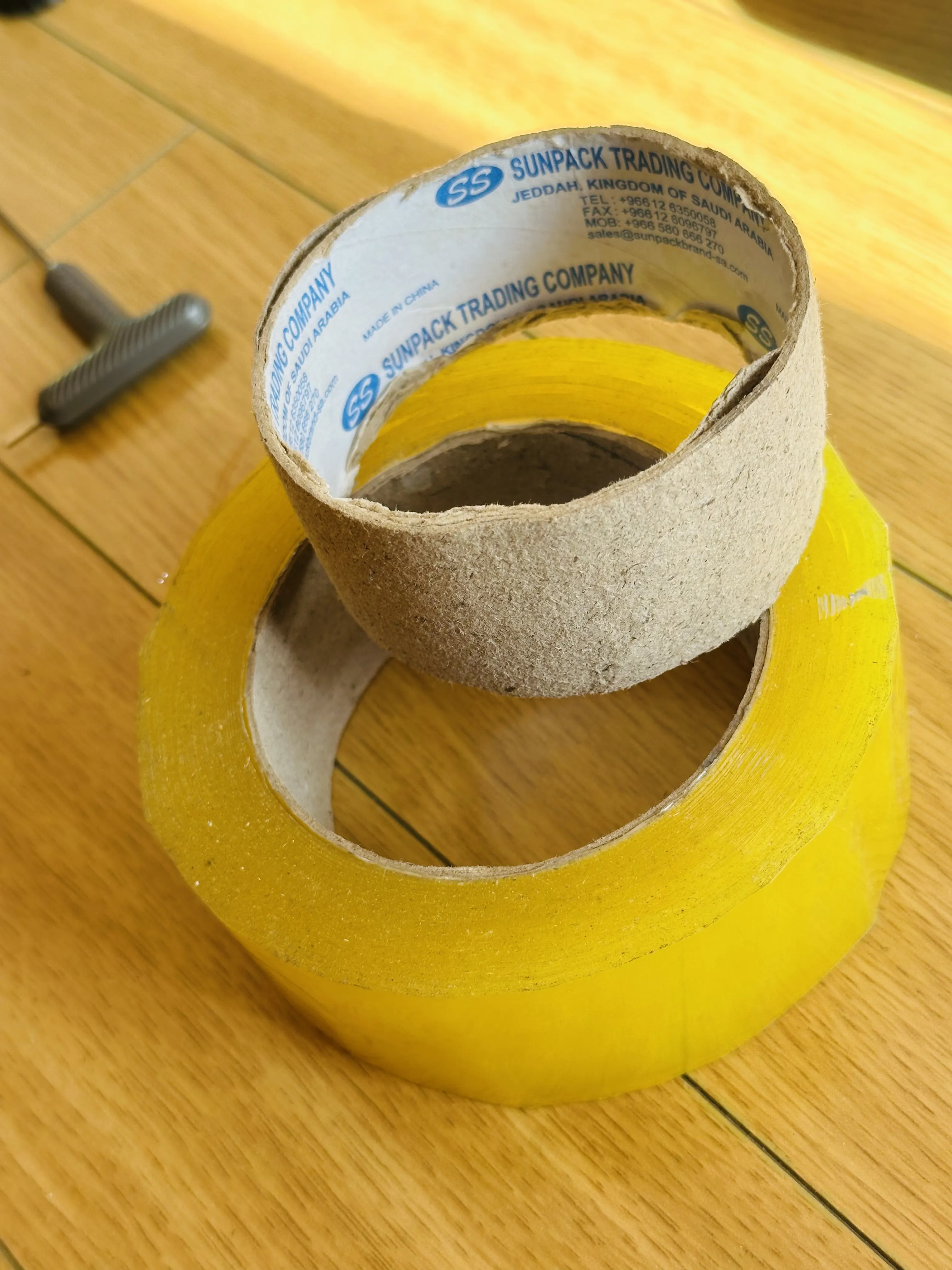

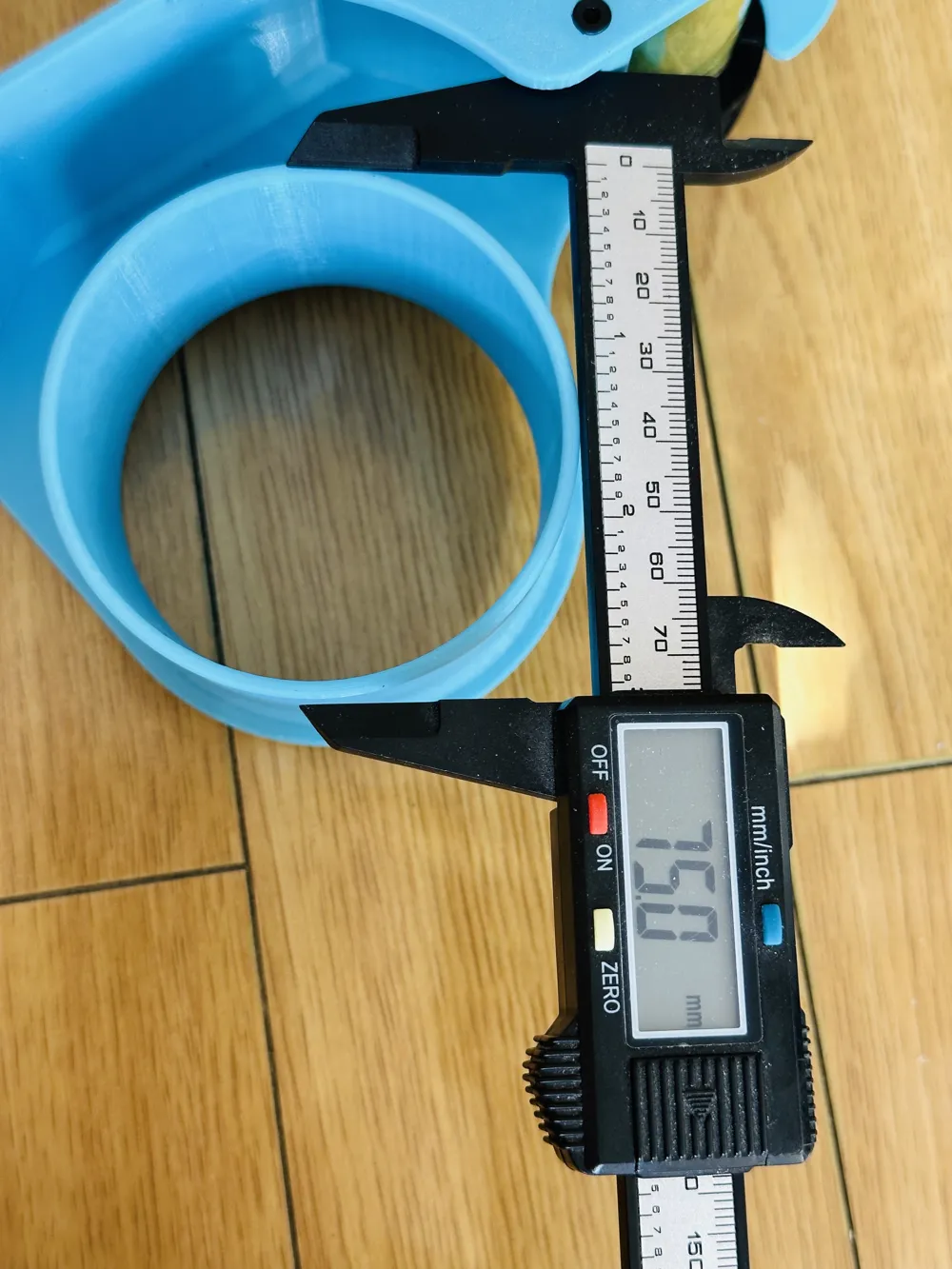

The diameter of the tape core must not be less than 75MM; otherwise, a part of the core needs to be cut out as shown, or contact me for modification.

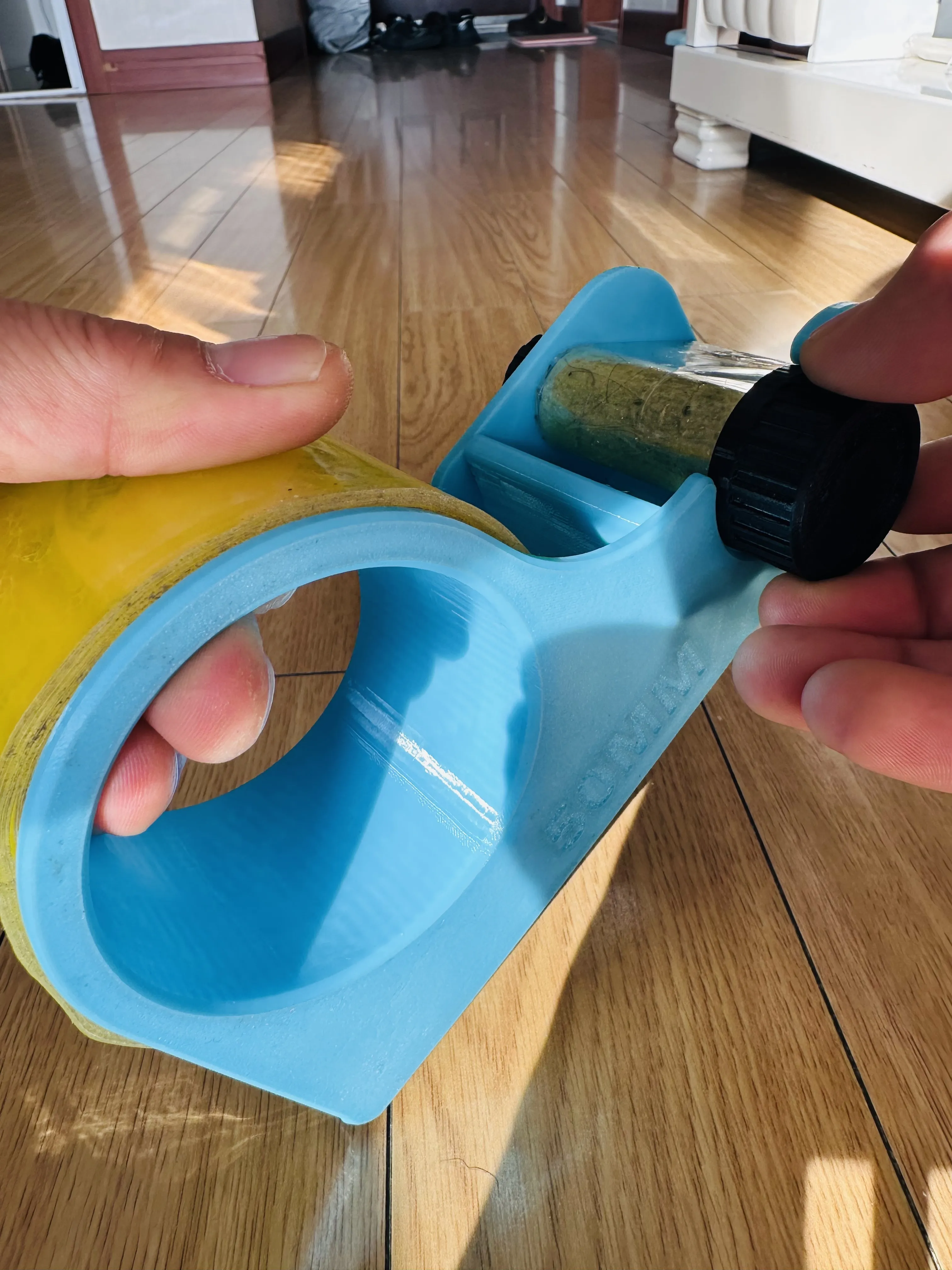

When winding in used tape, hold the body with your left hand, rotate counter-clockwise with your right hand, and push the tape with your thumb for less effort.
