Description
Oval Wargaming Bases with 5×2 mm Magnet Slot

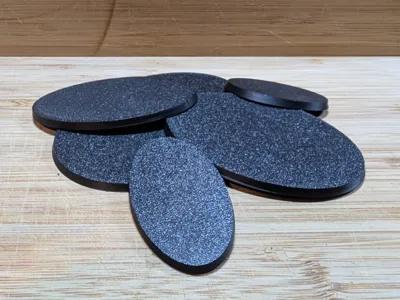

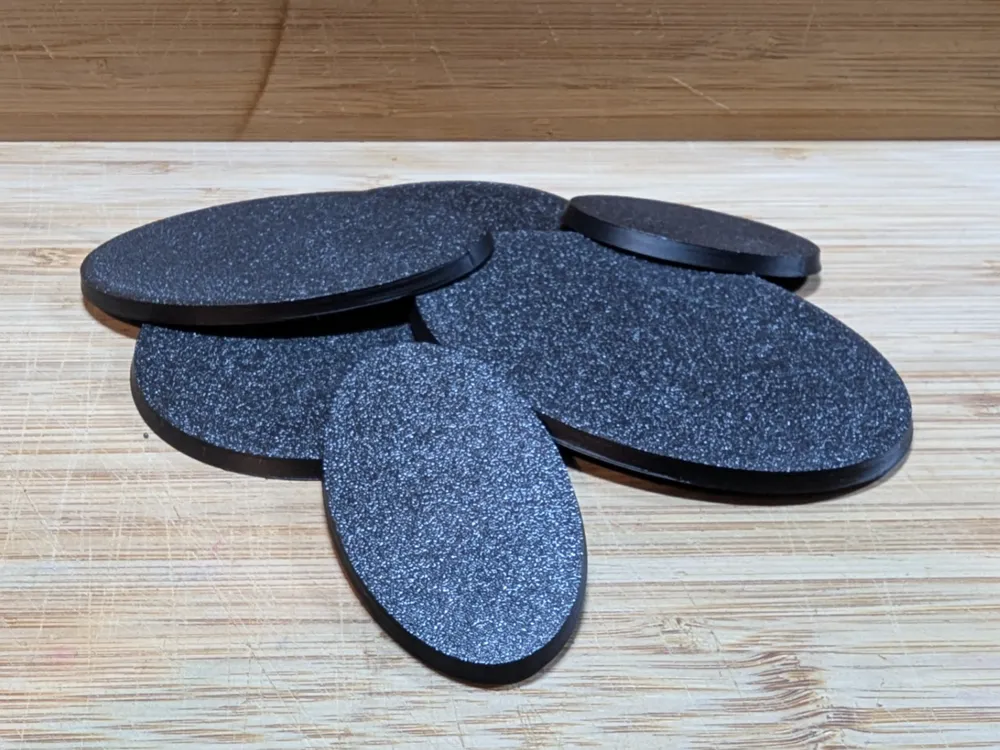

High-quality oval bases designed for tabletop wargaming and display. Each base features a dedicated recess for a 5×2 mm round magnet on the underside and a small milled chamfer on the top edge to avoid sharp edges after printing.
✨ Features

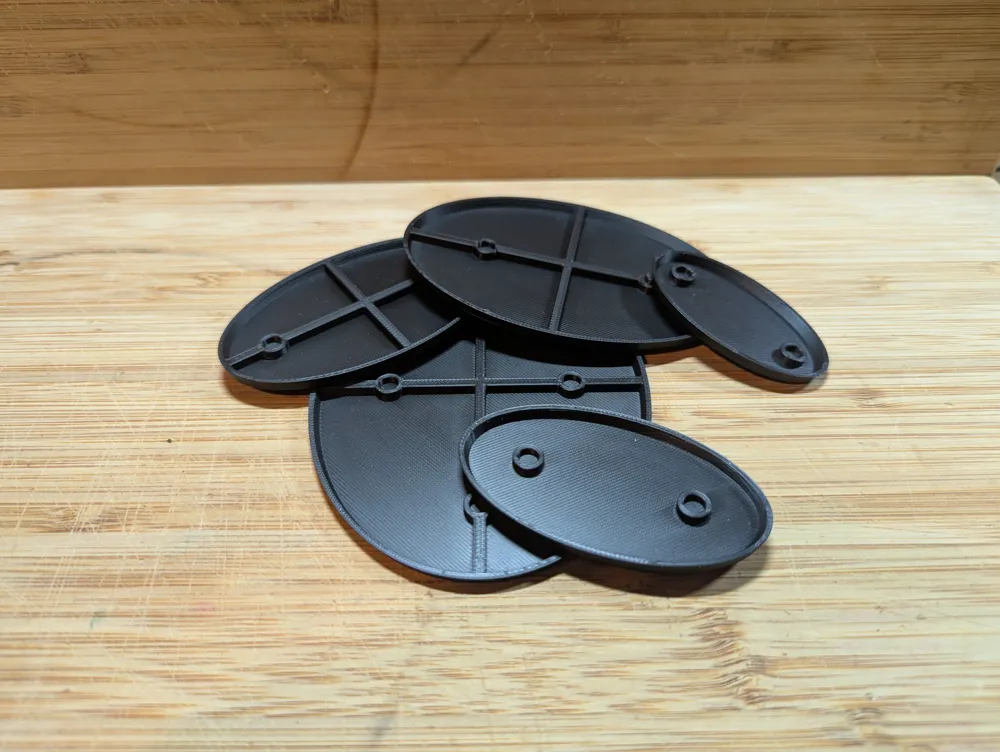

- Magnet-ready design: Integrated slot for one 5×2 mm round magnet
- Smooth top edge: Light milling/chamfer prevents sharp rims and improves handling
- Flat, stable bottom: Ideal for gaming and magnetized transport
- Clean, simple style: Compatible with most miniature ranges
📏 Available Sizes (Length × Width)
- 60 × 35 mm
- 75 × 42 mm
- 90 × 53 mm
- 105 × 70 mm
- 120 × 92 mm
- 150 × 95 mm
- 170 × 105 mm
(All sizes include the same magnet slot and top-edge mill.)
🧲 Magnet Details
- Type: Round magnet
- Size: 5 mm diameter × 2 mm thickness
- Installation: Press-fit and glue-in (CA glue or epoxy recommended)
🖨️ Print Recommendations
- Material: PLA, PETG, or ABS
- Layer Height: 0.16 mm for finer detail
- Perimeters/Walls: 3
- Supports: Not required
- Brim: Optional for larger bases
🎲 Use Cases
- War🔨 / Age of Sigmar / 40K oval bases
- Fantasy, sci‑fi, and historical tabletop games
- Magnetized storage and transport systems
If you find this model useful, please leave a like, comment, or make. Suggestions for additional sizes or magnet options are always welcome!
Boost Me (for free)
Help me blast off — boost my models 💥 Every click counts
Got ideas or fixes? Hit me with them! I read it all and promise I won't take it personally — feedback fuels the fun!"
