Kaweco sport pen case

kaweco sport pen case

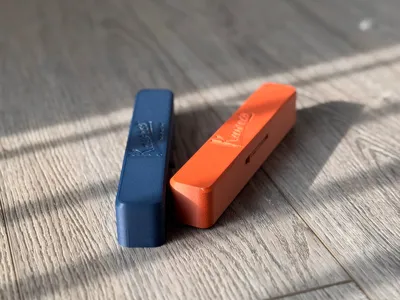

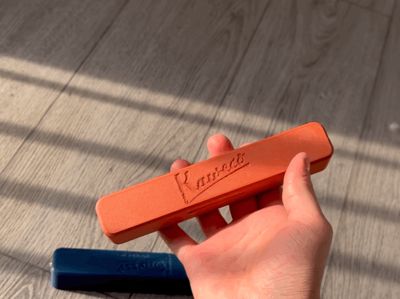

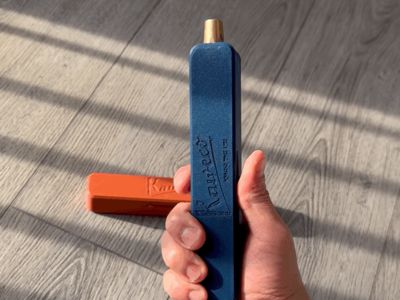

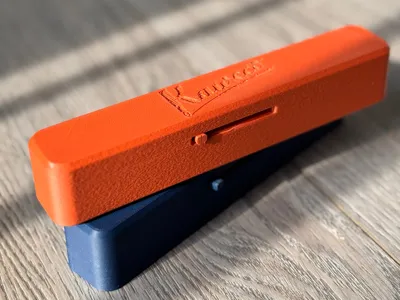

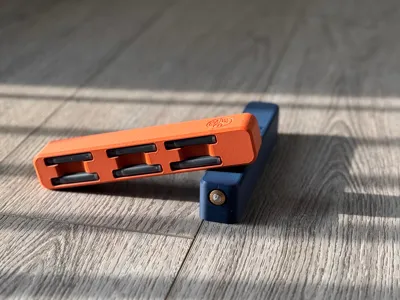

I am a big fan of fountain pens but am not very good at remembering to check how much ink I have left. For that reason I decided to design this travel pen case that can hold six ink cartridges and your pen so you always have ink handy. The design is sleek and simple, the slide button on the side allows you to easily slide your pen out of the case.

the only non-3D printed parts you will need is super glue the rest is all printable. An assembly guide has been included below.

Do not simplify the model the slicer will ask for you to simplify the model but do not simplify the model it will result in unpredictable print results.

Update #1

I have updated the design of the cup insert so your pen wont just slide out. I received some great feedback sharing that they had encountered this issue. I went back and tried various things but decided that this would be the best solution. you wont need to reprint a whole new body or worry about any weird settings all you will need is a 14 minute print. If you haven't printed one of the cases yet no need to worry I updated the cup design in the plate with all the components as well.

update #2

I am currently working on V2.0 the new model will address the issues some have encountered. When I designed this model I used my pens ( the brass and aluminum versions)  for the measurements and I foolishly believed that the same measurements would applied to the other versions they have. Thank you to those that have printed the current model and I hope to have the new model posted soon.

update #3

I have posted a 2.0 version of the Kaweco pen case. The new design improves on a lot of the issues that the original had. You will be able to fit any of pens from kaweco's line up.

https://makerworld.com/en/models/2300321-kaweco-pen-case-2-0#profileId-2510514
