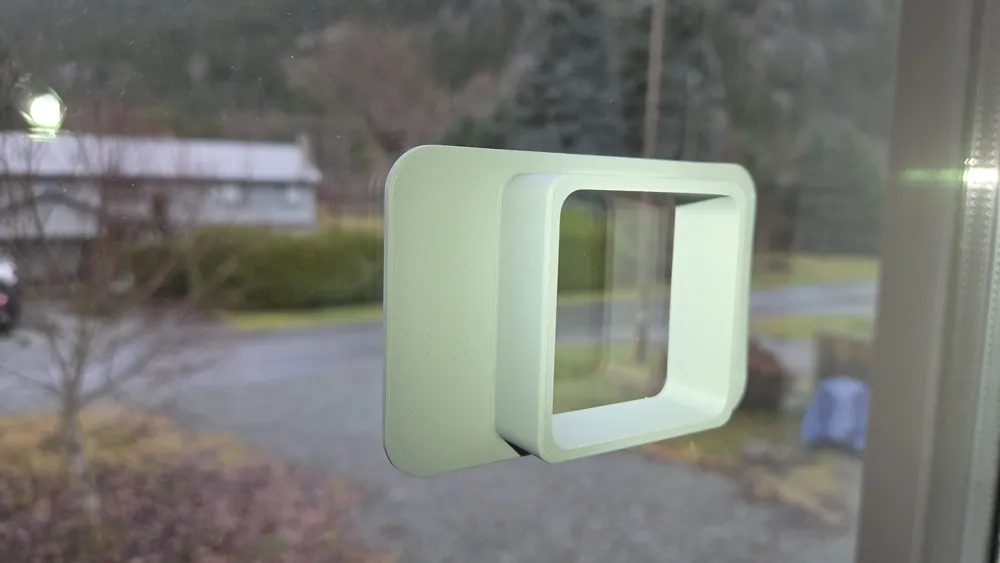

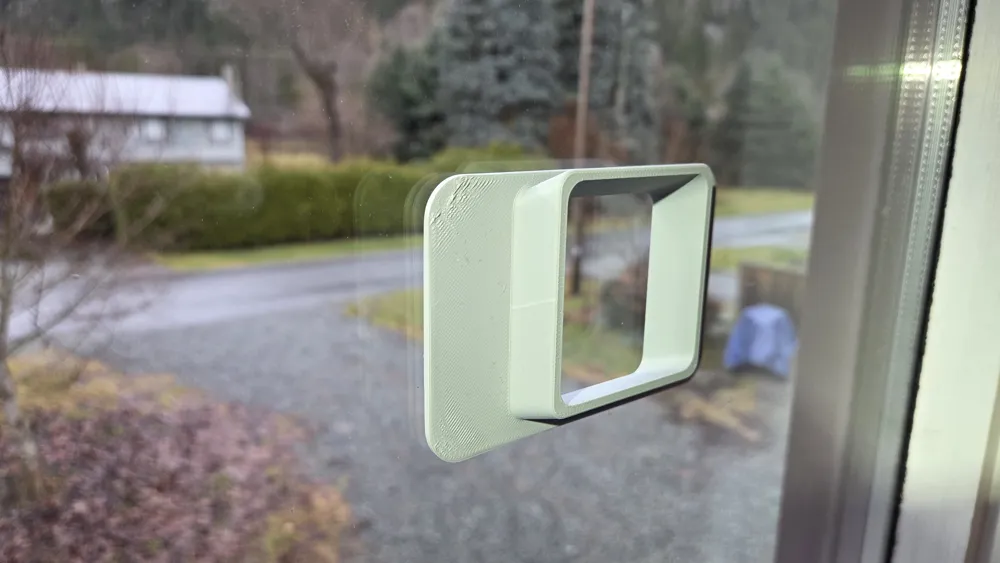

Do you want to mount your Wyze OG camera on a window to look out onto the world, or on the door of your printer to keep an eye on your prints from another angle?

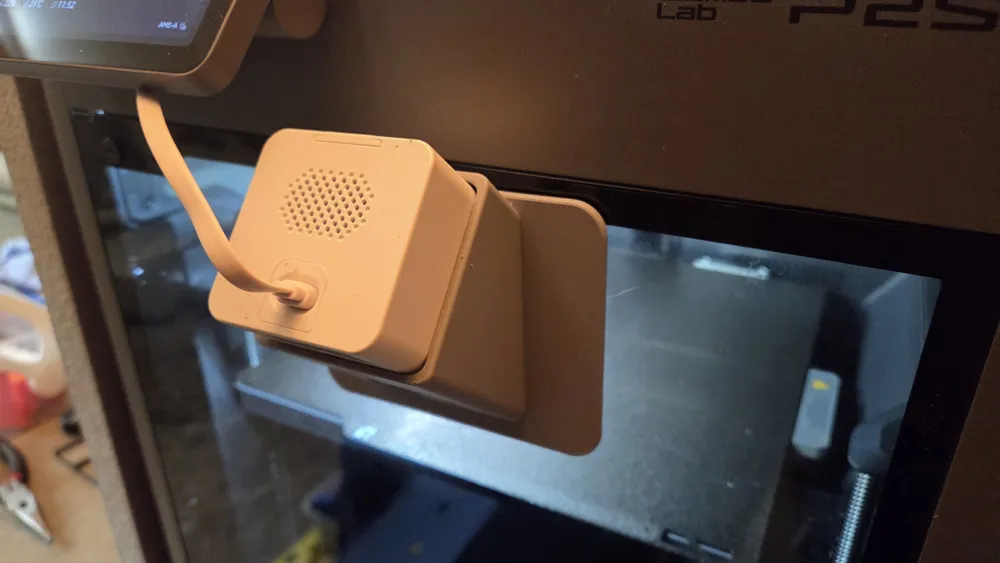

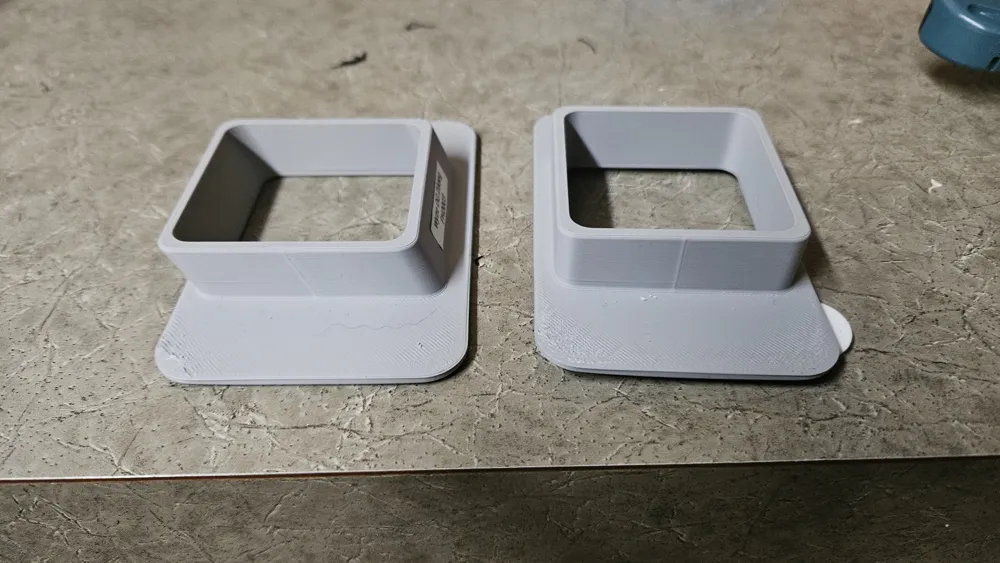

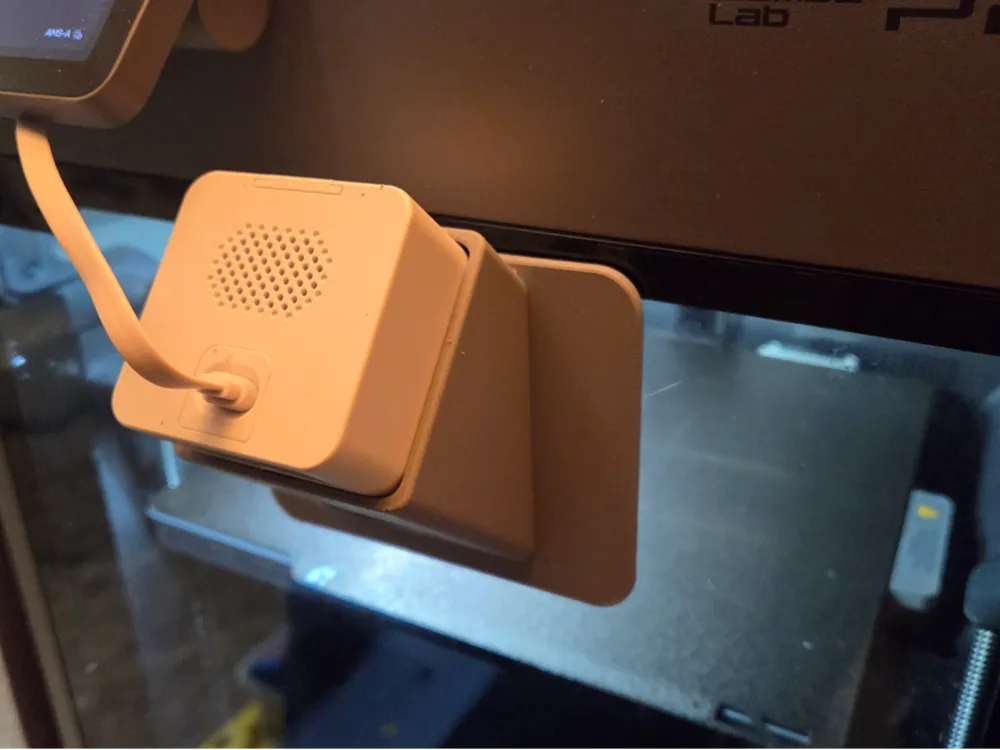

This file contains mounts angled at 0 degrees (square to the window), and 20, 35 and 40 degrees. I've found 35 degrees to be the best for mounting on the P series printers at the top of the door to get a great view of your print as it progresses - you can see the back of the plate when the plate is at the top, but you can still see the front fairly far down; you will see the sides of the mount in frame, but it doesn't distract from the main action! If you want to mount the camera on top of the printer, or on a normal window, you might prefer the zero or 20 degree models.



I printed this in PLA, 0.2mm nozzle, 0.1mm layers (but 0.4mm nozzle and 0.2mm layers works great!) - the outside of the door doesn't get hot enough to be a problem - and mounted it with double-sided adhesive tape (since there are significant vibrations, I recommend medium duty tape and cleaning the glass in advance.



If you want similar designs for other square-body webcams, please send through their width and height… but if your camera is square-bodied, it would likely be easier to scale the design up or down - this design is for a 52.5m by 52.5m camera.
