Fake TimeDomain Speaker using DAISO speakers

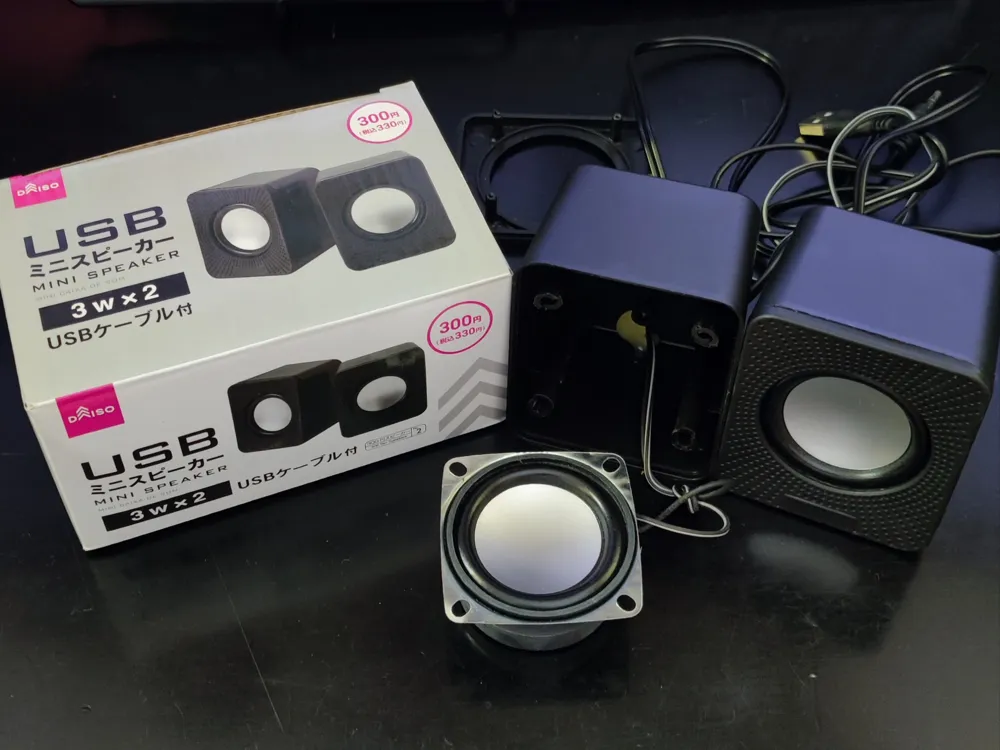

This is a "fake TimeDomain speaker" made using the speaker unit from Daiso's 300-yen speaker

It resembles a TimeDomain speaker in appearance, but it lacks TimeDomain functionality Additionally, the amplifier unit built into the Daiso speaker cannot be integrated It is merely a passive speaker You will need to extend the cable to connect the amplifier unit externally or use it by connecting to another amplifier

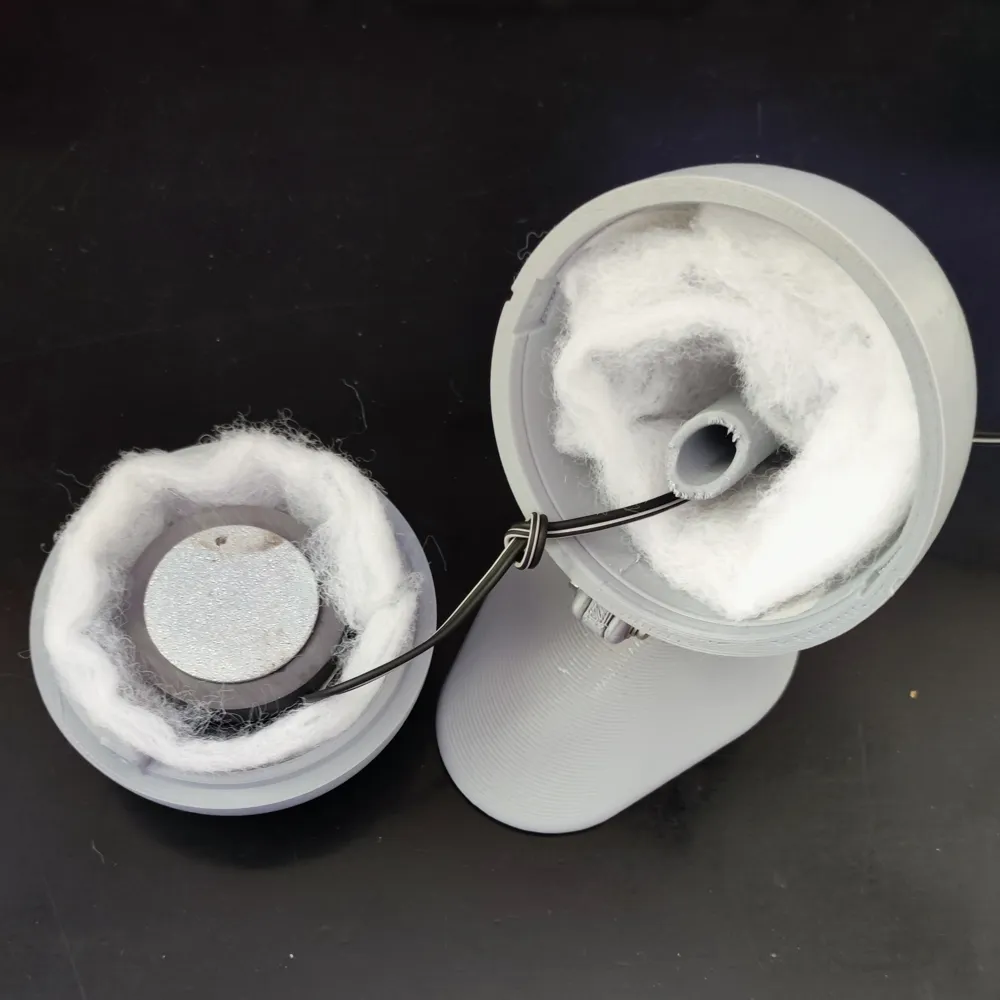

While sound quality cannot be guaranteed, by adding sound-absorbing material inside or combining it with a subwoofer, it can surprisingly be used as a near-field speaker with good sound image localization

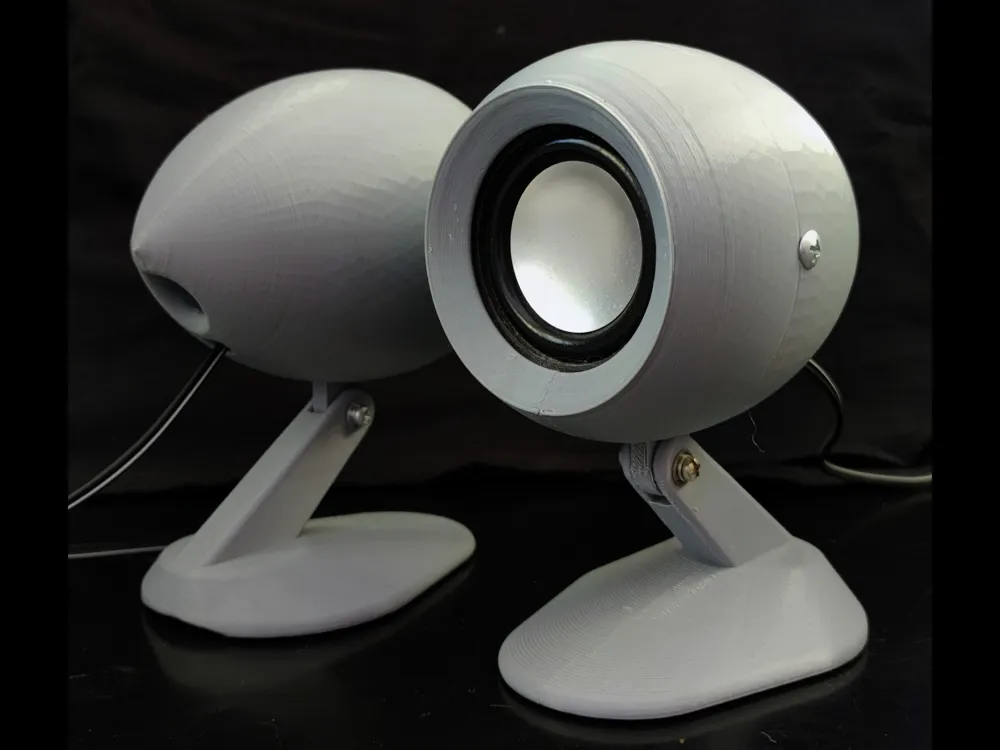

We hope you enjoy its cute and unique design

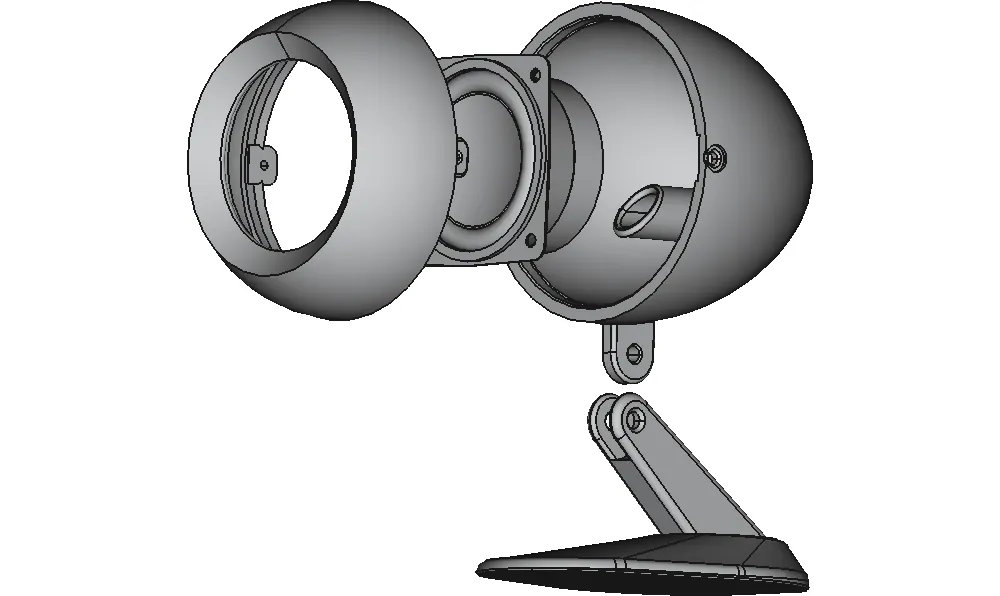

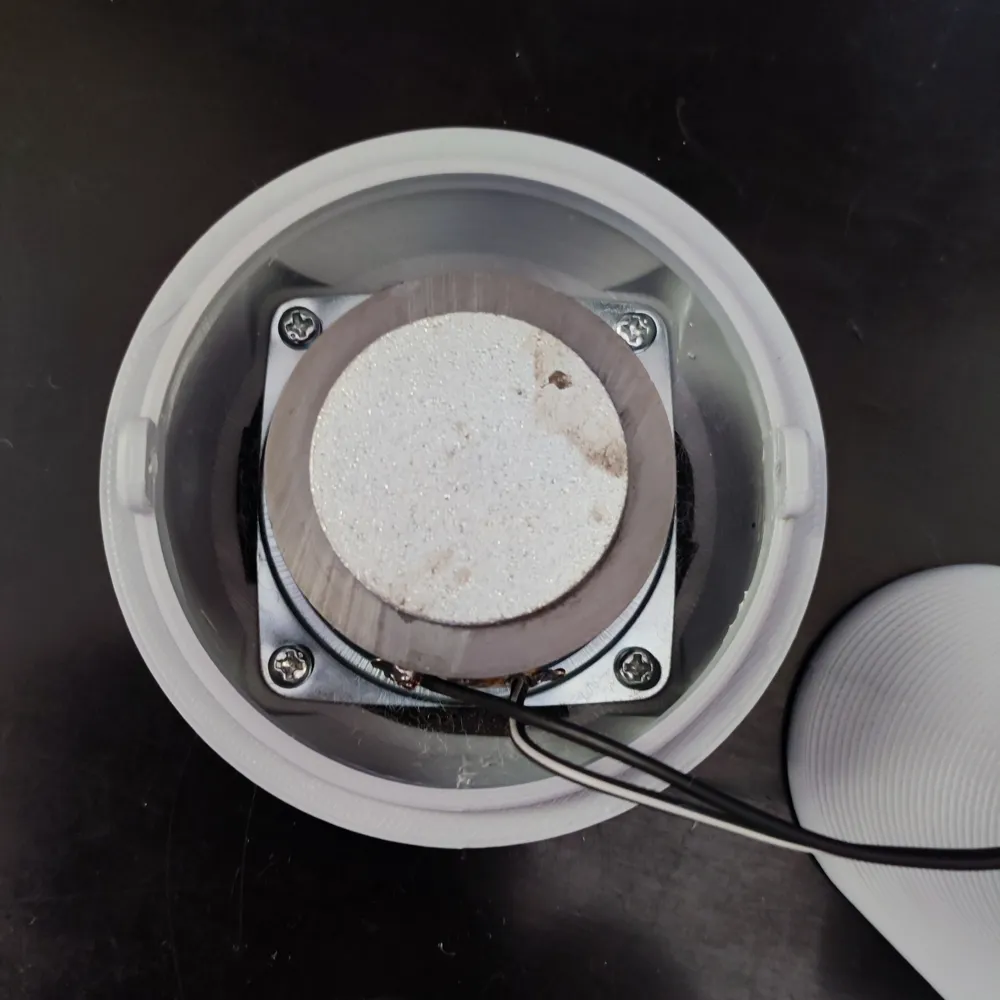

For mounting the speaker unit, "M3x5mm tapping screws for sheet metal" are recommended, but "M3x5mm bolts" can also be used if tightened with a little force

"M3 plastic screws" are required to connect the front Box and the rear Box "M3x15 or longer bolts / M3 nuts" are needed for stand attachment

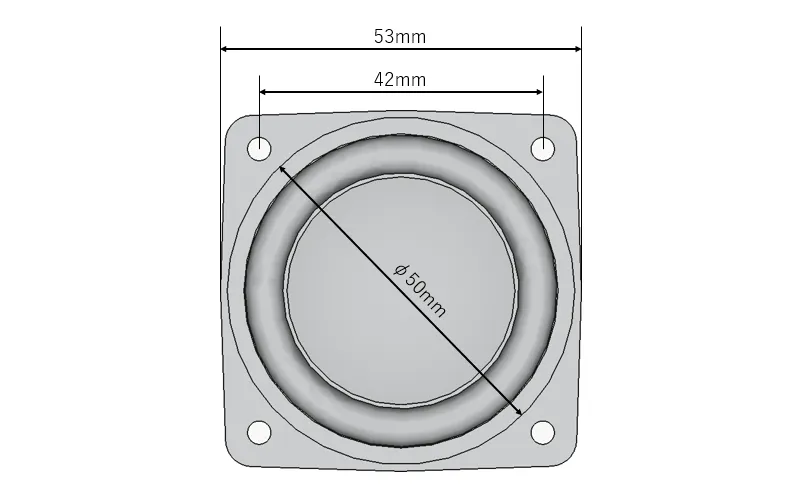

Recently, Daiso's 300-yen speakers seem difficult to obtain, so I have attached a speaker dimension diagram If there's a speaker of a similar size with matching hole positions, it might serve as a substitute
