Electronic box (HX711 + esp32 c3 super mini)
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
1.3 h
1 plate
Open in Bambu Studio
Boost
3
15
0
0
25
12
Released
Description

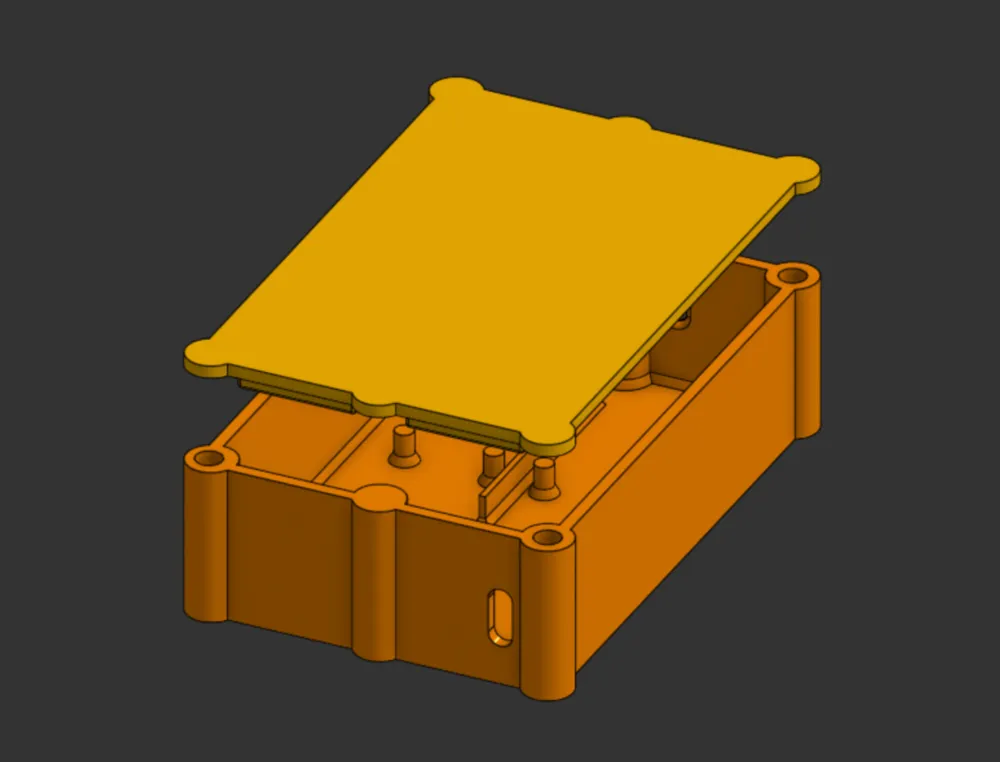

Electronics box for 2 HX711 modules and a ESP32 C3 super mini board.

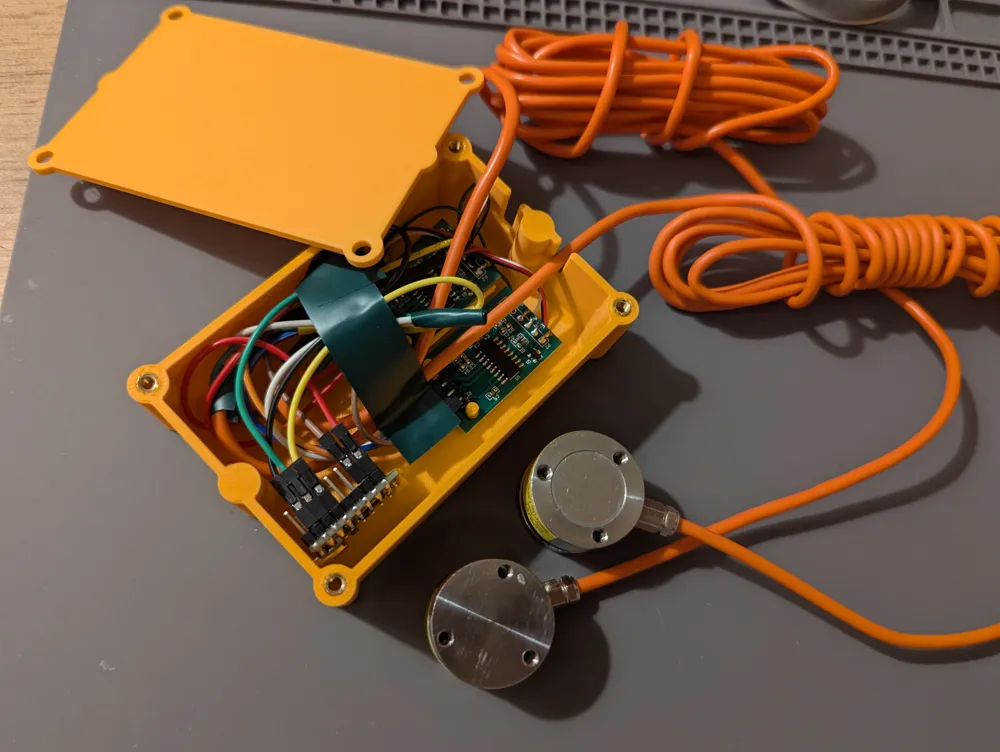

The hosing was designed to facilitate 2 HX711 sensor boards and a esp32 C3 super mini board (reference links below).

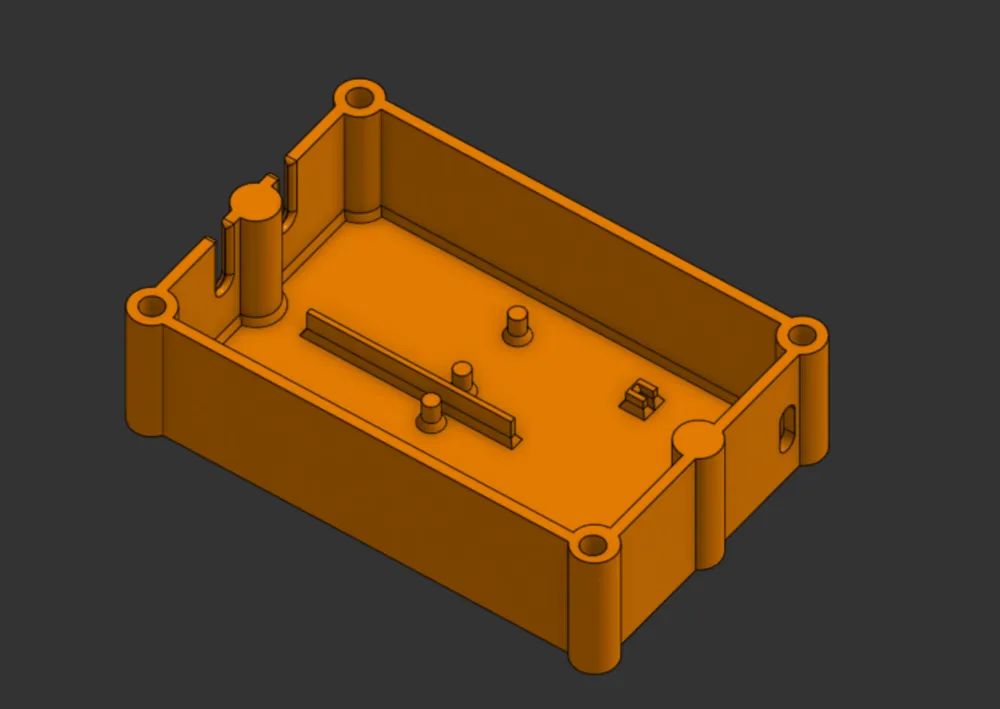

There is a hole for the C3 board to connect the usb-c cable from outside into the board in the box. A mounting bracket for the board is added to help it stay in place vertically.

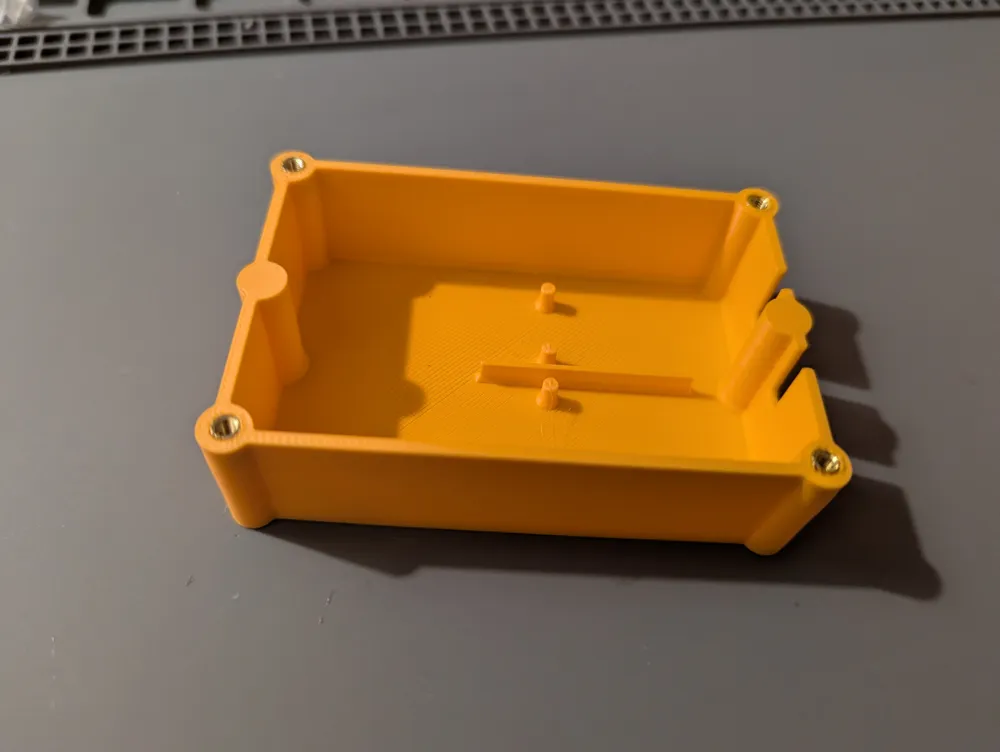

There are also 2 pins for the HX711 boards to hold them in place (my boards also had these mounting holes, but may not be the case for all hx711 boards). There is 1 hole for each weight sensor for cables to go outside the case.

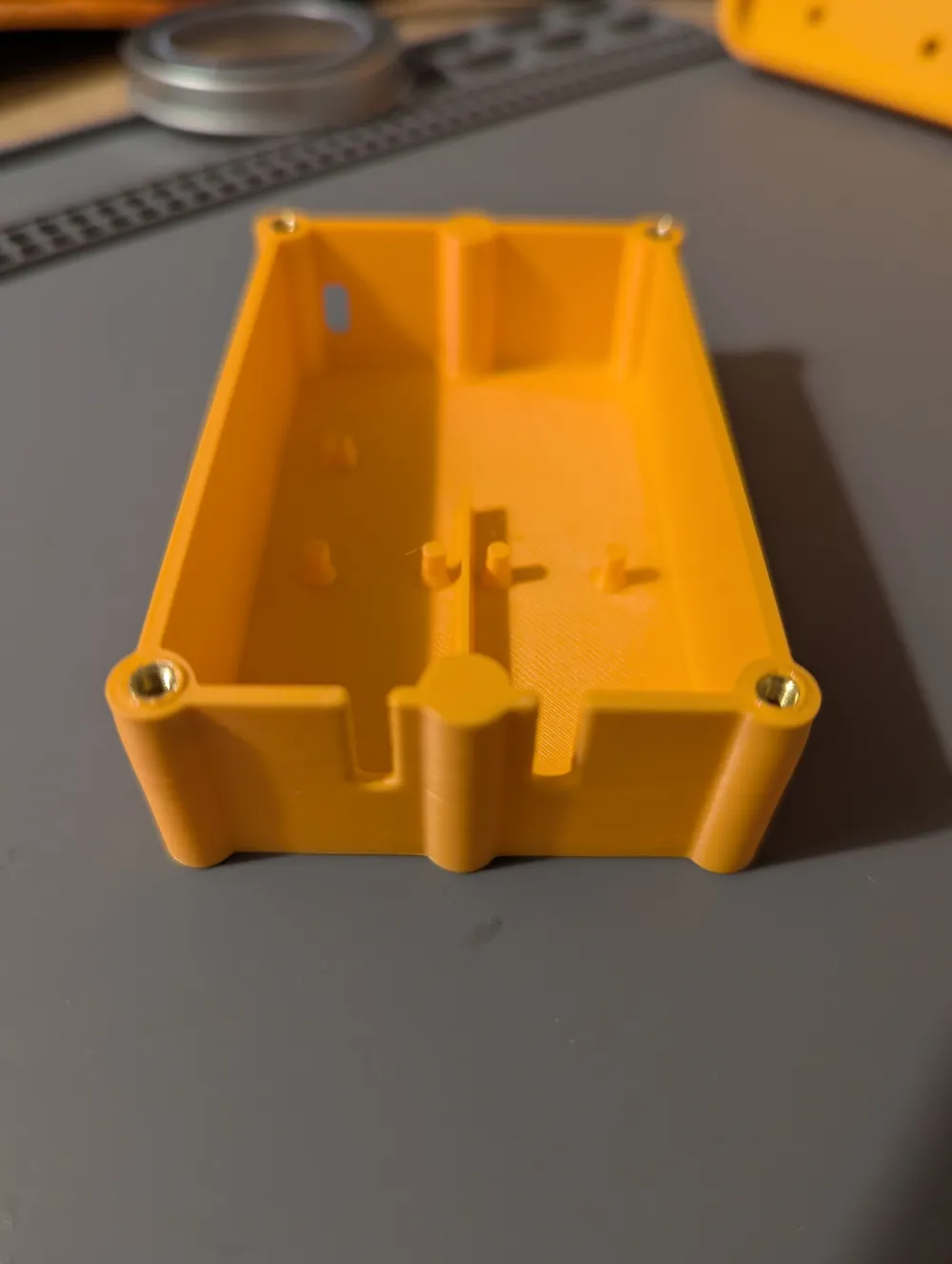

The box also includes 4 top holes for threaded inserts and 6 bottom holes for optional 6x2 mm magnets
Board references:
