Frankford Arsenal Platinum Case Prep catch tray

corey.george
Hobby & DIY>Sport & Outdoors
IP Report

Print Profile(1)

All
X1 Carbon
P1P
X1E
H2C
H2D
H2S
H2D Pro
P2S
P1S
A1 mini
A1
X1
X2D
A2L
0.2mm layer, 1 walls, 95% infill
0.2mm layer, 1 walls, 95% infill
Designer
7.3 h
2 plates
4.8(13)
Open in Bambu Studio
Boost
20
80
16
3
122
99
Released

Description

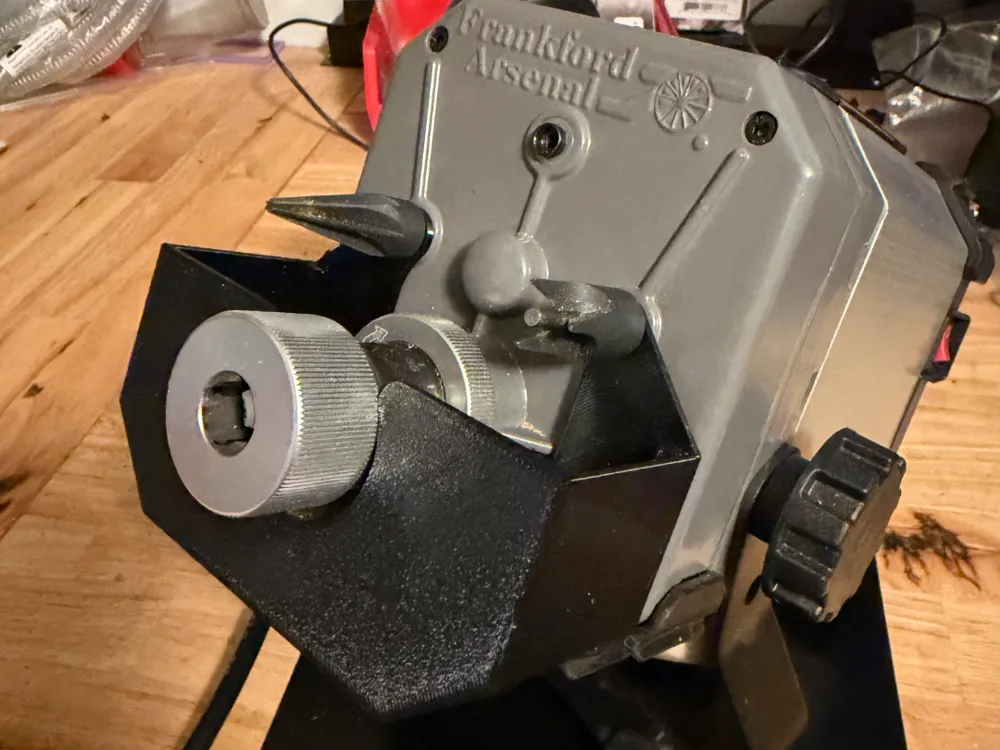

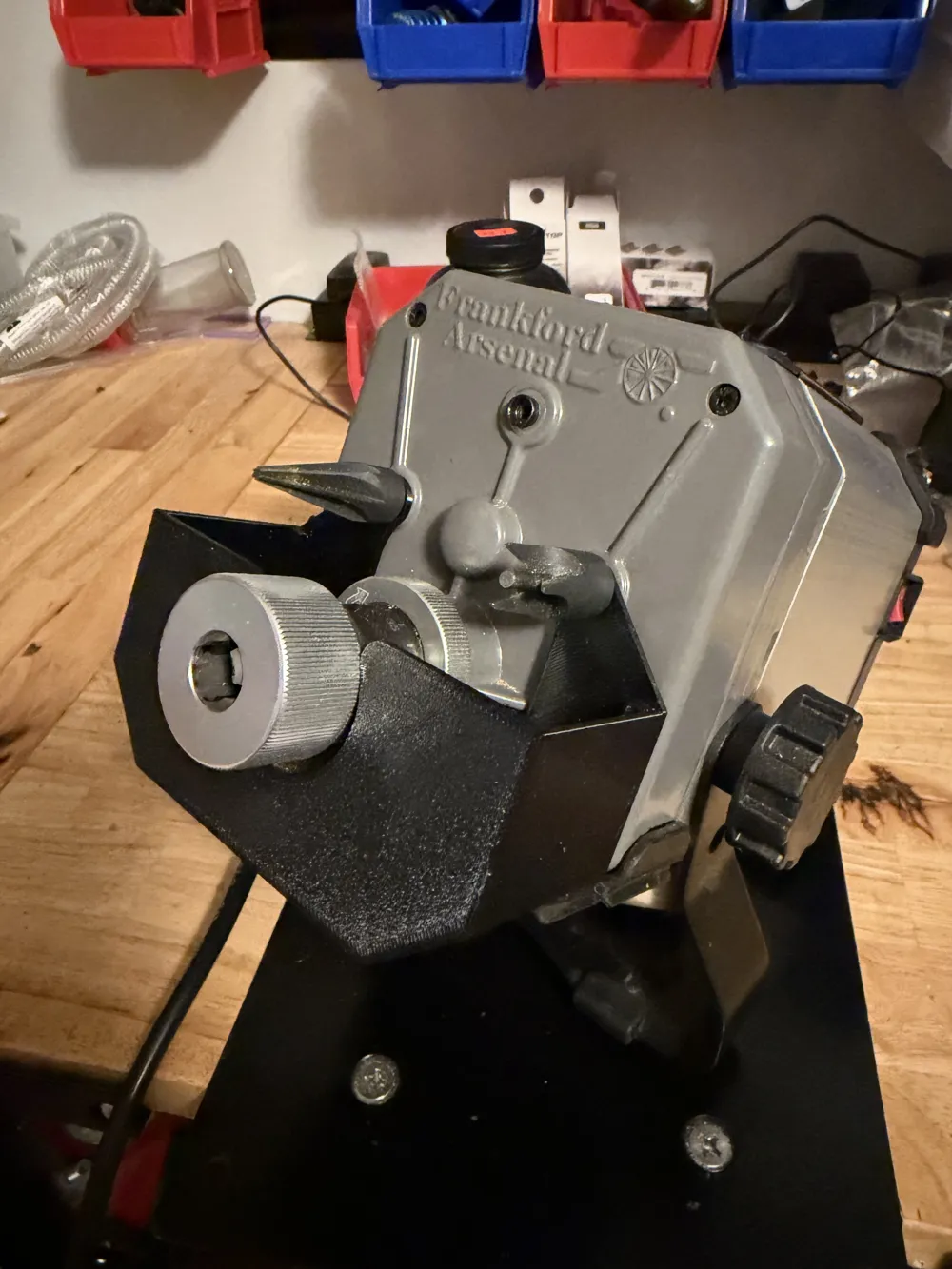

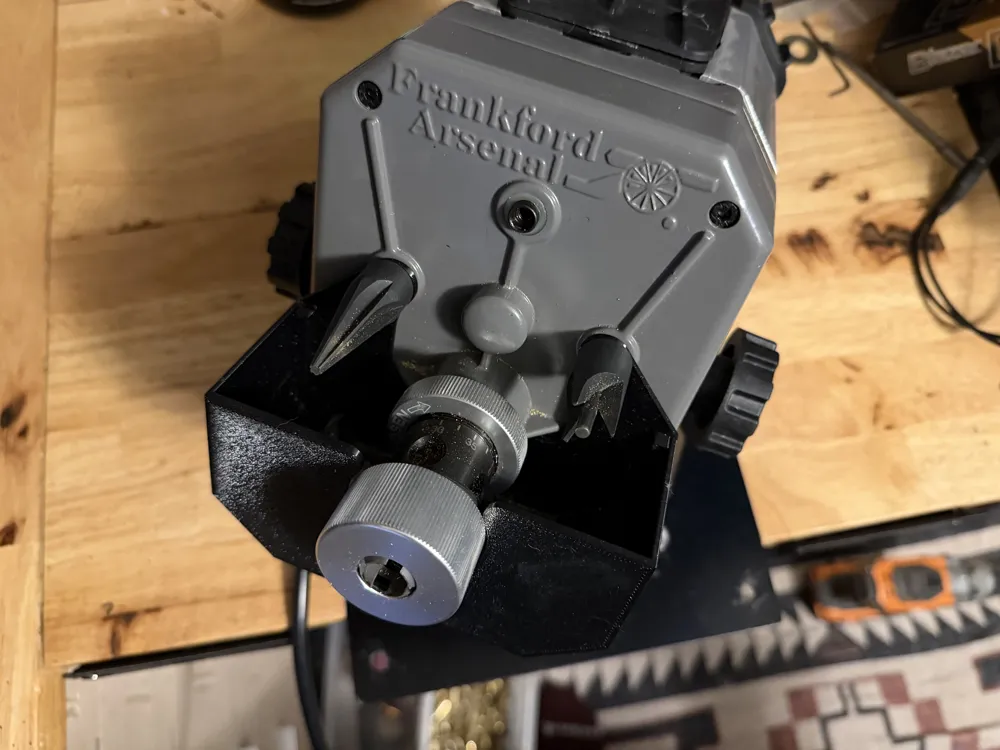

This is a brass trimming catch bin for the Frankford Arsenal Platinum Series Case Trim & Prep System. It mounts behind the case prep tools at the 9 and 3 position. You can remove it and install it without have to adjust the shoulder depth on the trimmer at the bottom.

The 3MF includes two versions, one is the complete model, and the other version is split into two pieces for gluing together using your choice or glue. The two piece version allow for orienting the model where the layers are stronger, and you don't need supports.



I recommend printing in PETG or PETG-HF.

reloading
case trimmer
frankford arsenal
frankford arsenal platinum series case trim prep

Comment & Rating (16)

(0/1000)
@user_1208900790
Print Profile
0.2mm layer, 1 walls, 95% infill
printed with a weird texture but works perfect and is a very good design.
The profile uploader has replied
0
Reply
@corey.george
looks like your filament may had some moisture in it. Did you dry it before hand?
0
Reply
@user_1208900790
Replying to @corey.george :
That could be it I can’t remember if I dried it before, but it’s a awesome design works great.
(Edited)
profile
1
Reply
@supralicious
Replying to @user_1208900790 :
The fuzzy skin setting is turned on. I had to turn mine off before printing.
0
Reply
@user_1407496086
Print Profile
0.2mm layer, 1 walls, 95% infill
Works perfectly! I have two F-A Case prep stations ( one for .223 and one for .308/6.5 ) and these did a wonderful job of stopping my tabletop from being littered with brass shavings, and it also makes it easier to collect and dispose of the shavings. I am very happy with this design!
profile
1
Reply
@willofliam
Print Profile
0.2mm layer, 1 walls, 95% infill
perfect fit
profile
1
Reply
@peanut179
Print Profile
0.2mm layer, 1 walls, 95% infill
Nice design. The front cutout is a little tighter than it needs to be, which makes it hard to adjust the trimmer.
0
Reply
@user_2899684255
Print Profile
0.2mm layer, 1 walls, 95% infill
profile
1
Reply
@Kemano1980
Print Profile
0.2mm layer, 1 walls, 95% infill
profile
1
Reply
@user_2267764717
Print Profile
0.2mm layer, 1 walls, 95% infill
0
Reply
@Arno_Kunstmann
Print Profile
0.2mm layer, 1 walls, 95% infill
0
Reply
@user_449122228
Print Profile
0.2mm layer, 1 walls, 95% infill
0
Reply
@carlbelcher
Print Profile
0.2mm layer, 1 walls, 95% infill
0
Reply
