F Clamp Rack - 6 Position F style Clamp Hanger

IP Report

Print Profile(3)

All
A1
H2C
H2D Pro
H2S
H2D
P2S
X2D
A2L
P1S
X1E
X1
P1P
X1 Carbon

0.2mm layer, 6 walls, 25% infill
0.2mm layer, 6 walls, 25% infill
Designer
5.4 h
1 plate
4.9(9)

0.2mm layer, 6 walls, 25% infill
0.2mm layer, 6 walls, 25% infill
5.4 h
1 plate

0.2mm layer, 6 walls, 25% infill
0.2mm layer, 6 walls, 25% infill
4 h
1 plate

Open in Bambu Studio
Boost
165
801
12
2
285
176
Released

Description

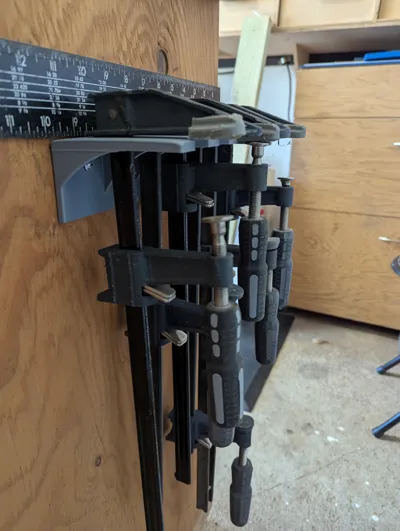

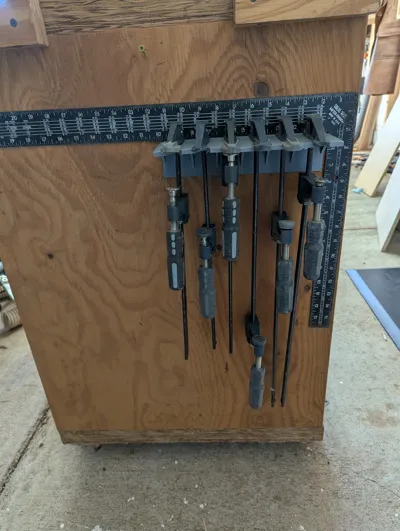

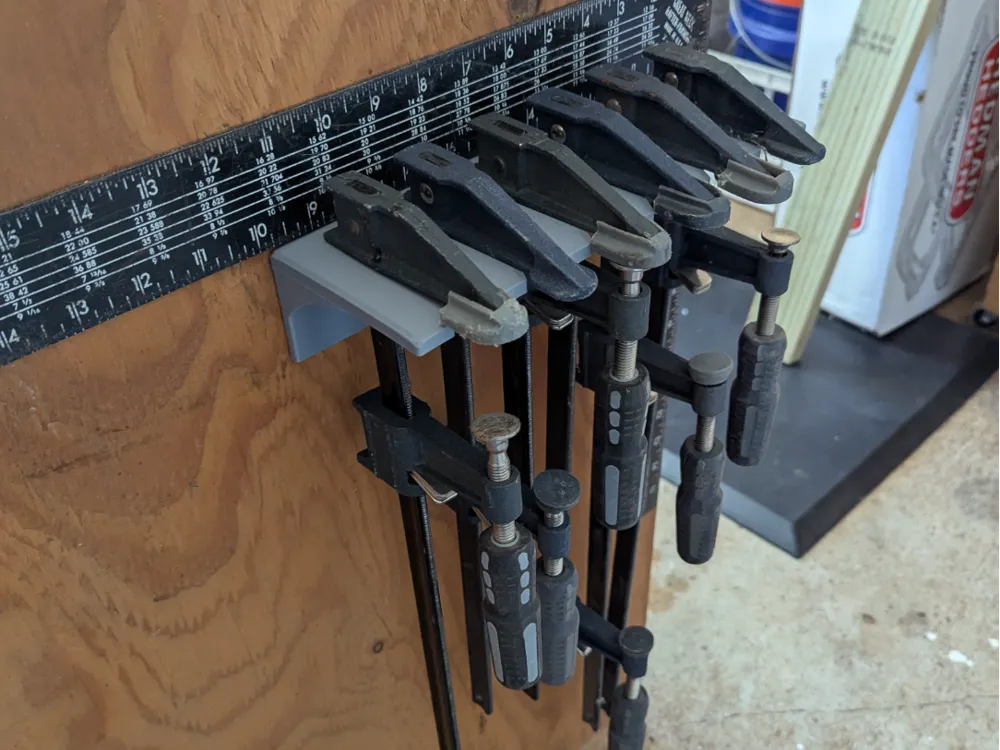

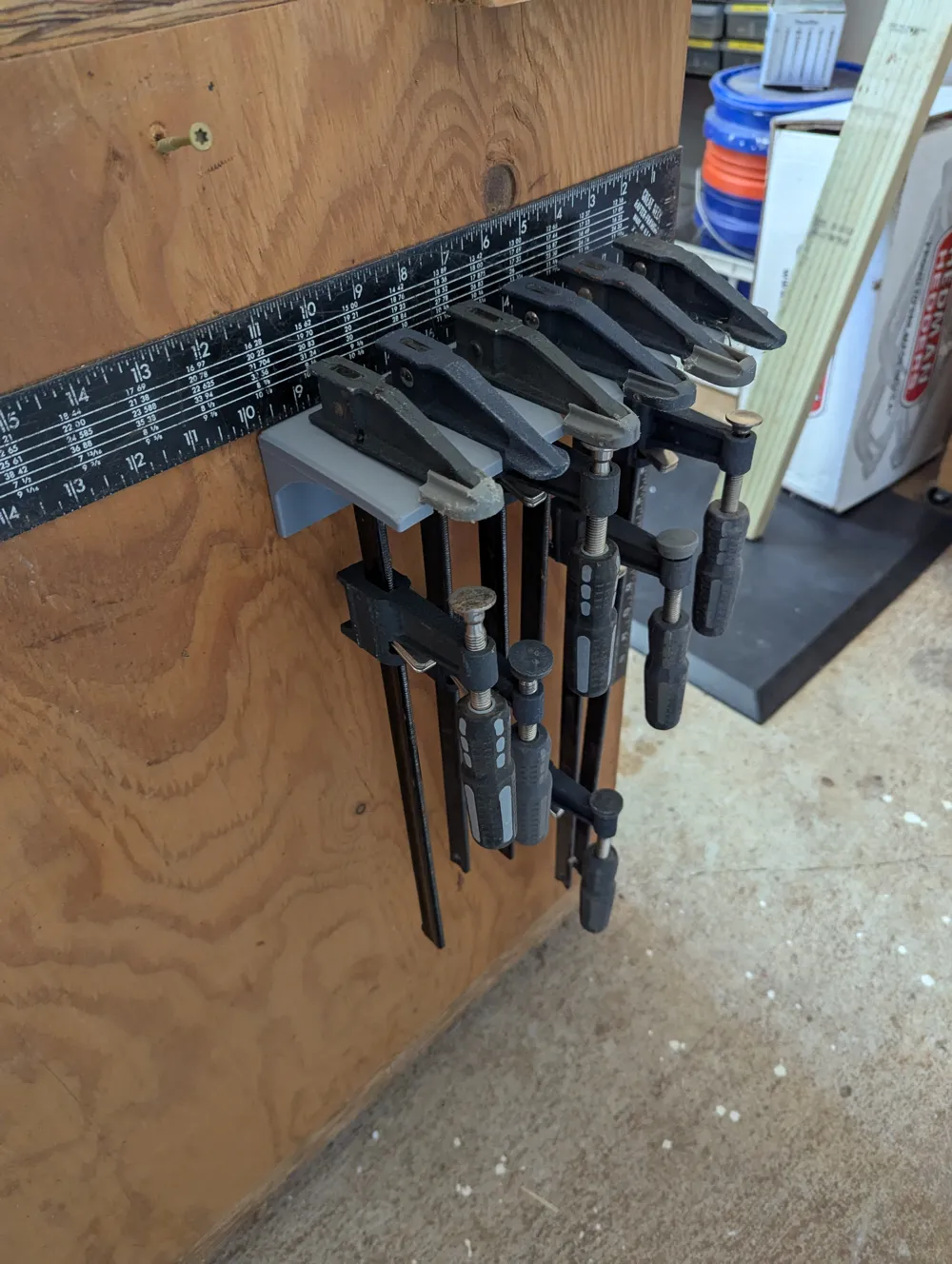

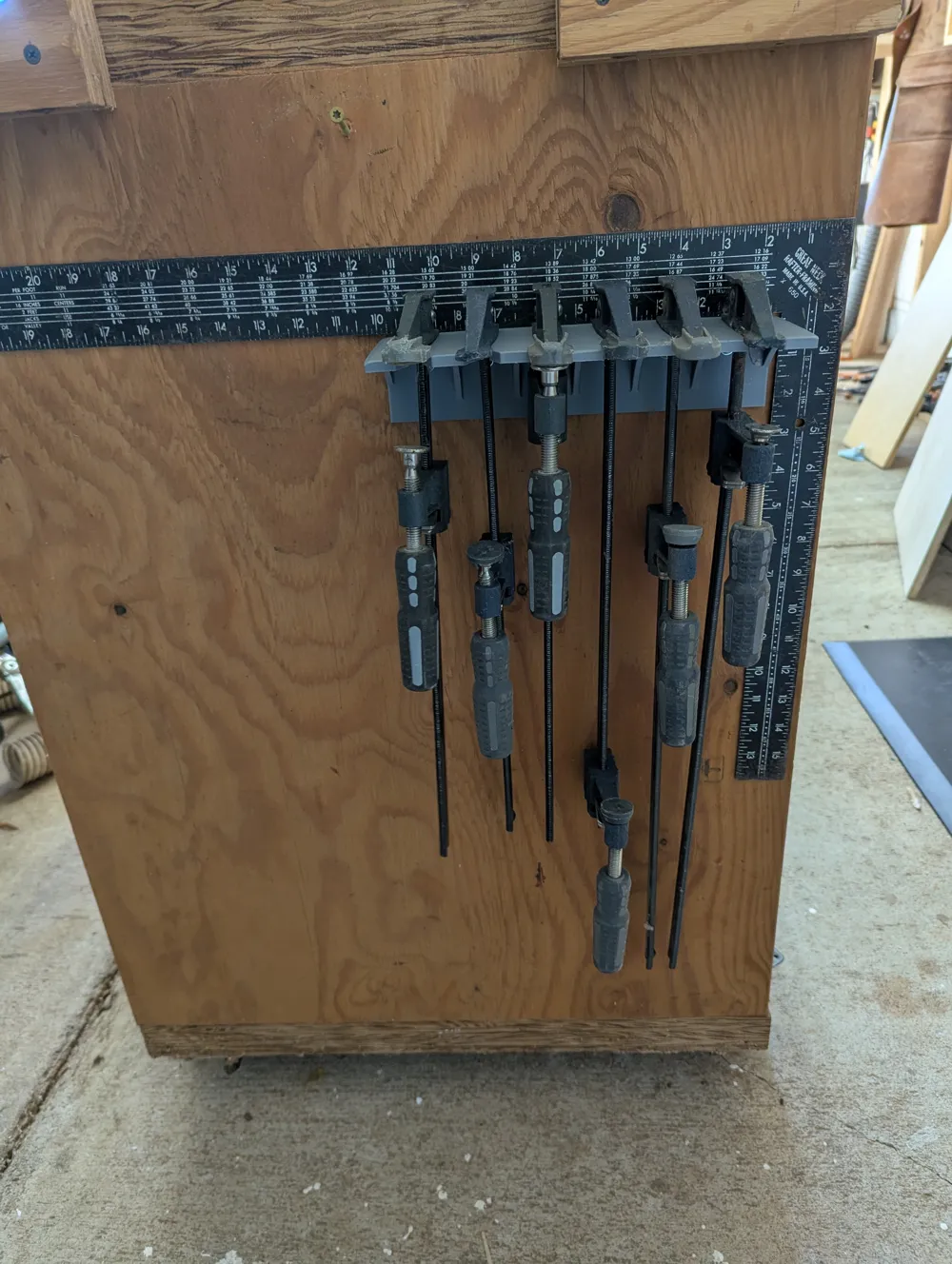

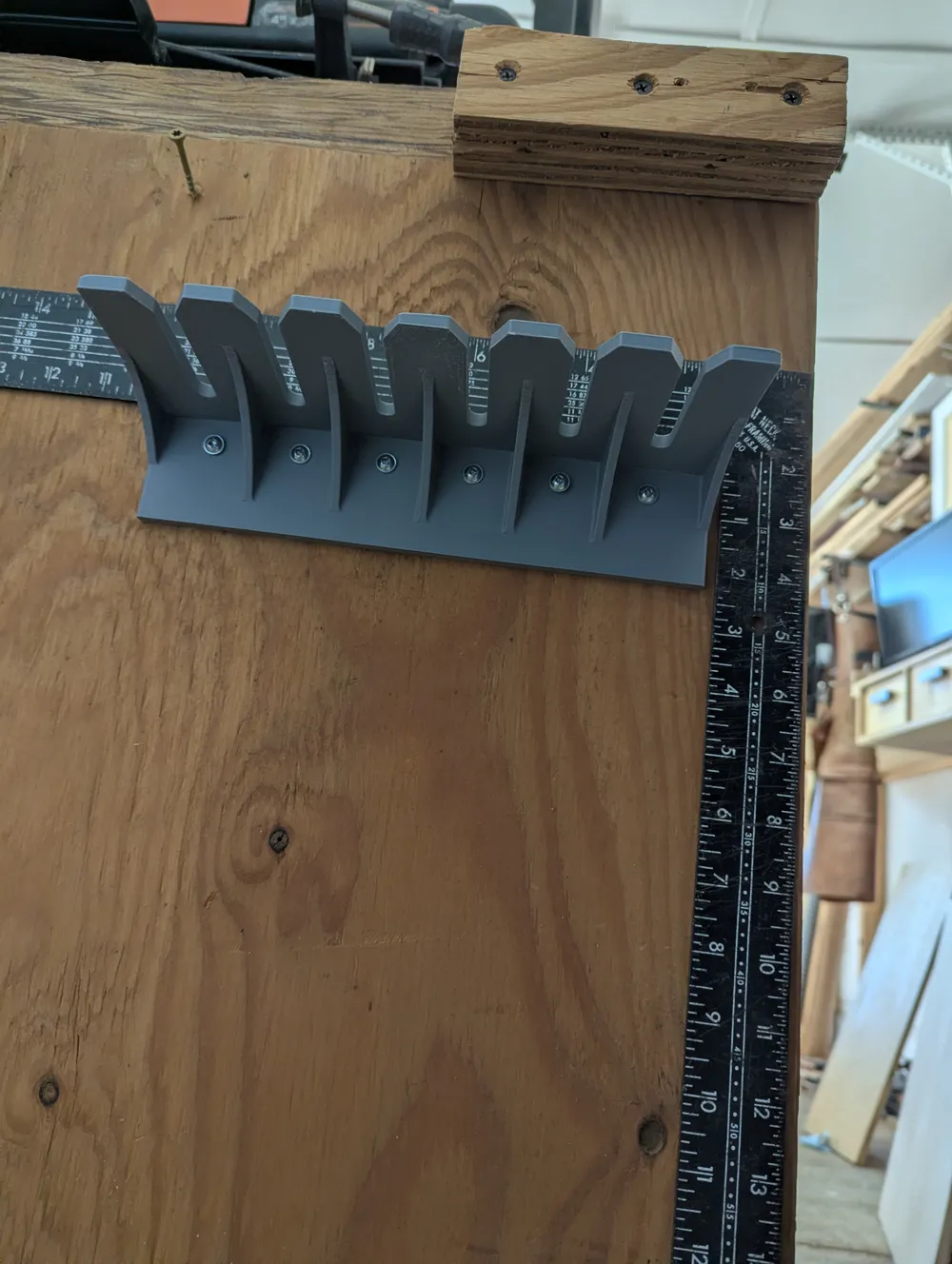

This wall-mounted rack is designed to store F-style bar clamps in a simple, space-efficient way while keeping them easy to grab and put away. It supports the weight of steel bar clamps securely without unnecessary bulk, making it well suited for garages and woodshops.



Designed as a straightforward, no-nonsense functional print with an emphasis on strength, easy printing, and everyday shop use. No supports required.

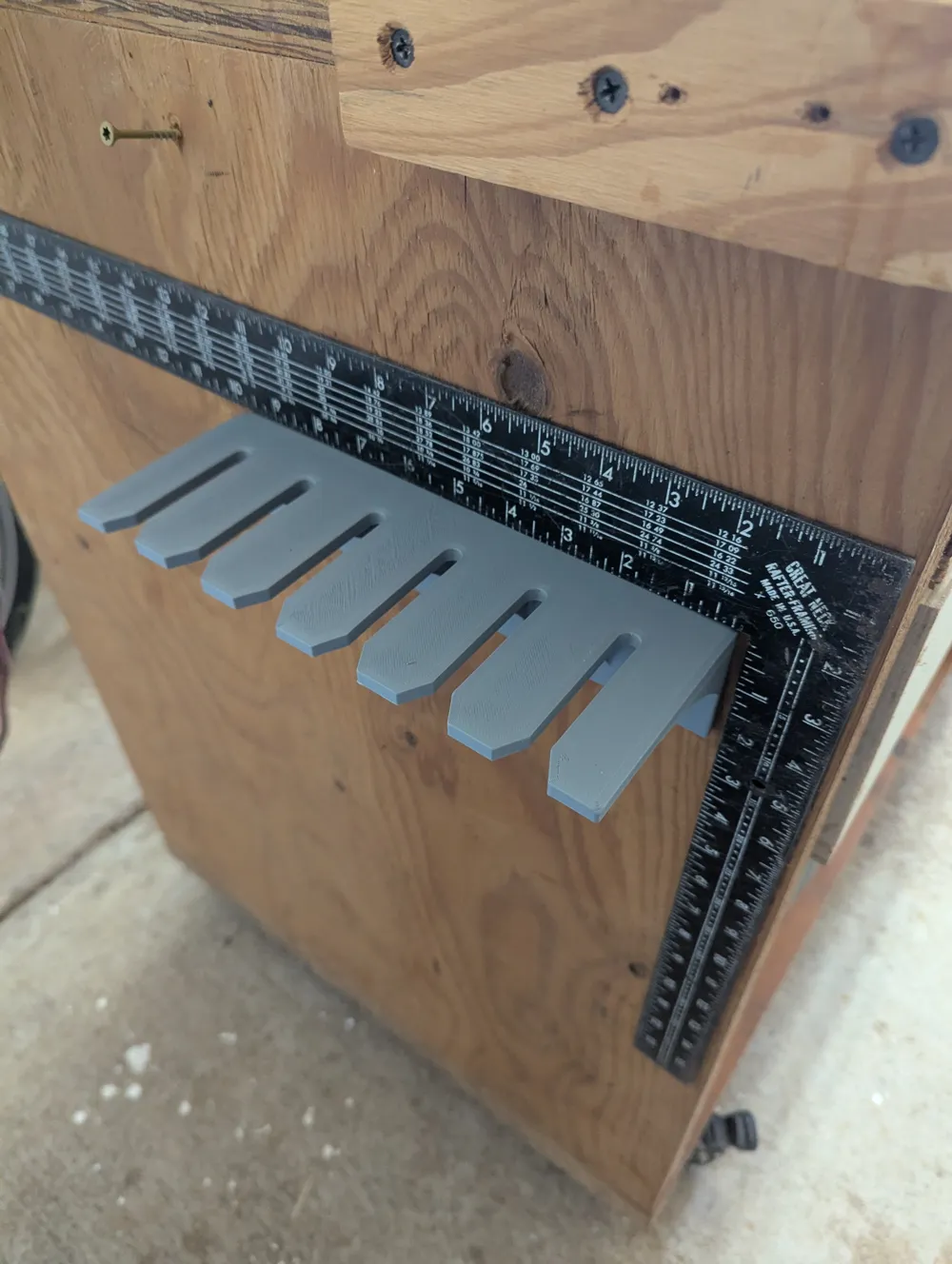

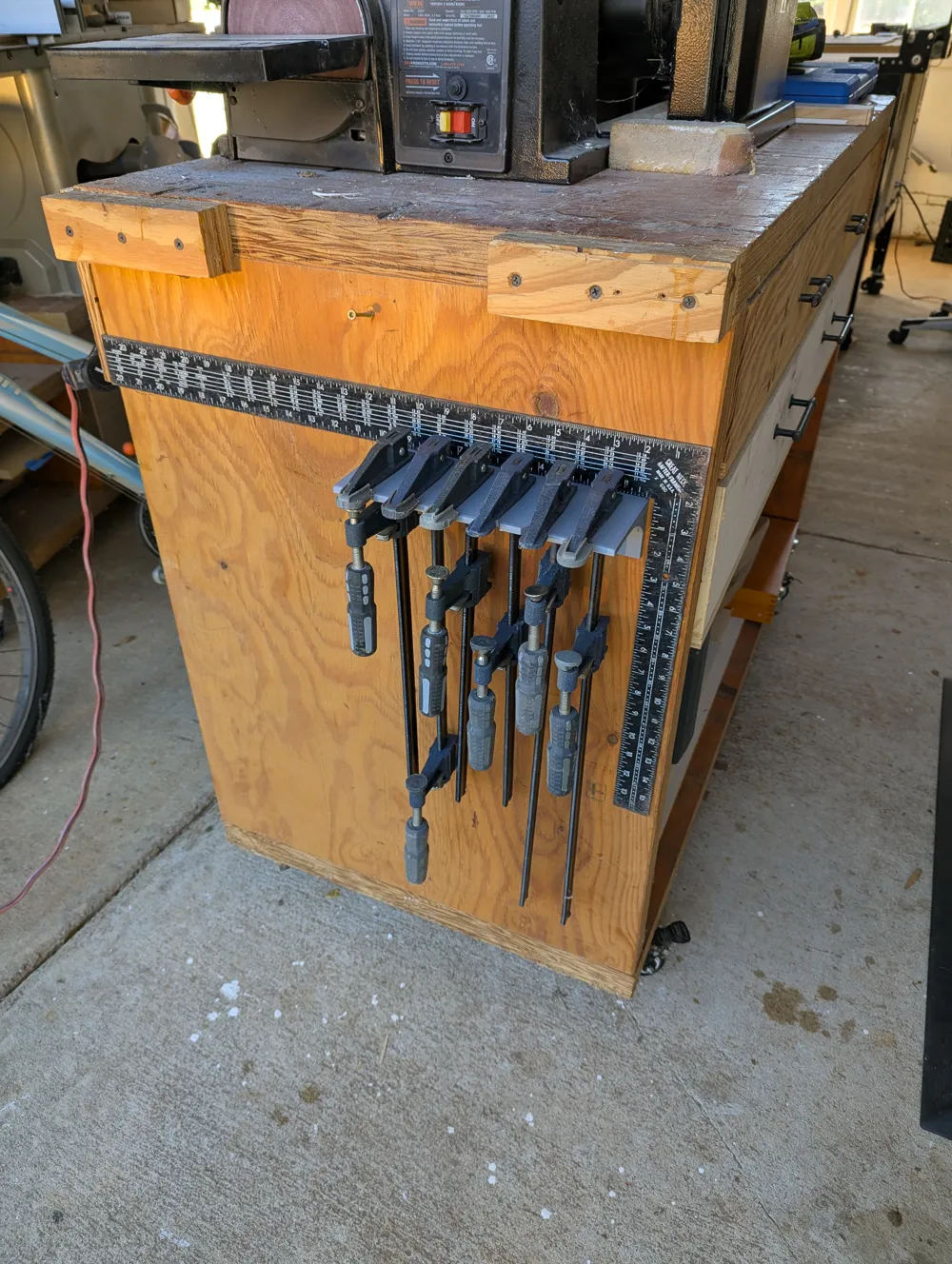

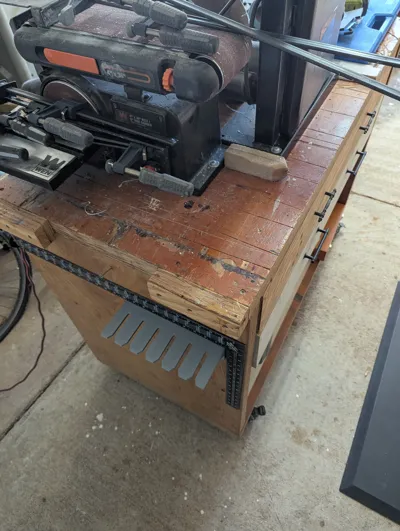

I included a screw hole under each position, but that's probably overkill.  I used Kreg pocket hole screws I had laying around to mount to my rolling workbench.
