Metabo BAS 261 Dust Extraction at the Saw Blade
IP Report
Print Profile(1)
0.16mm layer, 3 walls, 33% infill
Designer
3.6 h
2 plates
Open in Bambu Studio
Boost
18
42
5
3
36
19
Released
Description
Content has been automatically translated.

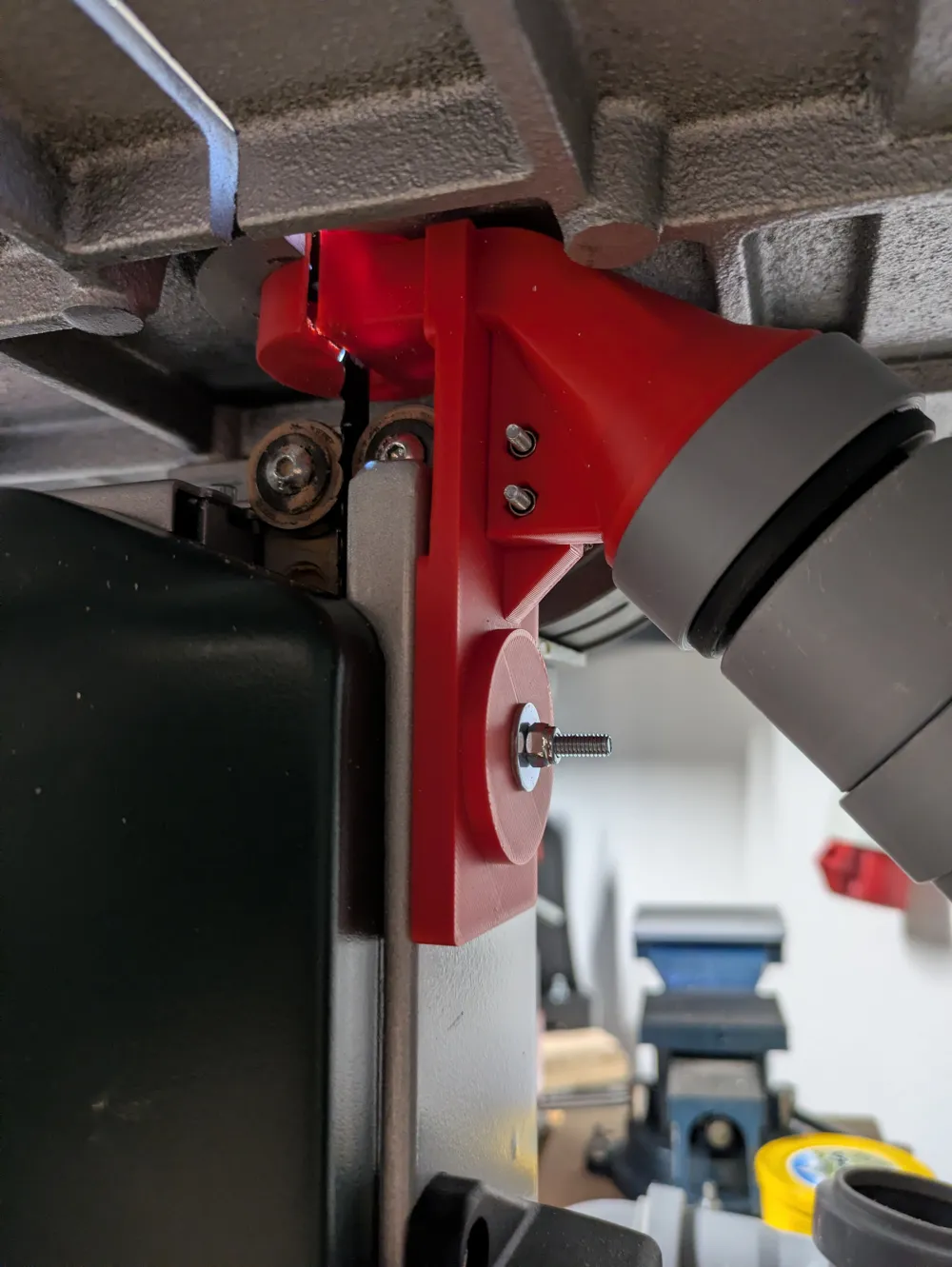

The basis of my model is the vacuum adapter from Tobbii from Printables. Many thanks for the idea.
However, I don't have a Camlock connection, but I use osVacNeo connections. Additionally, gluing the parts together was not stable enough for me.

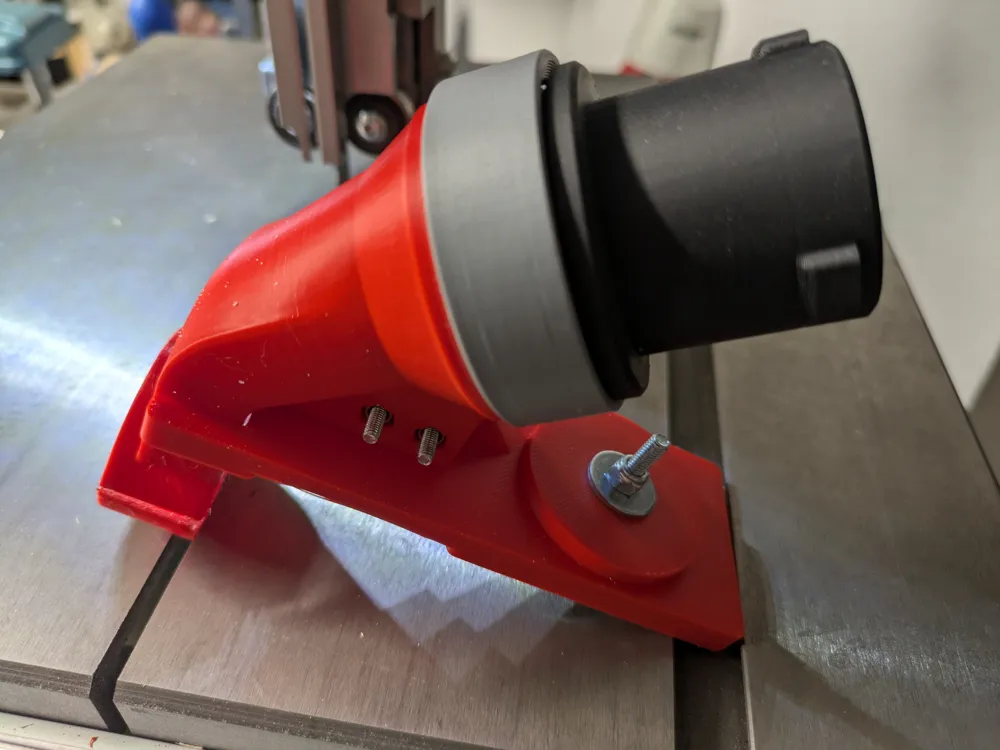

The vacuum adapter consists of 2 parts, which are connected with two DIN912 M3x16 cylinder head screws and two M3 hex nuts.

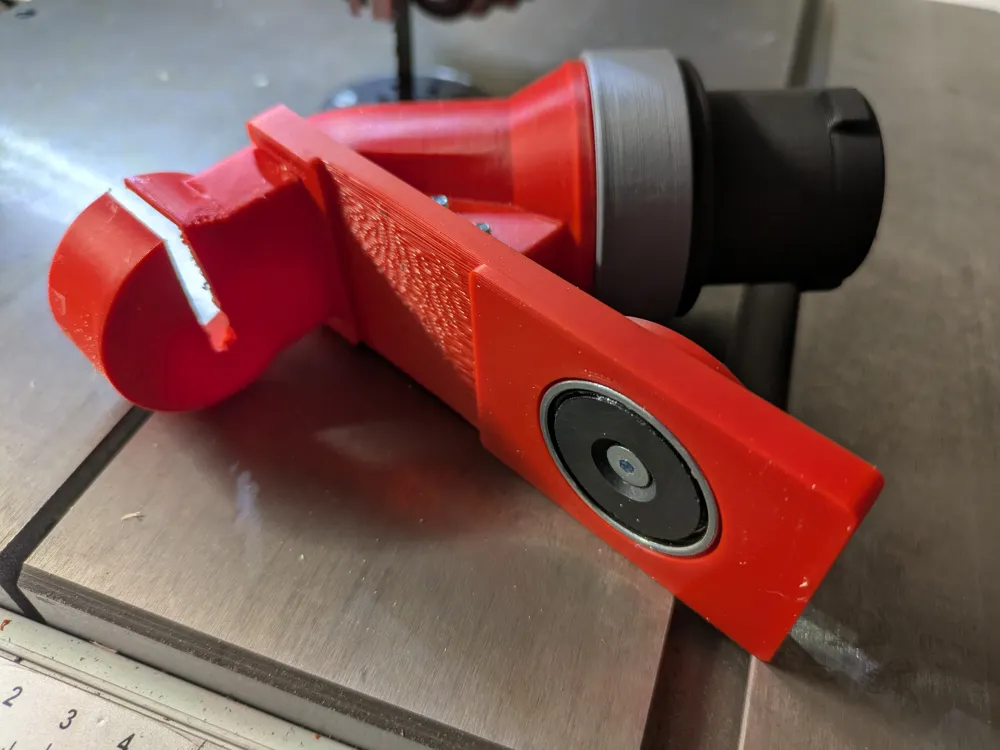

In the part that attaches to the band saw, I have provided a recess with a diameter of 34mm x 7mm to attach a disc magnet with a DIN7991 M4 countersunk screw and a DIN934 M4 hex nut. If other recesses are needed, the Step file can be adjusted accordingly.
