Tiny Hold Down M5 Hardware
Print Profile(1)
Description
**There is an issue in MakerLab where the number wont update, the height of the model changes but not the number.

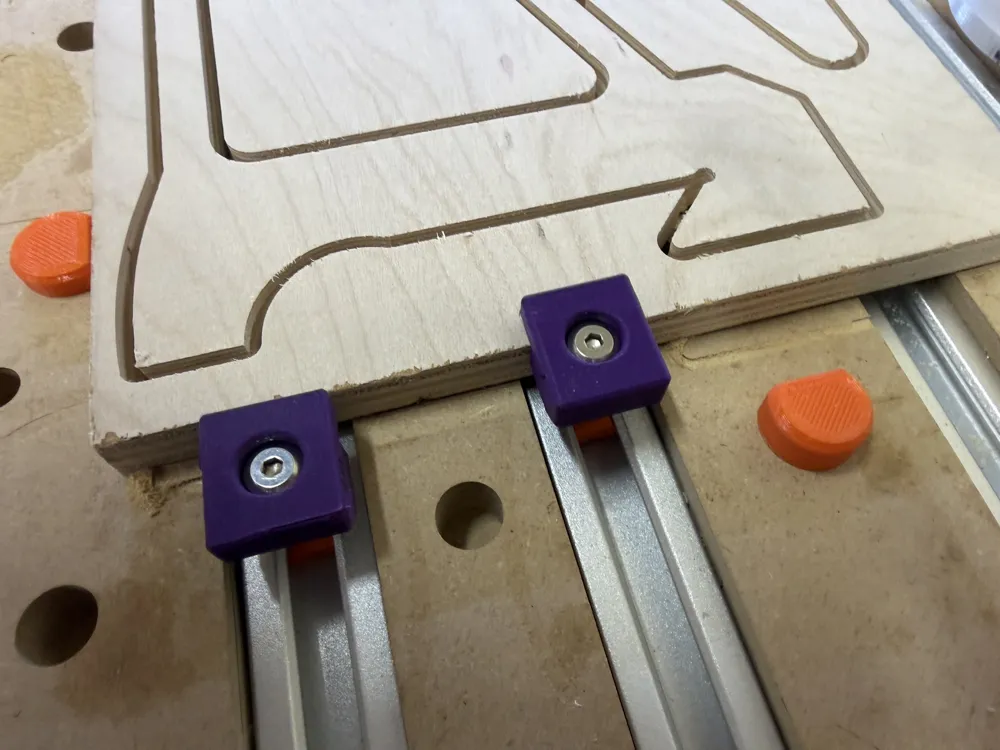

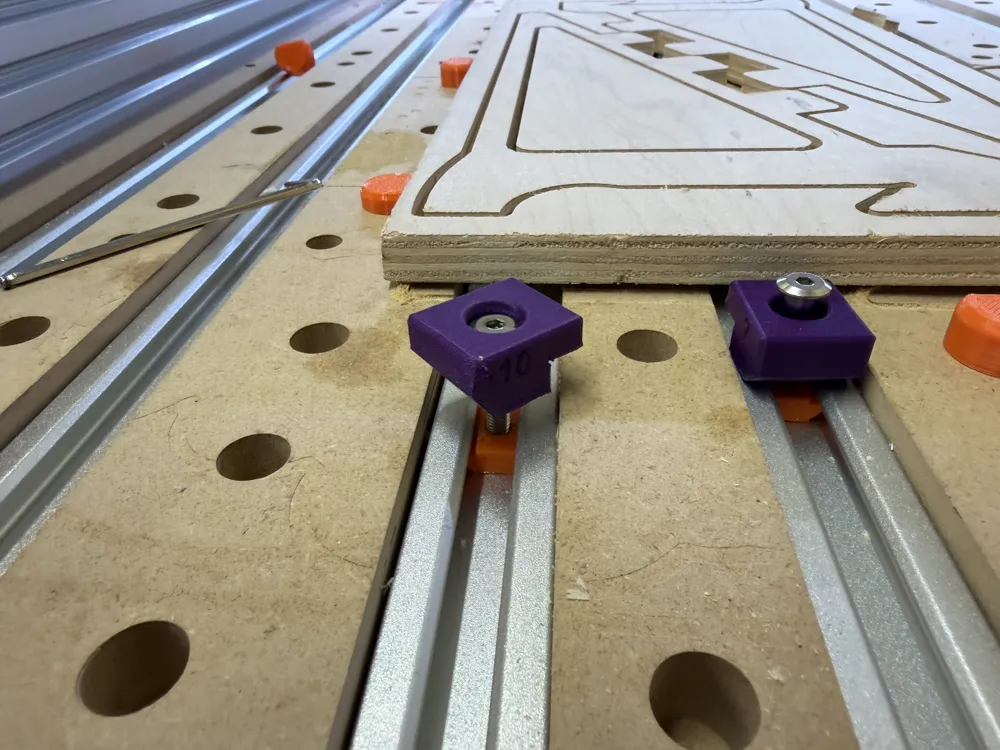

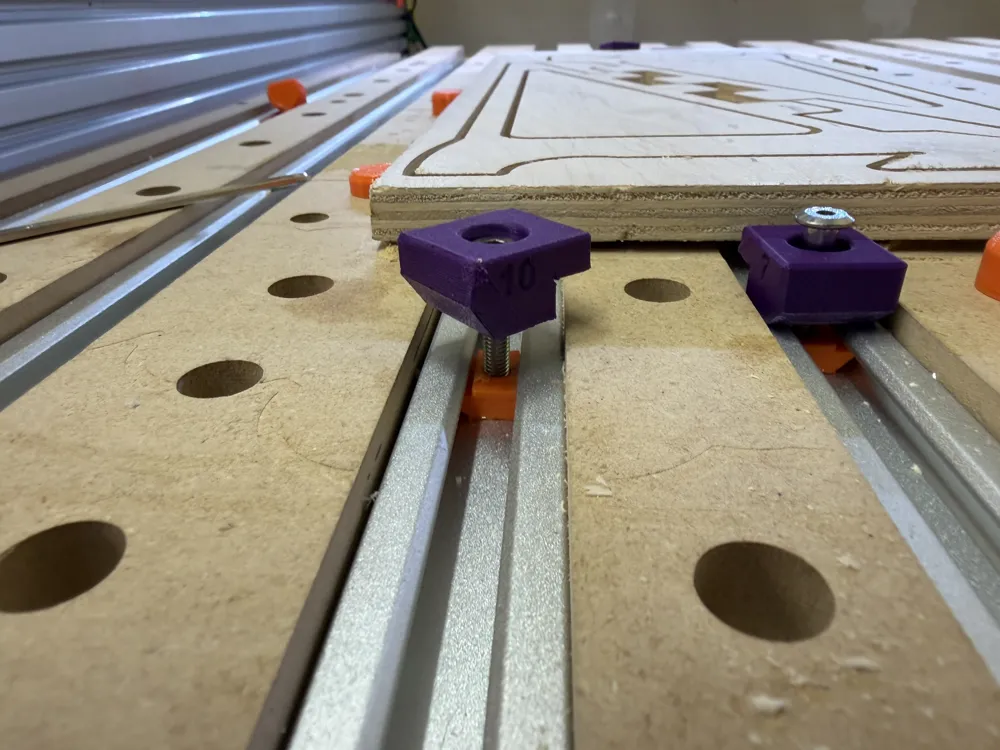

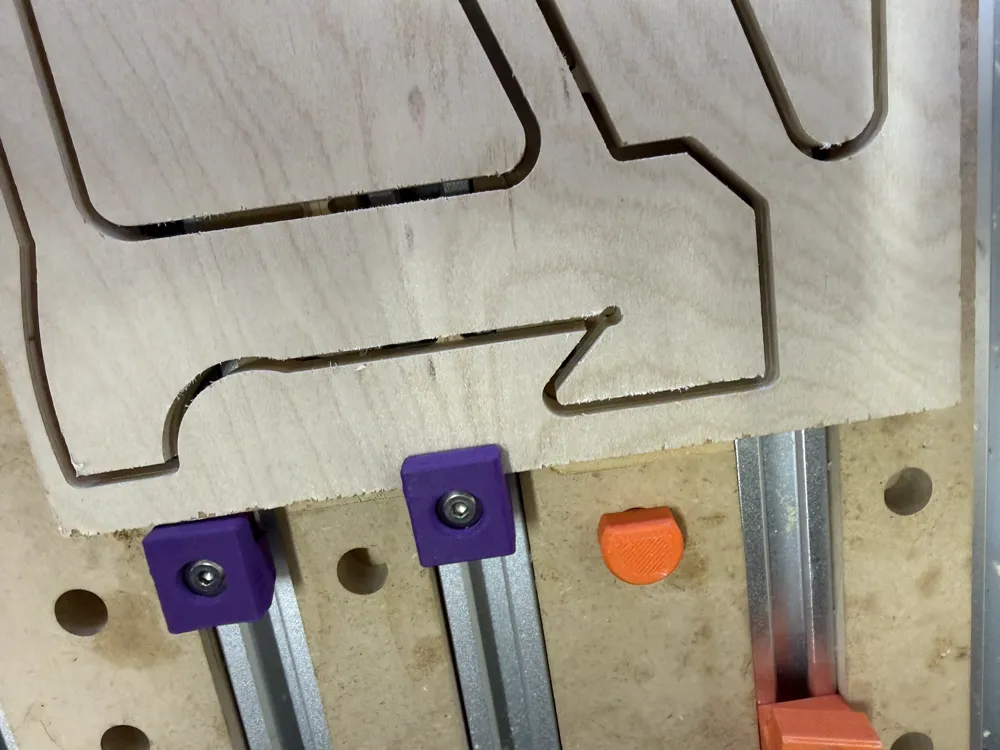

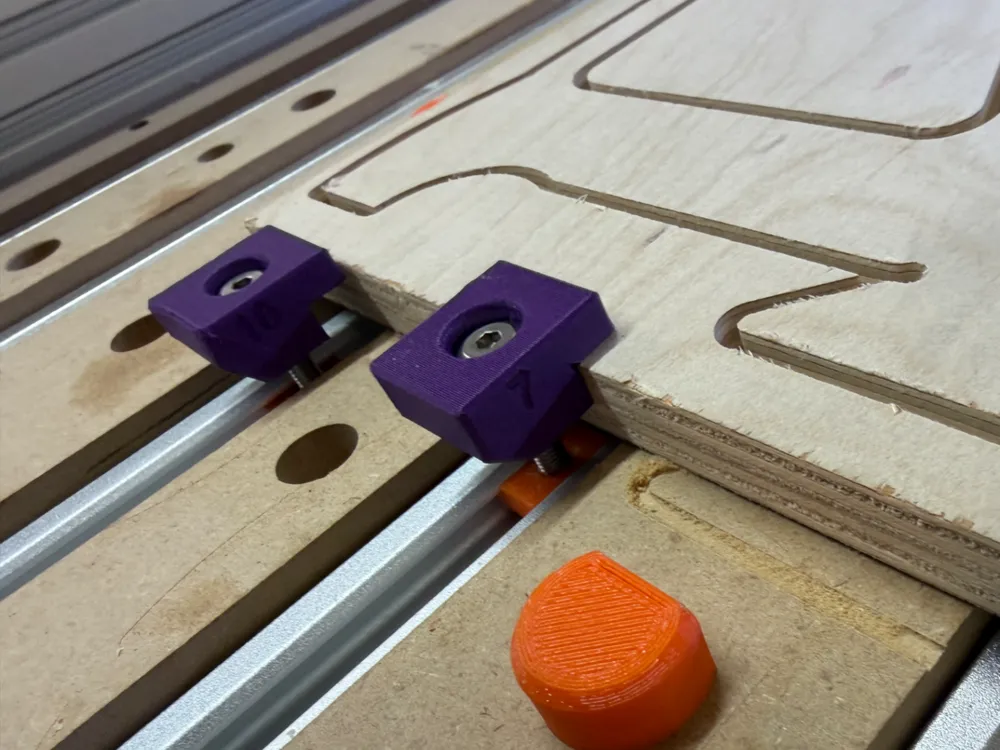

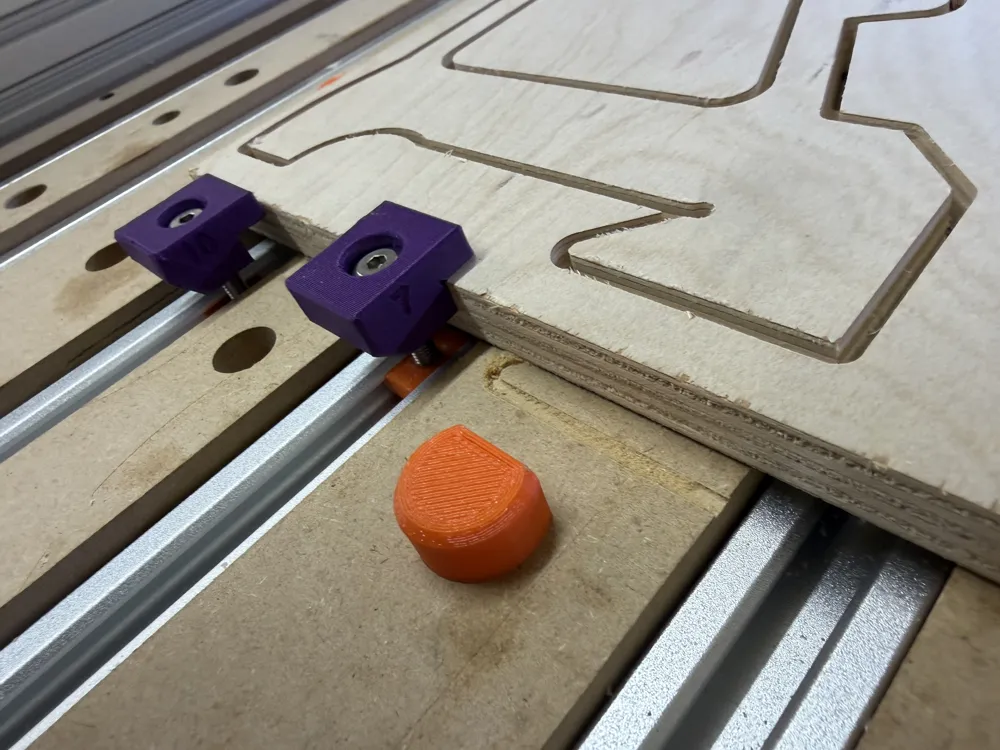

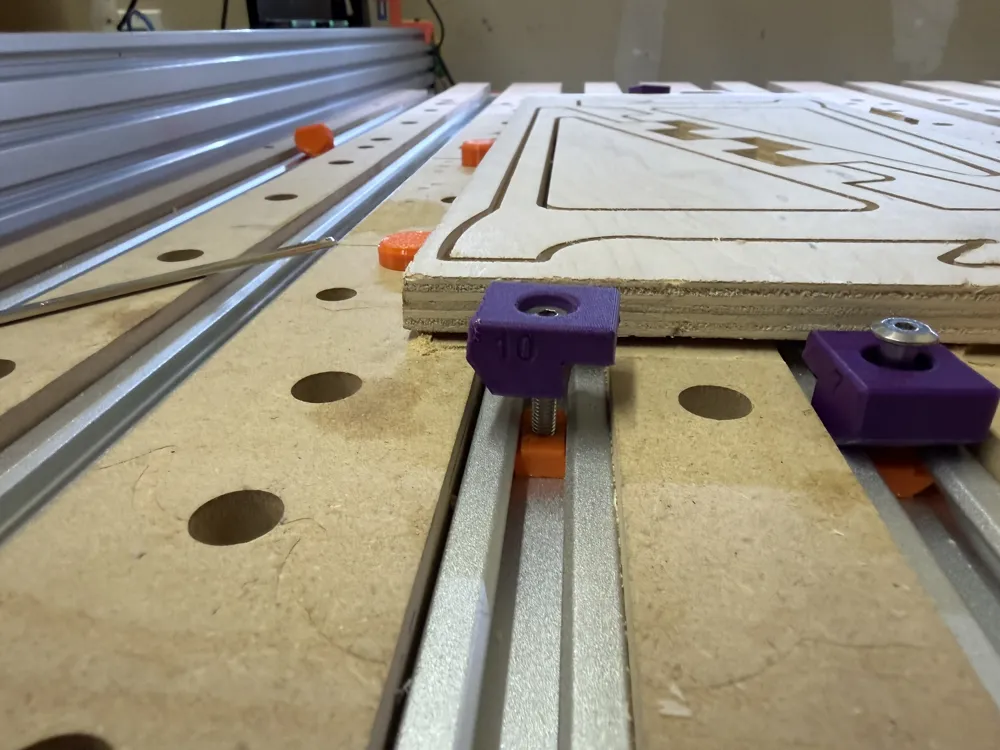

I have seen a few of these style of clamps pop up and thought they might be useful so I made my own and tried them out, they work really well.
I used these furniture style bolts to help solve the bolt length issue that I saw in a few videos and so far so good. I made mine to fit M5 hardware.
https://a.co/d/by5SBXc - I got the M5 x 12mm and the M5 x 16mm version and they work well so far.

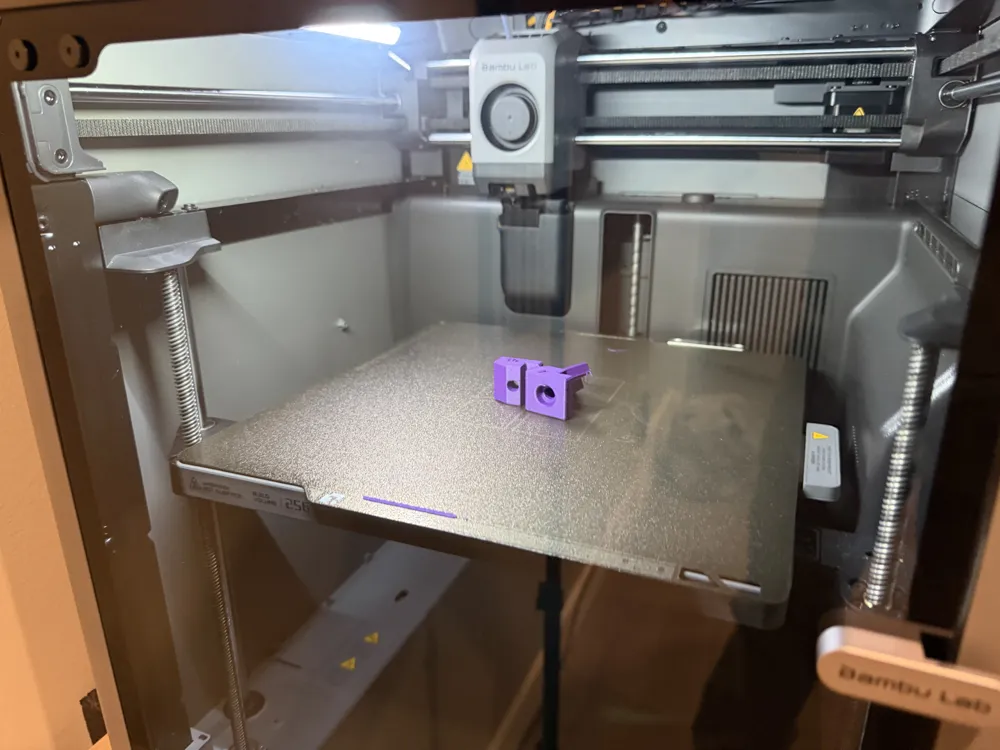

So you can print them out on their side or on the 45' chamfer on the back of the clamp, I have done some testing and both orientations work well.
T-Track Insert Nut for M5 and M6 Hardware: https://makerworld.com/en/models/2146982-track-inserts-for-t-track-and-3030-tracks#profileId-2326232
