The smallest 4K FPV drone ever
Print Profile(2)
Description

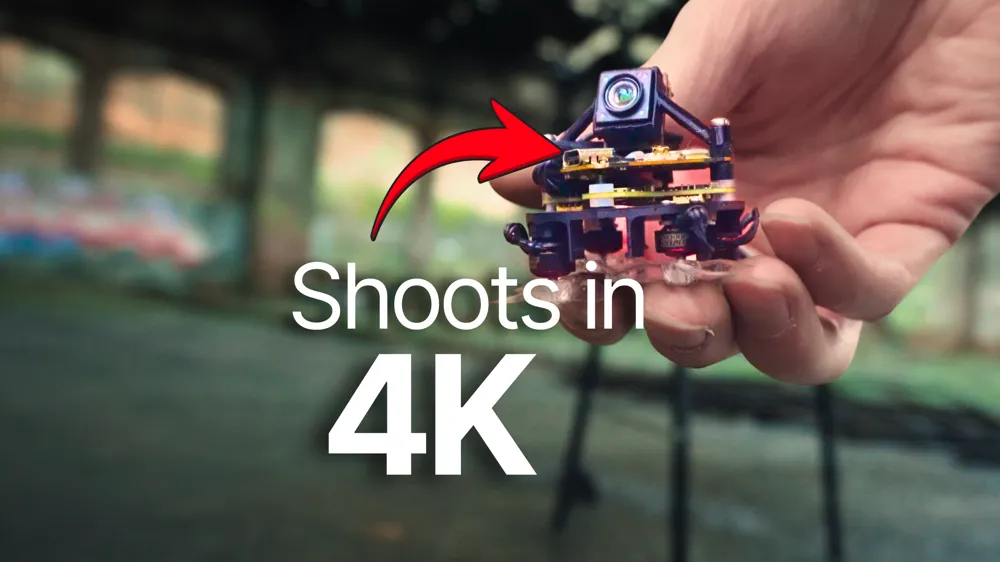

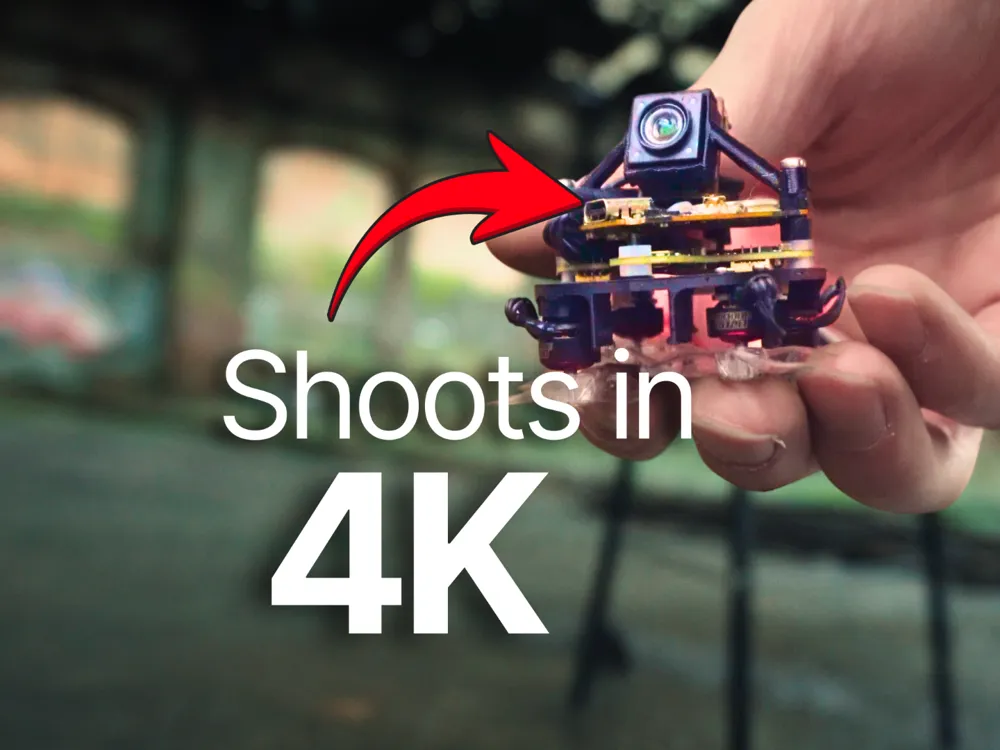

I've been wondering for a while: how small can you build a digital FPV drone that still records in 4K?

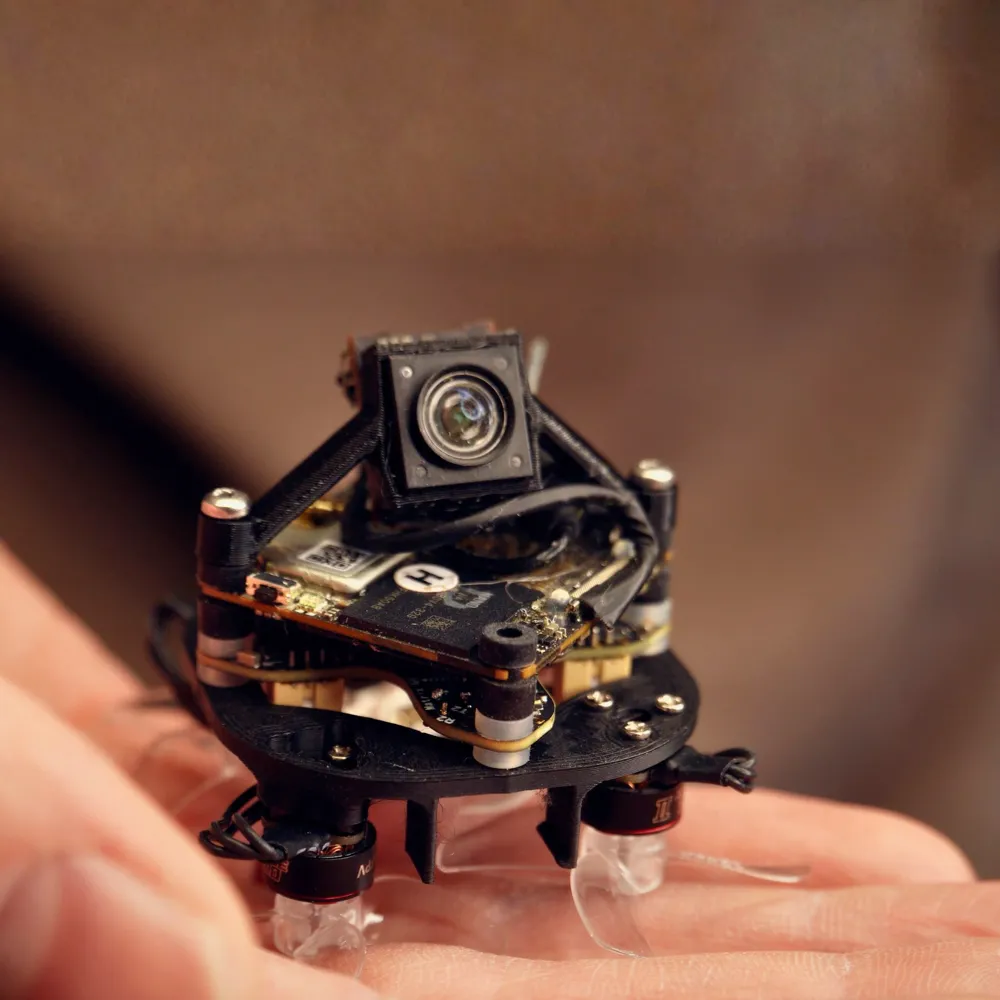

For this project, I used a DJI O4 Air Unit and removed everything that wasn't absolutely necessary.

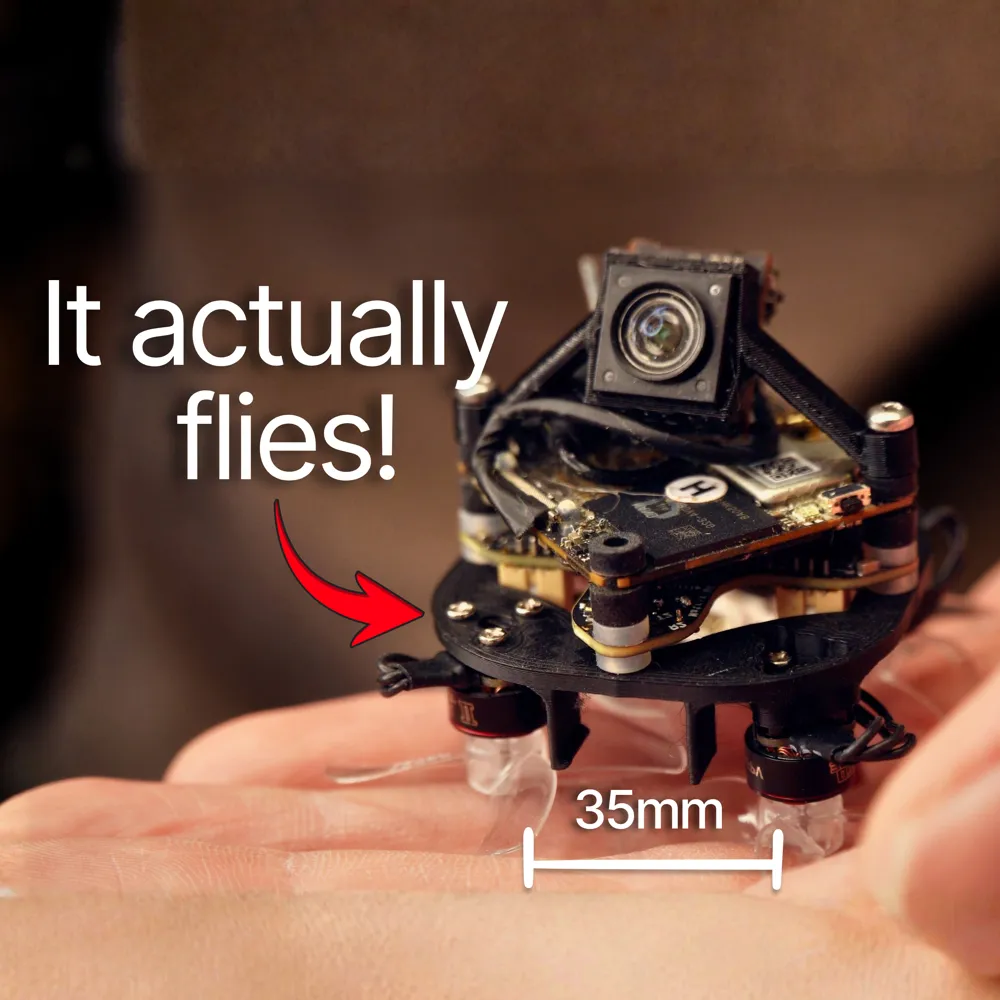

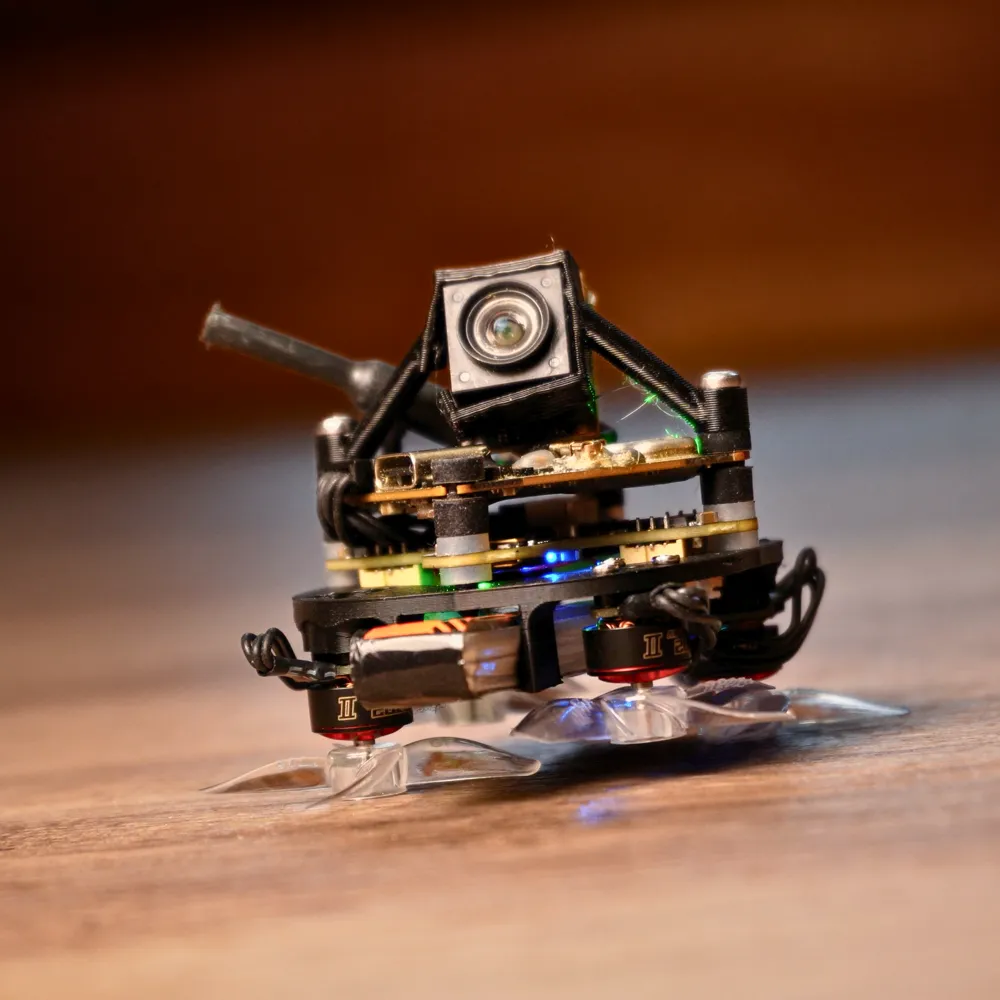

The frame is designed so that the motors run in an extremely tight space. It was a fun project – nothing you'd really want to fly seriously – but in the end, it proved surprisingly agile.
Probably the smallest whoop drone you can currently build that is actually fun to fly.
But see for yourself in the video…
Required Parts:
- Matrix 1S Brushless Flight Controller: (https://s.click.aliexpress.com/e/_c40ZrCnR) (https://www.mepsking.shop/betafpv-matrix-1s-brushless-flight-controller-3-in-1.html?inviterId=1915291648945373186&utm_source=affiliate)
- BetaFPV 0702 II 30000 KV Brushless Motors: (https://www.mepsking.shop/0702-ii-brushless-motors.html?inviterId=1915291648945373186&utm_source=affiliate&utm_medium=affiliate)(https://s.click.aliexpress.com/e/_c2wYuni1)
- DJI O4 video transmitter: (https://amzn.to/44otxKT) (https://s.click.aliexpress.com/e/_c3FoI4aN)
- Gemfan 31mm 1209-4 1mm Propeller Clear (https://s.click.aliexpress.com/e/_c3tV4OSH)
- BetaFPV 300mah 1S BT2.0 Battery: (https://s.click.aliexpress.com/e/_c42EHac1)
💥 Exclusive 10% discount code for Mepsking Motors: fpvgeek
Disclaimer: Some parts were provided to me for free by Mepsking. All opinions are my own. Affiliate links help support the channel at no additional cost to you.
Frame:
- PLA+ / PETG / ABS
- Layer Height: 0.12mm
- 3 walls
- 15% Infill
- Support: Yes, normal
Camera Mount:
- TPU
- Layer Height: 0.12
- 2 walls
- 15% Infill
- Support: yes, tree
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
