Shelly 1 mini din rail TE housing
Print Profile(1)
Description

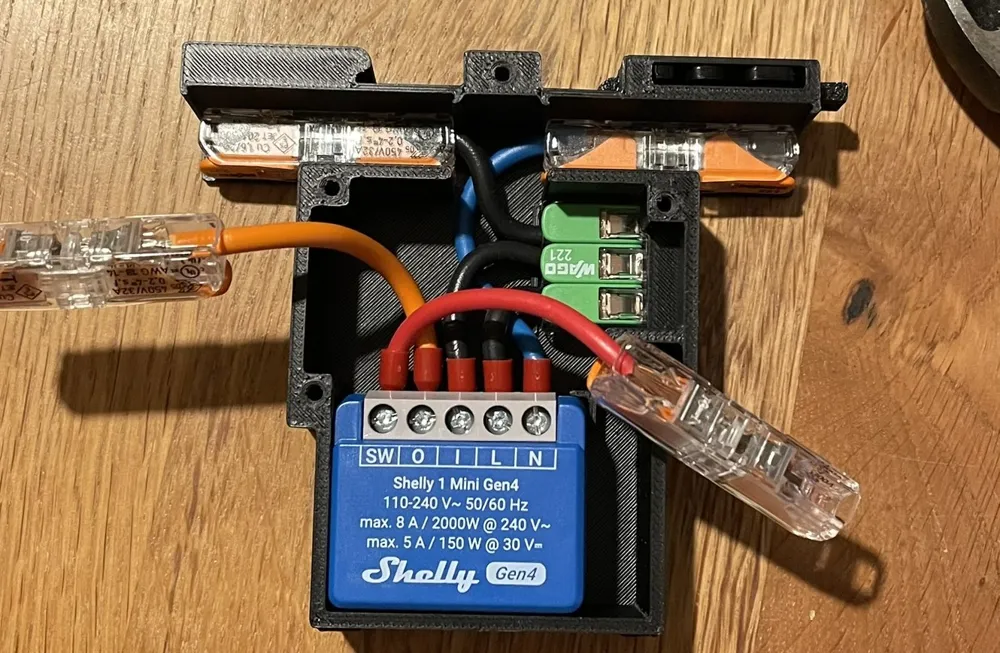

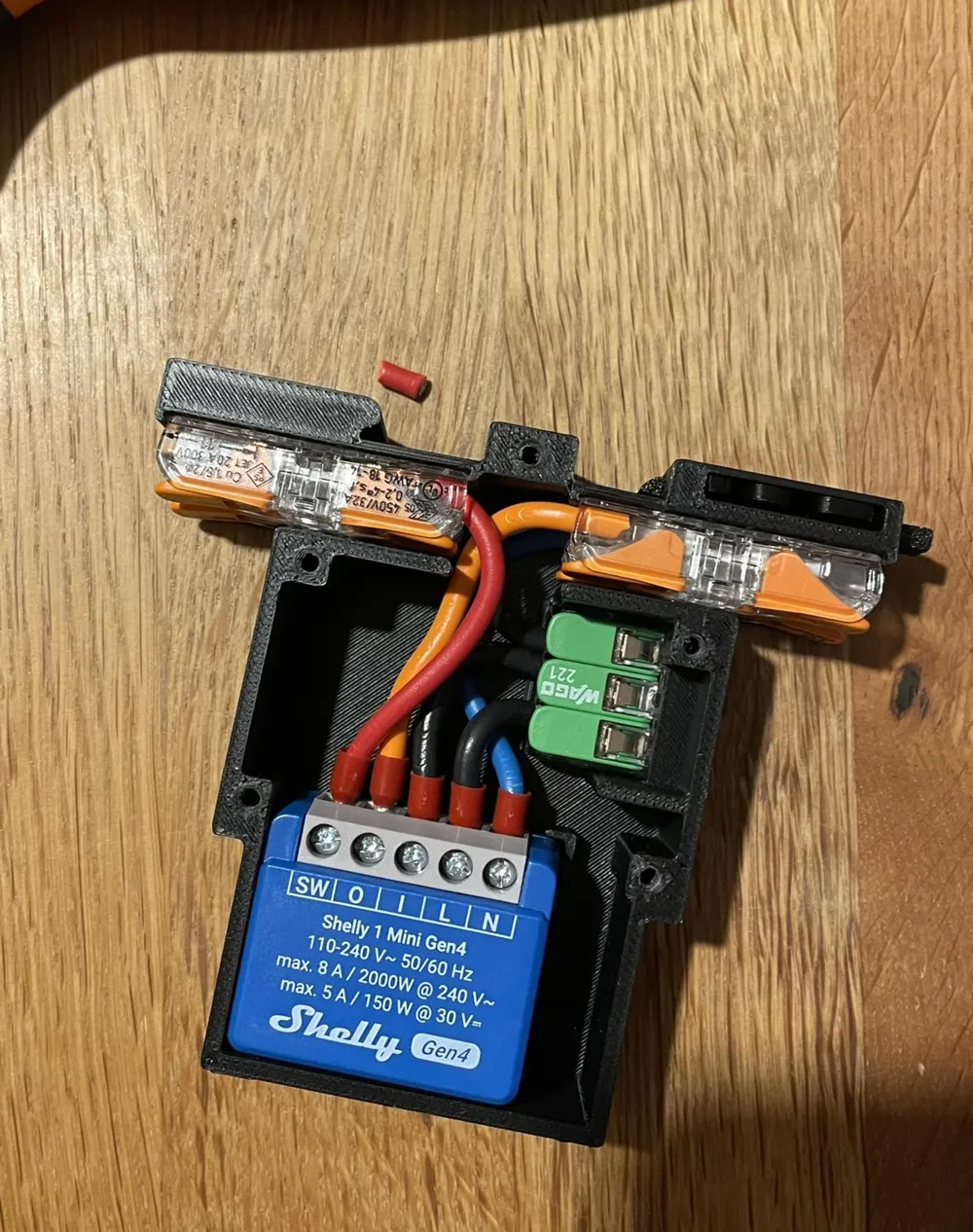

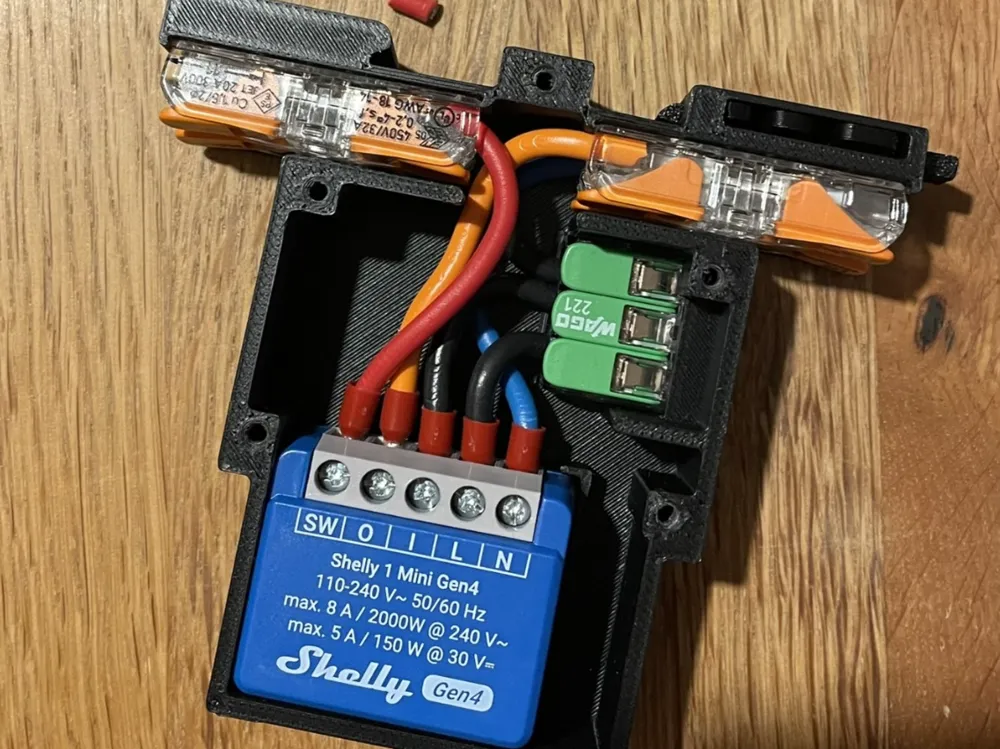

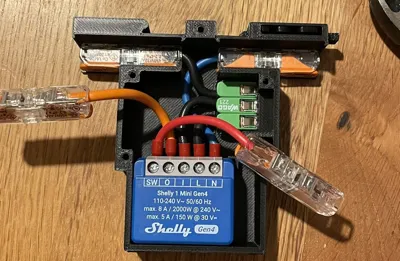

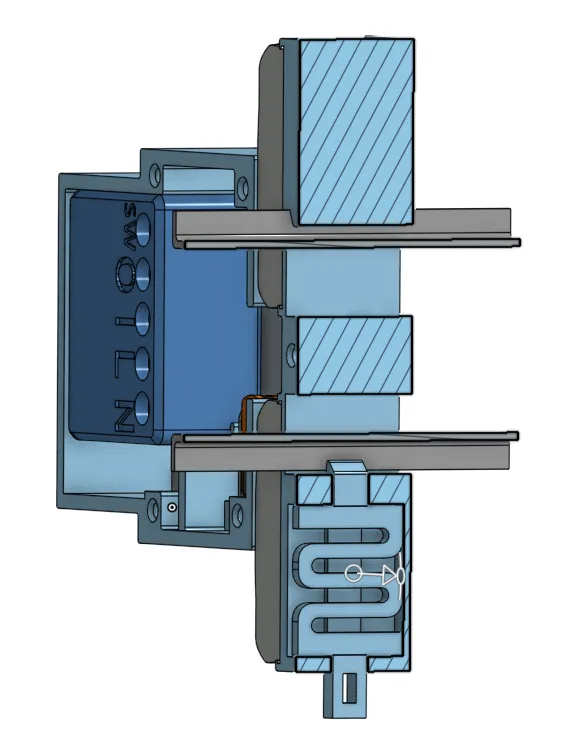

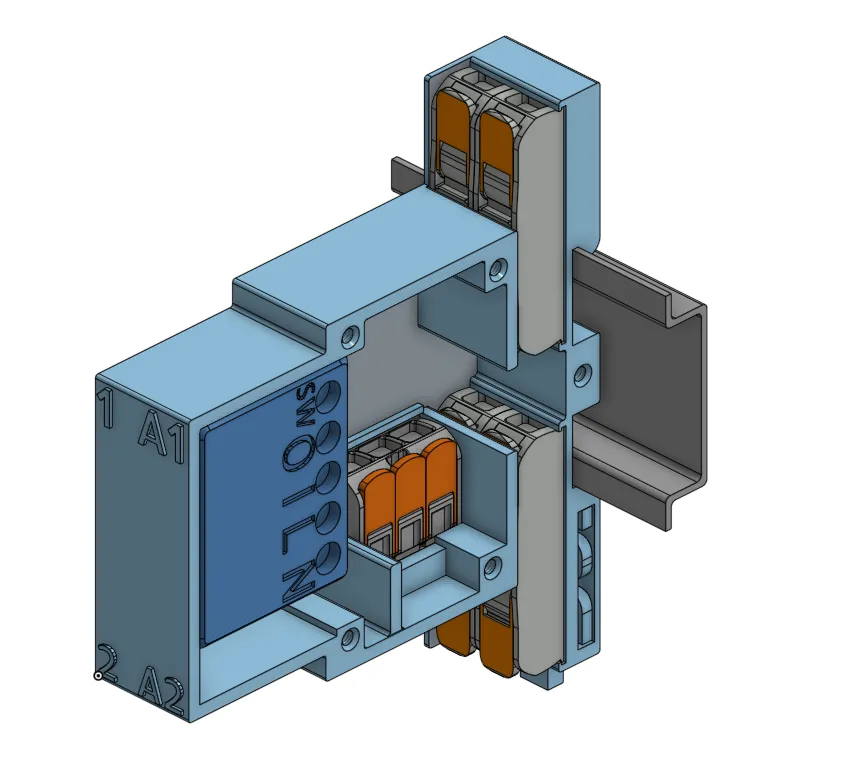

A DIN rail enclosure with the size of one TE (18mm). This allows the Shelly 1 mini, for example, to be used as a smart replacement for an impulse relay.
Also required:
- 5 pcs M2.5x8 countersunk screws
- 4 pcs Wago 221-2411
- 1 pc Wago 221-413
The threads must be cut. These were NOT printed in.
PS
The ECO mode of the Shelly can lead to CPU temperature spikes. Likely due to weak Wi-Fi in sub-distribution boards.
