UPS for router 9-12V
Print Profile(1)
Description
UPS for Router (9V / 12V)

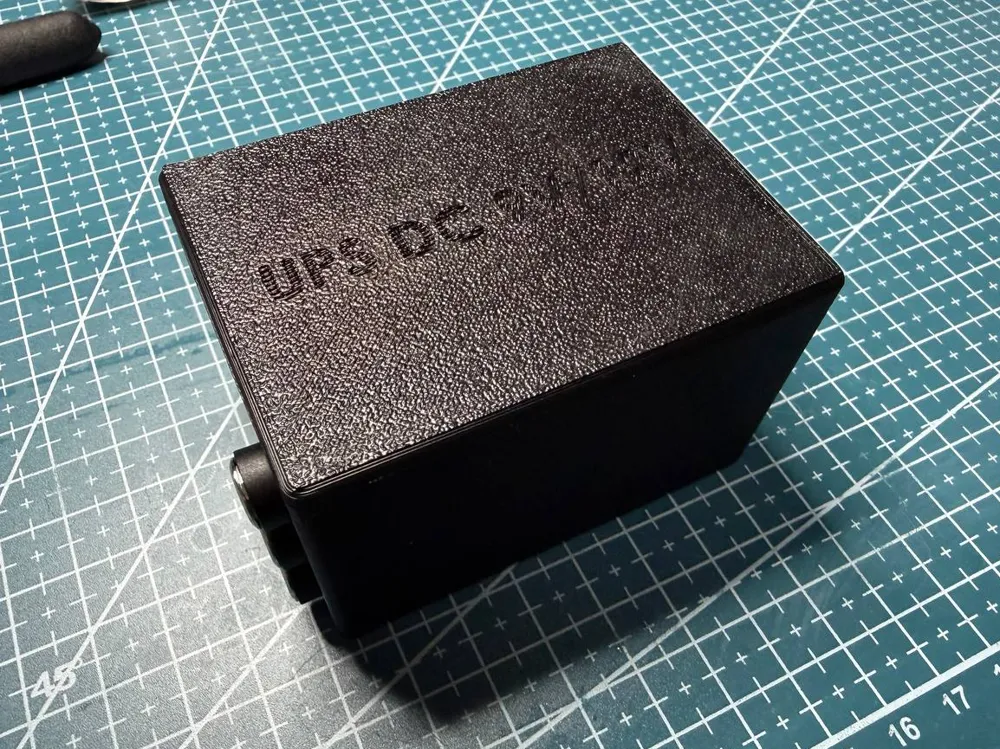

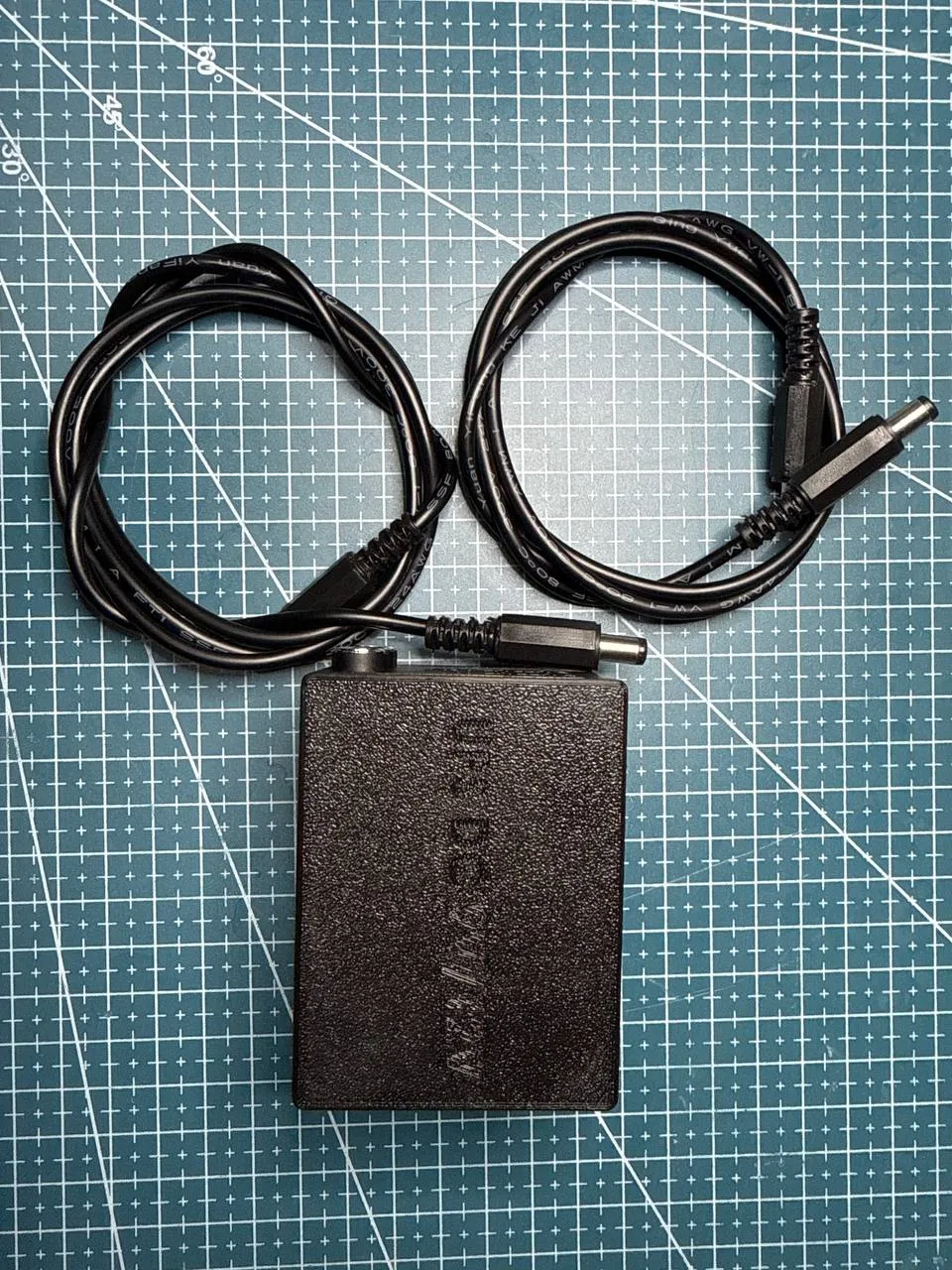

This is a 3D-printable enclosure for a DIY UPS (Uninterruptible Power Supply) for routers, designed to work with 18650 lithium-ion batteries and common DC-DC power modules.
The enclosure is compact, practical, and suitable for permanent home or office use, providing backup power for routers, ONUs, and other network devices.
📦 Model Variants
The model includes three separate versions, depending on the required output voltage:

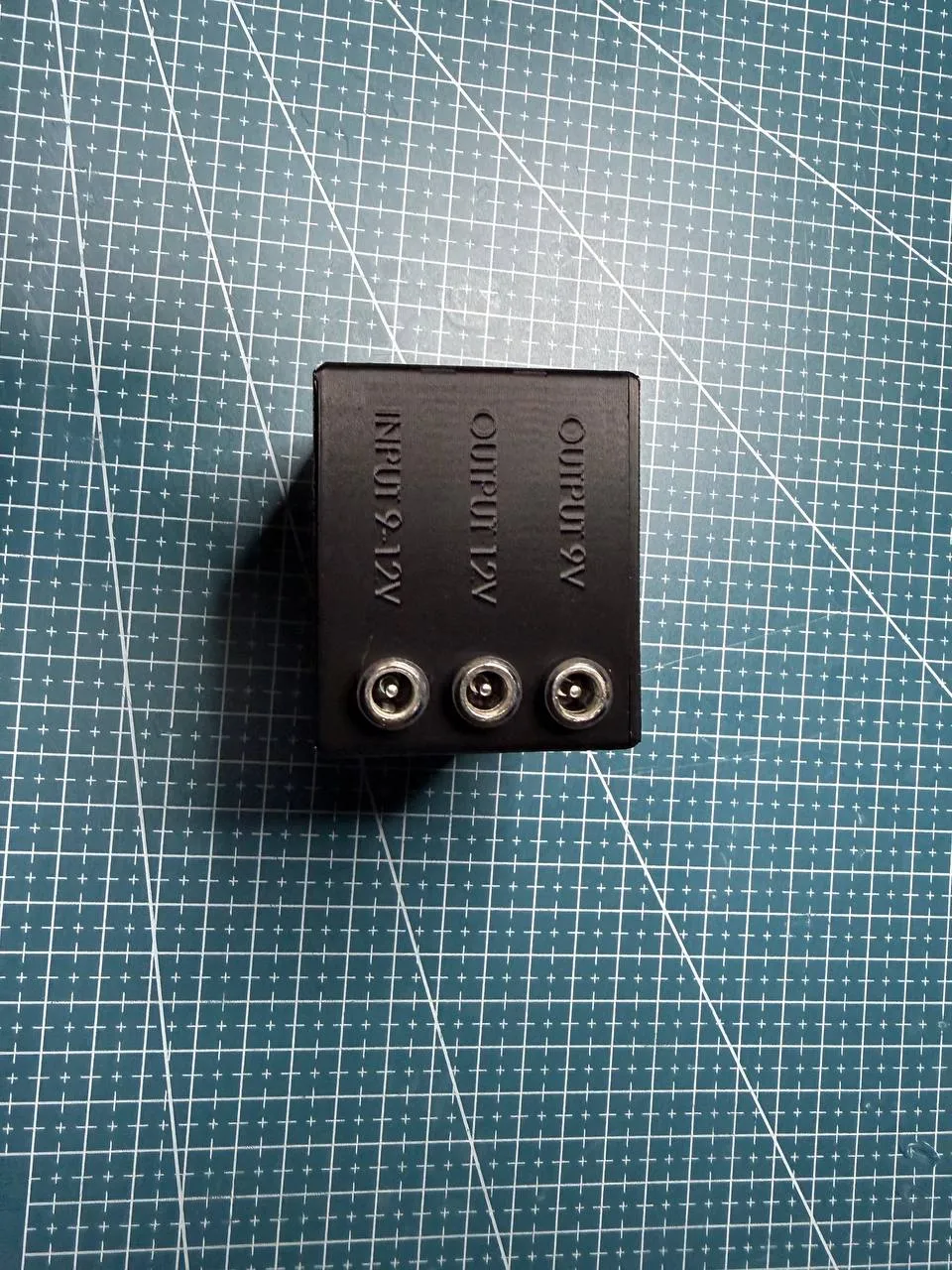

🔹 UPS for Router 9–12V
A universal version that can be used for both 9V and 12V devices.
🔹 UPS for Router 12V
Designed for routers, ONUs, and networking equipment that require 12V output.

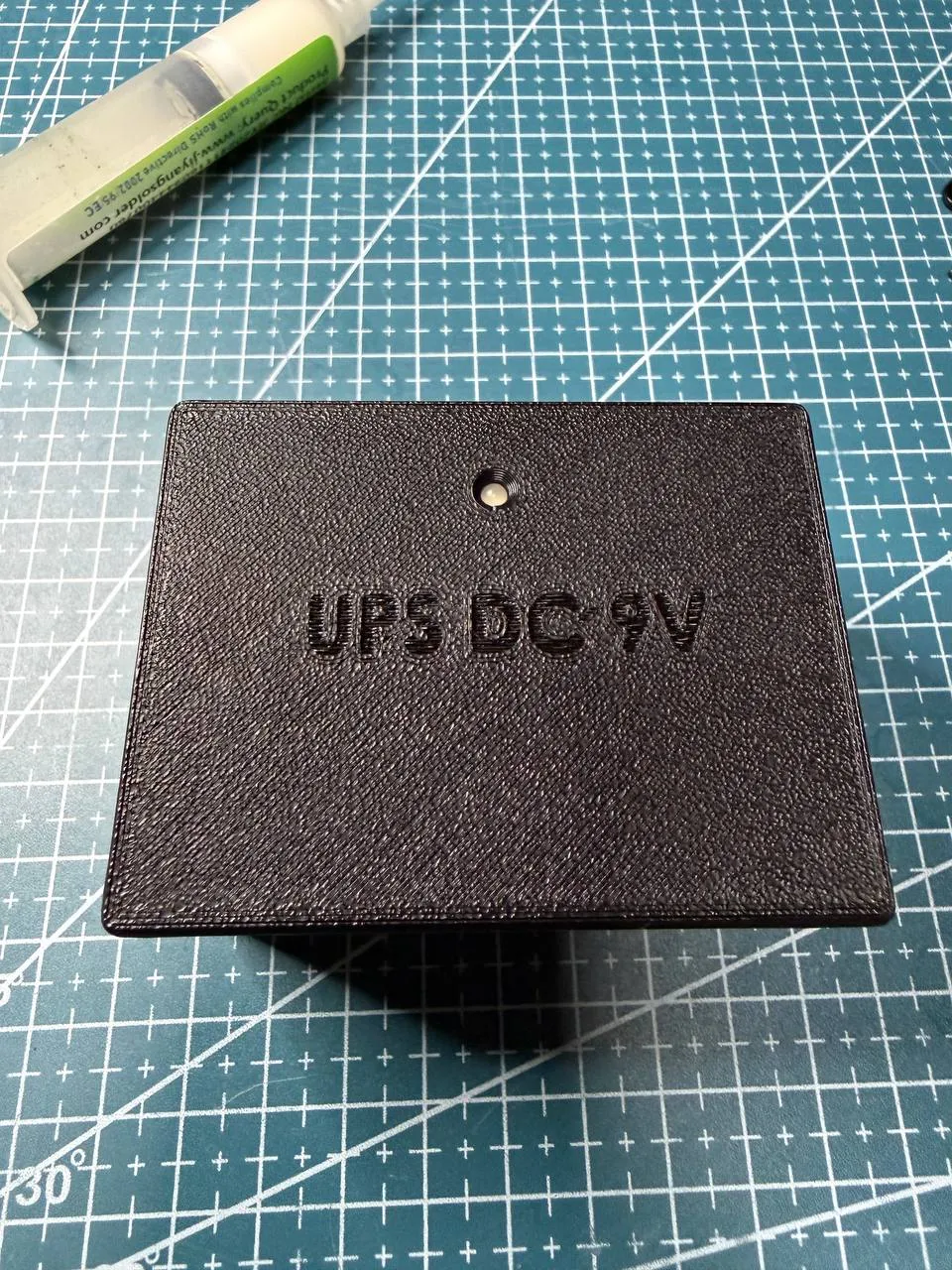

🔹 UPS for Router 9V
Designed specifically for devices that operate on a 9V output.
Each version has optimized internal dimensions to fit the required electronic components.
🧩 Required Components (for each version)
Each enclosure is designed to hold the following components:
- 🔋 18650 batteries (2-4 pcs)

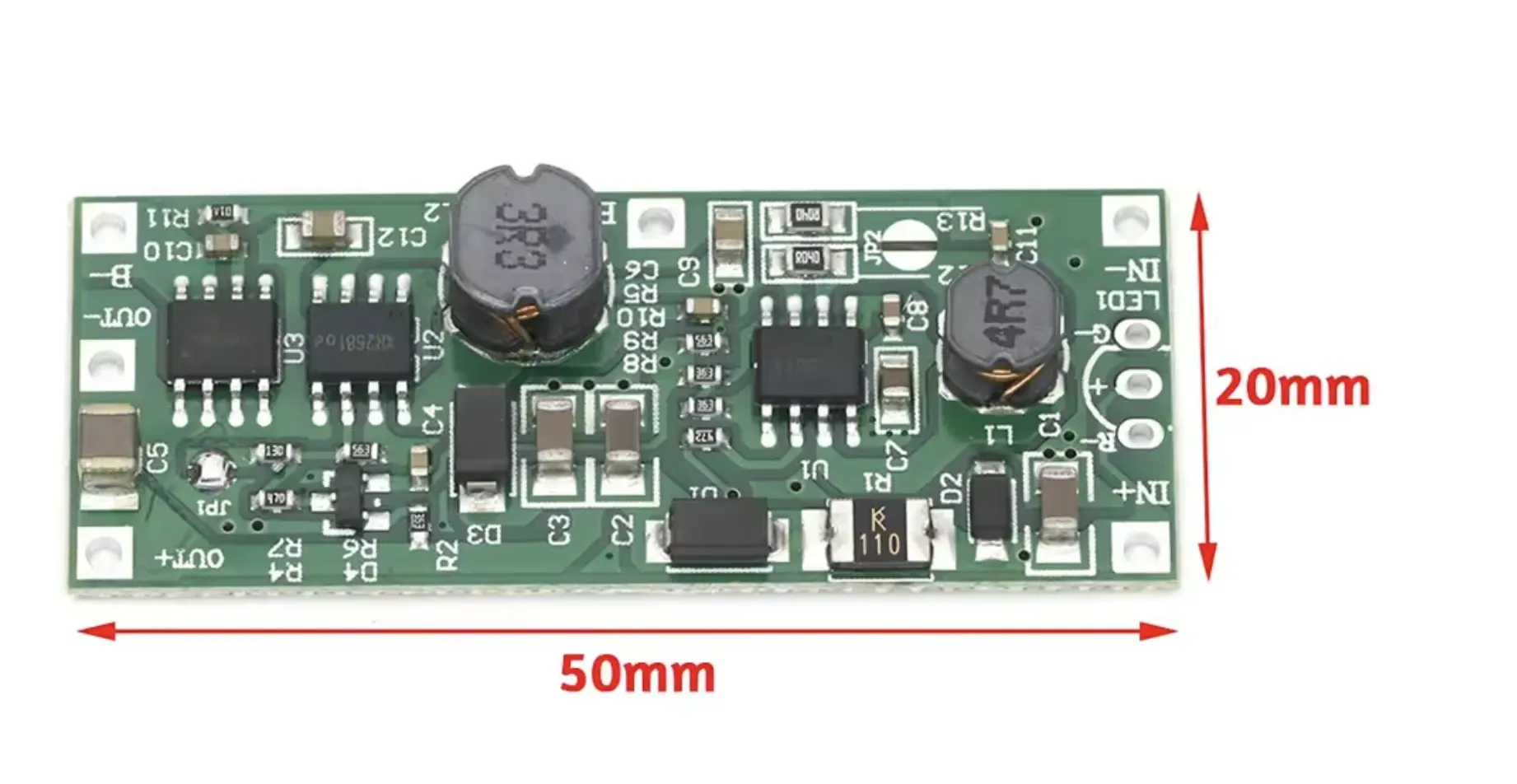

🧠 9V 12V Charging Step Up Booster Module for 18650 Lithium Battery UPS

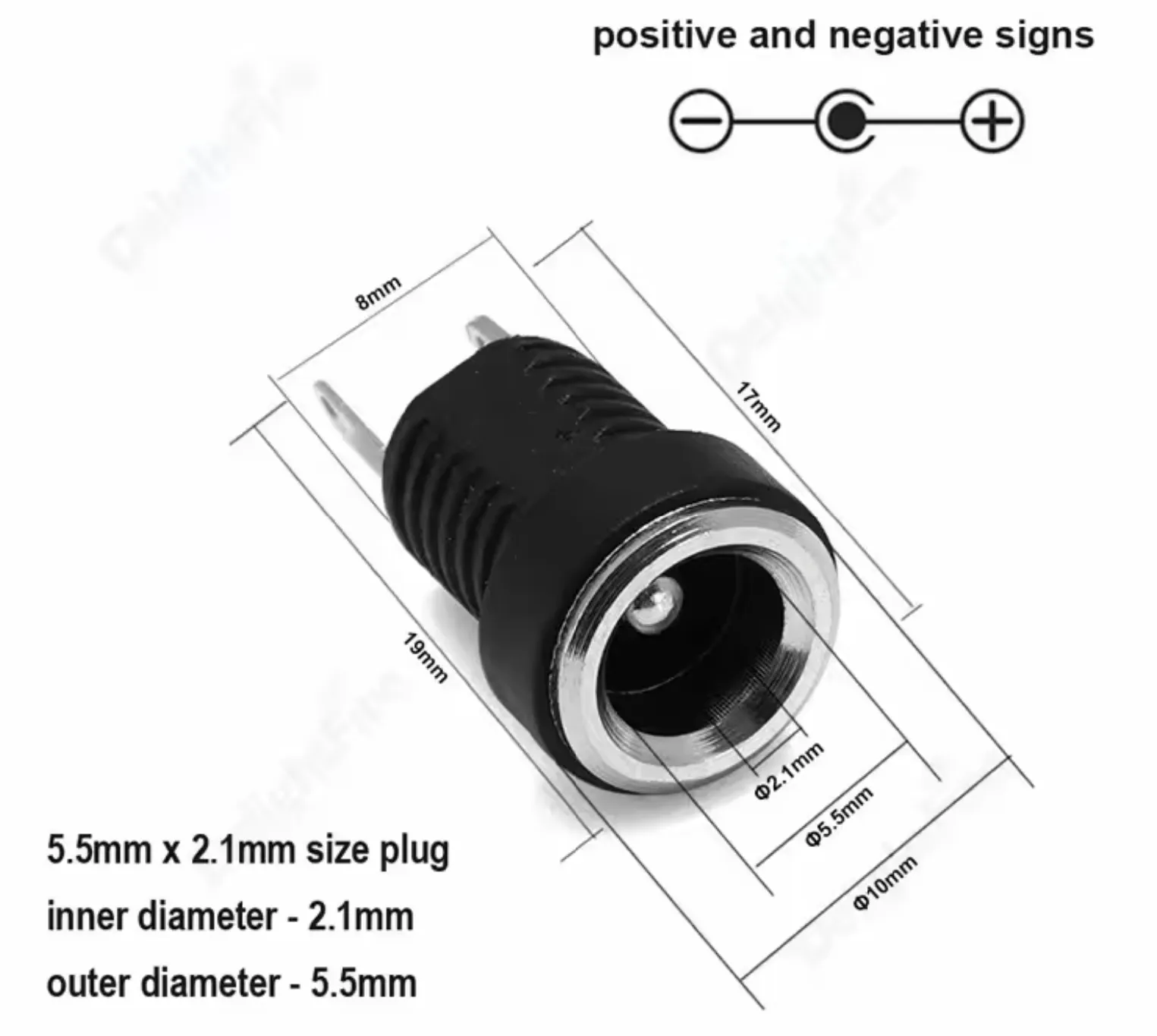

🔌 DC power jacks (input / output)

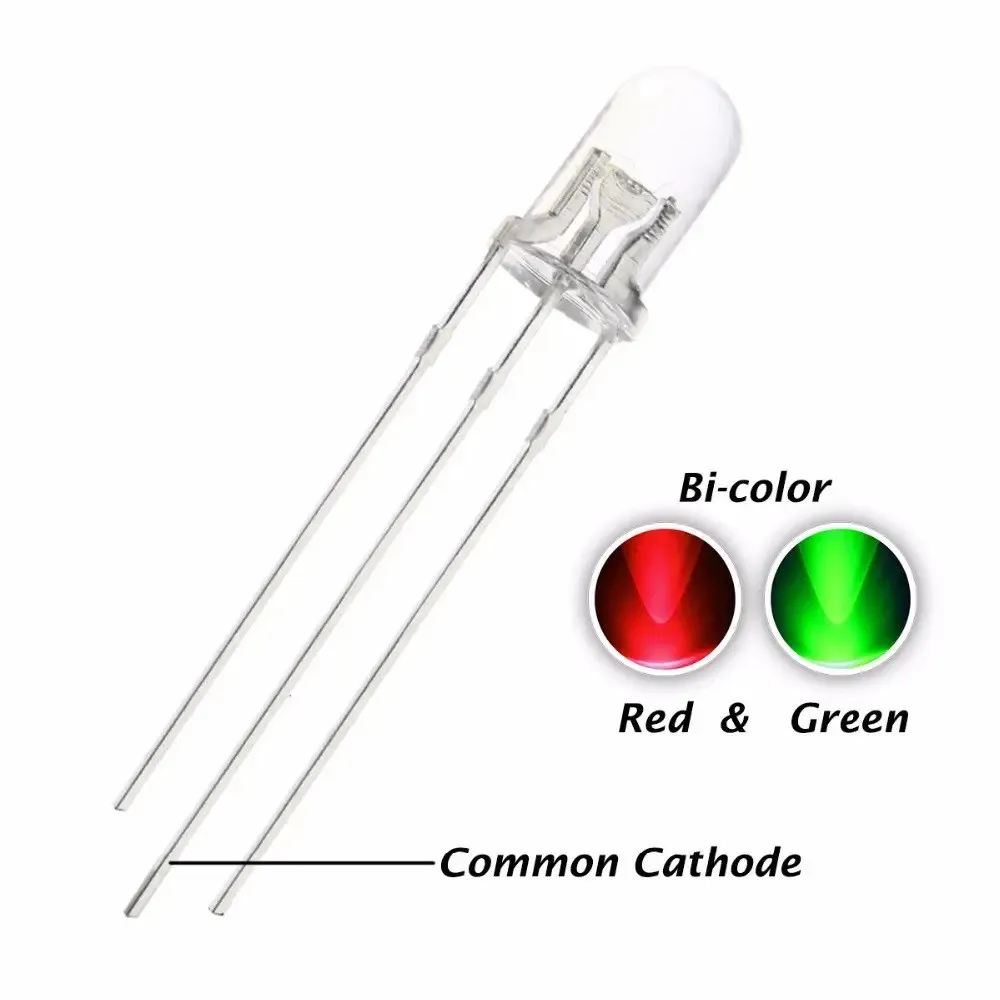

- 💡 LED indicator

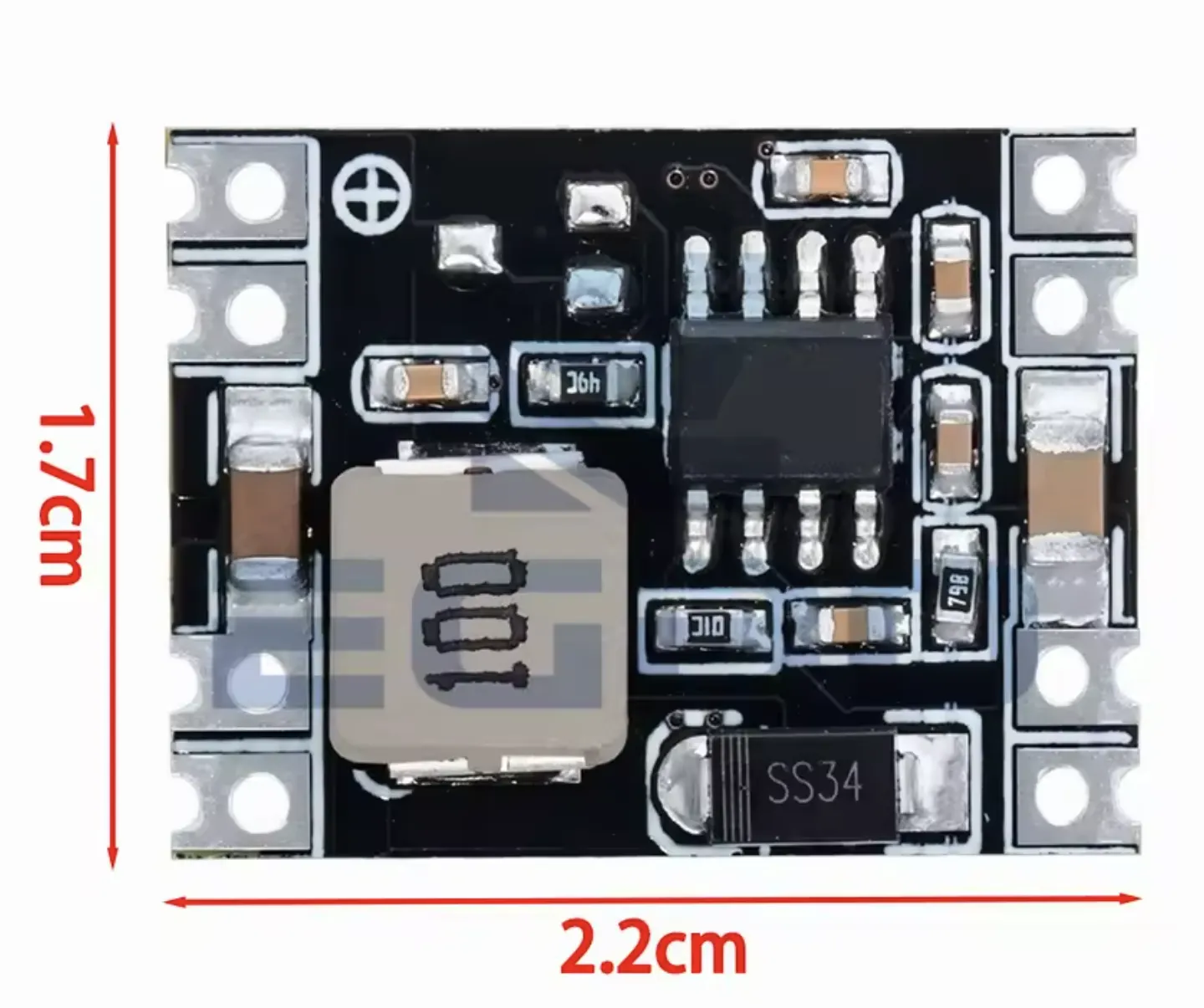

⚡ 9V 12V power module Adjustable MP1584EN (only for UPS for Router 9–12V version)
- 🔧 Wires
🖨️ Print Recommendations
- Material: PLA / PETG / ABS
- Layer height: 0.2 mm
- Infill: 20–30%
- Supports: Not required
