Modular DIN Rail – 25 mm Snap-Together Segments
Print Profile(1)
Description

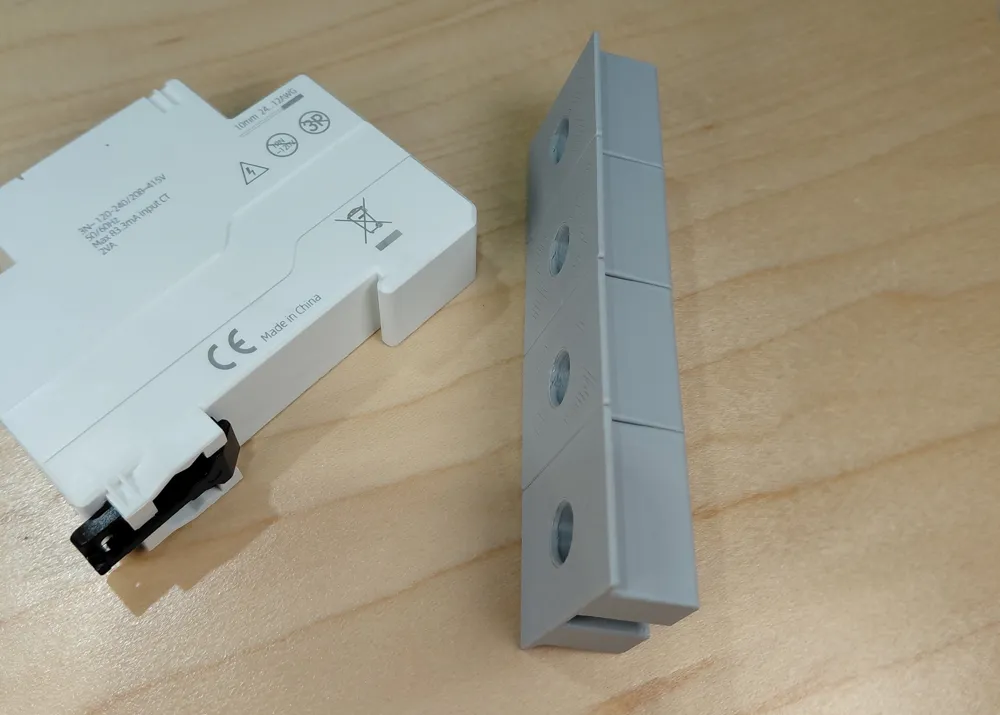

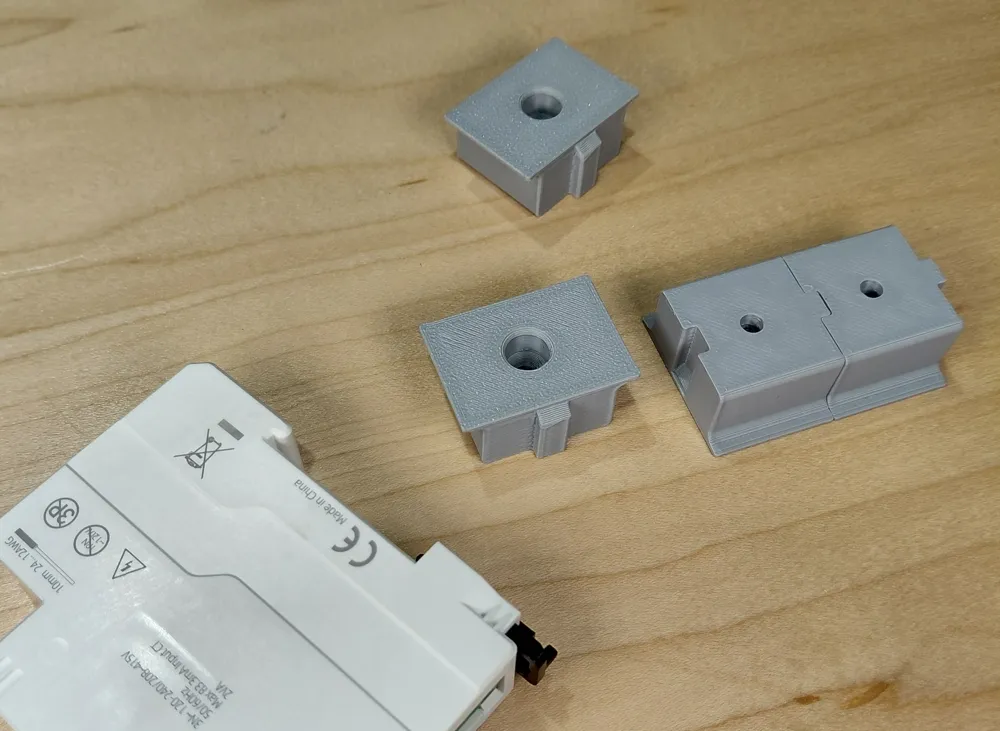

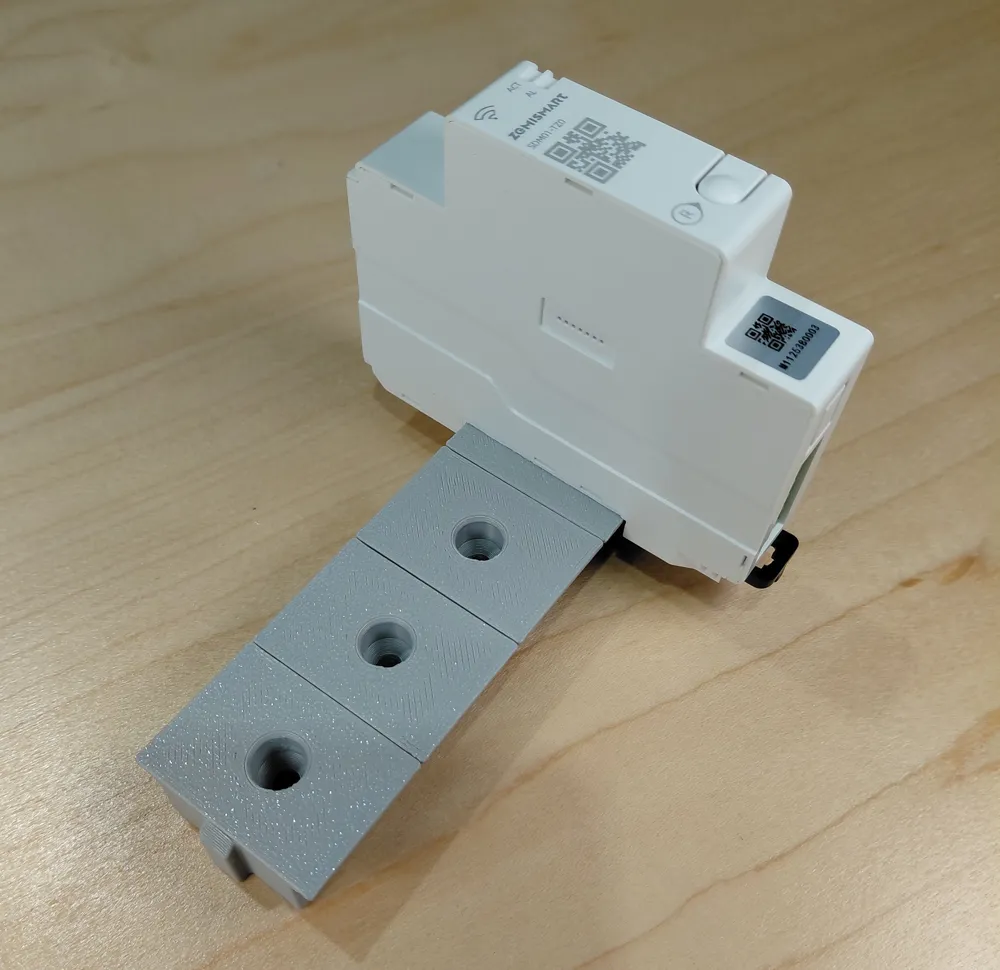

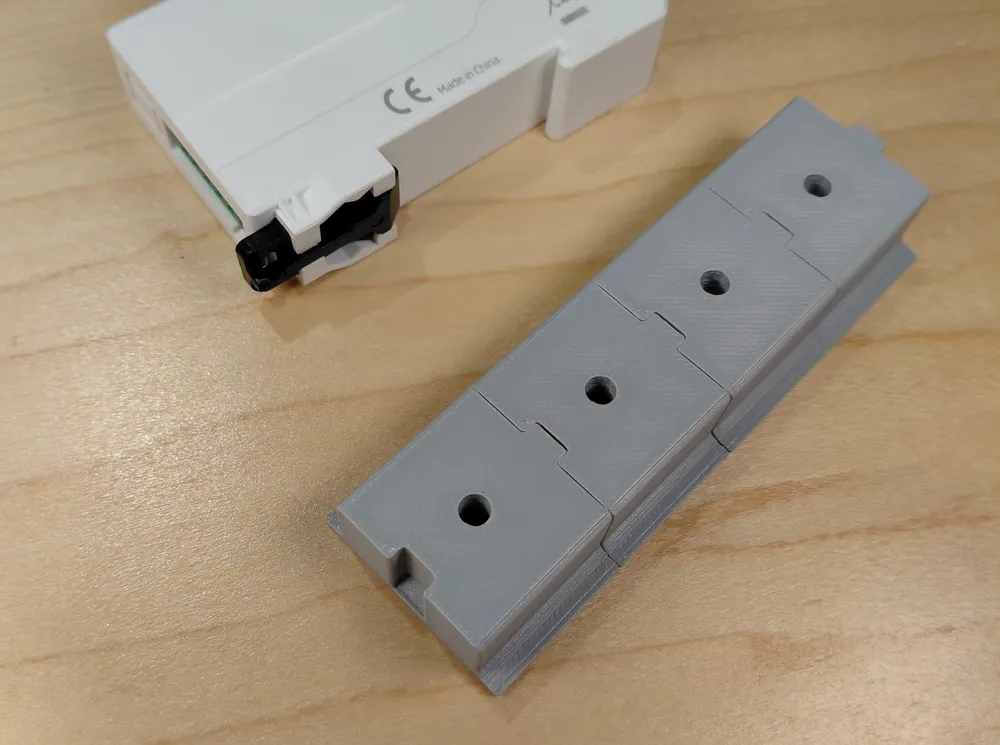

This is a 3D-printed modular DIN rail system made up of 25 mm-wide segments that clip together to form a DIN rail of any length you need. The snap-together design allows fast assembly while maintaining a rigid, secure rail once installed.

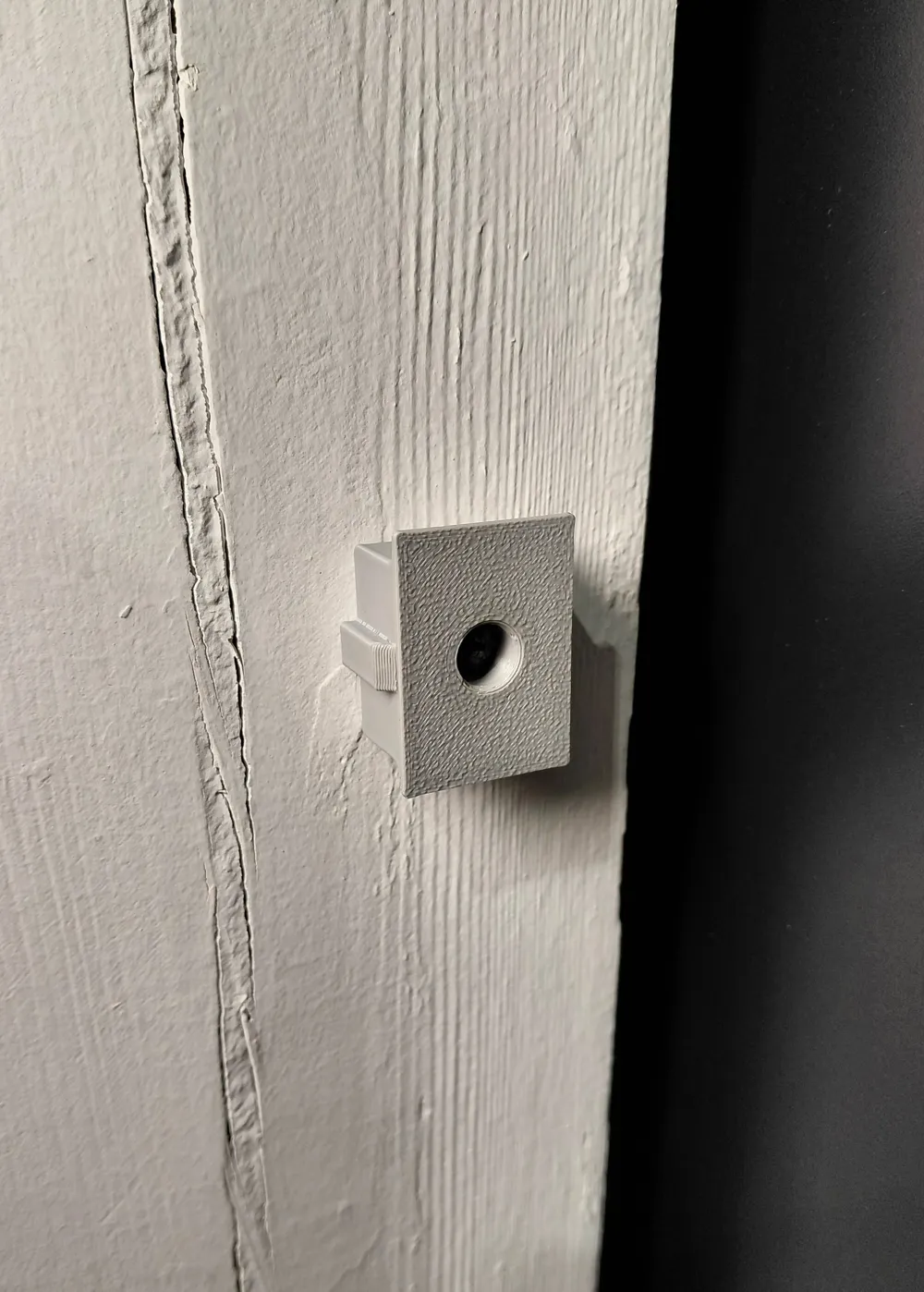

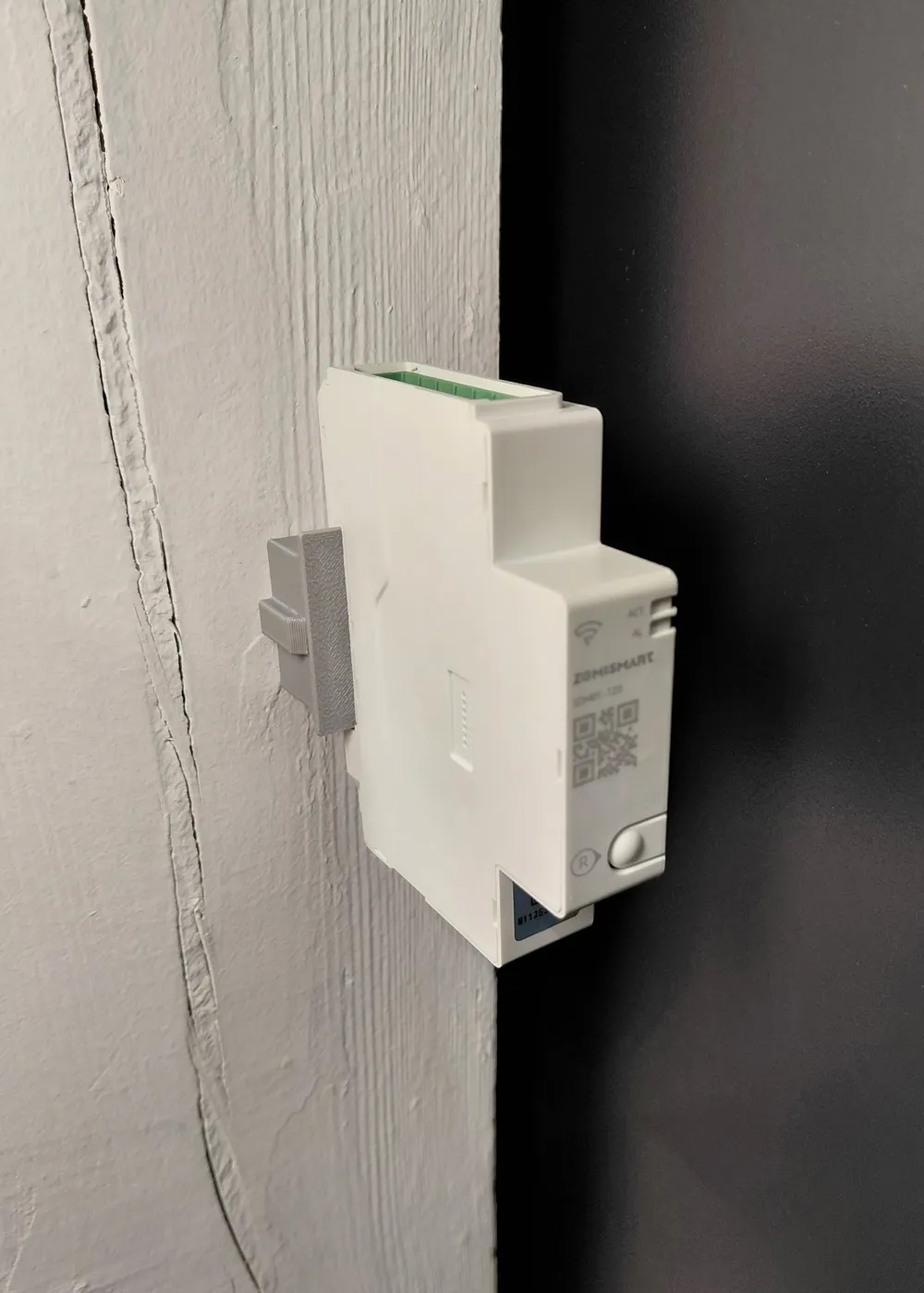

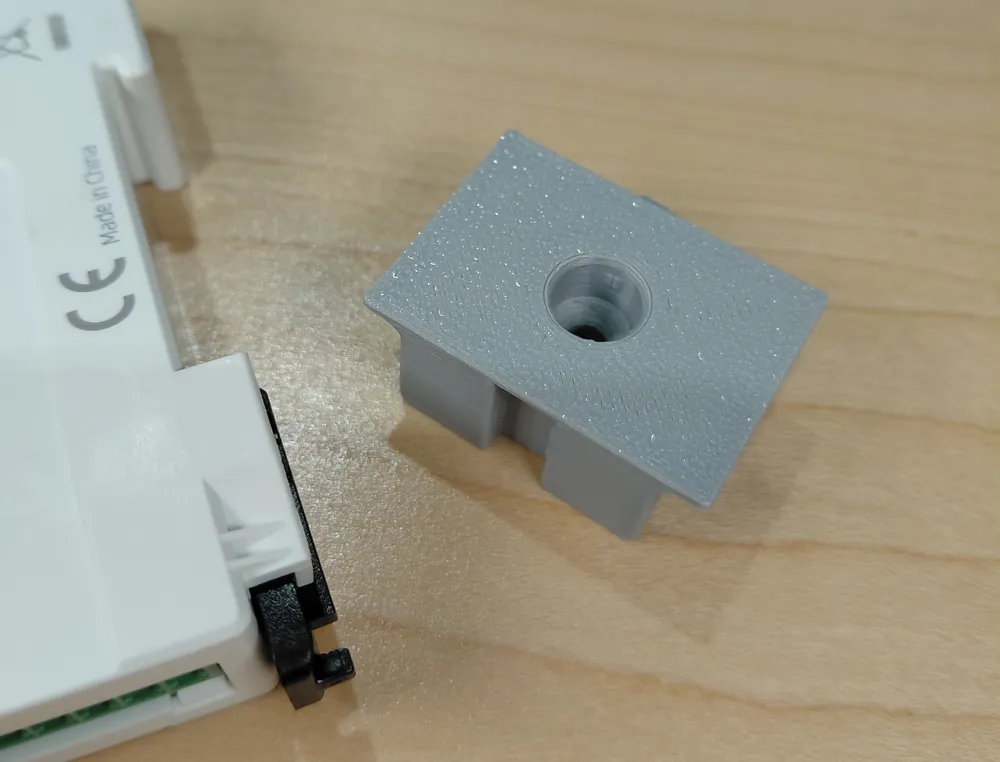

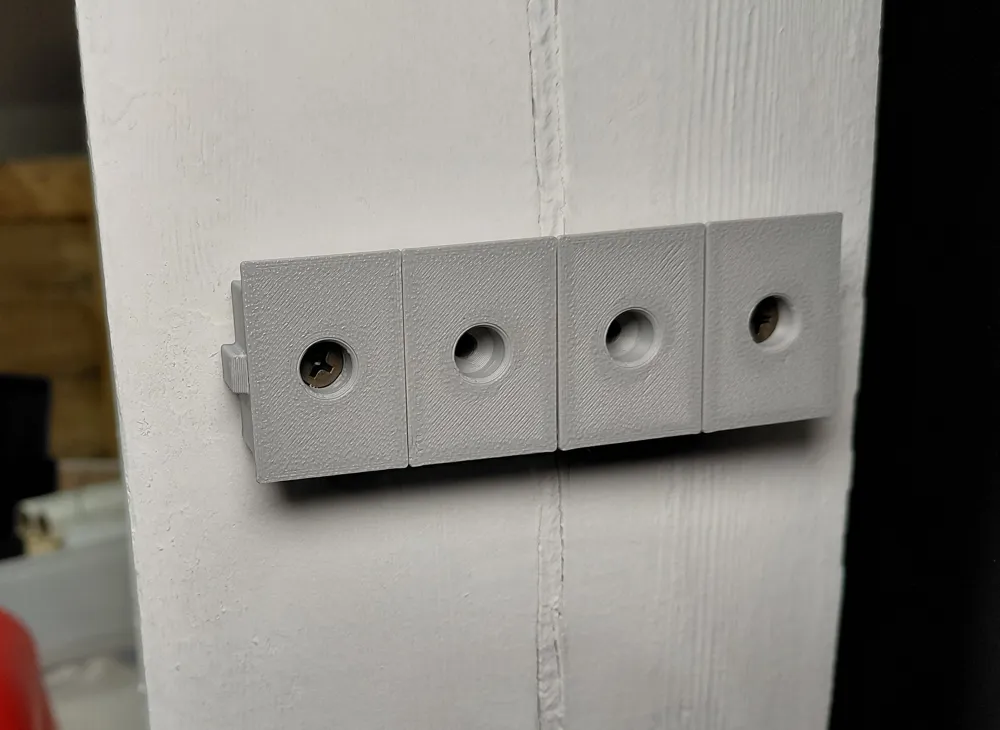

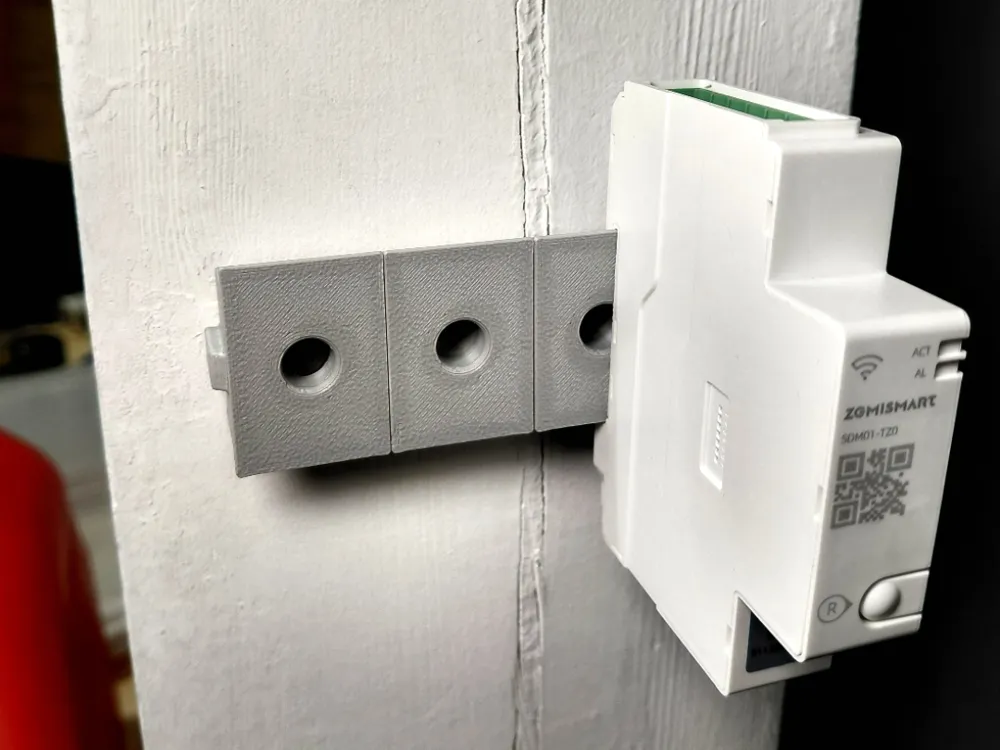

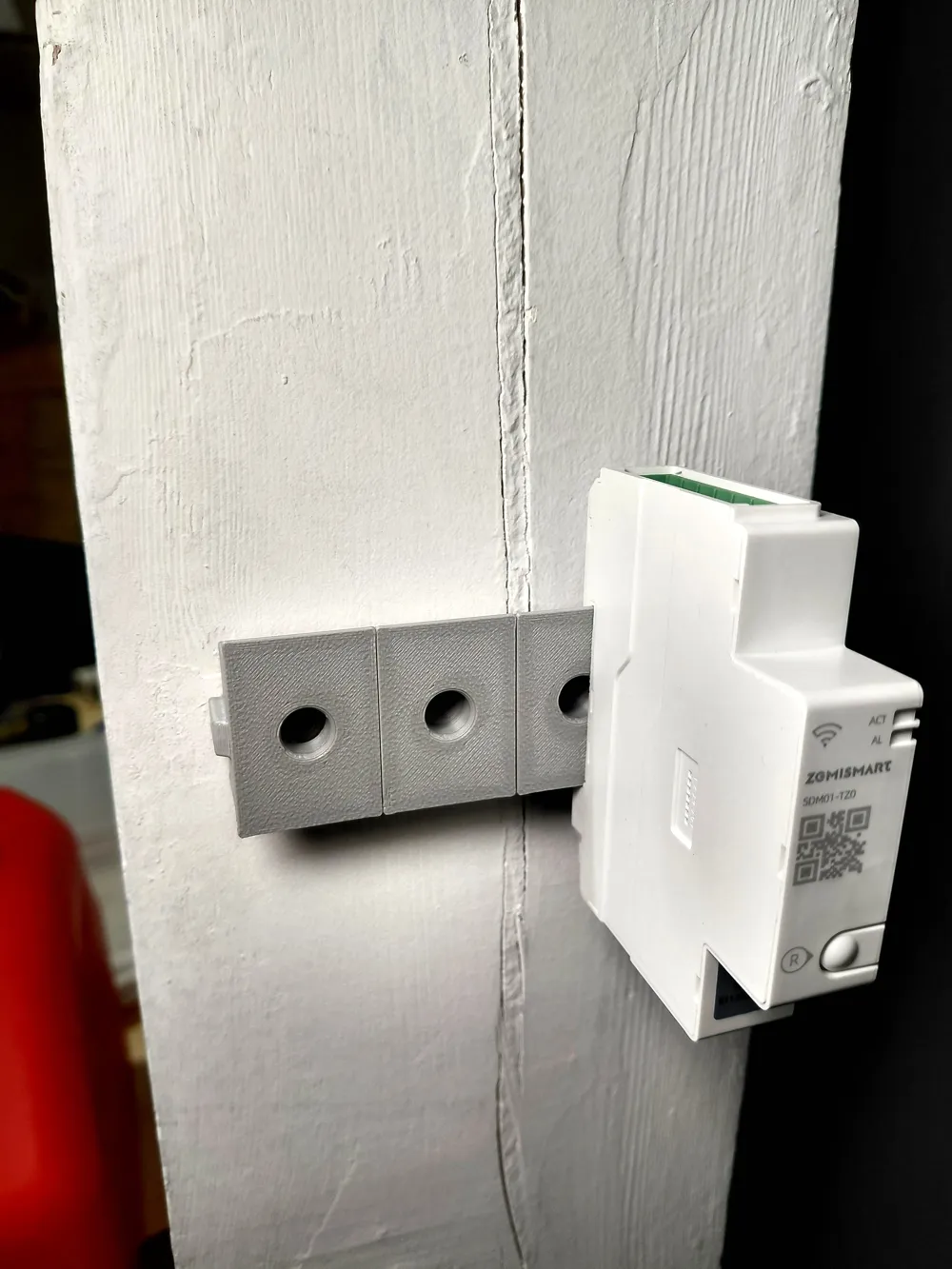

Each module includes a countersunk screw hole sized for a #6 or #8 screw, allowing the rail to be mounted directly to a wall, or enclosure. A single module is mounted with one screw, while longer rails made from multiple modules typically require only two screws total, as the interlocking clips distribute the load across the assembled rail.

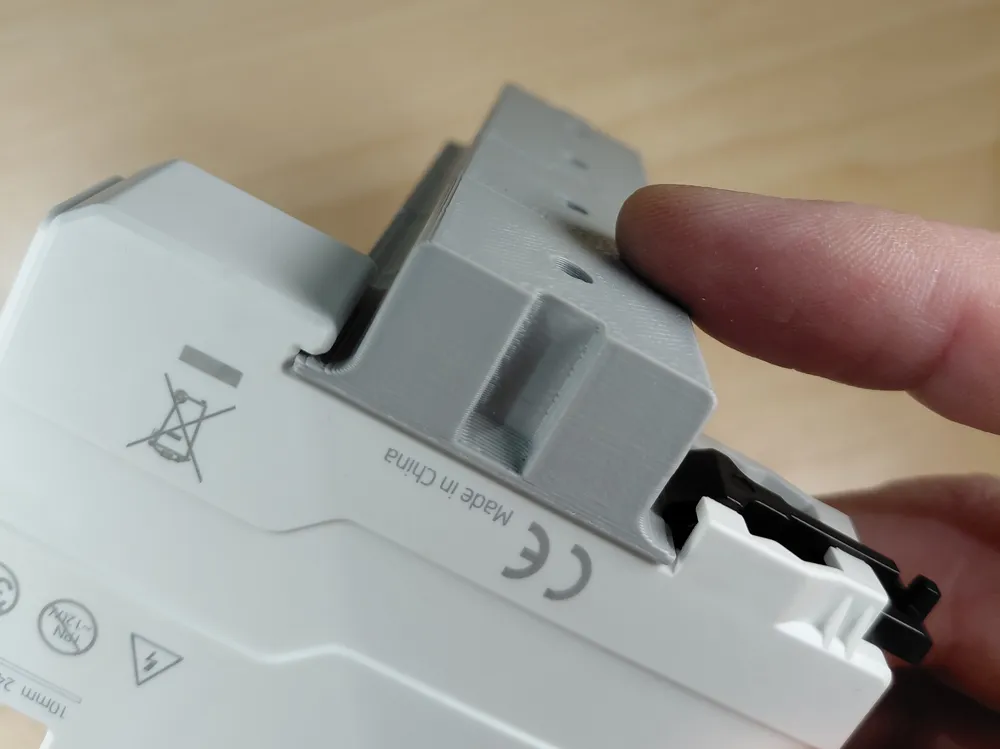

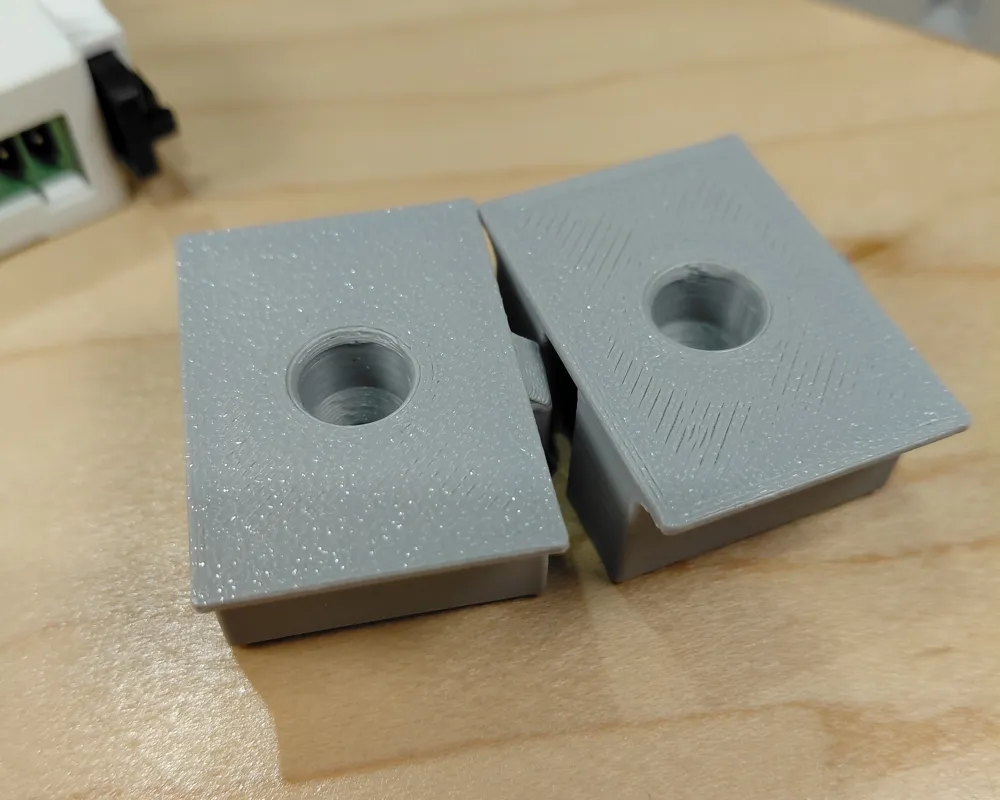

The integrated clip provides a mechanical connection between modules, making the assembled rail suitable for mounting many DIN-rail devices in compact or custom installations.
