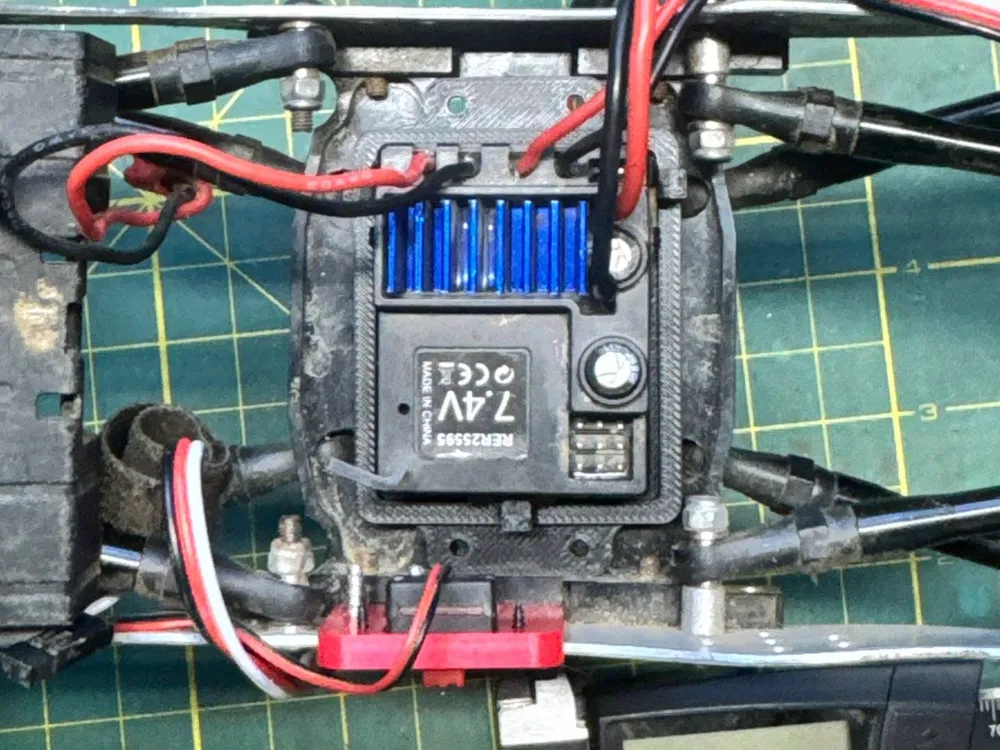

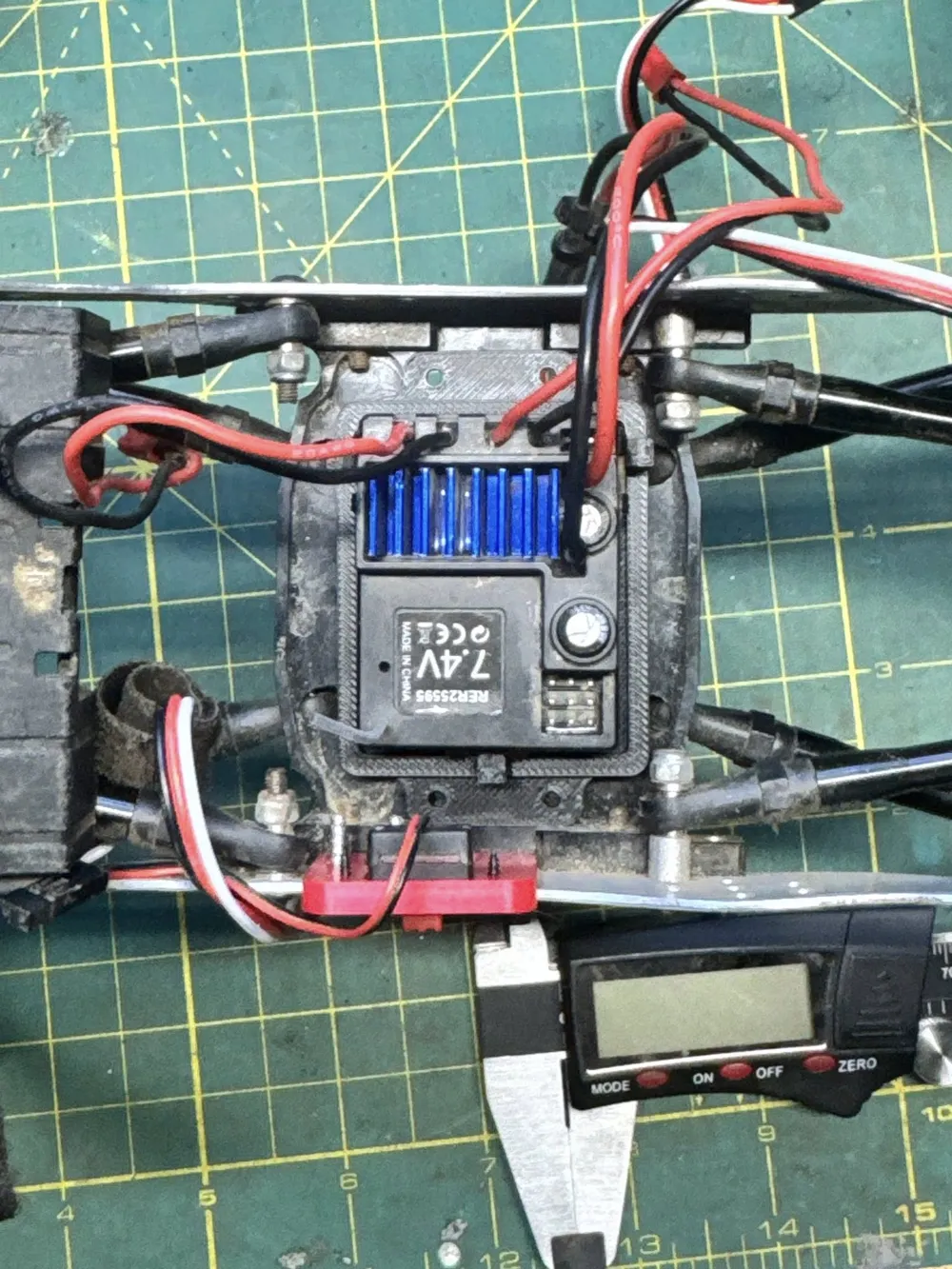

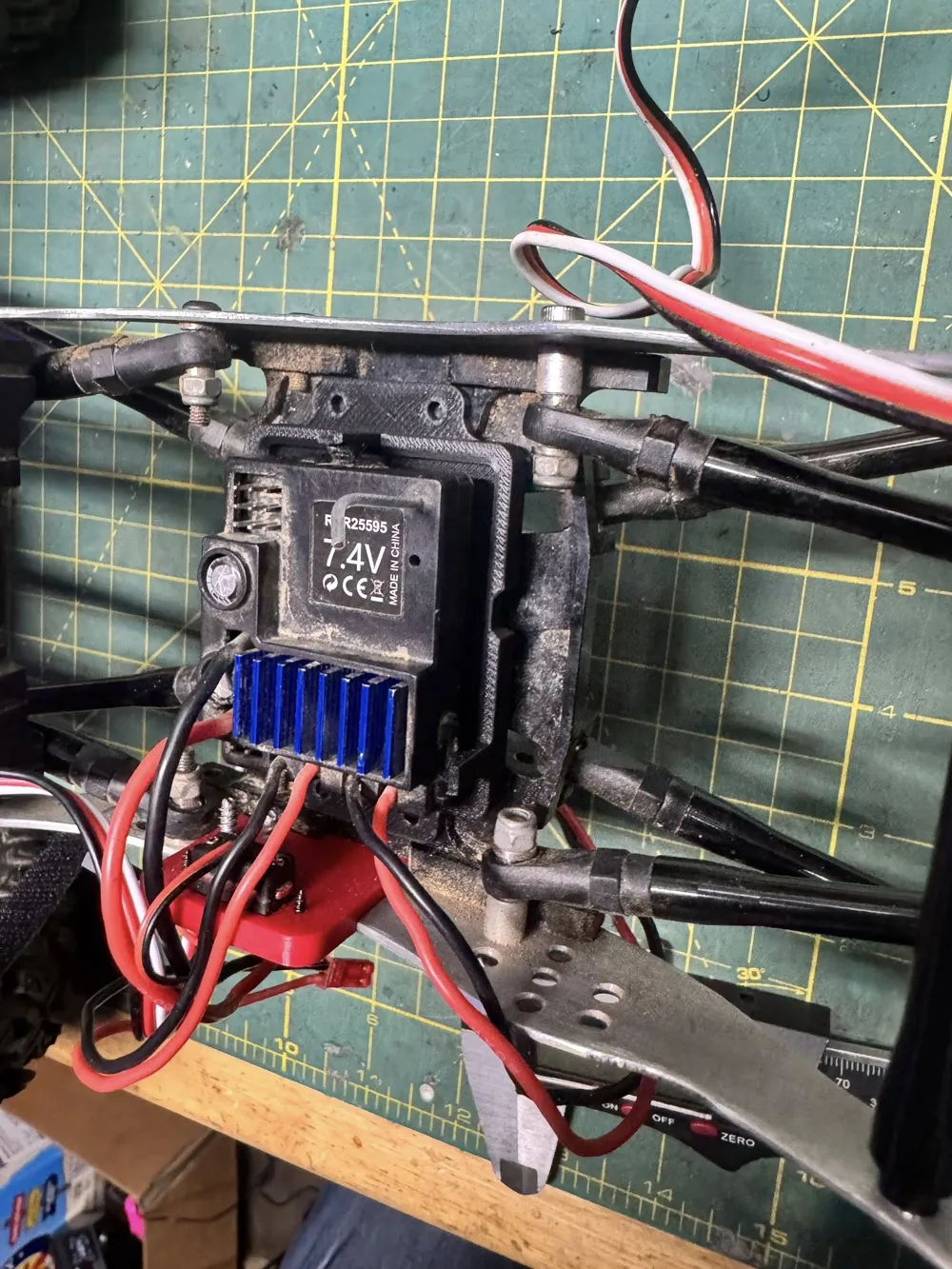

I have a highly modified ridgerunner, and as you ridgerunner/ridgerock users know, it is impossible to find parts. I had my ESC zip tied down for a while, but wanted a cleaner way to do so.

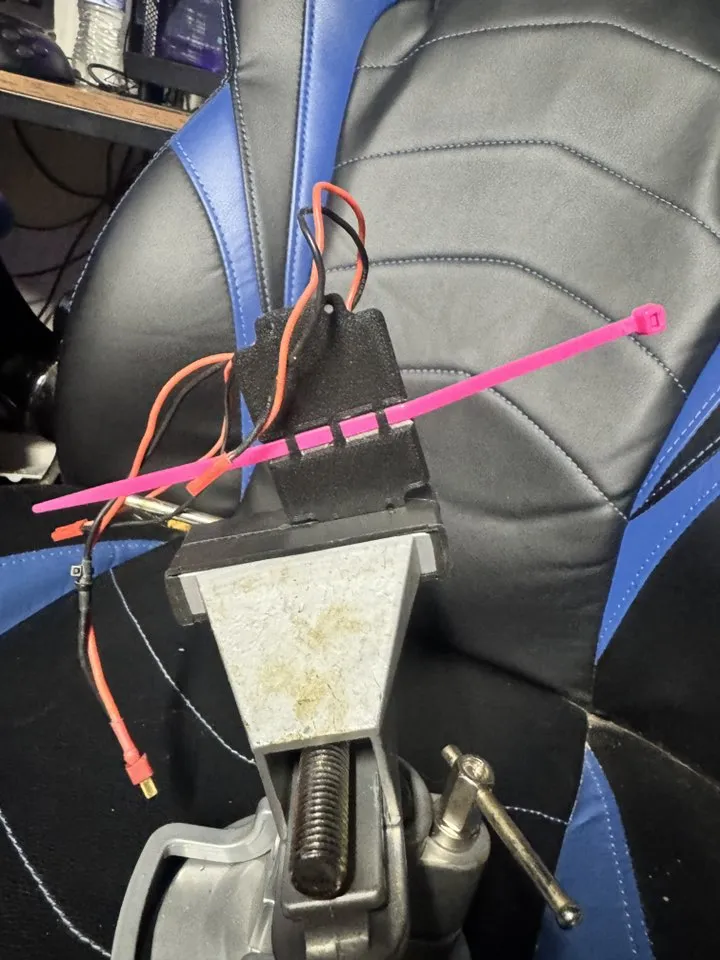

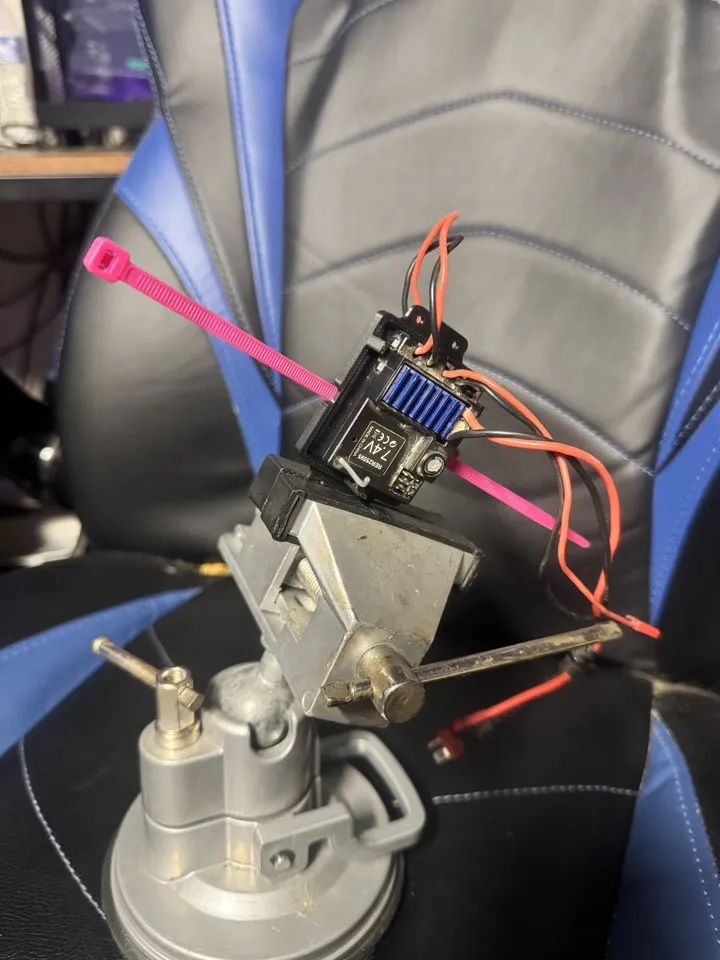

 The hole pattern to mount it is from a universal skidplate from the jungle website. I have added a ziptie slot to the bottom incase the tabs break off, and I won't be editing the part for anyone. use your imagination. If i see issues, I will change and update.



 I print on 0.12mm layer height, but you can print however you like. Supports will help clean up overhangs on the ziptie slot, but I did not use them.

Hope this helps.

Here is the skidplate I used, and what this was designed around. Holes are M3 tap drill size, so screws should be a tight fit.
https://a.co/d/cWlxmw7

Here is the link for the power button  mount seen in the images
https://makerworld.com/en/models/2121335-danchee-ridgerunner-ridgerock-power-button-mount#profileId-2296273
