Sonoff mini R2 flashing pin mask
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 25% infill
Designer
53 min
1 plate
Open in Bambu Studio
Boost
1
2
0
0
1
1
Released
Description

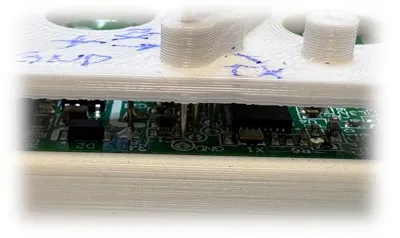

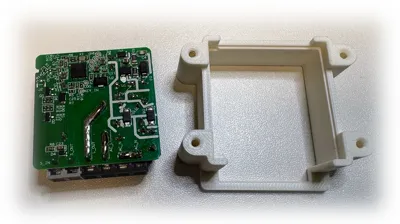

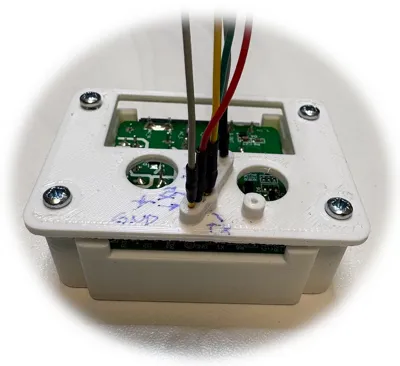

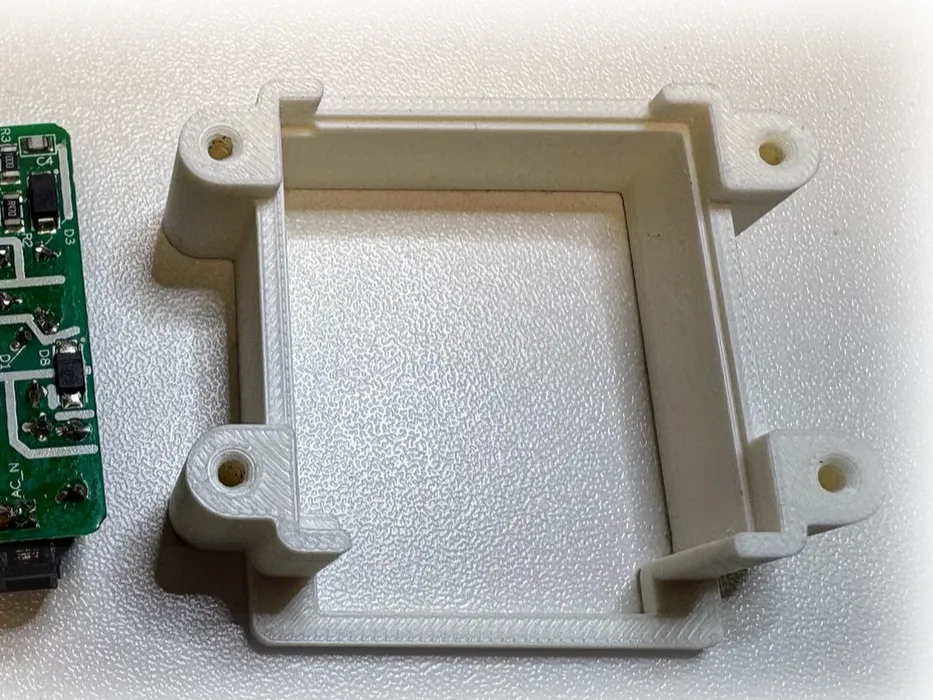

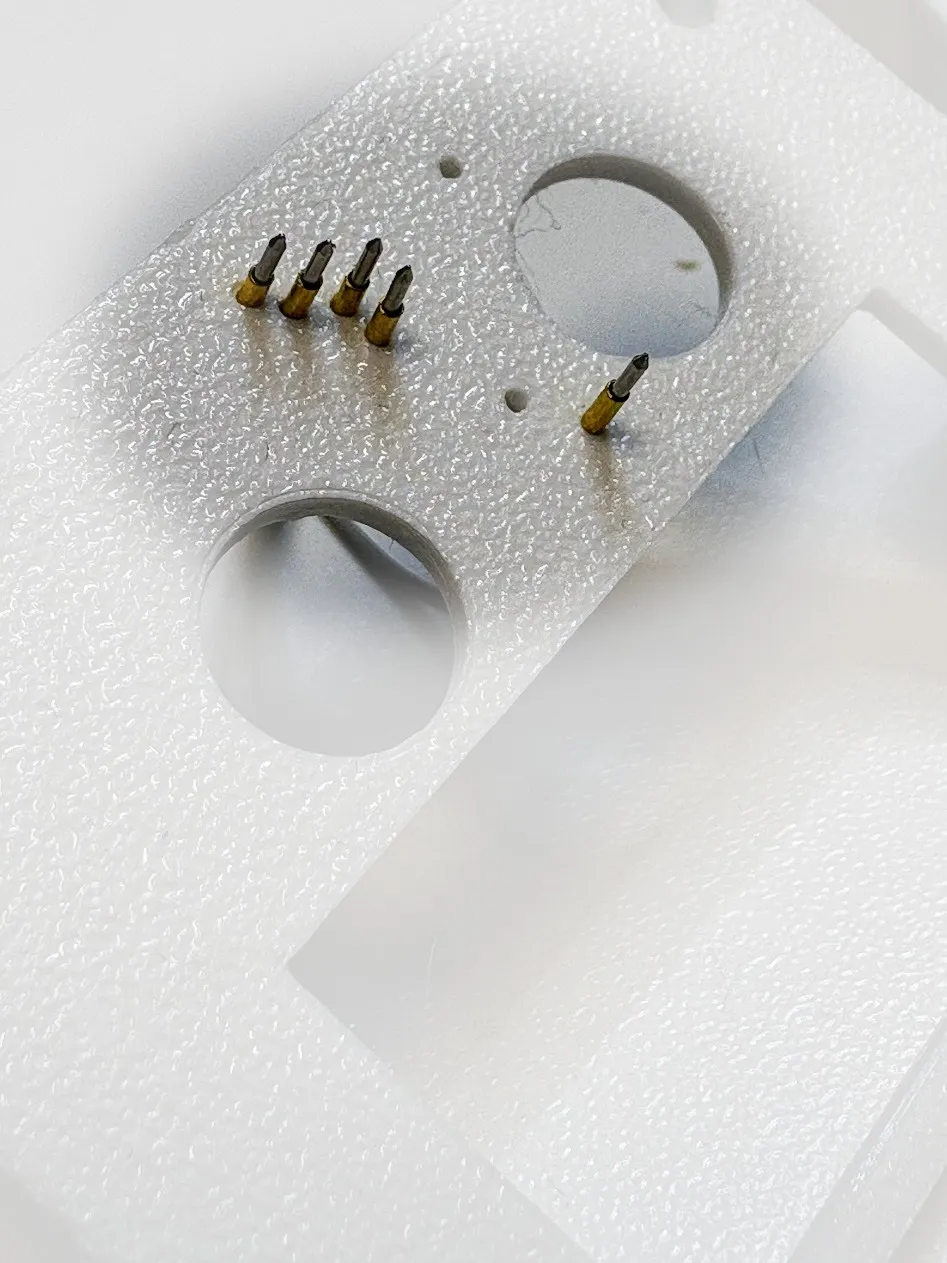

I needed to upload custom firmware to several Sonoff mini R2 devices and I didn't want to solder. That's why I designed this tool. Place the mainboard in the bottom part and insert the test pins into the lid. The test pins are 1mm bought from aliexpress. Slightly tighten the 4 screws and you can easily upload the firmware. I hope this helps you.
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
