CPAP Hose Connector / Extension

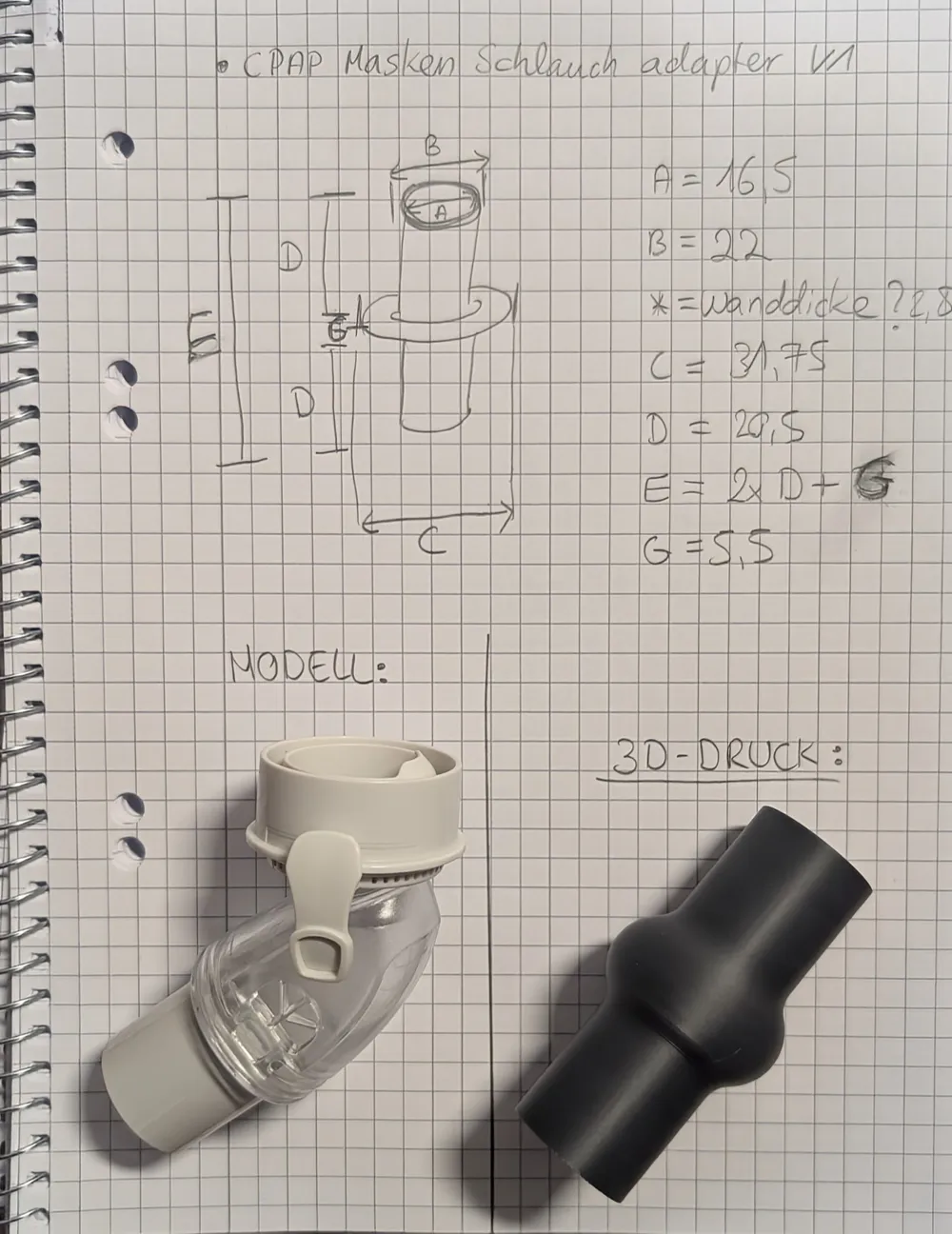

CPAP Hose Connector / Extension (Inner diameter of the silicone breathing tube approx. 22 mm)

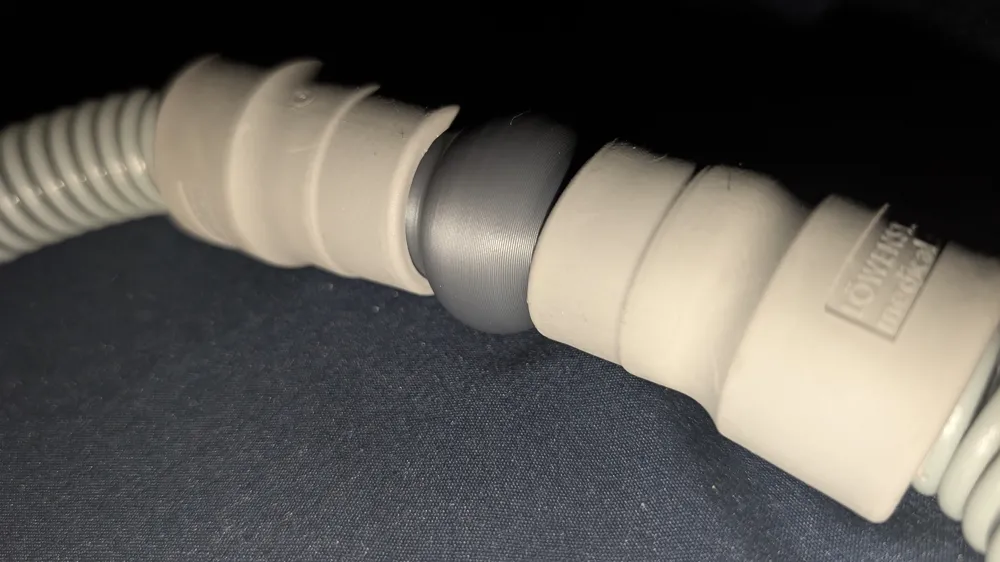

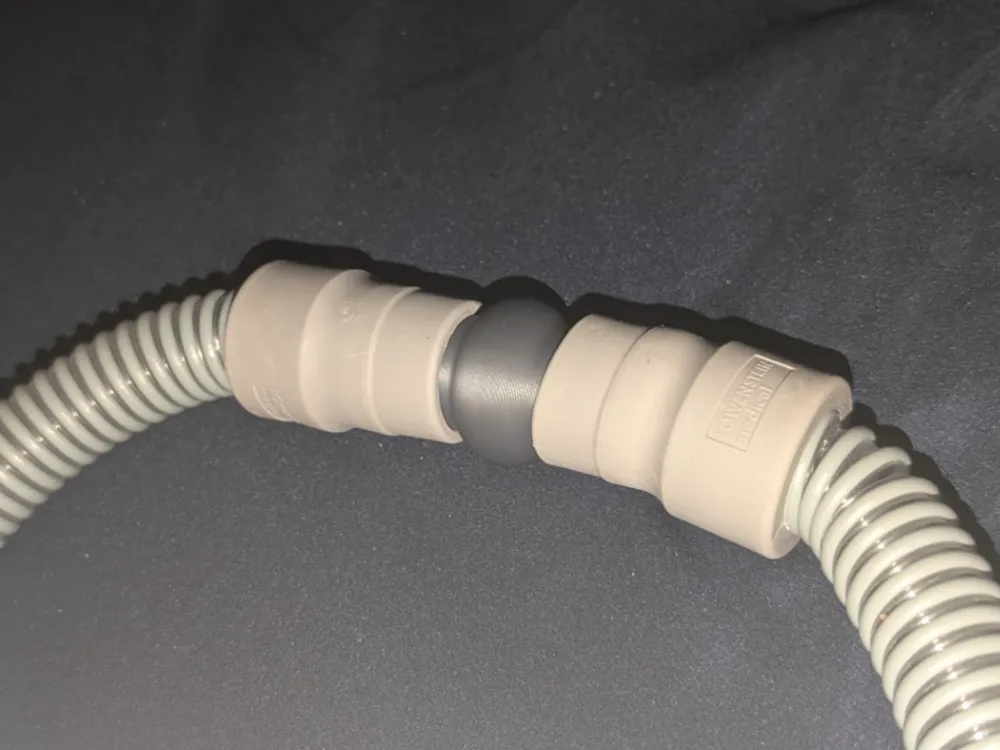

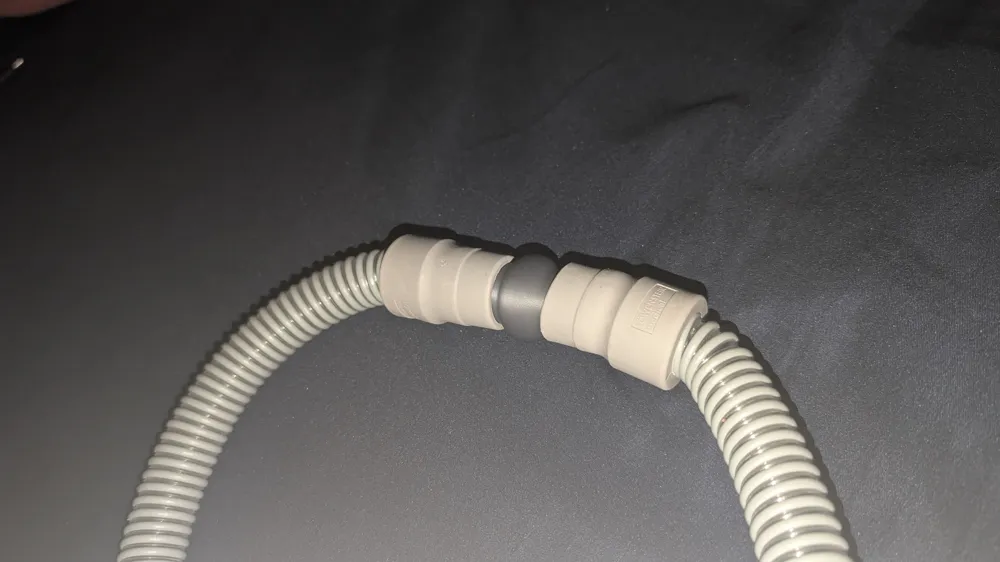

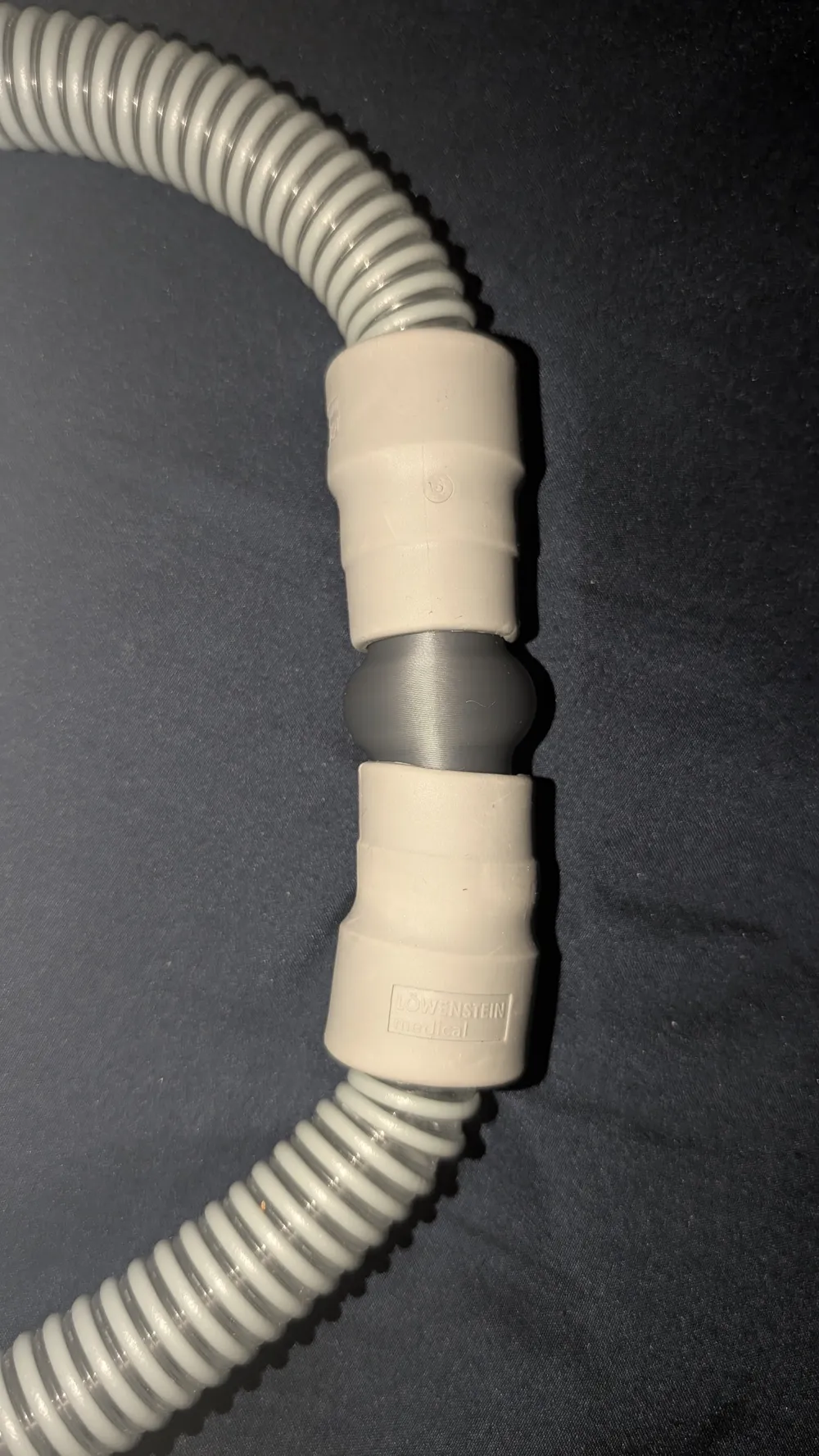

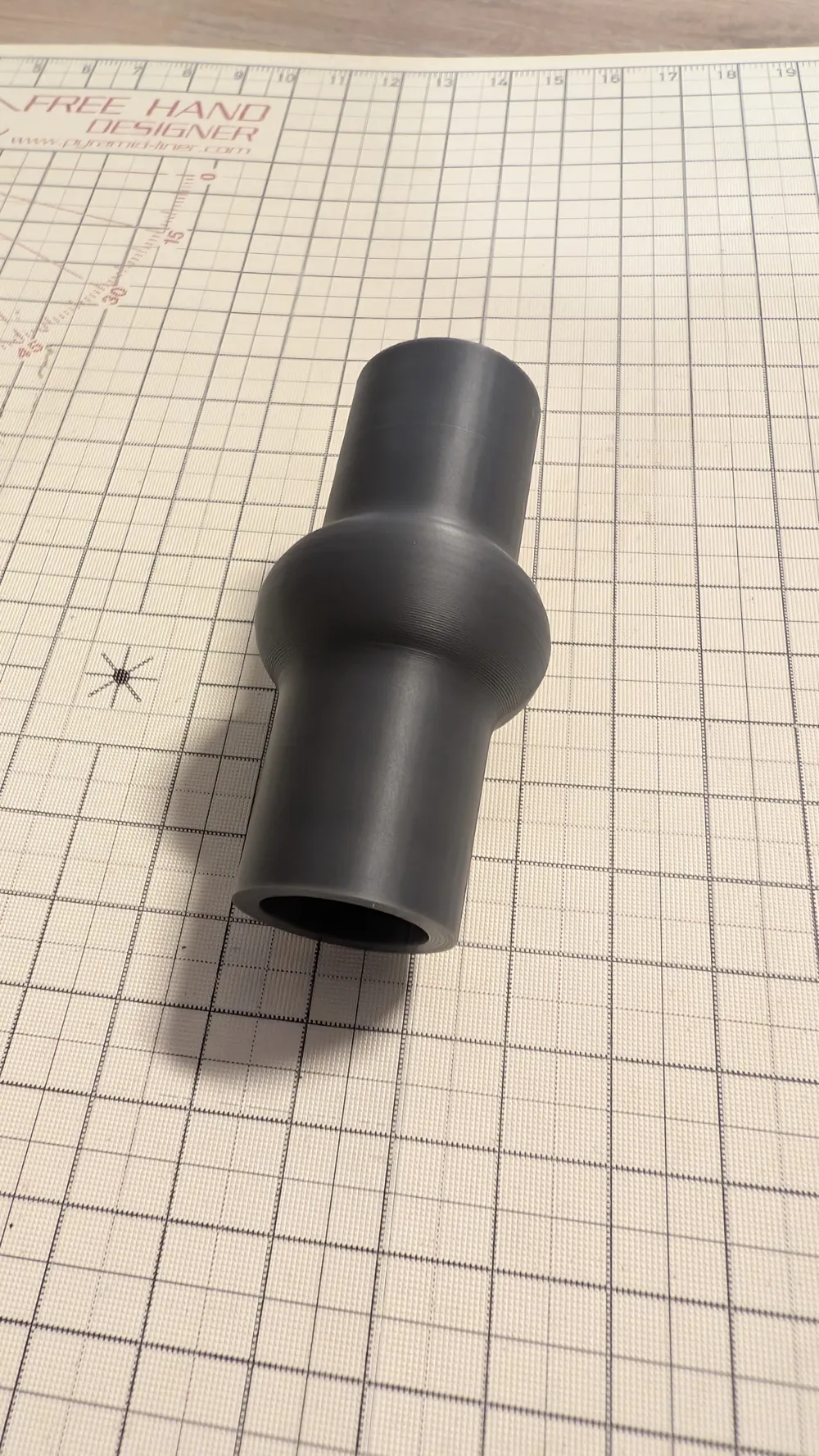

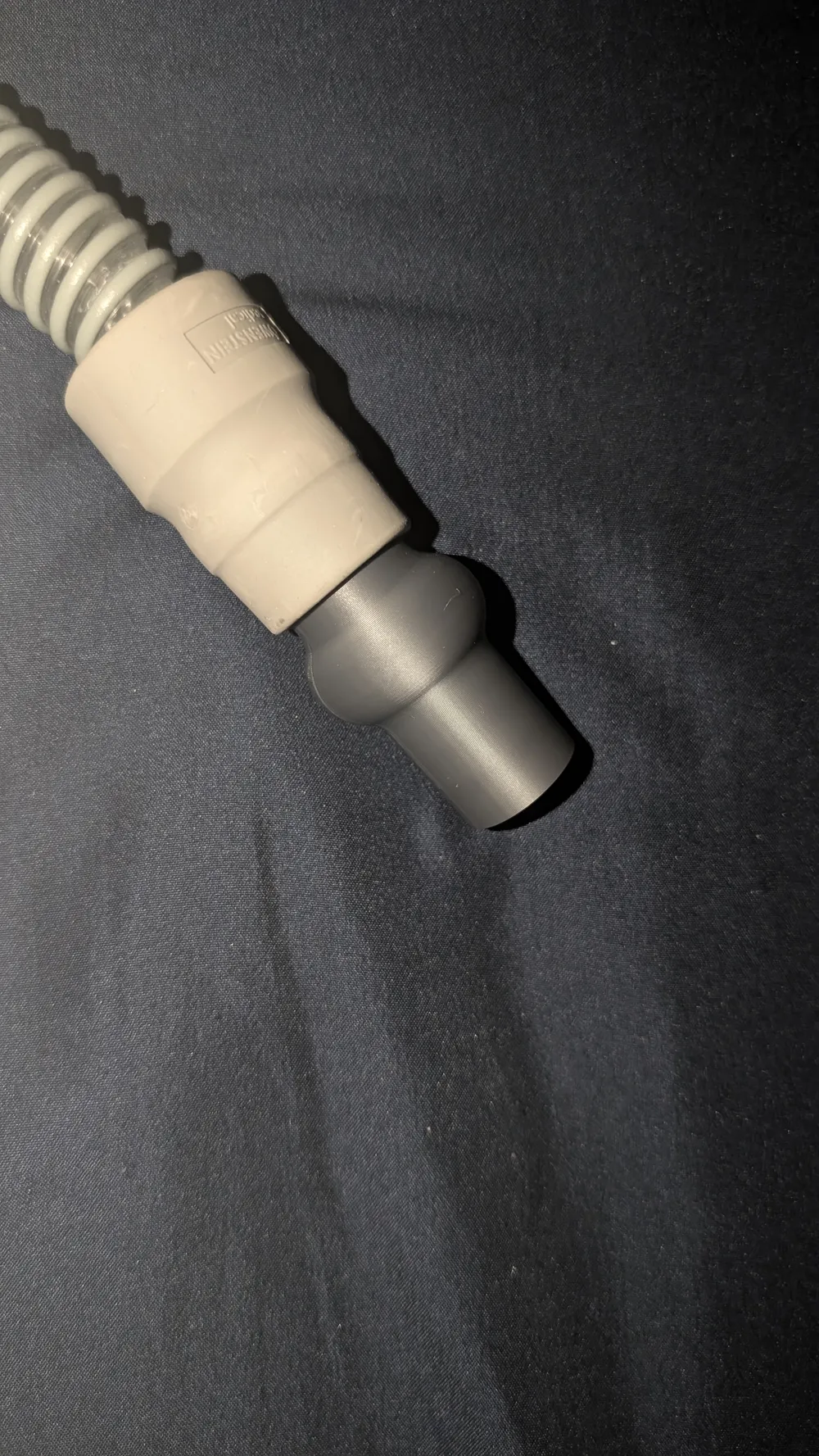

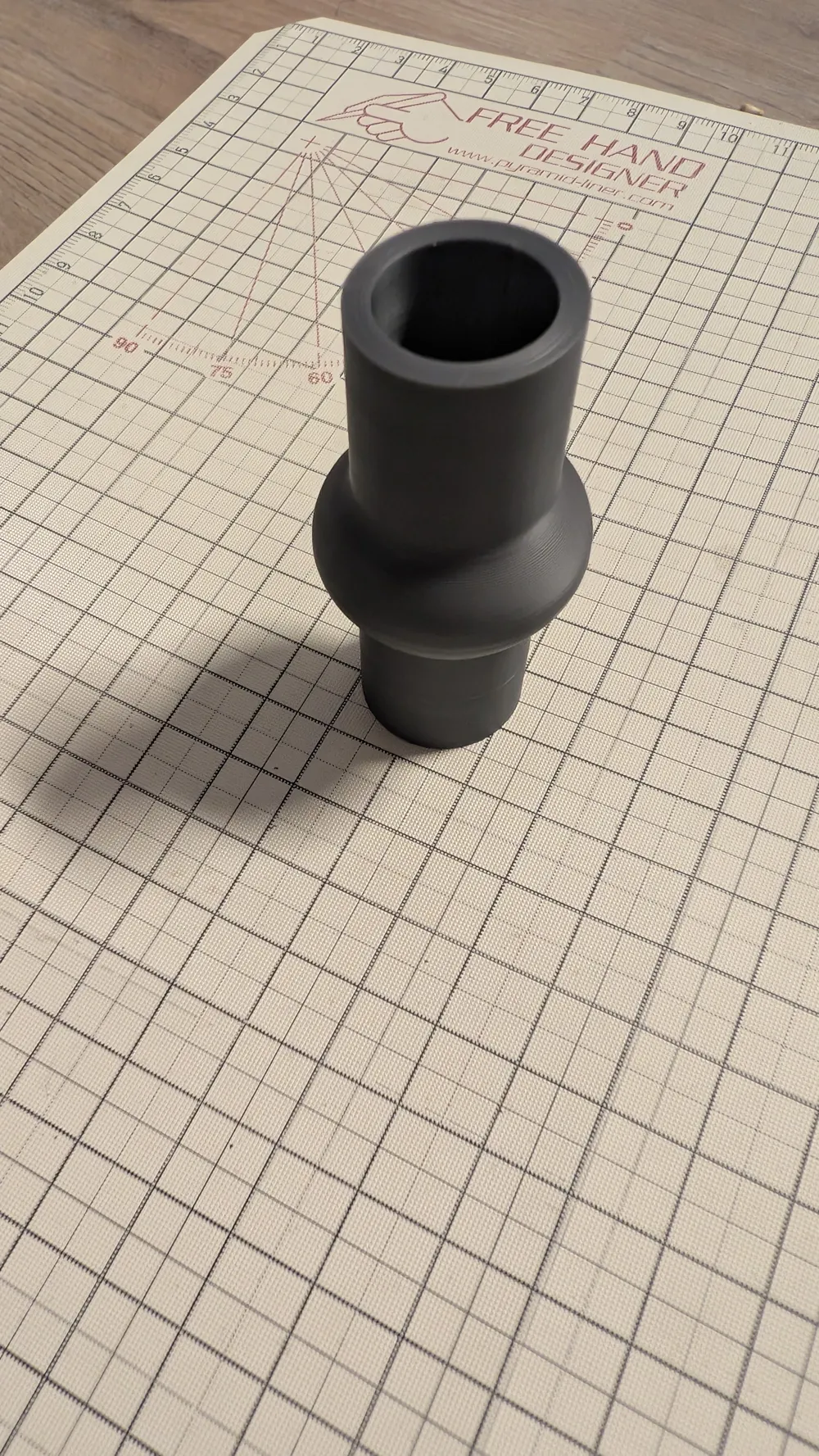

This connector serves as a coupling between two CPAP breathing tubes (e.g., in my case for devices from Löwenstein Medical, model Prisma).

It allows connecting two existing tubes, thereby doubling the total length from approx. 0.75 m to approx. 1.5 m.
This significantly provides more freedom of movement in bed, for example, when turning over, without the tube pulling on the mask or pulling it from the face. = Quieter nights

Features

• Suitable for CPAP hoses with an inner diameter of approx. 22 mm

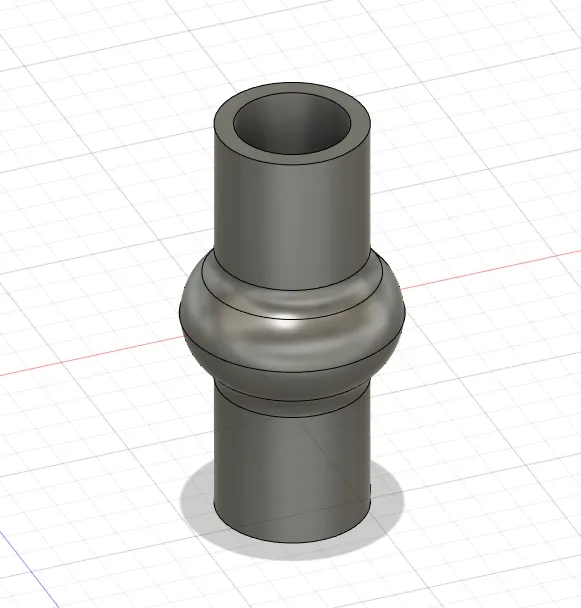

• Rounded design so it doesn't disturb you while sleeping if it touches your body
• No noticeable change in breathing performance or pressure (with my device)
• no supports needed

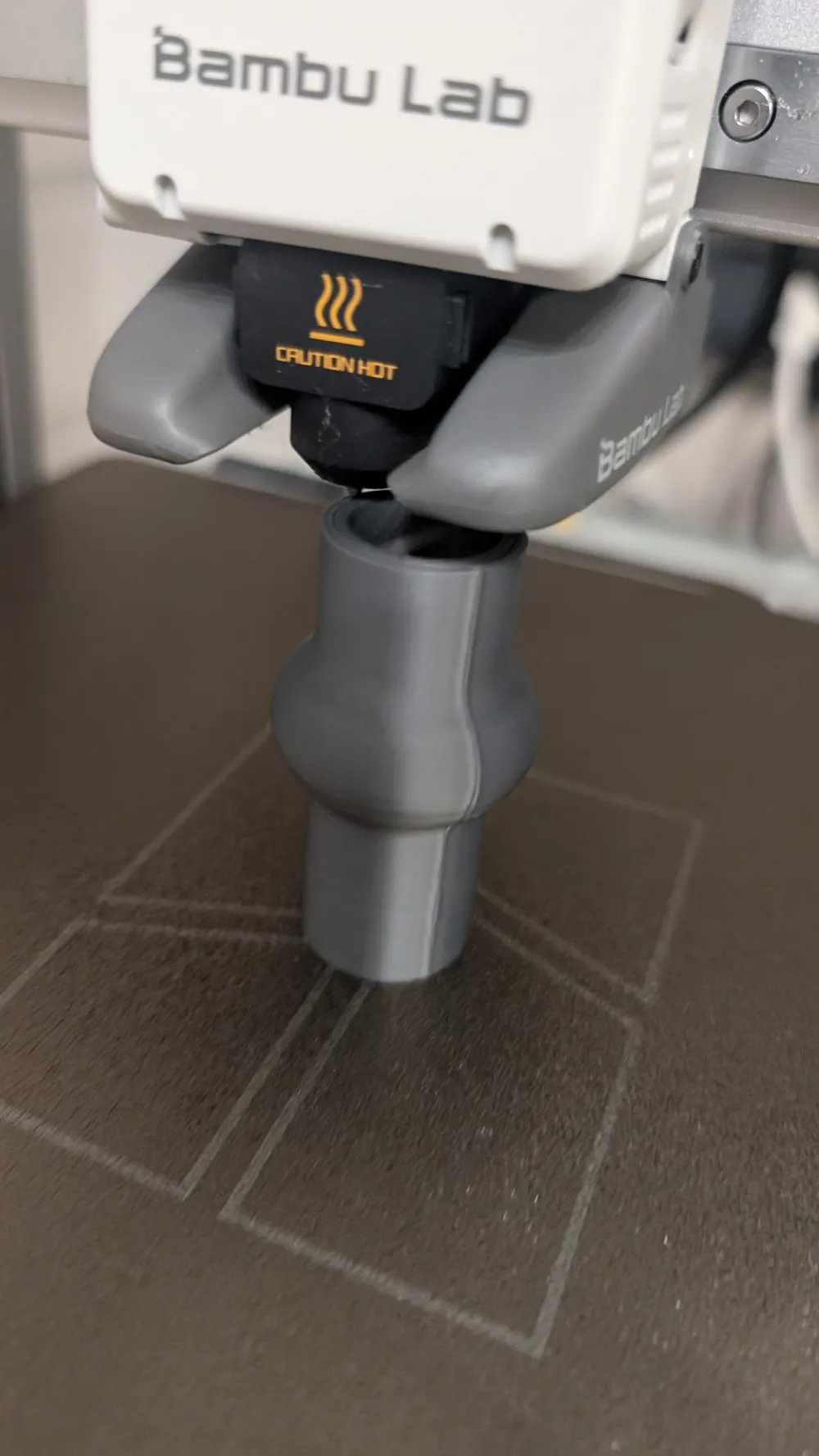

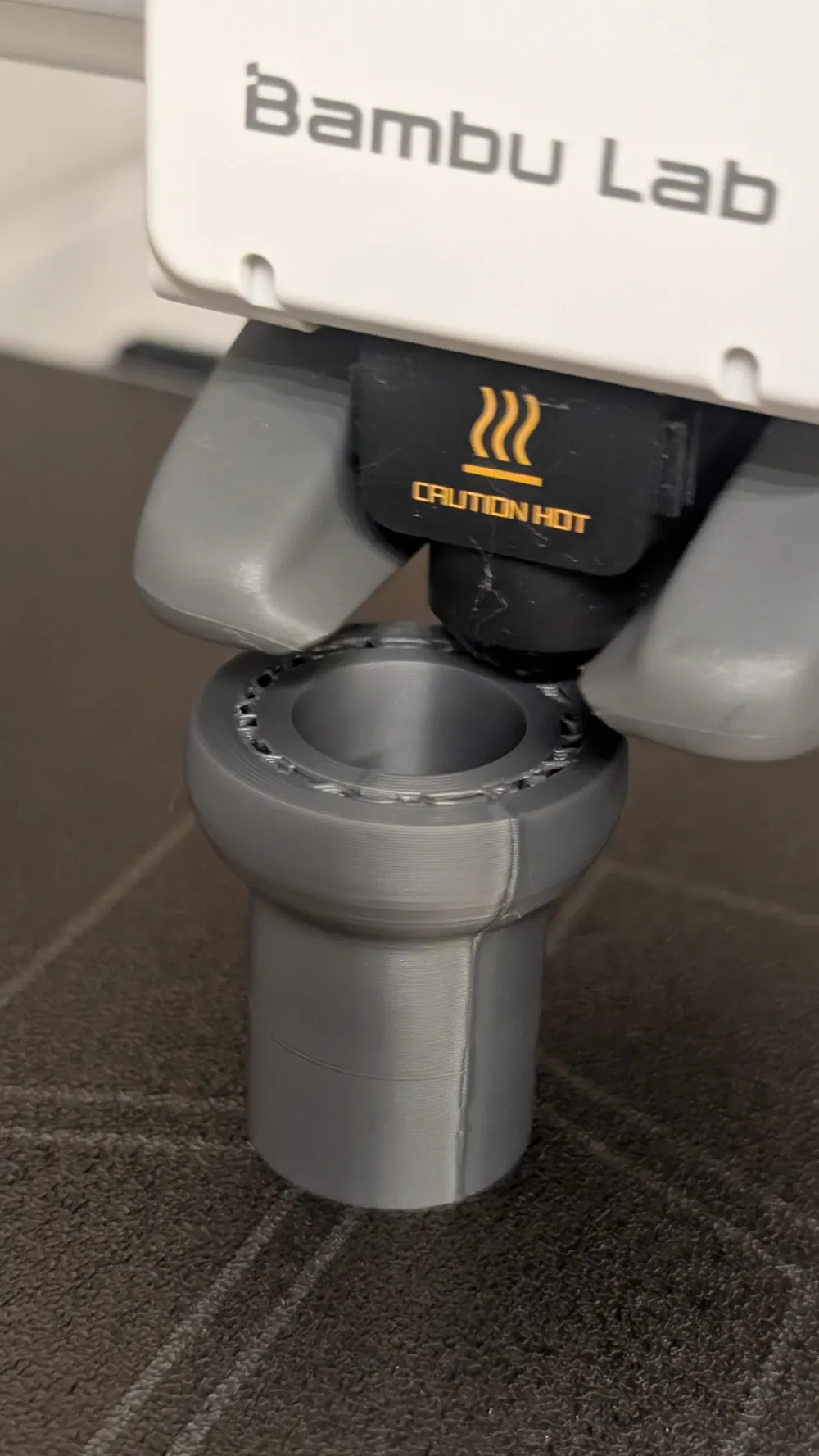

Print settings (recommended)

• Printer: Bambu Lab A1
• Material: PLA (in my case: Sunlu High Speed PLA Grey)
• Walls: 6
• Infill: Gyroid 25 %

• Print speed: 50 % → increased quality with my filament choice

  (I had one failed print at 100% speed, check your printer settings)

• Supports: not needed

!! Note !!
This model was developed and tested for private use.
Before use, please ensure that the connector is securely fitted and airtight.
