Description

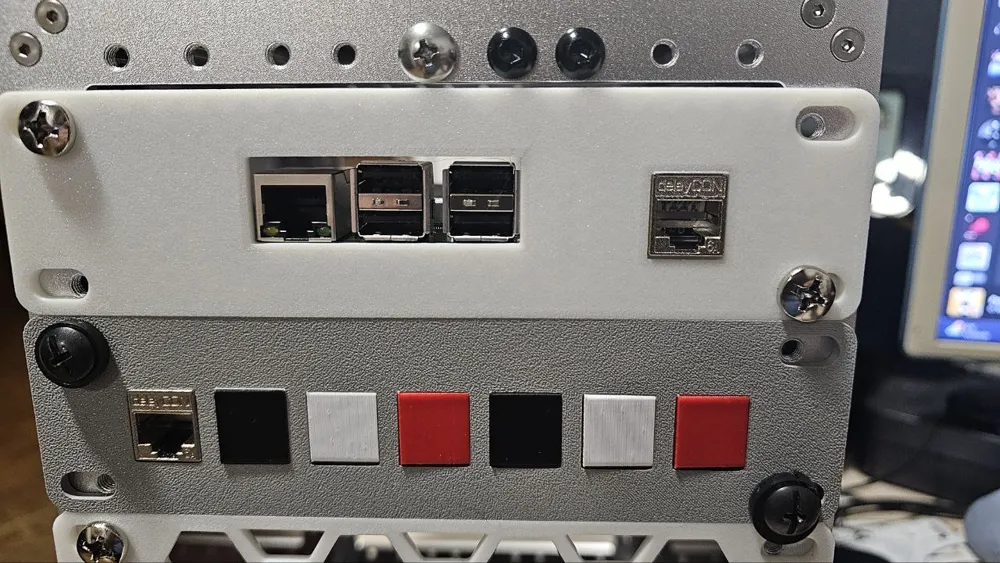

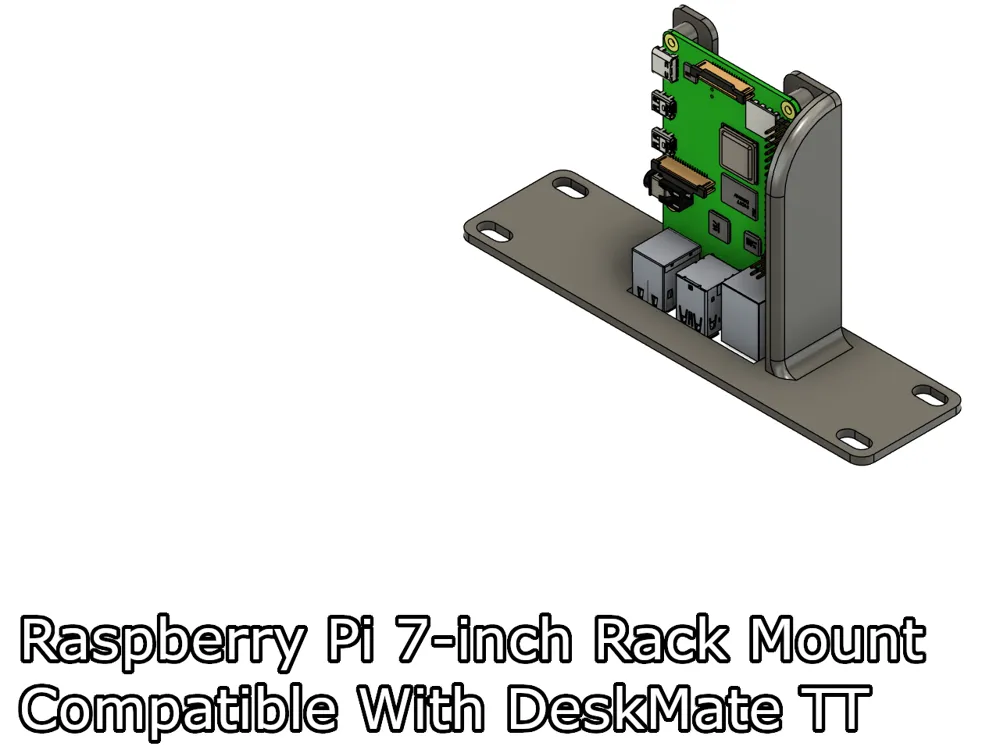

A 7-inch Rack Mount for the Raspberry Pi 2B, 3B, 4B, and 5B. This model is compatible with the GeekPi RackMate TT (Affiliated link).
This model is part of a series of 7-inch rack mounts I've designed. You can check out the others here.
Boost Me (for free)
I make these models for free, and it takes time and material to test them out. Your boost will help me keep releasing new models! Thank you!
Membership
Want to support me further? Or sell my prints? Please consider one of my membership tiers. Thank you!
Join
Required parts
- (Optional) 4x M2.5 thread inserts.
- 4x M2.5 screws.
Thread insert dimensions
Assembly instructions
- Insert the 4x M2.5 thread inserts into the mount.
- Insert your Raspberry Pi into the mount.
- Secure it with 4x M2.5 screws.

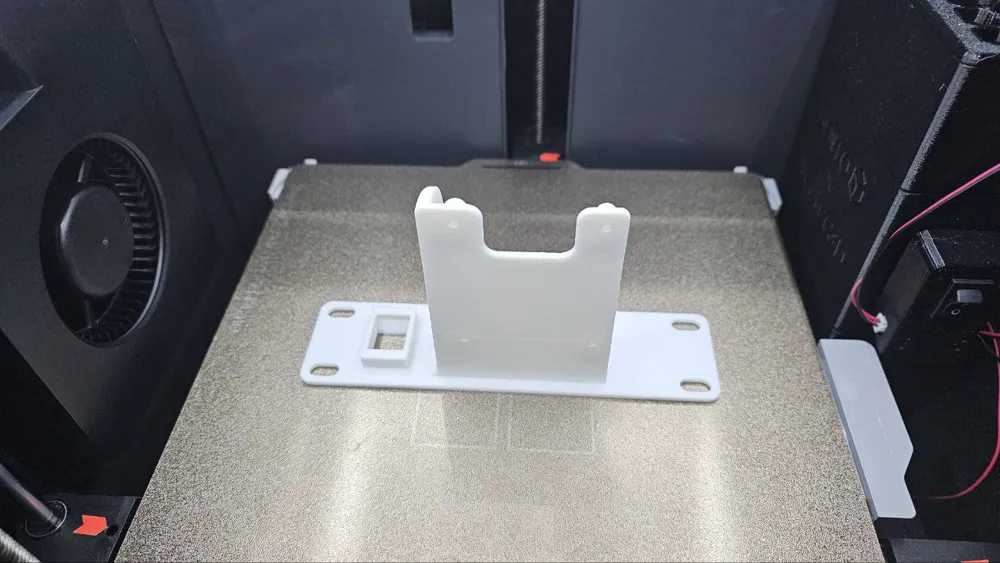

Print Settings
Supports:
No.
Resolution:
0.2 or 0.24.
Walls/Perimeters:
At least 3.
Infill:
20% or more.
Filament:
Any.
