xTool F2 Exhaust Vent with Flap (Anti-Cold Air System!)
Print Profile(1)
Description
Winter is coming... but please not through the laser hose! đ„¶
Have you dutifully connected your xTool F2 with an exhaust vent to the outside? Great! But do you also notice how in winter the icy cold creeps back into your workshop through the hose when the laser is off?

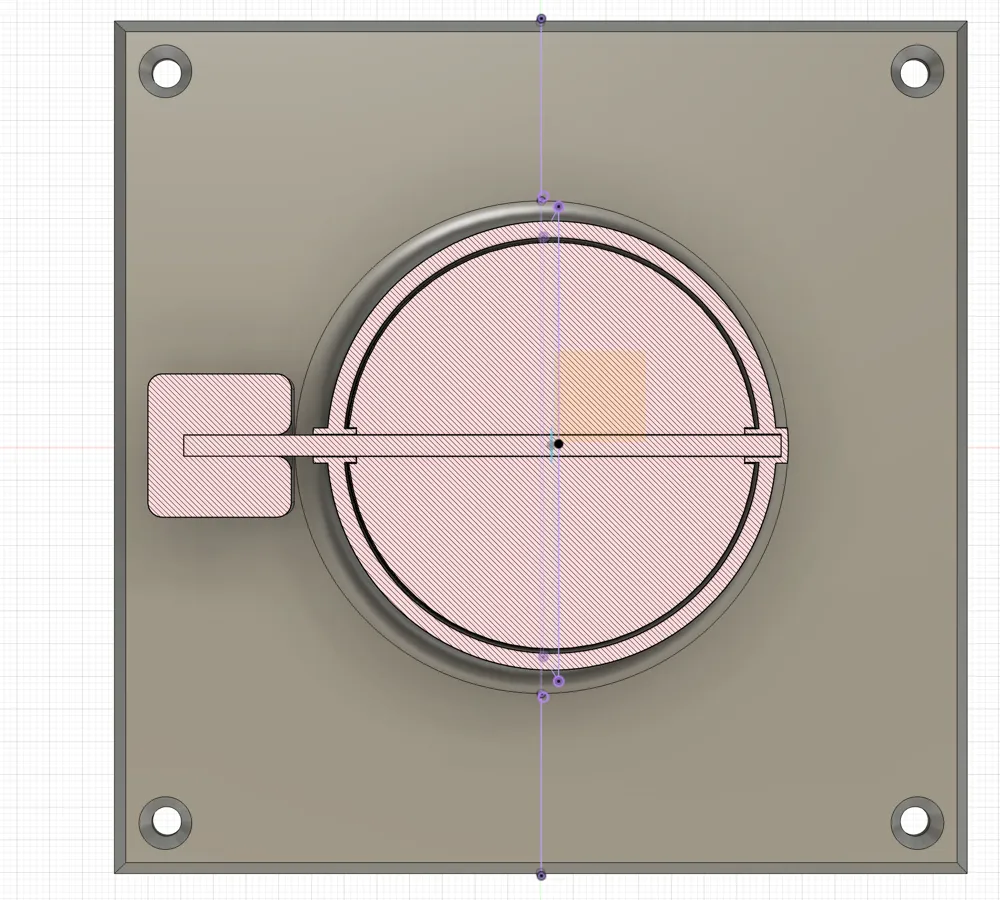

That's exactly what bothered me. That's why I designed this exhaust flange with an integrated throttle flap. Laser on -> flap open. Laser off -> flap closed -> workshop stays warm. Simple, right?
The Features:
- Precise Fit: Designed for the xTool F2.

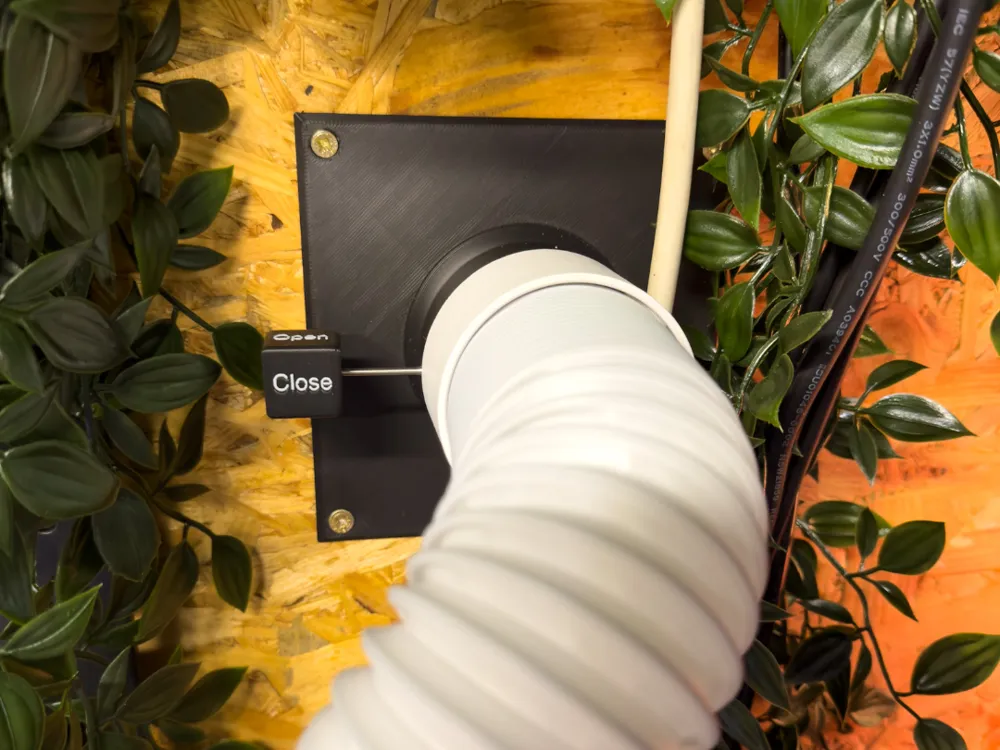

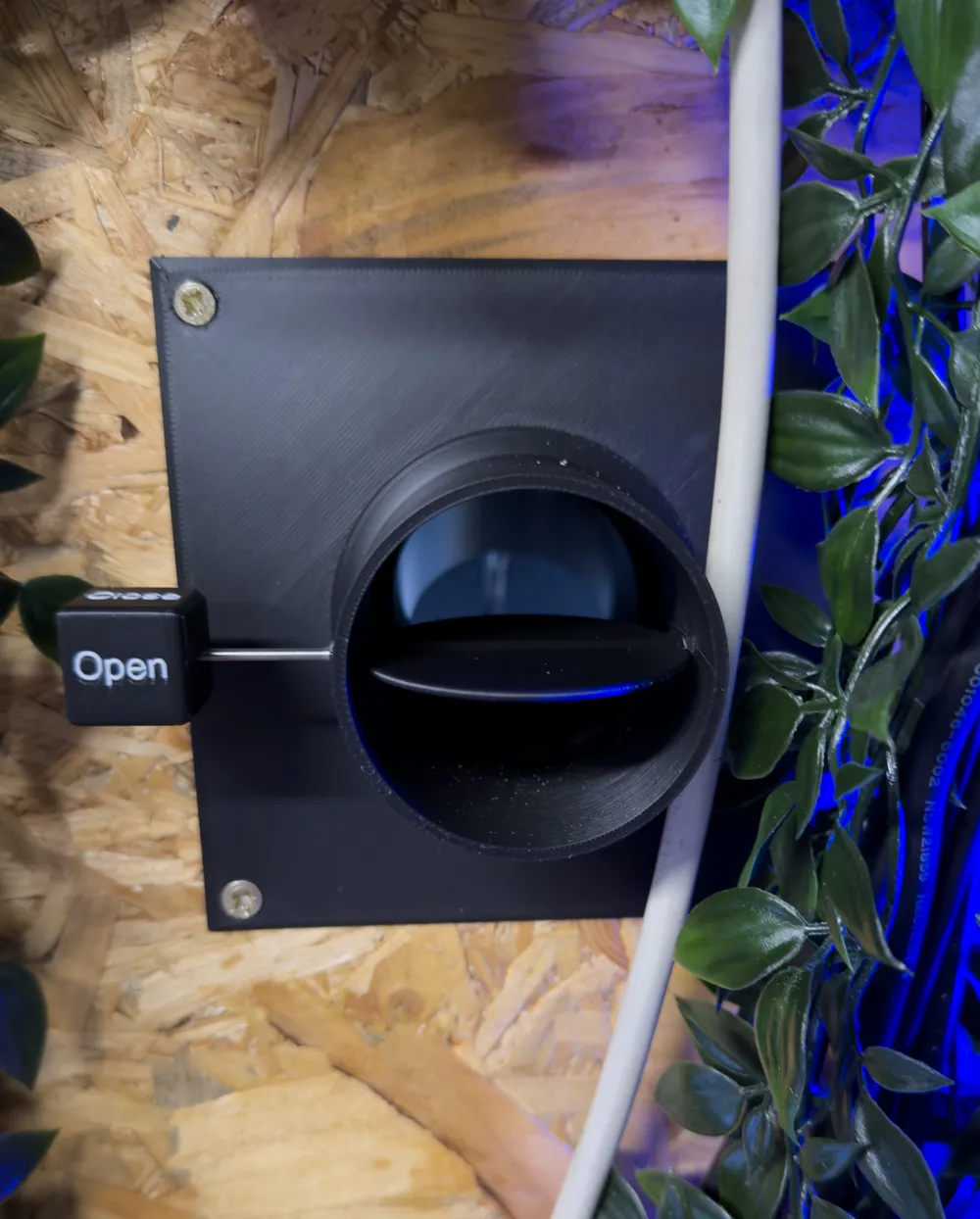

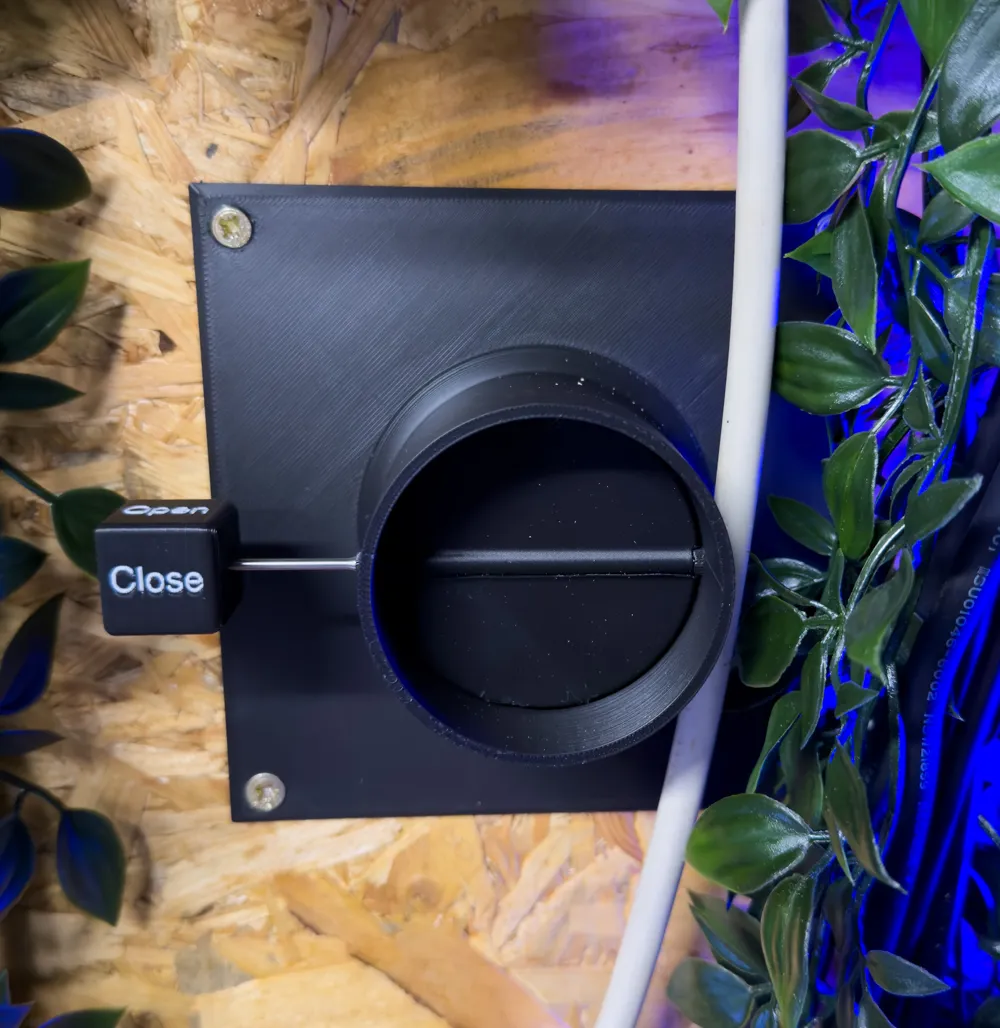

- Manual Control: Simply turn the cube to open or close the airflow.
- No more drafts: Keeps cold air (and vermin!) out.
đ ïž What you need (Hardware):
- 4x Screws (4mm) for wall mounting.
- The "MacGyver" Pin: The connection between the handle and the flap is a 3mm pin (length: 83mm).
- Option A (Recommended): Use a metal cotter pin or simply saw off an old screwdriver (like I did). That lasts forever! đȘ
- Option B: I've included a printable version of the pin in the file. It also works, but metal is more "twist-proof".

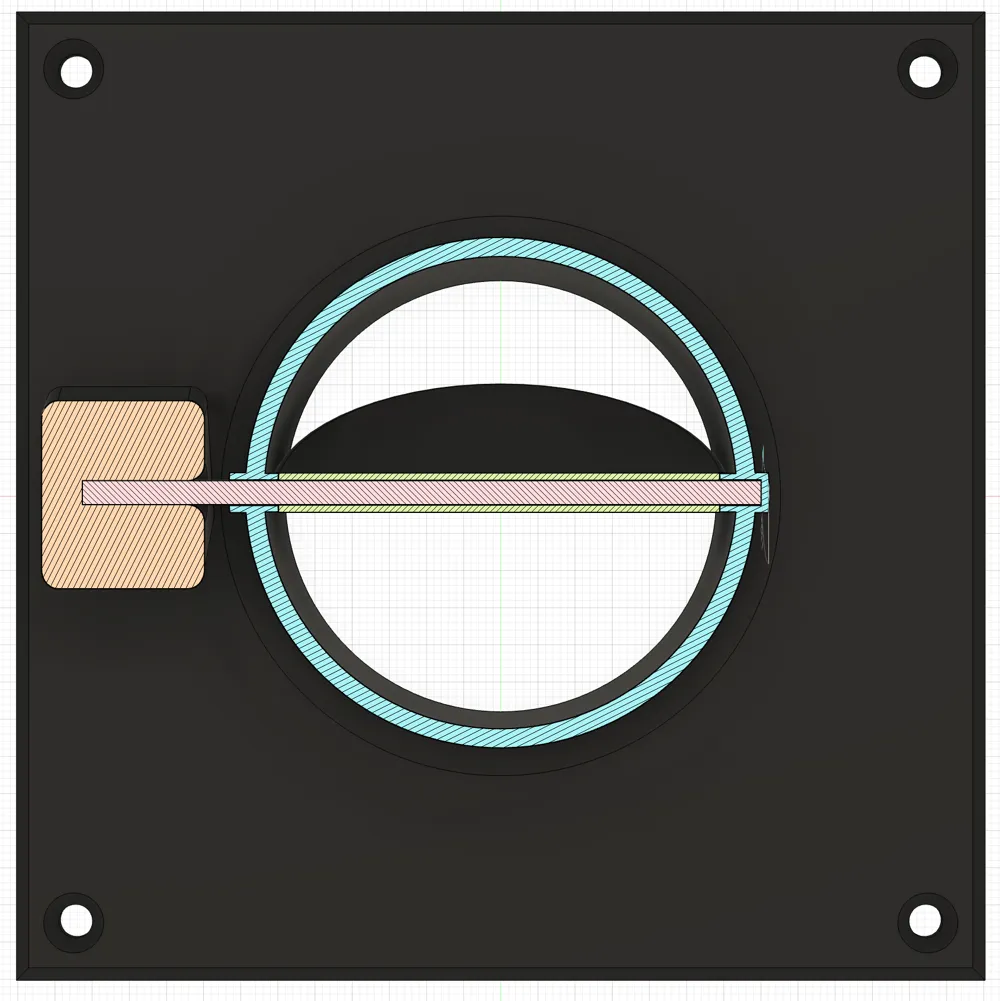

Assembly: Insert the flap into the pipe, push the pin through, attach the handle. Done.
Have fun printing and warm regards from the workshop! Feel free to show me your makes! đ
