Game piece The Colorful Cube - GDR Spika Board Game

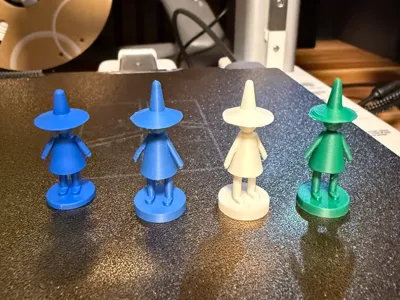

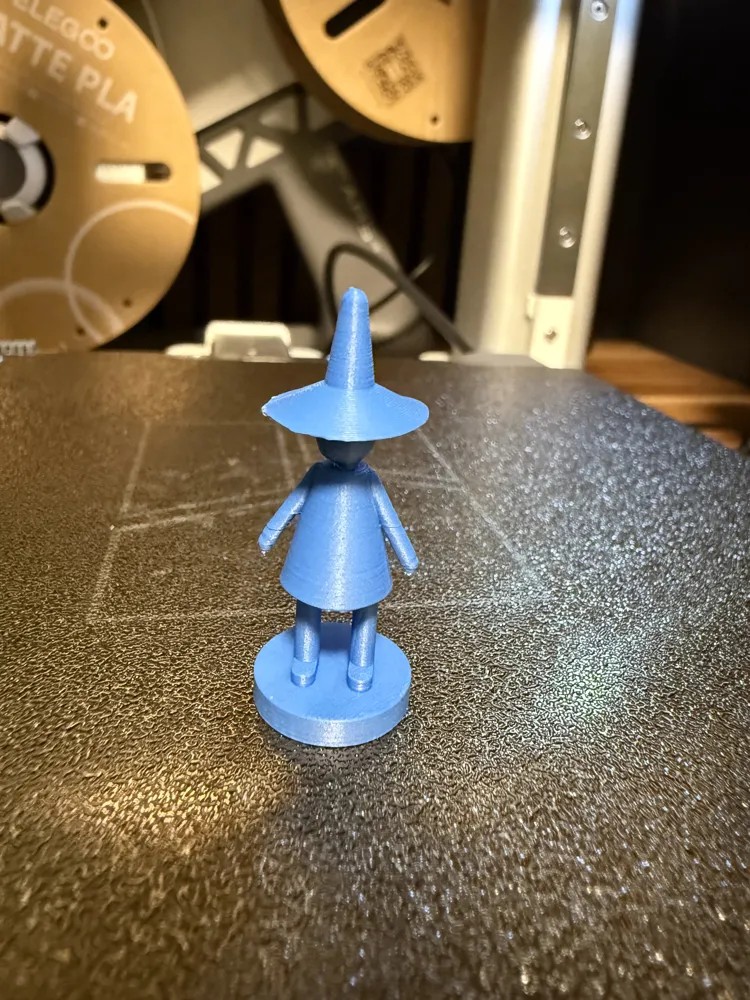

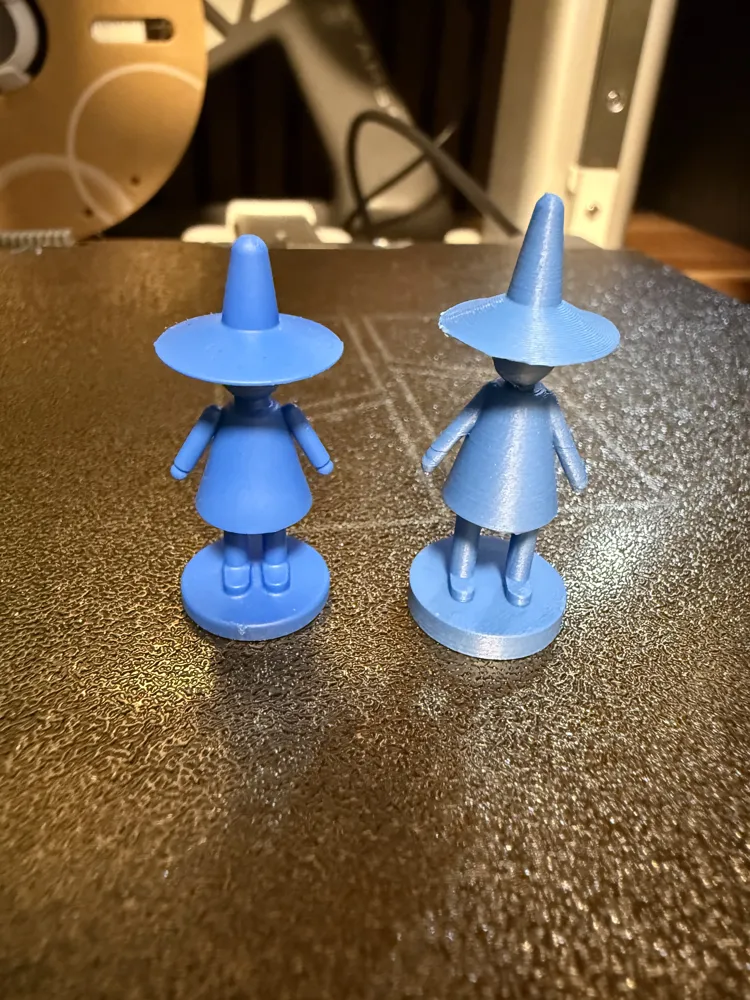

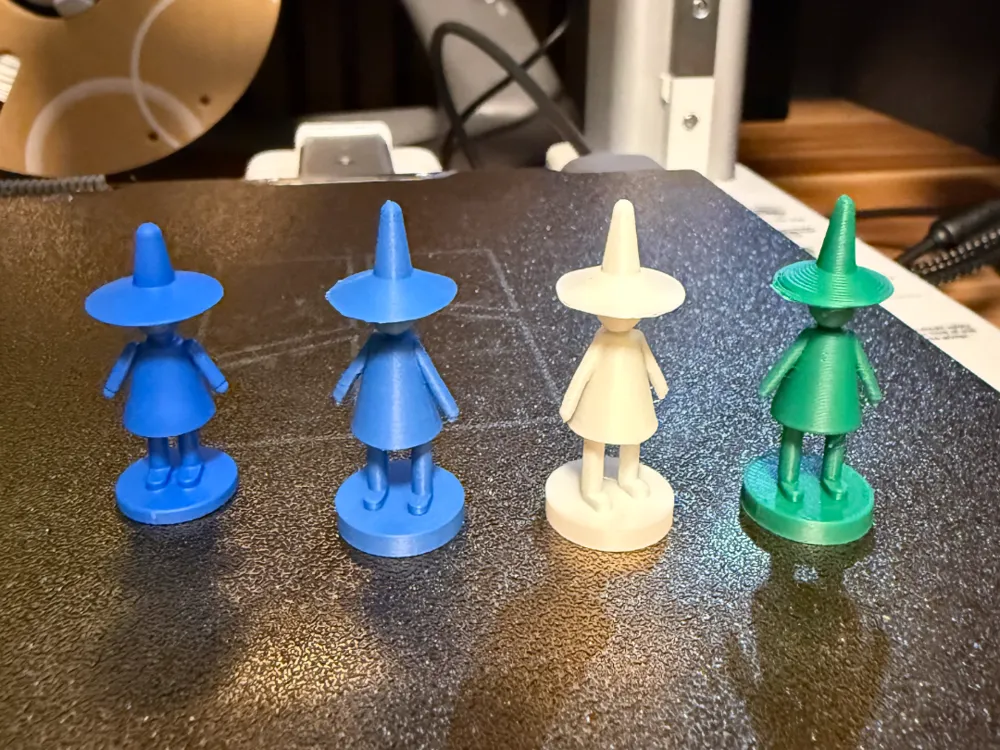

A game piece from the GDR classic The Colorful Cube. I created it with Fusion after one of the game pieces went missing. Of course, it's not perfect, but anyone looking for such a figure to continue playing or to save money can now simply print it themselves in the desired color. Or, of course, scale it up to place it on a shelf as a decorative object. :)

Caution: Hands / arms and legs are very delicate and can easily break off when removed from the print bed and supports. They are stable enough for playing.

• I recommend a 0.2 nozzle, although a 0.4 nozzle is also possible, it will not achieve such a fine and stable result

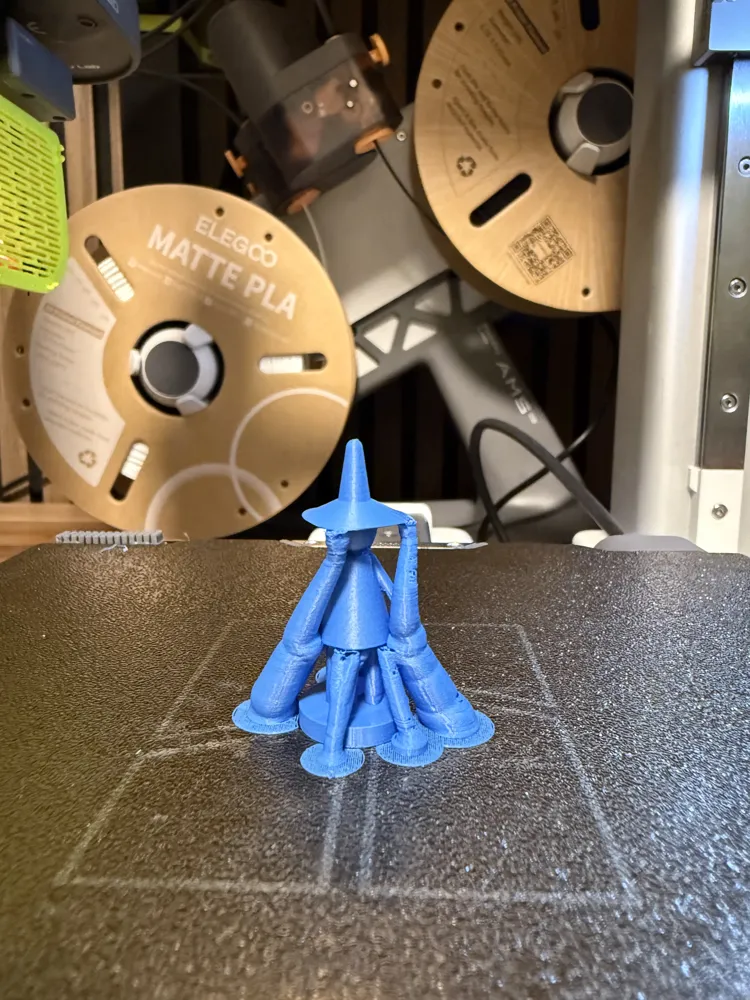

• It is printed with support structures, which I only placed where they are truly needed

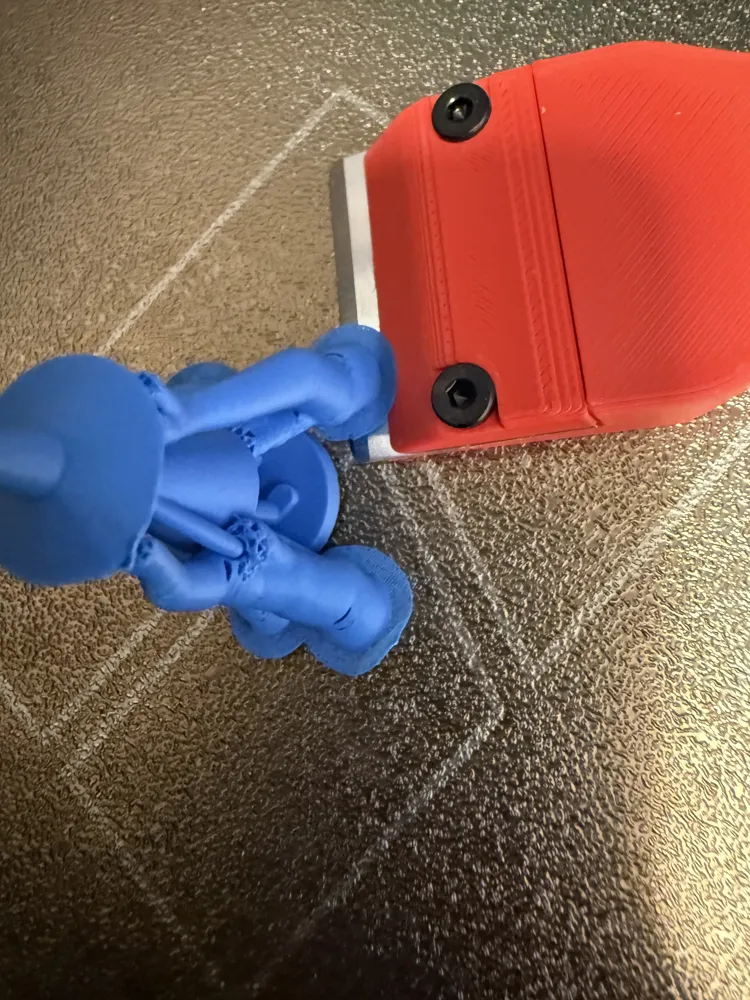

• After that, the figure must be removed very carefully from the print bed to avoid damage to the very delicate areas already at this stage. Best done very carefully with a flat scraper. And wait until the print bed has cooled down

• Then very carefully remove the hollow support structures on the arms or hands with small pliers. This was the biggest challenge, designing the arms and legs so they wouldn't break off.



Important Note

The print is intended for personal use only and may not be commercially distributed, either digitally or physically.

I am still a beginner

Note: I create all my designs myself, mostly with Fusion. However, I am still a beginner and try to optimize them as much as possible. Please do not be too hard on me if something does not fit 100%.
