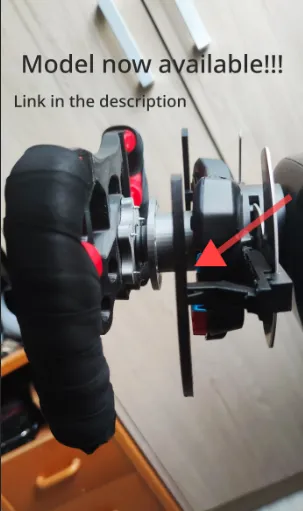

Quick Release for Logitech G29/G920

Remixed by

Print Profile(0)


Add the first print profile to earn points

Boost
97
225
22
0
177
19
Released

Description

Content has been automatically translated.
Show original





What I changed was the striped part, it was too big and I made it smaller

📑 ADDITIONAL PARTS: 4 METAL BALLS OF 5MM (They can be 3D printed but would degrade quickly) AND A CIRCULAR SPRING OF 30x30x30mm

I've already released the extended shifter paddle model for Logitech G29/G920!: https://makerworld.com/en/models/2954446-logitech-g29-g920-shifter-paddle-extension

You can print the spring at: https://makerworld.com/en/models/622636-parametric-spring-mold-generator?from=search#profileId-1706845



And the balls at: https://makerworld.com/en/models/2711602-x4-balls-5mm

I printed with PLA, but it is also compatible with PETG. I set 65% infill for all parts. Tree supports are recommended



I printed two, to put on a second 3D printed steering wheel that I have, and you can switch between the two steering wheels. To do this, you must print the parts that are on the rim twice (in the 5th photo above you can see the two parts)


Documentation (6)

Assembly Guide (6)
Captura de pantalla (28).png
GIF
Paso 1 Quick Release.gif
GIF
Paso 2 Quick Release.gif
GIF
Paso 3 Quick Release.gif
GIF
Paso 4 Quick Release.gif
GIF
Paso 5 Quick Release.gif
