Gloomhaven: Jaws of the Lion – Modular Organizer

Aggiornamento 25_03_26

Piatti 34_35_36

Aggiunti divisori per le abilità dei mostri in lingua Tedesca, grazie a @FloCraft3D per averli tradotti

Aggiornamento 20_02_26

Piatti 31_32_33

Aggiunti i divisori per le abilità dei mostri in lingua Francese, grazie @Jerry793 per averli tradotti

Aggiornamento 19_02_26

Piatti 27_28_29

Aggiunti i divisori per le abilità dei mostri in lingua Polacca, grazie @MichalZ per averli tradotti.

Piatto 30

Aggiunte delle basi per gli eroi. Queste basi possono contenere gli stati dei nostri personaggi in modo ben visibile durante il giorco, evitando di dimenticarcene……..furbetti🤣

Update 10_01_26

Plate 24,25,26
Monster ability dividers have been added in English (thanks to @fawazral for the translation. As with the Italian version, the monstrosity and IMP collectors are shared between Blood and Rat and Blood and Black IMP.

Gloomhaven: Jaws of the Lion – Modular Organizer

After some time since the release of Gloomhaven: Jaws of the Lion, I finally purchased the game and, once I opened the box, it immediately became clear how impractical the component storage was: difficult to organize and very easy to mess up.
This project was born with the goal of improving organization, usability, and setup speed.

Main Features

• Modular design: you can choose to use only part of the organizer or the full set, depending on your needs.

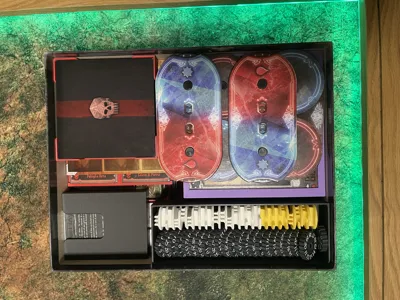

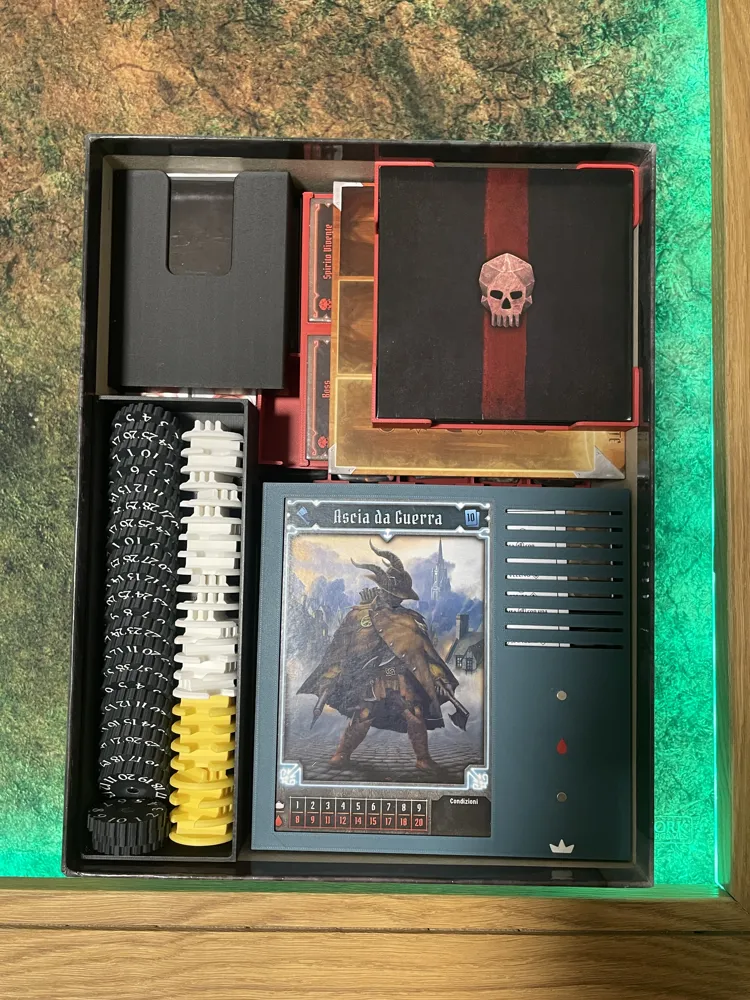

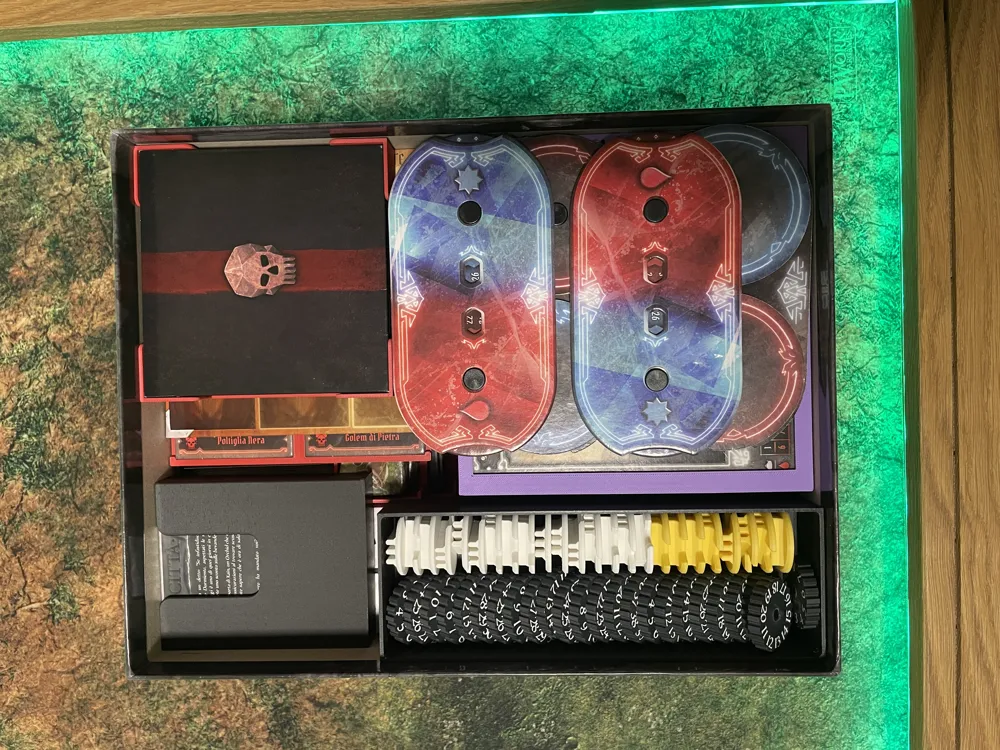

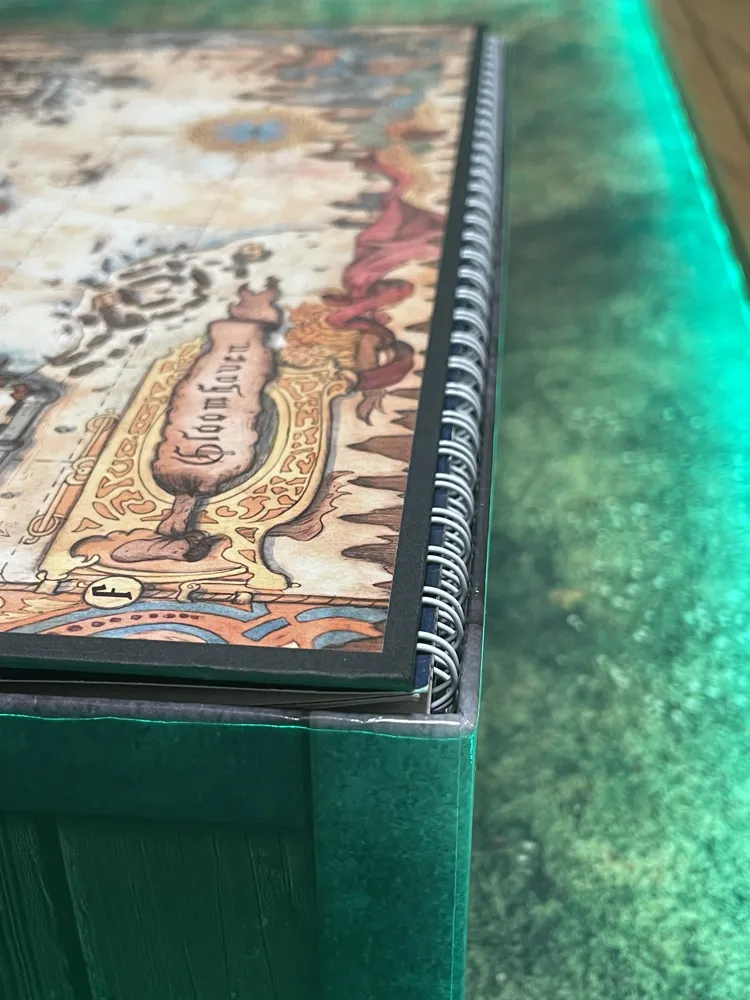

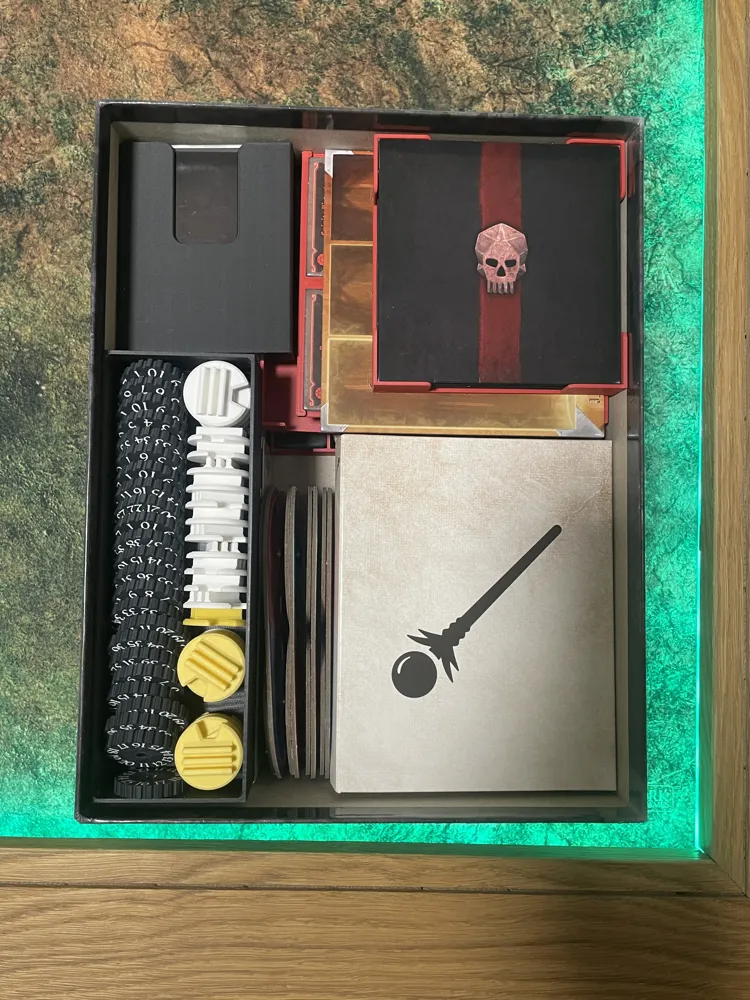

• Fully closable box when using the recommended configuration.
• Horizontal and vertical storage supported (note: configurations different from the suggested one may prevent vertical storage).
• Sleeved cards compatible with the organizer.

Printing Recommendations

For best results, I recommend:

• Low printing speed
• Using Arachne for parts with text
• Thoroughly cleaning the print bed
• Letting the print bed cool down completely before removing the parts

Project Structure

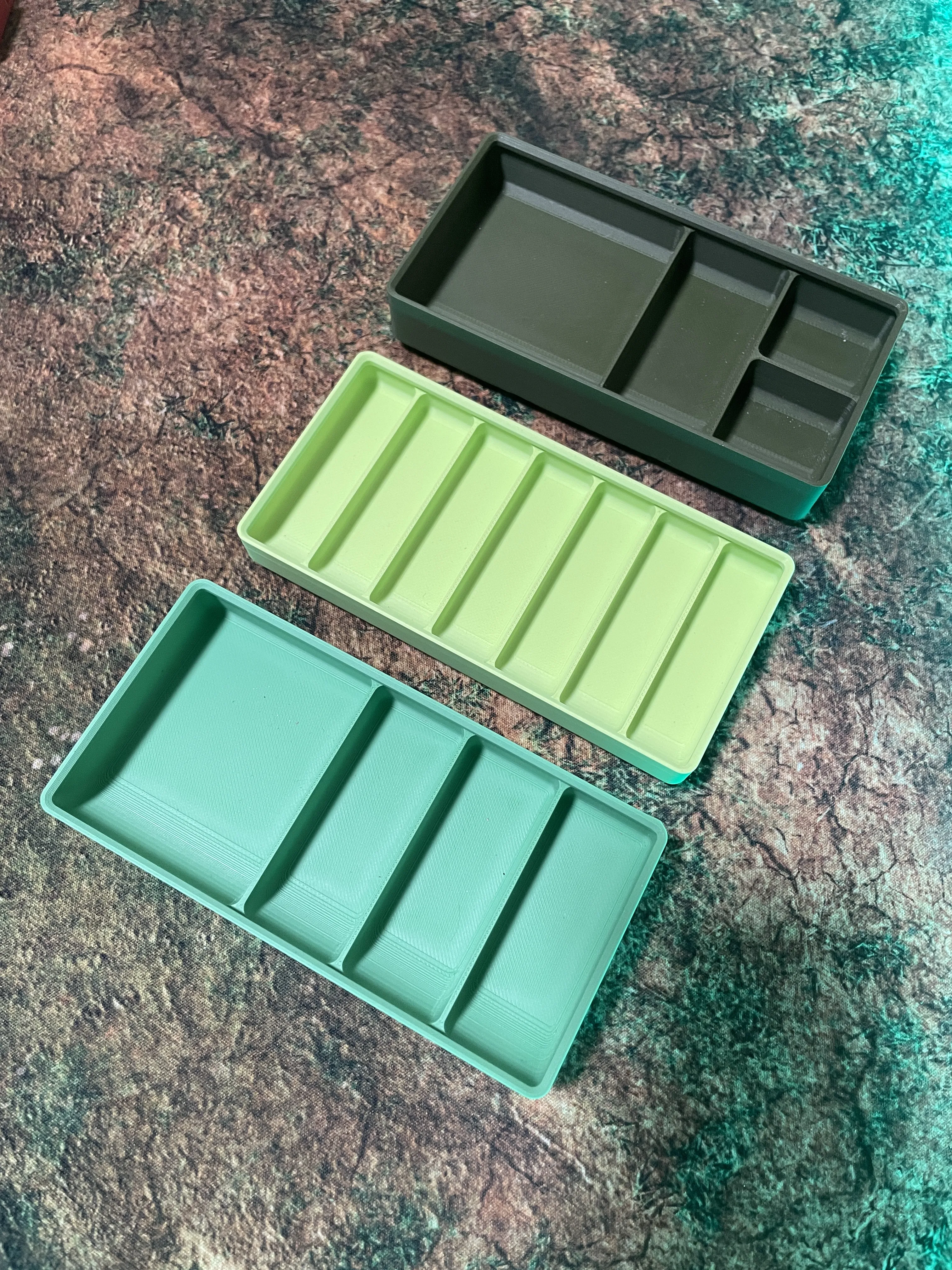

Print Beds No. 1, 2, and 3

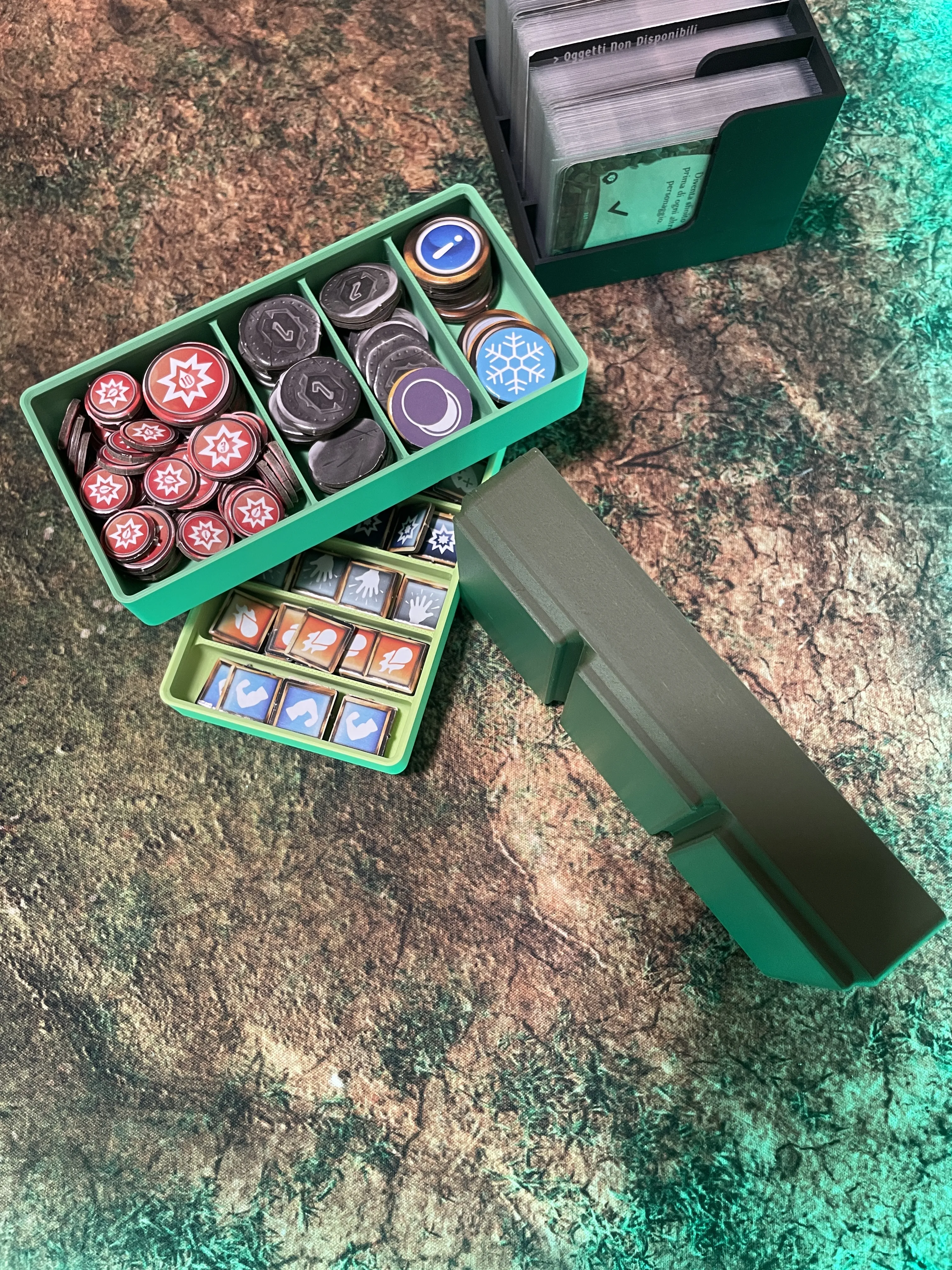

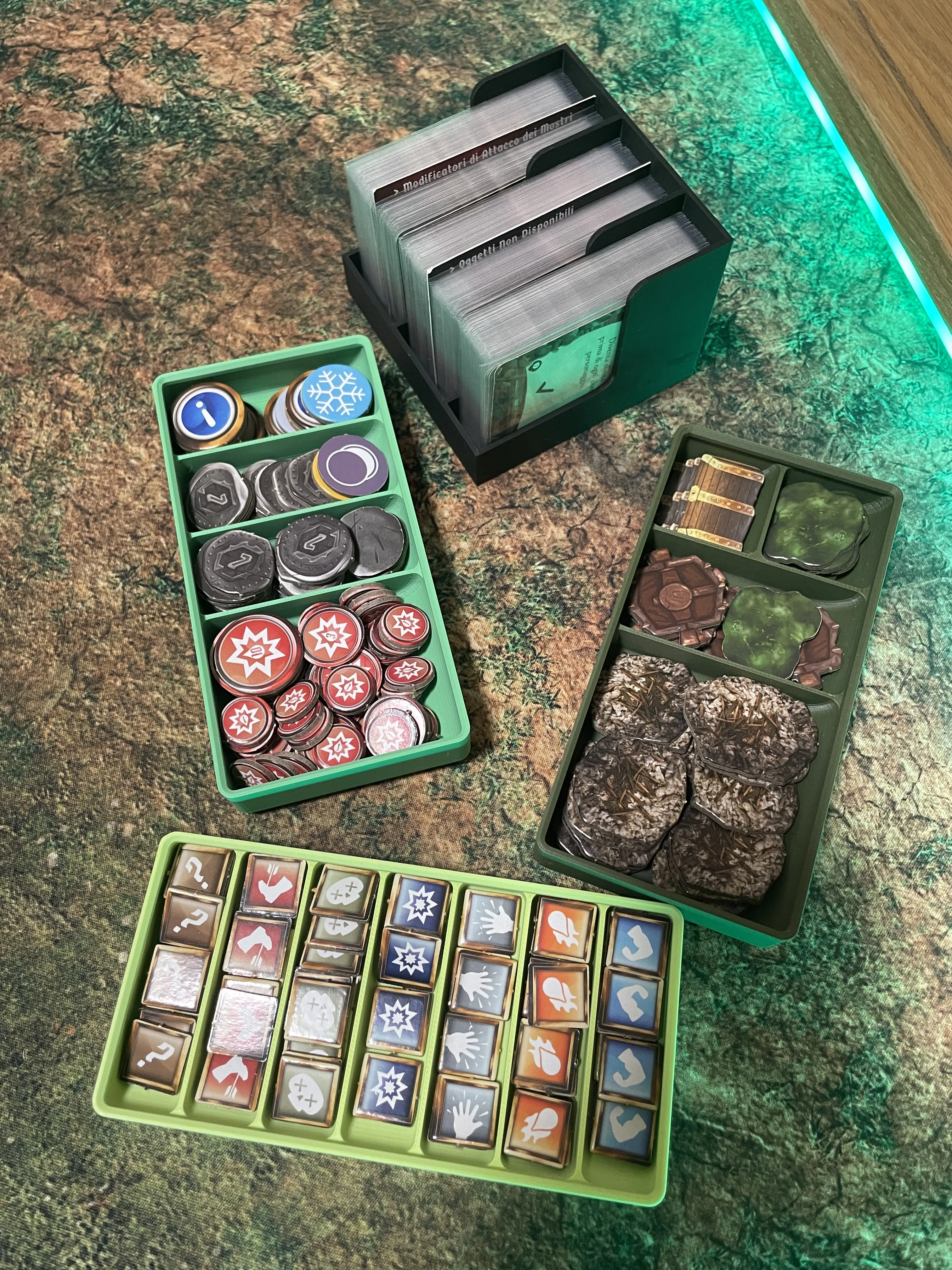

These print beds include organizer trays designed to store the various tokens: wounds (optional, more details later), terrain, conditions, and other game components.

All models were designed in Fusion, using the Gridfinity add-on. The shape of both the base and the lid allows the trays to be stackable, creating a kind of “lock” that prevents tokens from spilling or mixing when the box is moved.

You may need to relocate a few tokens from one section to another, but this is a minor compromise. I chose not to increase the overall height in order to keep the box fully closable.

Print Beds 4 and 5

Print Bed 4 contains the box designed to store the following card decks:

• Battle Goal Cards
• Item Cards
• Monster Attack Modifier Cards
• Curse and Bless Cards

It is a simple but very precise box, designed to make it easy to take out and put back the cards at any time.

Print Bed 5 includes the box for storing the City Event Cards.

Print Bed 6

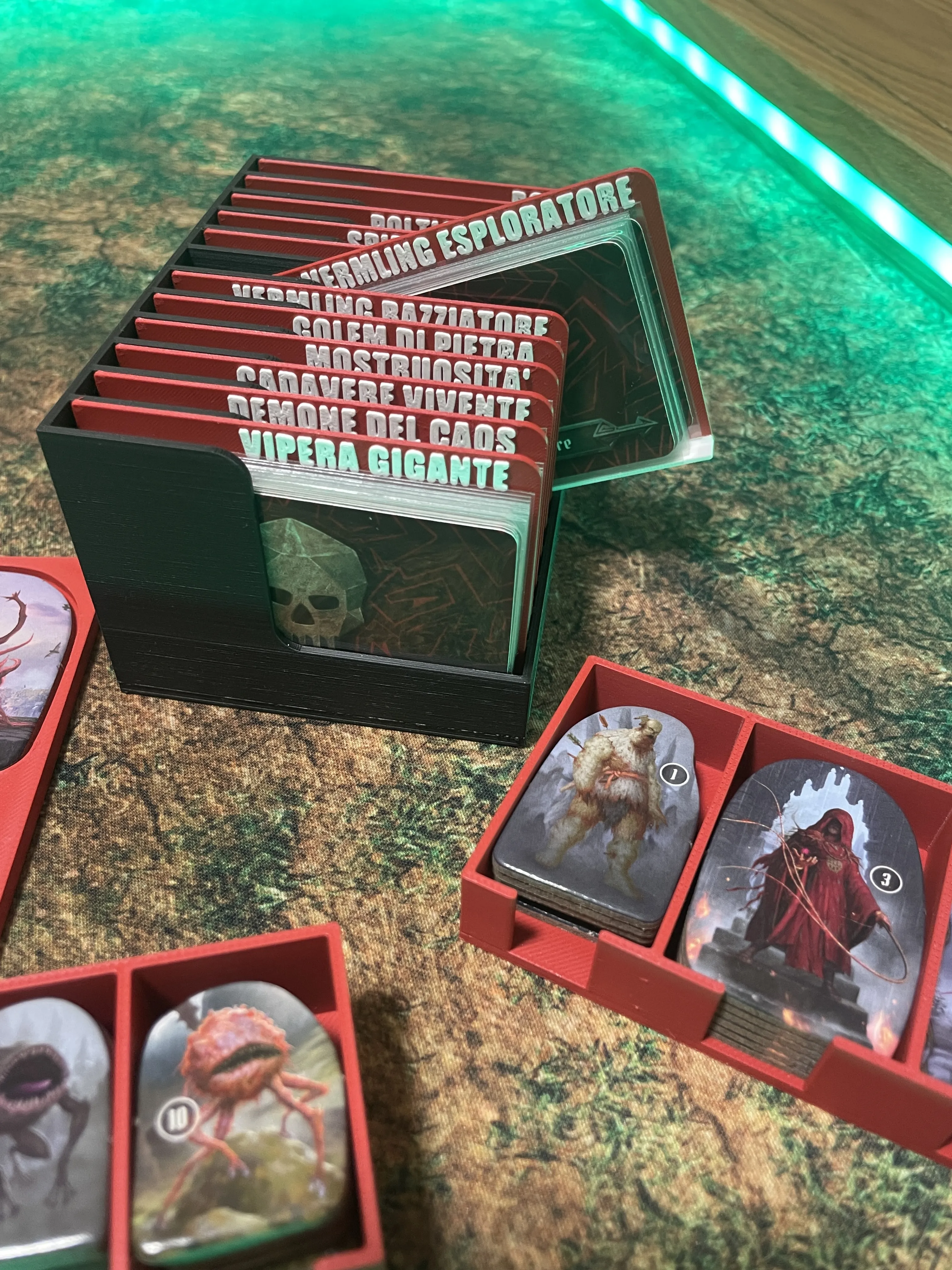

Here you will find the tray for the Monster Ability Cards.
It features 12 slots, one for each monster group.
Please note that the game includes 14 monster groups, but two pairs of monsters share the same ability cards.

Print Beds 7, 8, and 9

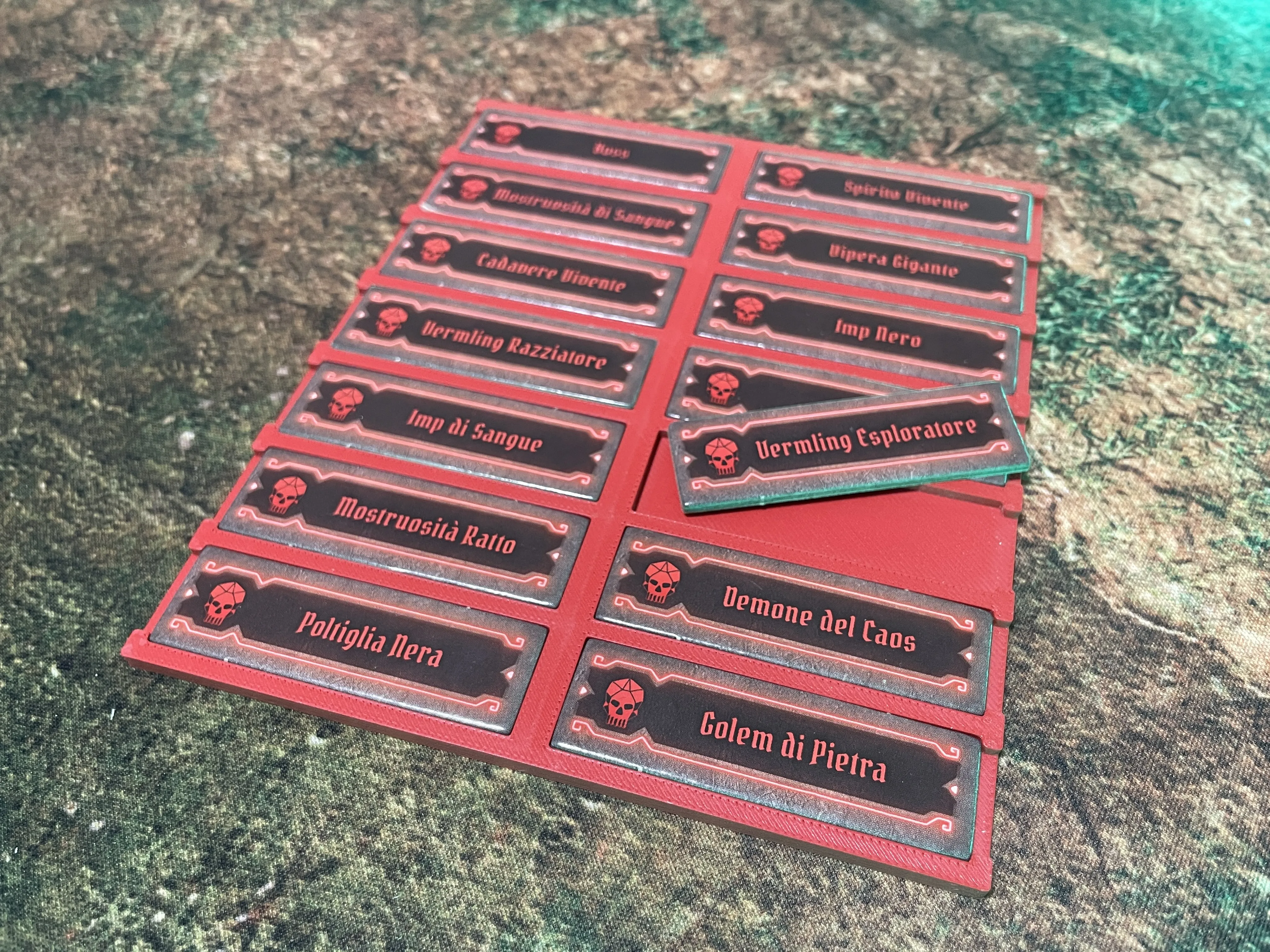

These print beds contain the Monster Ability dividers, each labeled with the corresponding monster name in ITALIAN.
The dividers include a base that helps lifting the cards out of the tray, making them very convenient to use.

The differently colored text is raised and achieved by a filament change at layer 6.

Unfortunately, I couldn’t find the official monster names in English and didn’t want to risk incorrect translations.
If anyone would like the dividers in their own language, feel free to ask—I’ll be happy to make them.

Print Beds 10, 11, 12, 13, and 14

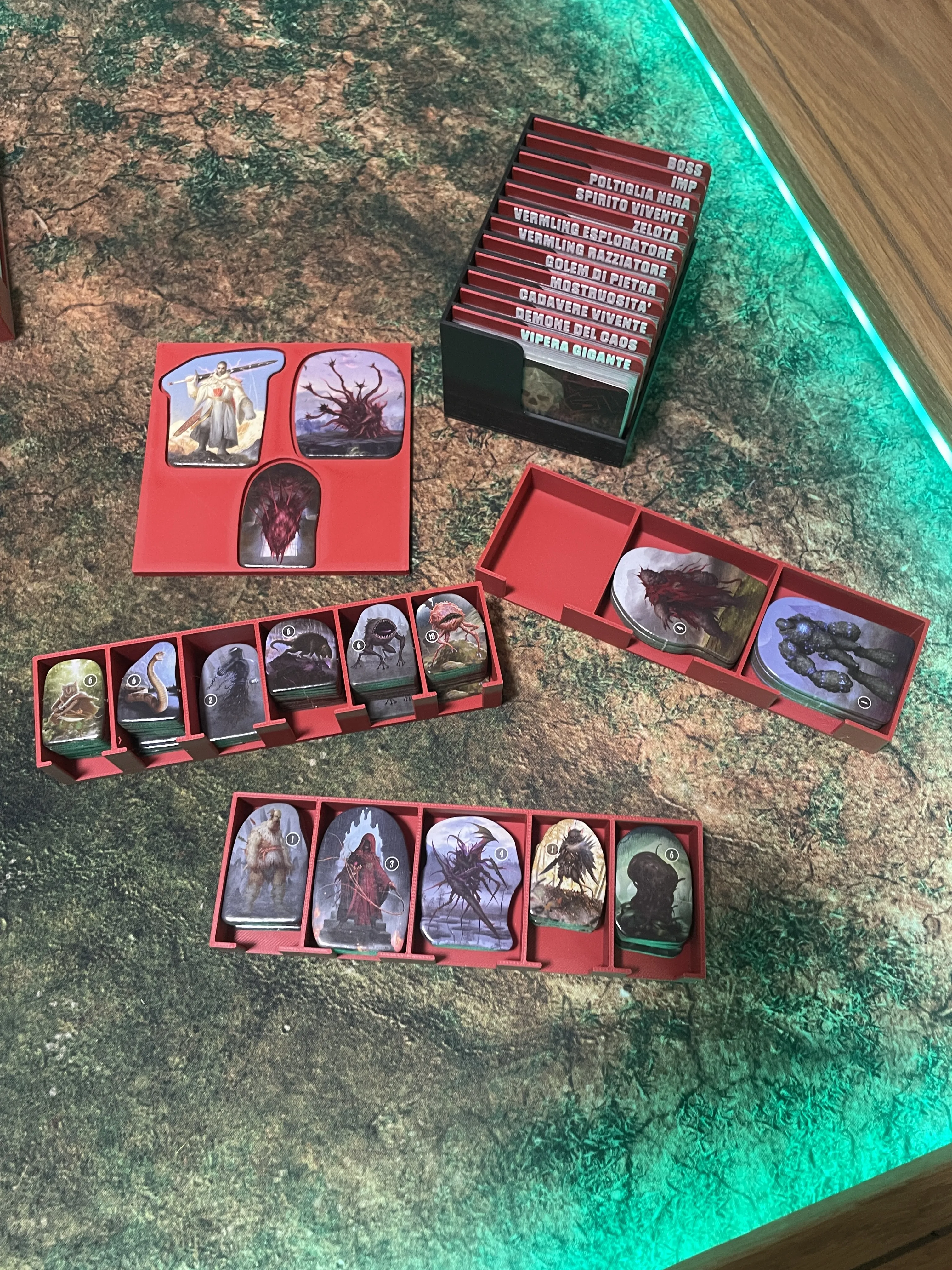

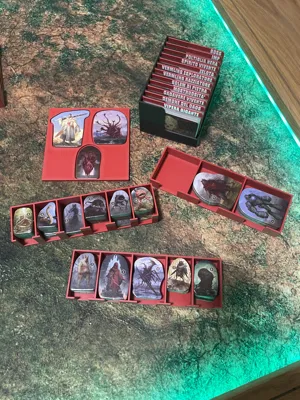

These boxes are designed to store the monster stands, organized as shown in the attached photos.

Please note that Print Beds 11 and 12 use the same box design. The difference is that Print Bed 12 is a “short” version, meaning it is sized specifically for monsters with shorter stands, ensuring a snug fit. You can choose whether you prefer all boxes to be the same size or tailored to the different stand heights.

Print Bed 14 contains the box dedicated to the Boss stands.
The boss stands have approximately 1 mm of clearance inside the tray to allow easy insertion and removal.

Print Bed 15

This print bed includes a tray designed to store the monster identification tokens.
The tokens fit snugly in their slots but can be removed easily, thanks to the tray’s limited thickness, which allows it to flex slightly if needed.

Print Bed 16

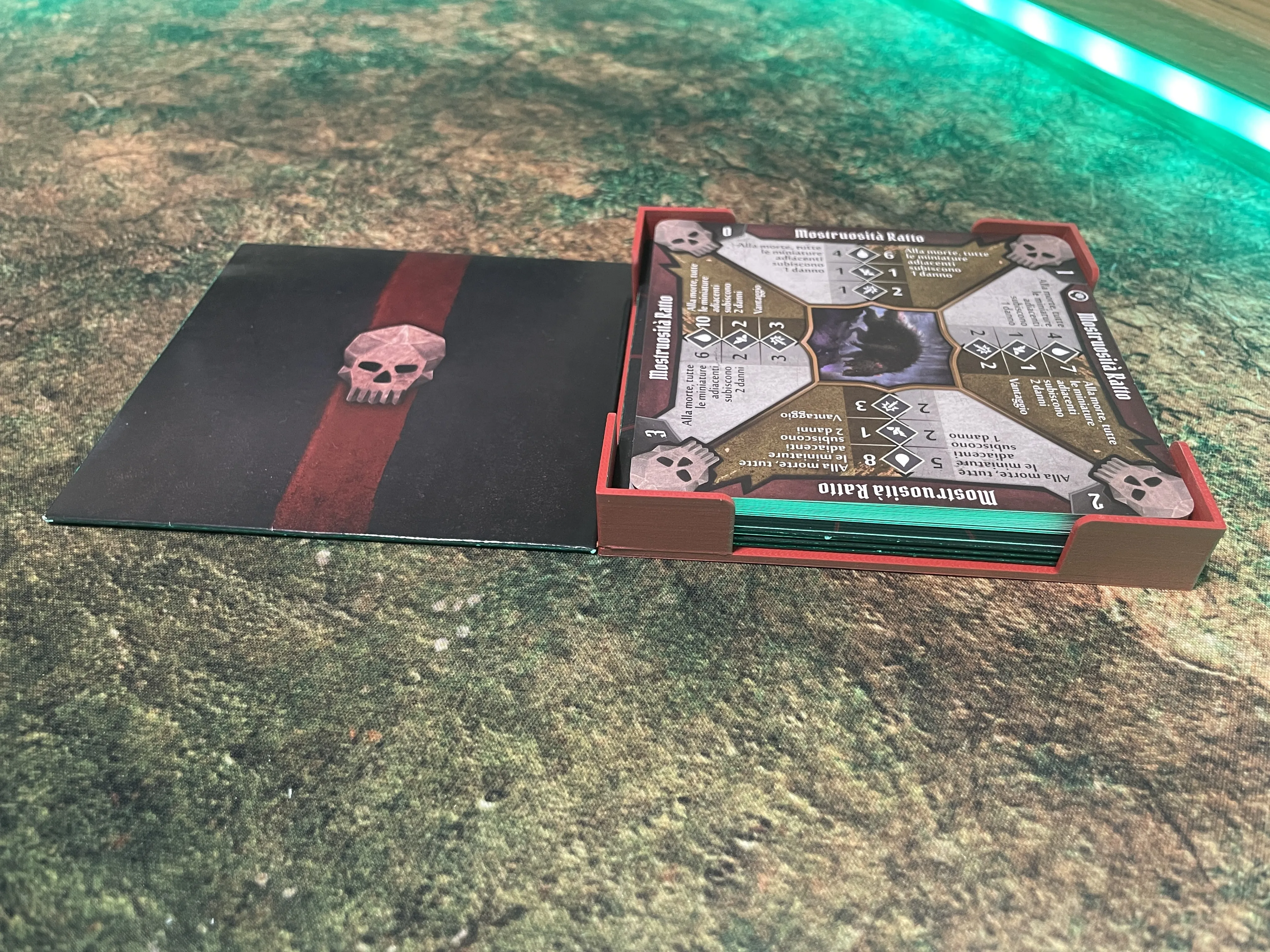

This print bed includes a tray designed to store the Monster Stat Cards.

Print Beds 17, 18, 19, and 20

These print beds contain the monster stands.

Personally, I don’t like using the standard monster wound tokens, as I find them tedious to manage and disruptive to the flow of the game. Even though similar solutions can be found on MakerWorld and other platforms, I decided to design my own version because I really liked the font used.

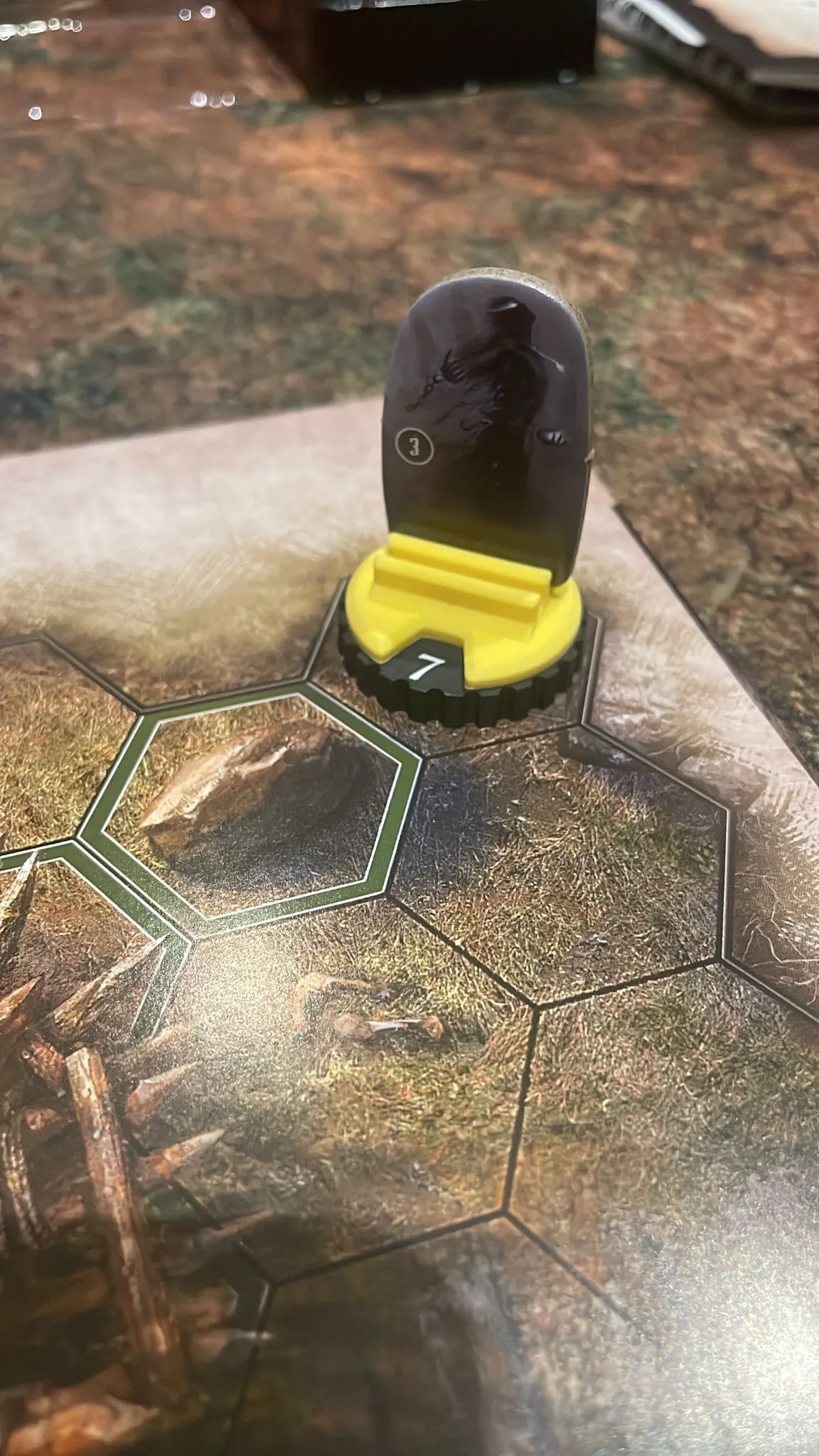

Thanks to a rotating life dial connected to the stand via 5 mm × 2 mm magnets, adjusting monster health becomes fast, precise, and intuitive.

⚠️ IMPORTANT – Magnet Polarity

• The life dial contains two magnets that must be inserted with the same polarity.
  The magnets will naturally repel each other, but with a small drop of super glue and a few seconds of pressure, they will stay firmly in place.
  Without glue, they will repel and pop out of their slots.
• The magnet in the stand must be installed with the opposite polarity.
• You can help yourself with this tool https://makerworld.com/it/models/2200799-magnet-placement-pen#profileId-2390932

⚠️ NOZZLE REQUIREMENT
A 0.2 mm nozzle is REQUIRED to correctly print this type of font.

Print Bed 20

A simple tray for storing the monster stands described above.

Print Beds 21, 22, and 23

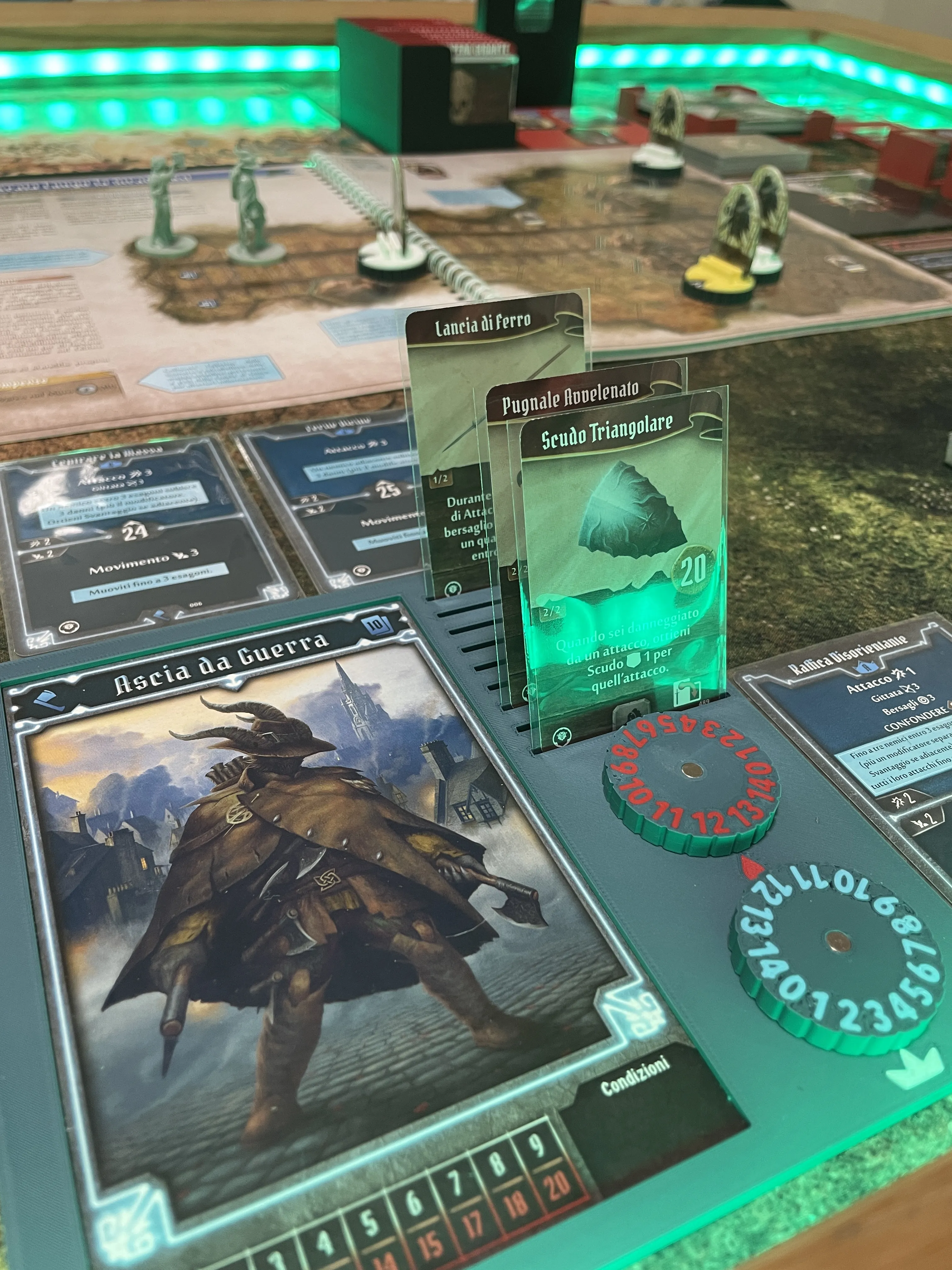

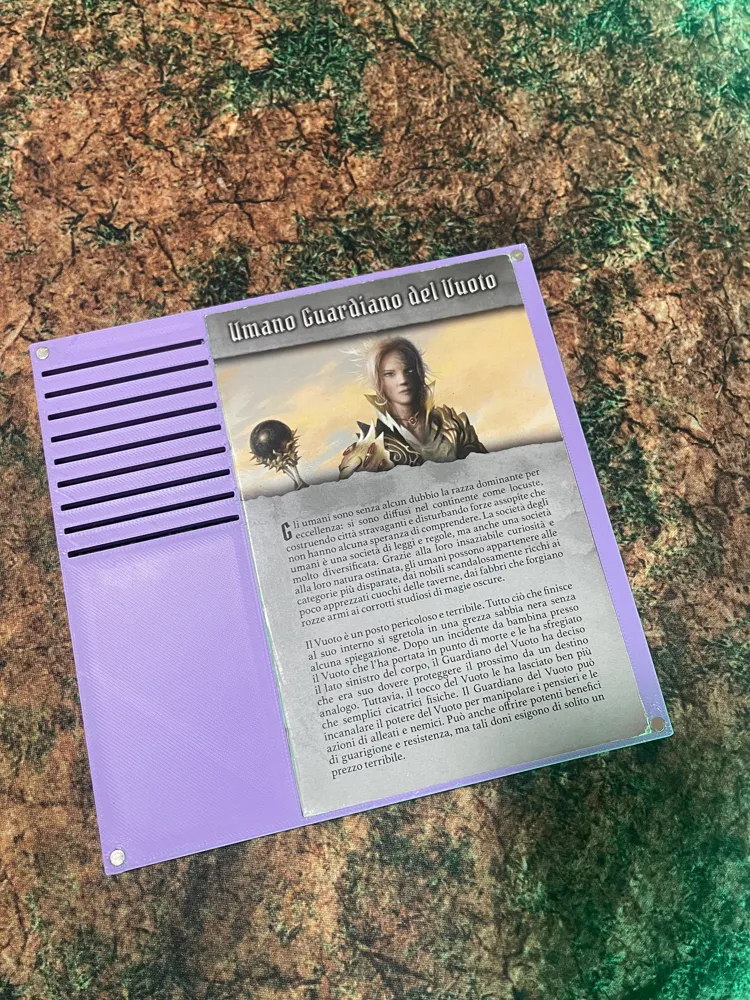

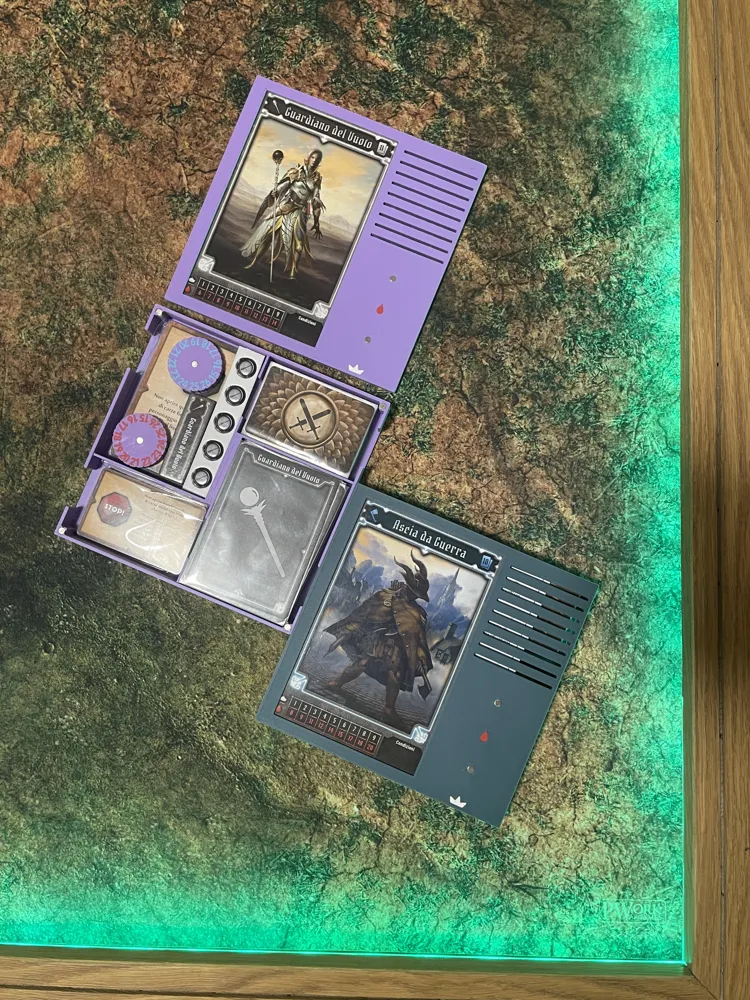

These print beds include the Hero box, designed to store all hero cards.
The top of the box features through-slots specifically made to hold the small cards.
The box lid is attached to the base using 4 pairs of magnets (one pair at each corner), measuring 4 mm × 2 mm.

I designed this box to use two hero score dials, fixed in place with 4 mm × 2 mm magnets .

The complete box, including the score dials, requires a total of 14 magnets per box.
As with the monster counters, super glue is required, and the magnets must be installed following the same polarity rules described earlier.

For this version, I changed the number font, making it possible to print the dials using a 0.4 mm nozzle.

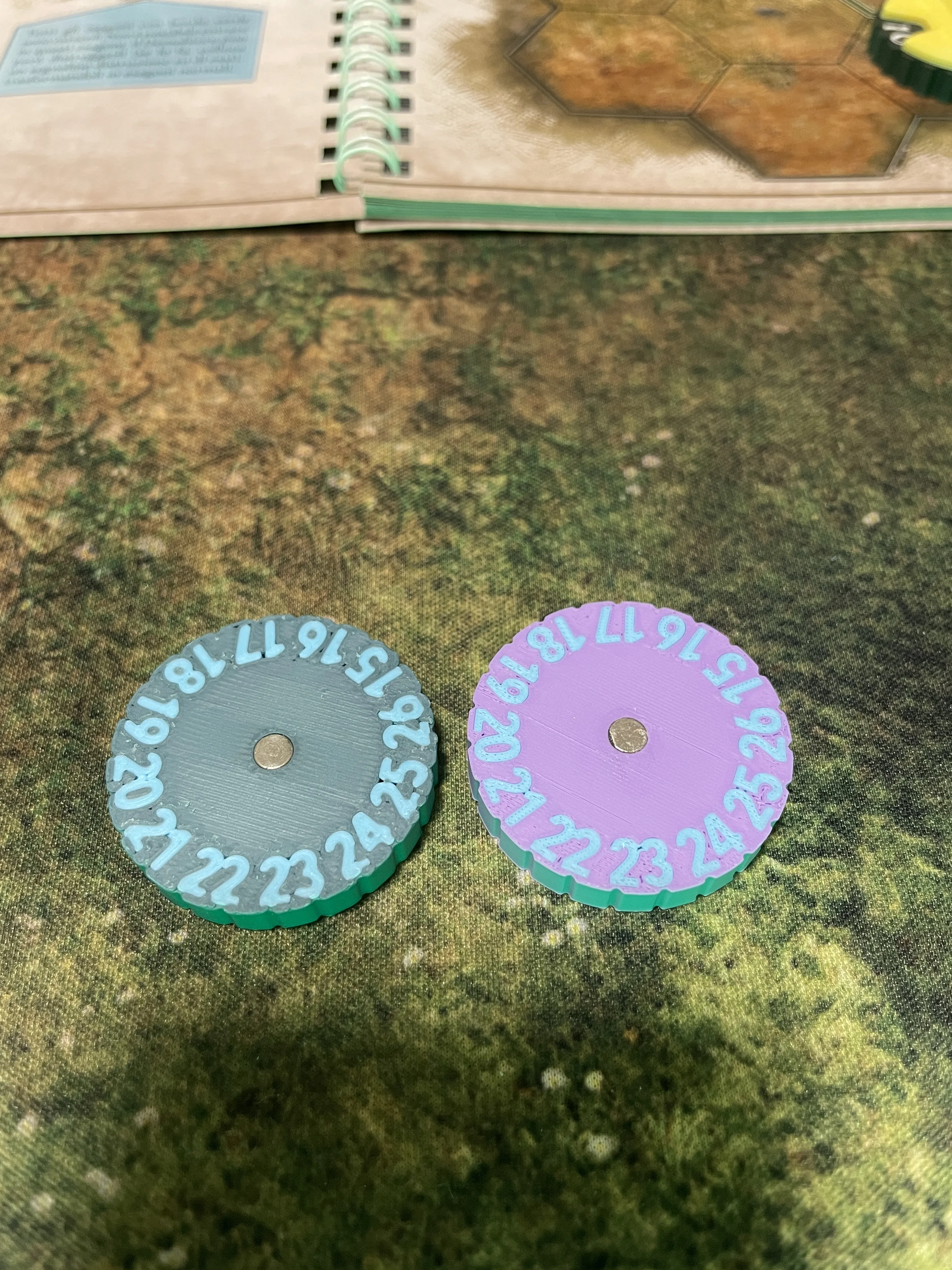

In the photo below:

• Left: printed with a 0.4 mm nozzle
• Right: printed with a 0.2 mm nozzle

You can choose the option you prefer.

Print Beds 24_25_26 Divisori abilità mostri in Inglese

Print Beds 27_28_29 Divisori abilità mostri in Polacco

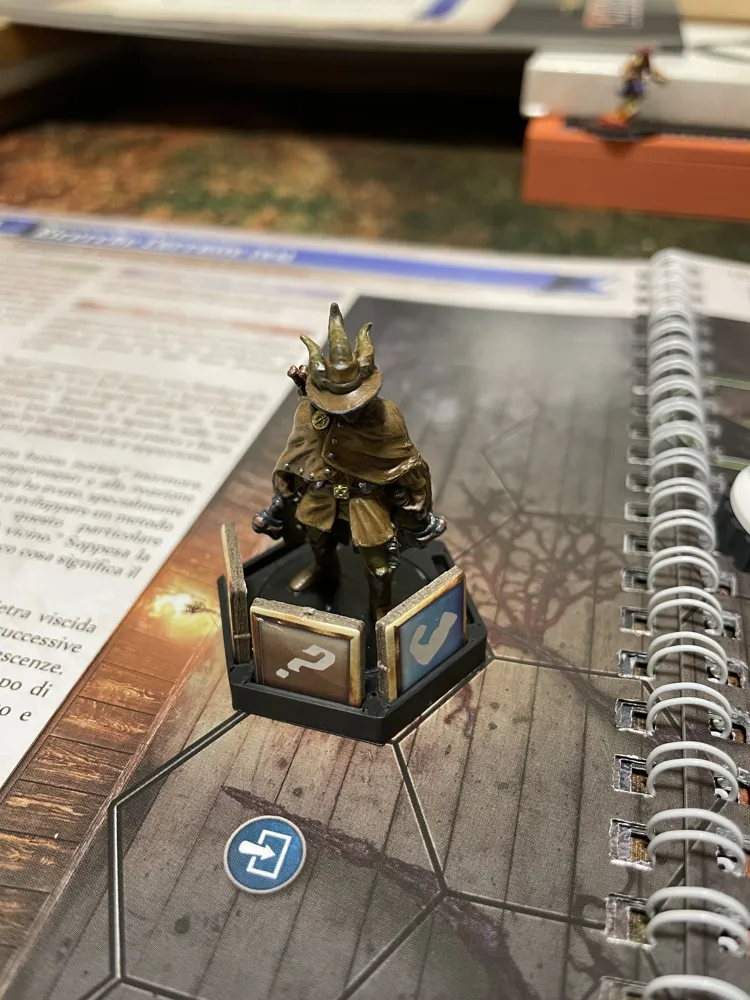

Print Bed 30 Basetta porta condizione per gli eroi

I’m available if you have any questions.
Have fun!
