Motorcycle fork spring compressor press

IP Report

Print Profile(1)

All
P2S
X1E
X1
H2C
H2S
A1
H2D Pro
P1S
X1 Carbon
P1P
H2D
X2D
A2L

0.2mm layer, 4 walls, 30% infill, pause @ layer 91
0.2mm layer, 4 walls, 30% infill, pause @ layer 91
Designer
1.8 h
1 plate

Open in Bambu Studio
Boost
1
7
0
0
5
1
Released

Description

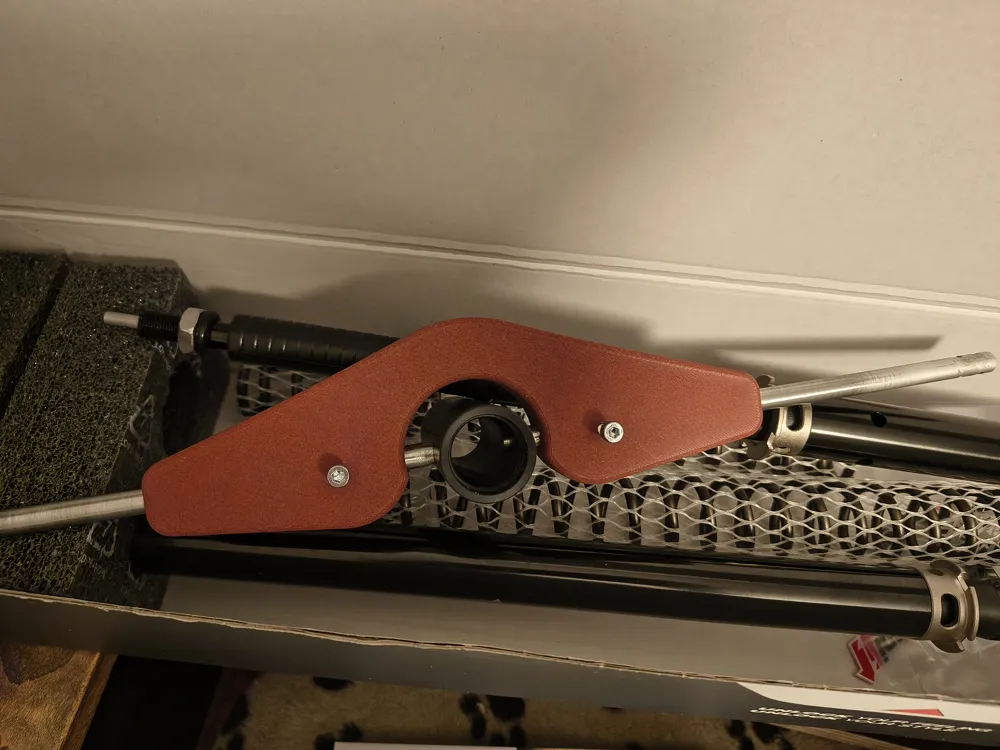

This design is the body of a fork spring press. You'll need two 8mm rods (~20cm long), 2 M4 nuts and 2 small M4 bolts (to lock the rods).



In the print profile, there is a pause (at layer 91 with .2 layer height) during the print to insert the M4 nuts inside the body.



I printed the body with PLA-CF, 4 or 5 walls and 30% infill. You want quite a strong print.
