Zc Aus - Ultra Compact Nerf Pistol - Up To 170FPS

Scroll down for firing demo video ⬇

Please leave a like and rating and consider boosting and posting a make if you print and enjoy the project!

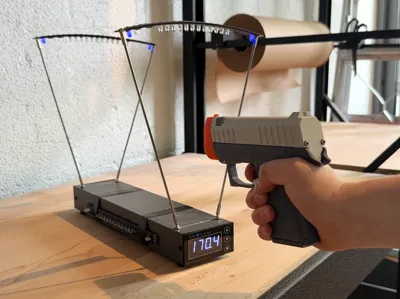

The Zc Aus is a high-powered, mag fed (5-13 dart capacity) foam dart (Nerf) spring-powered blaster pistol in an ultra-compact size. It is capable of up to 170feet-per-second muzzle velocity. It has multiple configurations with different frame and handguard combinations. See further down for more information.

Everything You Need To Build Your Own

1. Purchase a hardware kit. Hardware Kits can be found here.
   • The hardware kit can make any configuration of the Zc Aus.
   • Affordable international shipping available, fast and tracked!
   • Please note: past hardware kit sales enabled me to develop this design, and present ones support me in developing upcoming designs. They include several custom-machined parts, not just off-the-shelf parts. They are priced for an order frequency that I can keep fast dispatch times up with while also remaining competitive with similar kits.
2. Download the print files from this model listing.
3. Download the print and assembly guide here.
4. Buy some half-length darts if you don't already own any, here are some links:
   • US - Frontline Foam, OutOfDarts
   • EU - Blaster Time
   • AU - Blaster Tech
5. You will need some basic common tools for assembly, and some glue if you choose to install the magnets (not necessary for functionality), see the assembly guide linked above. Silicone oil lubricant is included in the hardware kit.

IMPORTANT NOTE - PRINT IN BRIGHT COLOURS

Due to it's design this blaster must be printed in bright colours and with an orange tip to differentiate it from a real firearm if you will be taking it anywhere where it could be visible to the public.

Also check out the Zinc .50!

If you are interested in a more powerful (but larger) similar blaster, check out the Znc Aus and the Zinc .50.

Details

Configurations

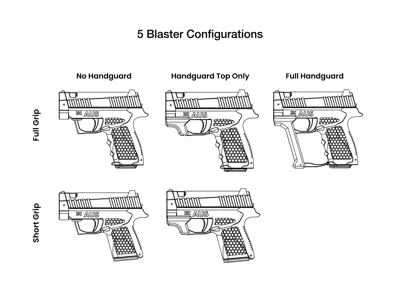

The Zc Aus has 5 different configurations across different combinations of variants for the frame, handguard, and magazine parts. All configurations can be made with the same hardware kit. Print the parts for your chosen configuration.

• Two short grip variants: without handguard and with handguard (handguard top only). These are compatible with 5 to 13 dart magazines. Note that only the 5 dart magazine will spring-eject with these configurations. 7 to 13 dart magazines will catch and gravity drop but won’t spring eject.
• Three full sized grip variants: without handguard, with handguard top only, and with full sized handguard. These are compatible with 7 to 13 dart magazines.

Both variants for the trigger (flat/curved) and trigger guard (trigger guard/trigger guard delete) parts are compatible with any configuration.

Additions and Changes

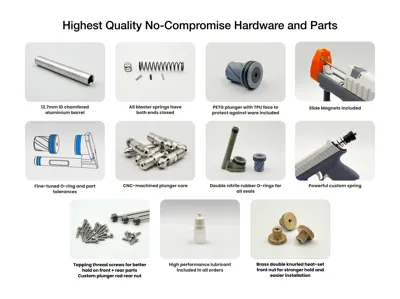

The Zc Aus is based on the Zc by Misplaced Moose, but it includes an optional handguard, revised no-compromise hardware including a CNC plunger core, a 12.7mm ID aluminium chamfered lead-in barrel, slide magnets, double O-rings on all seals, and more. Nearly all parts have been remodelled with modifications for performance, ease of assembly, and aesthetics. See the images for more details.

Print and Assembly

See the print and assembly guide for full printing details. Prusaslicer and Bambu Studio 3MF slicer files are also available. A dimensionally accurate printer such as a Prusa or Bambu model is recommended for easy assembly. Always use slow (structural) printing profiles for strong and accurate parts.

Assembly is relatively straightforward. The print and assembly guide is detailed and includes troubleshooting steps for common issues. Unlike the original Zinc 2.0, excessive sanding/filing is not required to get parts to fit and function.

Note

Like the Zc, the Zc Aus is an unofficial descendant of the Zinc 2.0 blaster by 118 Design.
