Dummy Unity Tactical FAST FTC Eotech G33 Mount

This project is mostly for my enjoyment, any feedback is greatly appreciated, especially with the print configuration since I mostly created the model and commissioned someone else to print it, I have 0 other 3D printing knowledge.

-------------------------------------------------------------------------

This project is mostly for my enjoyment, any feedback is greatly appreciated, especially with the print configuration since I mostly created the model and commissioned someone else to print it, I have 0 other 3D printing knowledge.

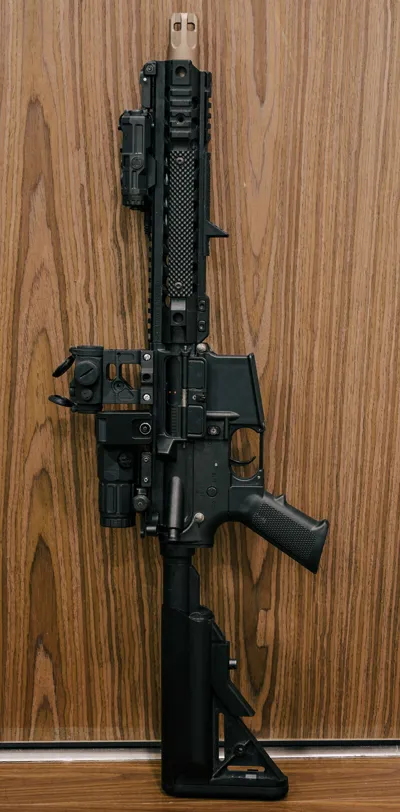

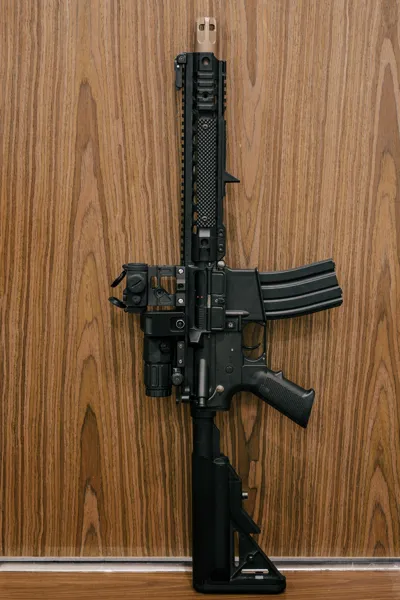

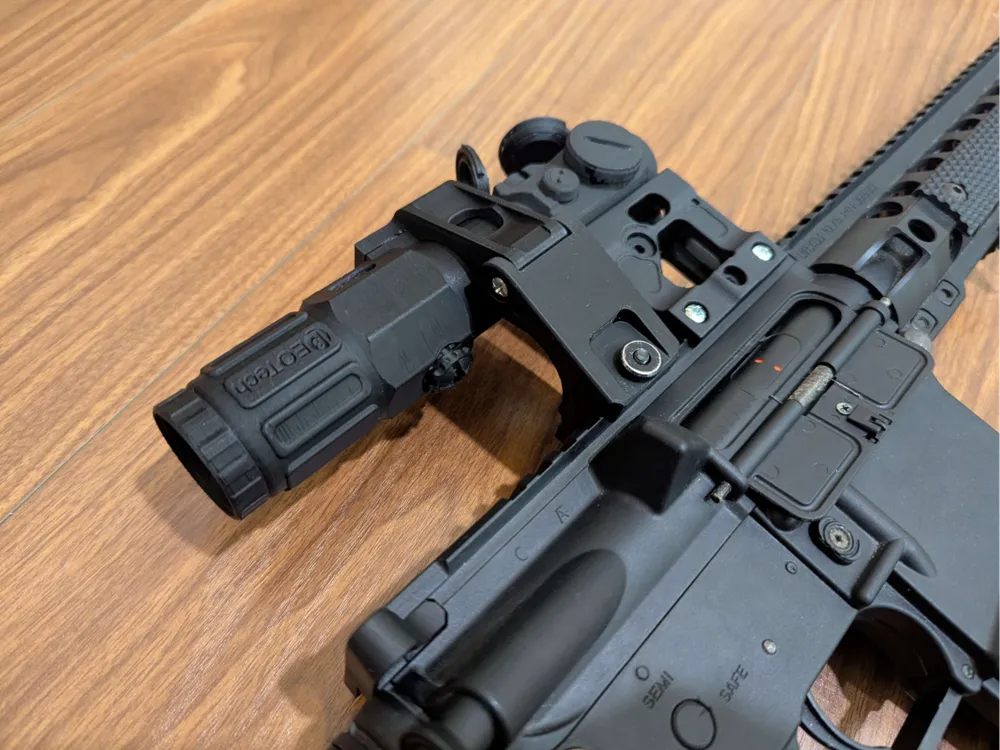

A dummy model meant for decoration on model guns. Can be flipped up or down. Designed for use with the EoTech G33 from https://makerworld.com/en/models/1484707-eotech-hhs-ii-scope-red-dot-sight#profileId-1550933

Hardware needed:

• An M4x30mm screw and an M4 nut to attach the G33 mount to a picatinny rail.
• An M4x30mm screw to attach the two halves of the G33 mount.
• Superglue to attach the G33 to the G33 mount.

Be VERY careful when you assemble this mount. The parts are meant to be fitted very tightly.

Adapted from the following model under CC BY 4.0 license
Unity Tactical FAST™ FTC Eotech G33 Mount
https://sketchfab.com/3d-models/unity-tactical-fast-eotech-6adc4ea9e71b47039fd6bb3d26419693


It is recommended that you use this with the Unity Tactical FAST™ Micro Mount or the the DripLyft riser from
https://makerworld.com/en/models/1830292-picatinny-sight-riser-driplyft?from=search#profileId-1954402

-------------------------------------------------------------------------

I have a list of prints, mostly dummy optics/optic risers/optic mounts, that I can't really afford to print. If you're interested in testing the prints and sending me showcase photos then feel free to contact me, all files will be free of charge:

• Trijicon MRO + Trijicon 3X Magnifier
• Aimpoint magnifiers with LaRue flip to side mount
• Aimpoint T2 red dot sight v2 (with lens caps that can be removed/rotated)
• ANVL UKON RMR mount for RMR pattern red dot sights
• Unity Tactical RAXIS for B.E Meyers MAWL laser
• Arisaka Low/2.26" Magnifier Mounts
• Geissele 30mm scope mount
• ACR stock for A&K/DS/STS/AKA/JM gel blasters
