Speaker Stand

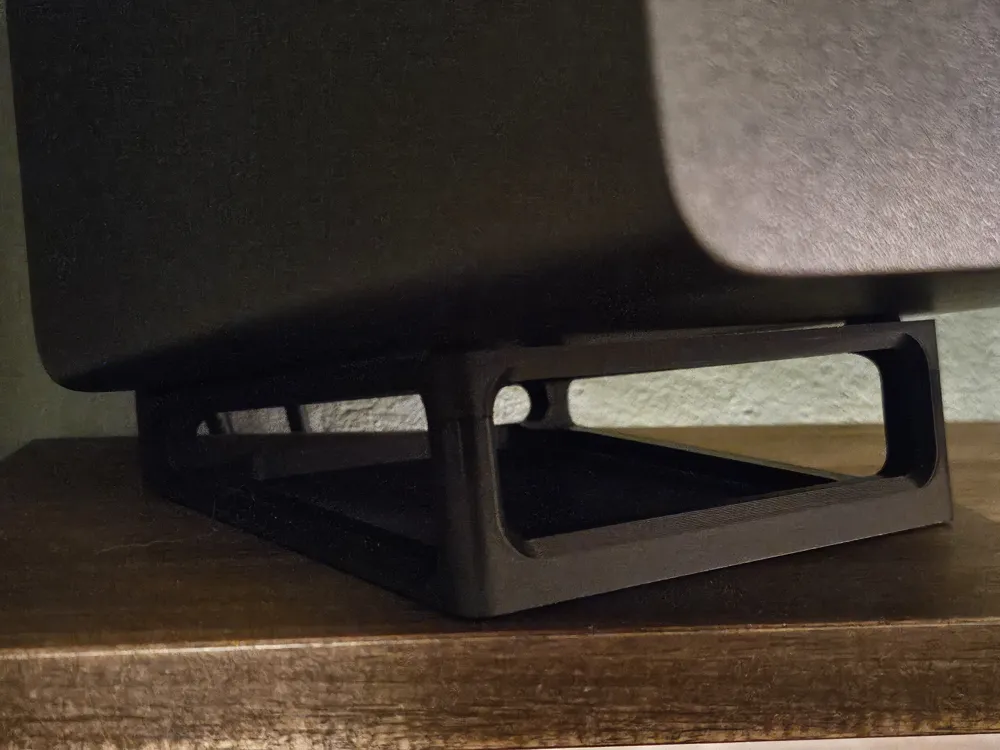

I made these stands specifically for Yamaha HS5 studio monitors.

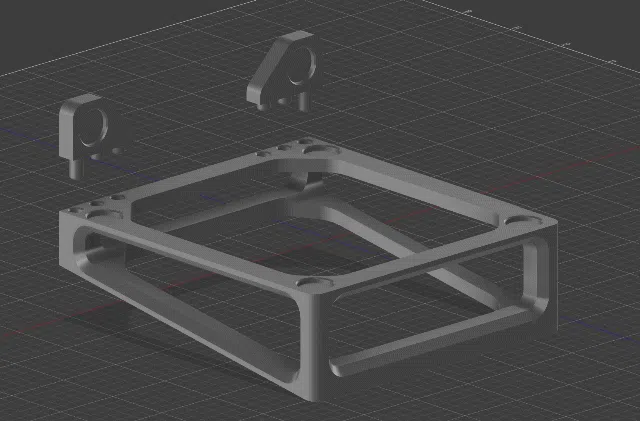

The whole stand snaps together (no screws), prints with almost no supports required, and is designed to be as lightweight as possible while staying rigid.
Features

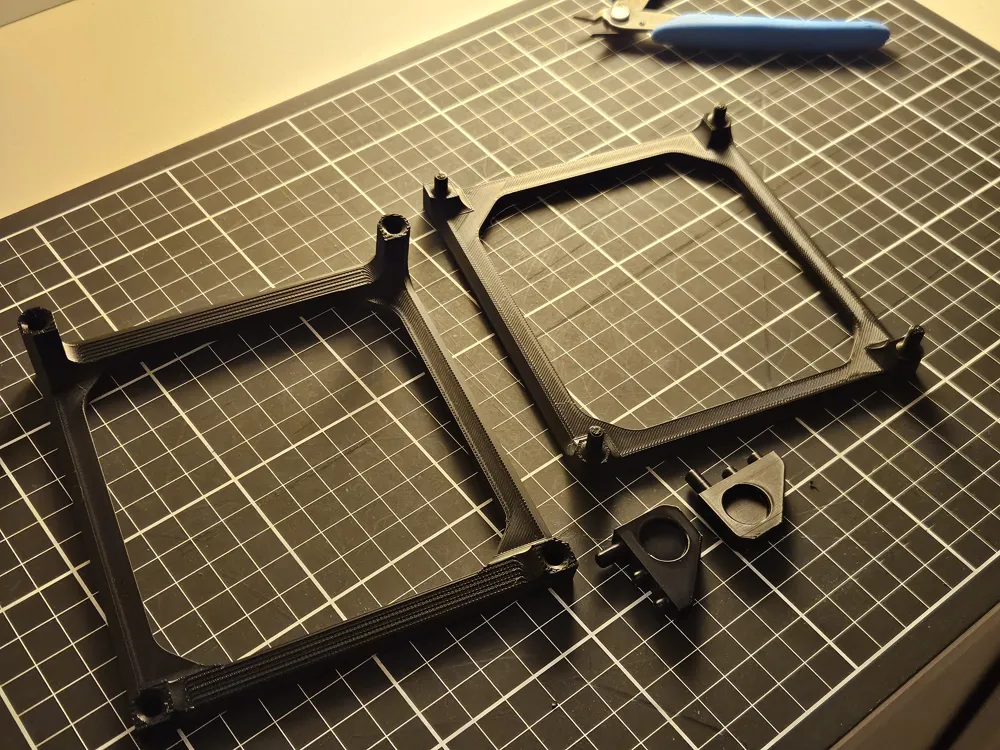

- Snap-fit assembly (no hardware)
- Designed to print almost without supports
- Lightweight but stiff structure
- Rubber isolation on top and bottom to reduce vibration transfer

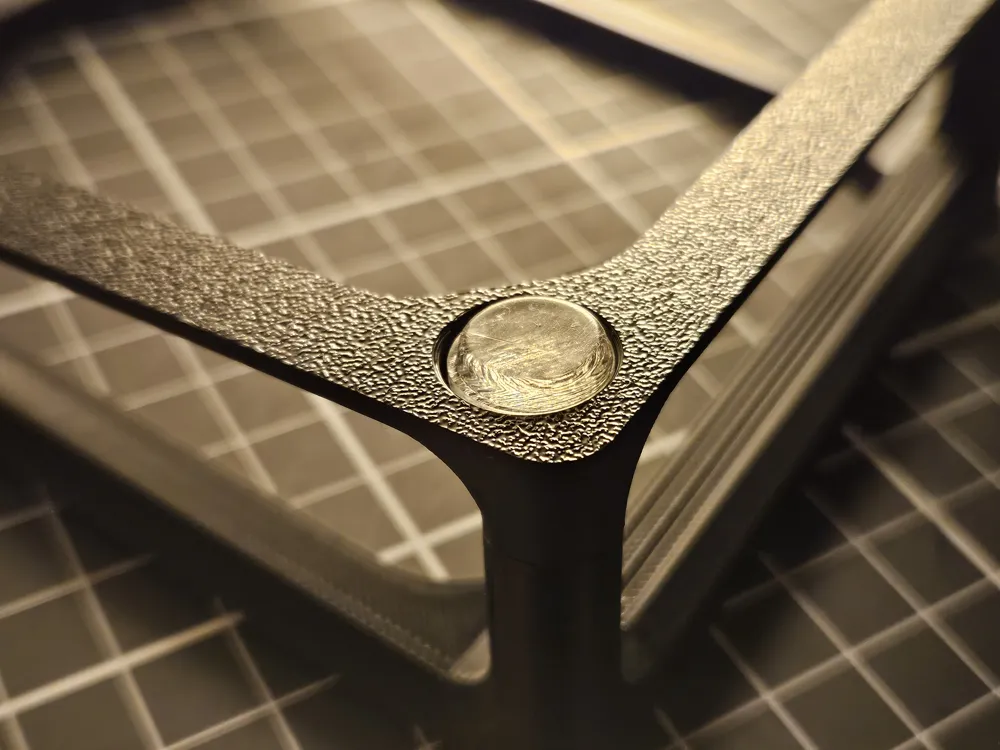

Rubber feet

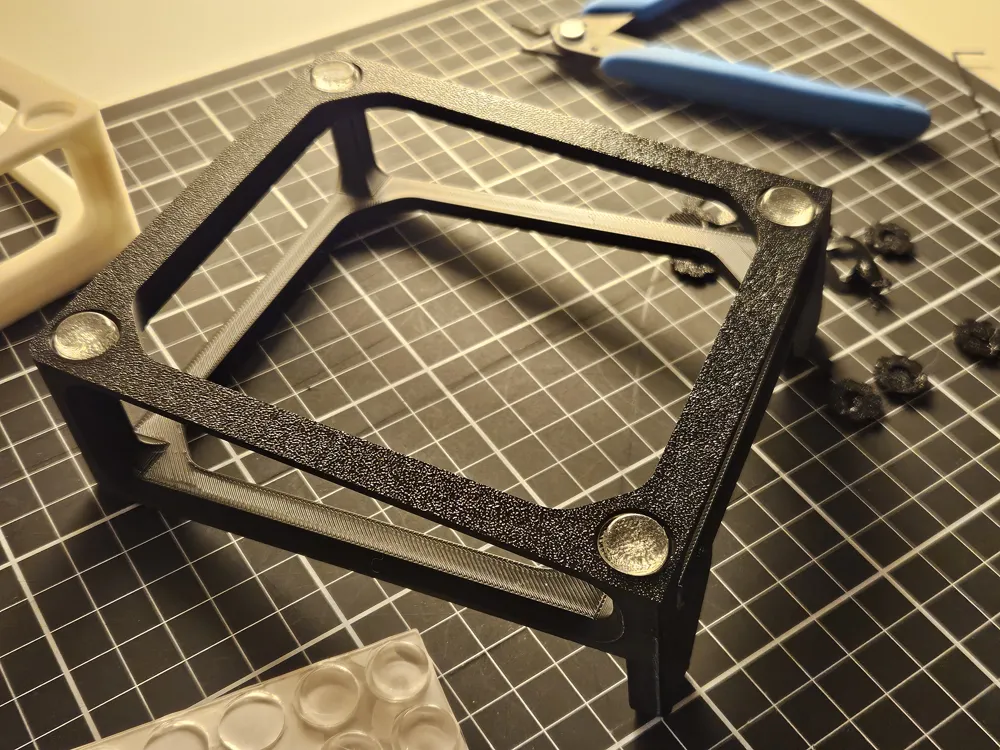

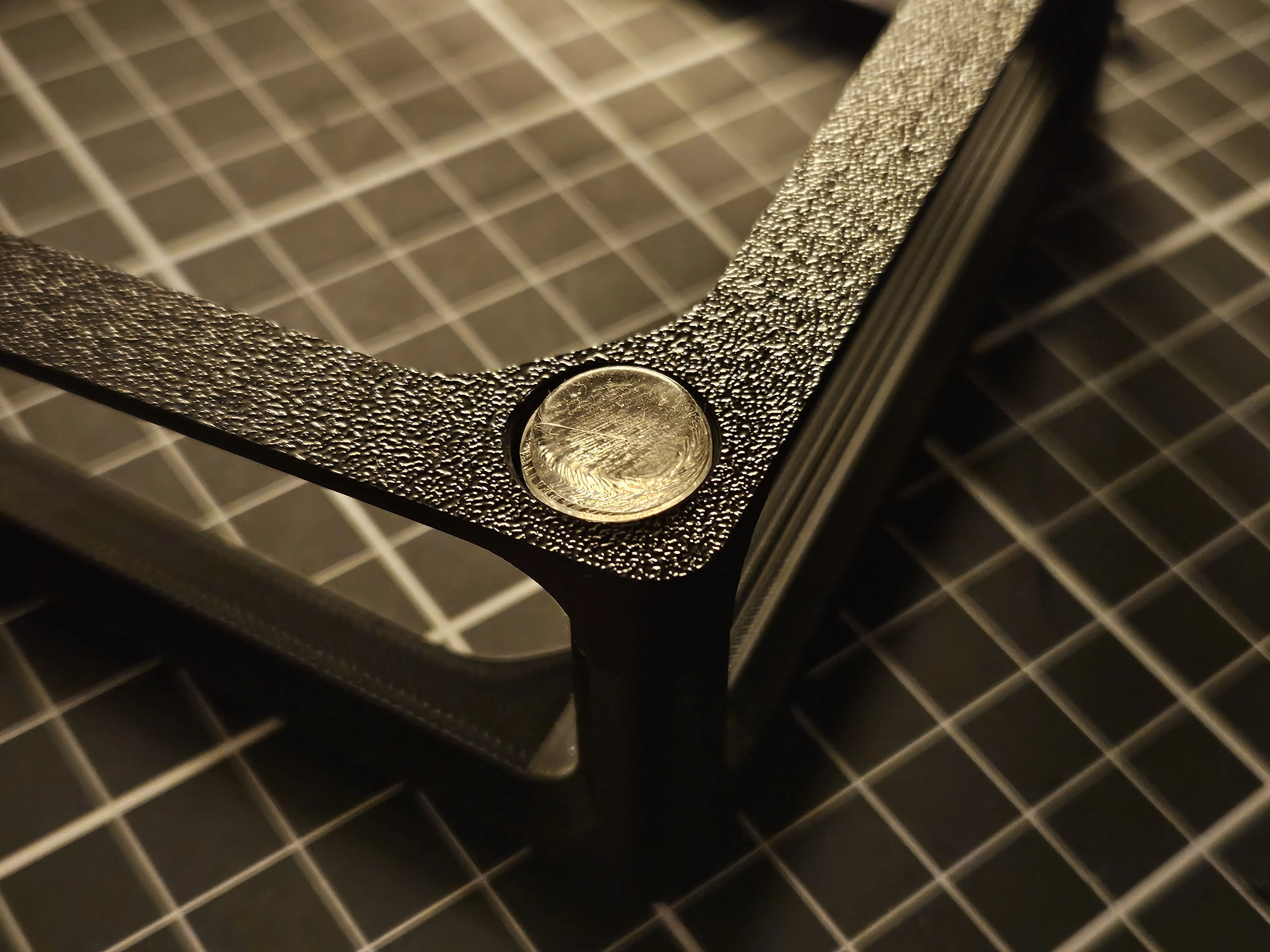

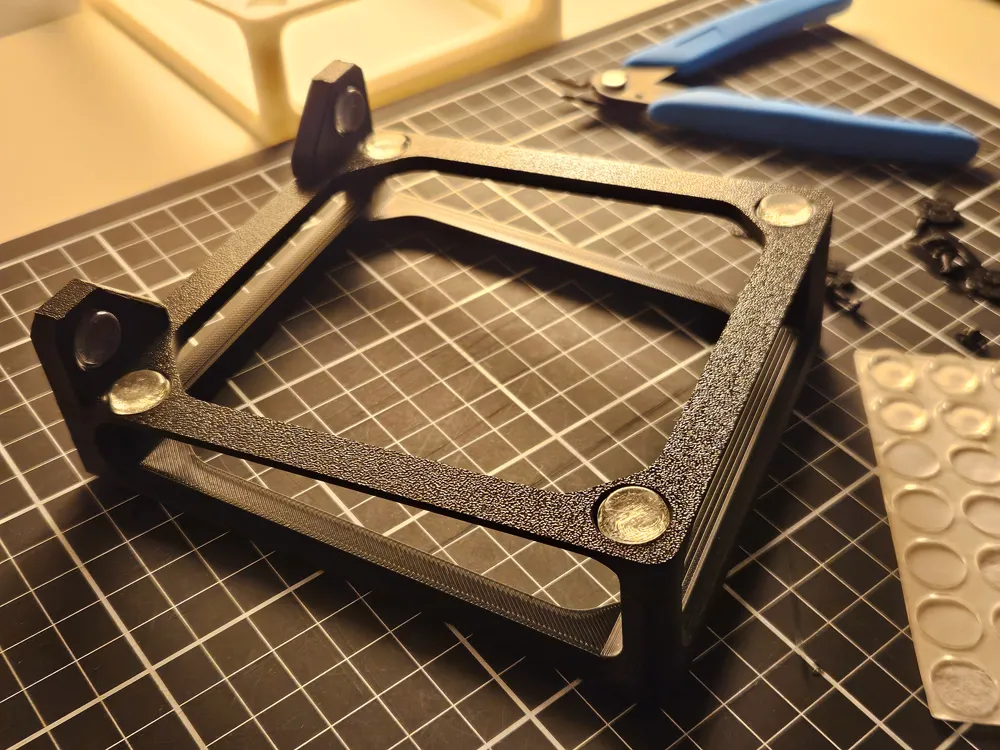

The top and bottom and the back have recessed holes for rubber feet to:
- secure the speaker
- reduce vibrations
- minimize contact area with the desk

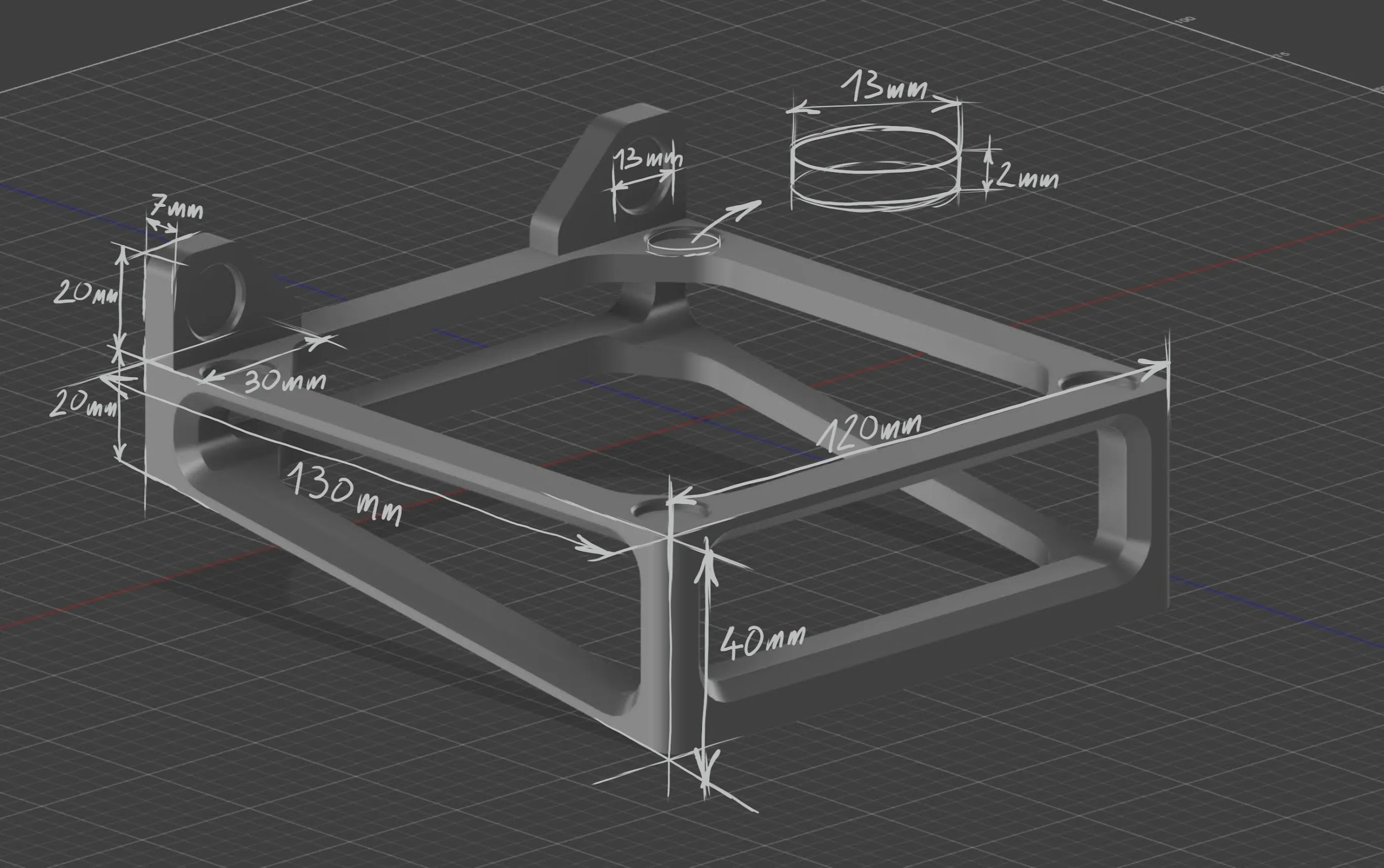

Hole size: 13 mm diameter, 2 mm deep

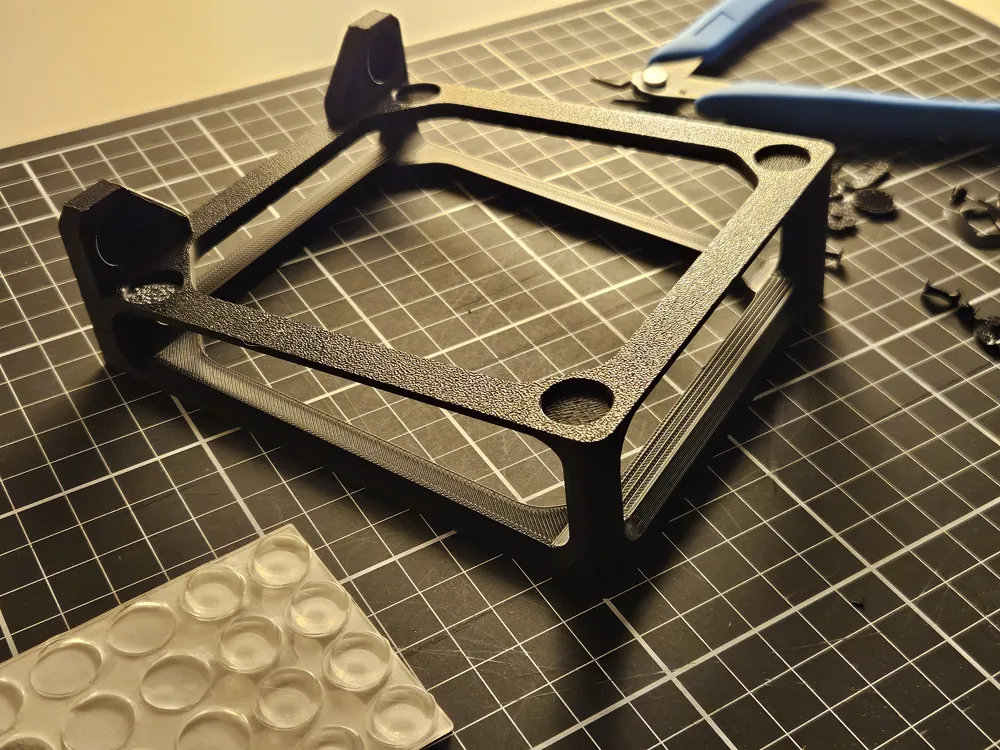

Tested with 12 × 3.5 mm self-adhesive rubber feet (hardware store type).
Printing
- Tested in eSun PLA+ and eSun PETG, both work

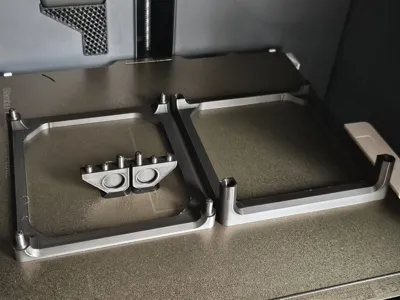

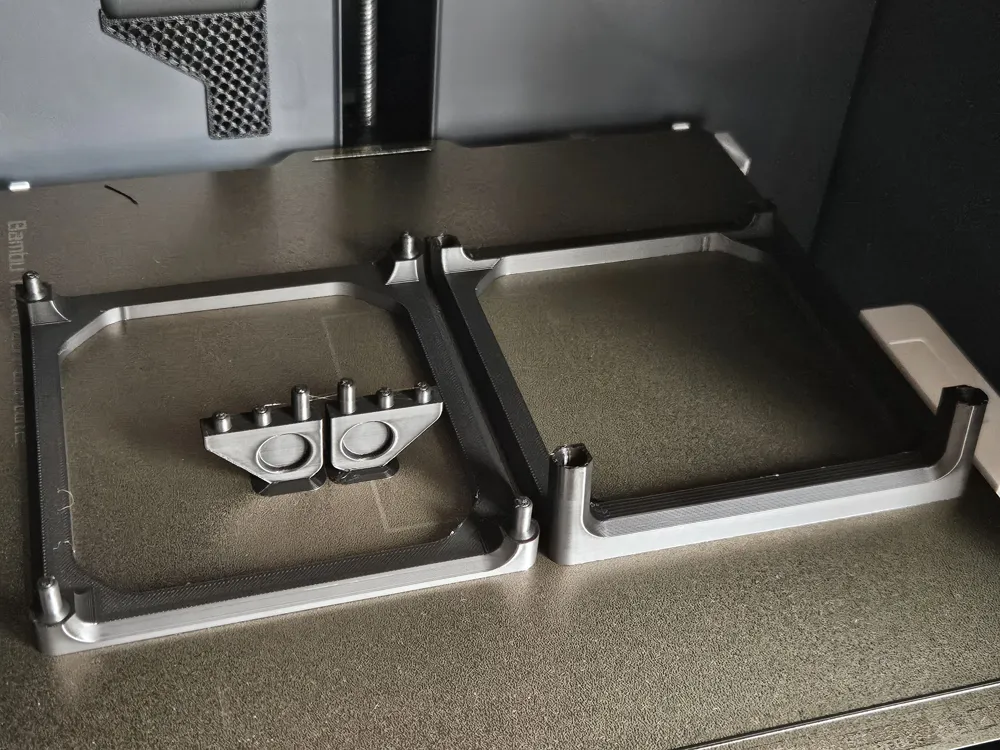

- Print orientation as shown
- very little supports required
If you need a steeper angle or a larger version for other speakers, let me know
Hope you guys like the model, feel free to comment, share and rate!
