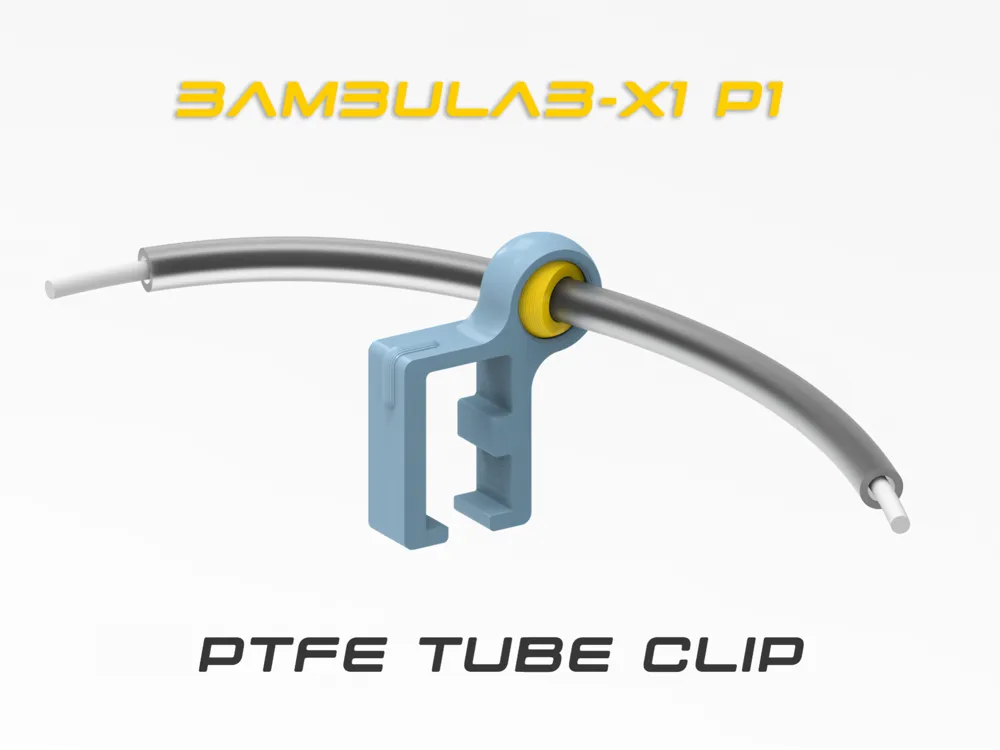

Customizable Self-Aligning PTFE Tube Cable Clip

Note: Default fit for X1C and P1 series drag chains

I measured it and found some differences with H2C

So if you are using other models of X1 or P1 series machines, you need to measure with calipers and then adjust

2025-12-30

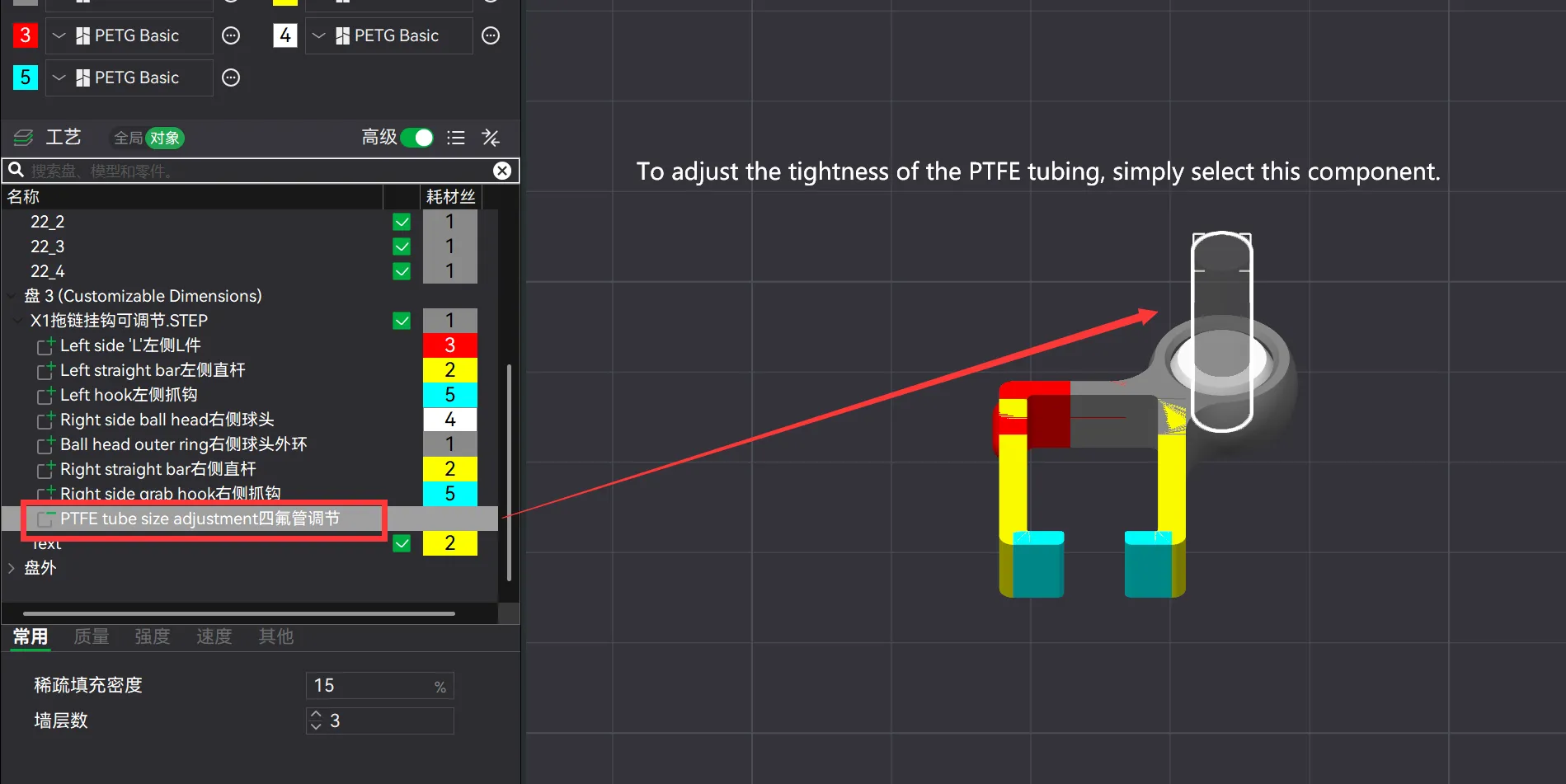

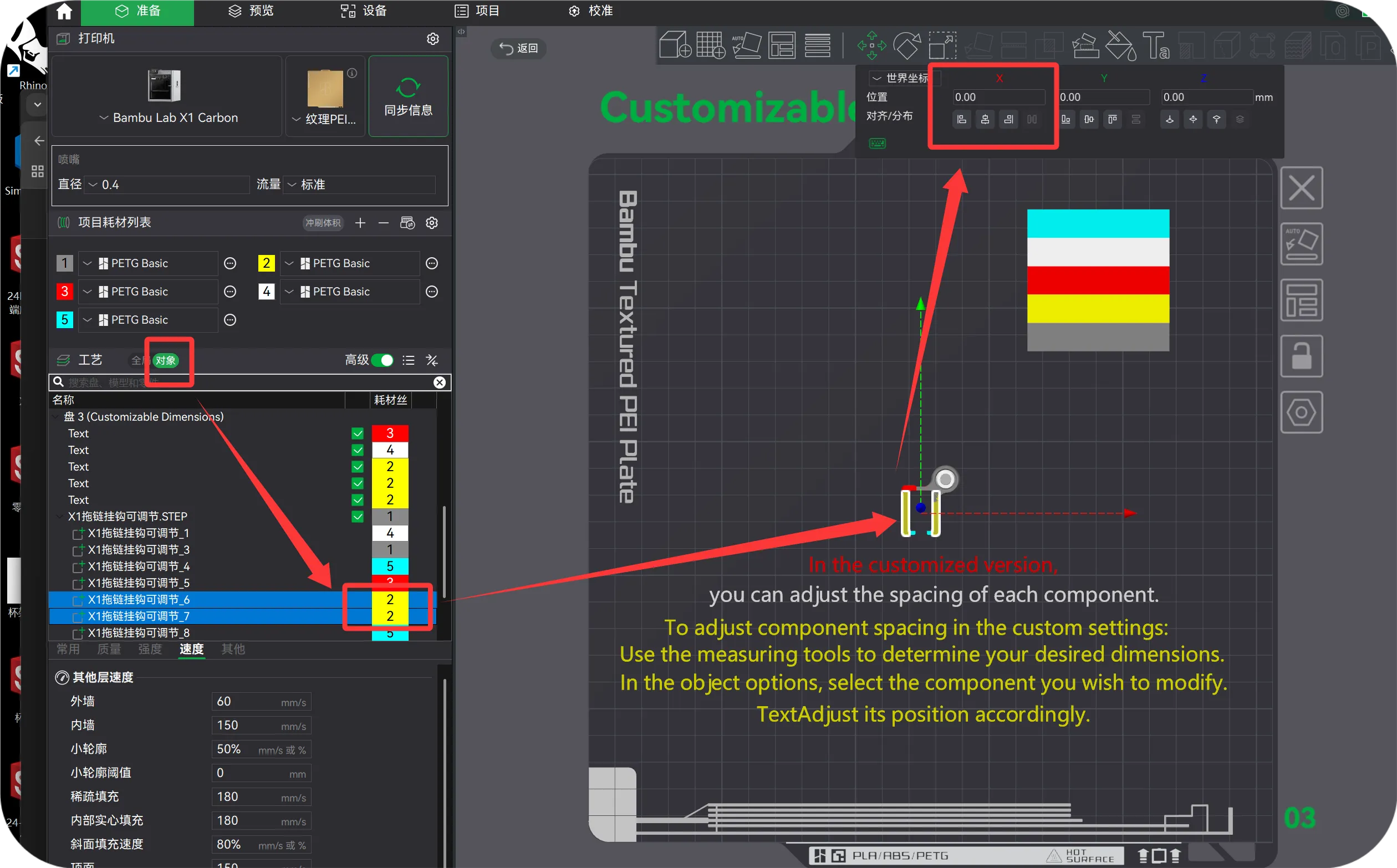

Added a customizable version with fine adjustment You can adjust the position of each component to get the size you need

2026-6-28

2.0 Minor optimization of installation reliability, it is recommended to use high-temperature resistant materials such as ABS

It is normal to have resistance during installation because it is designed to be non-sliding

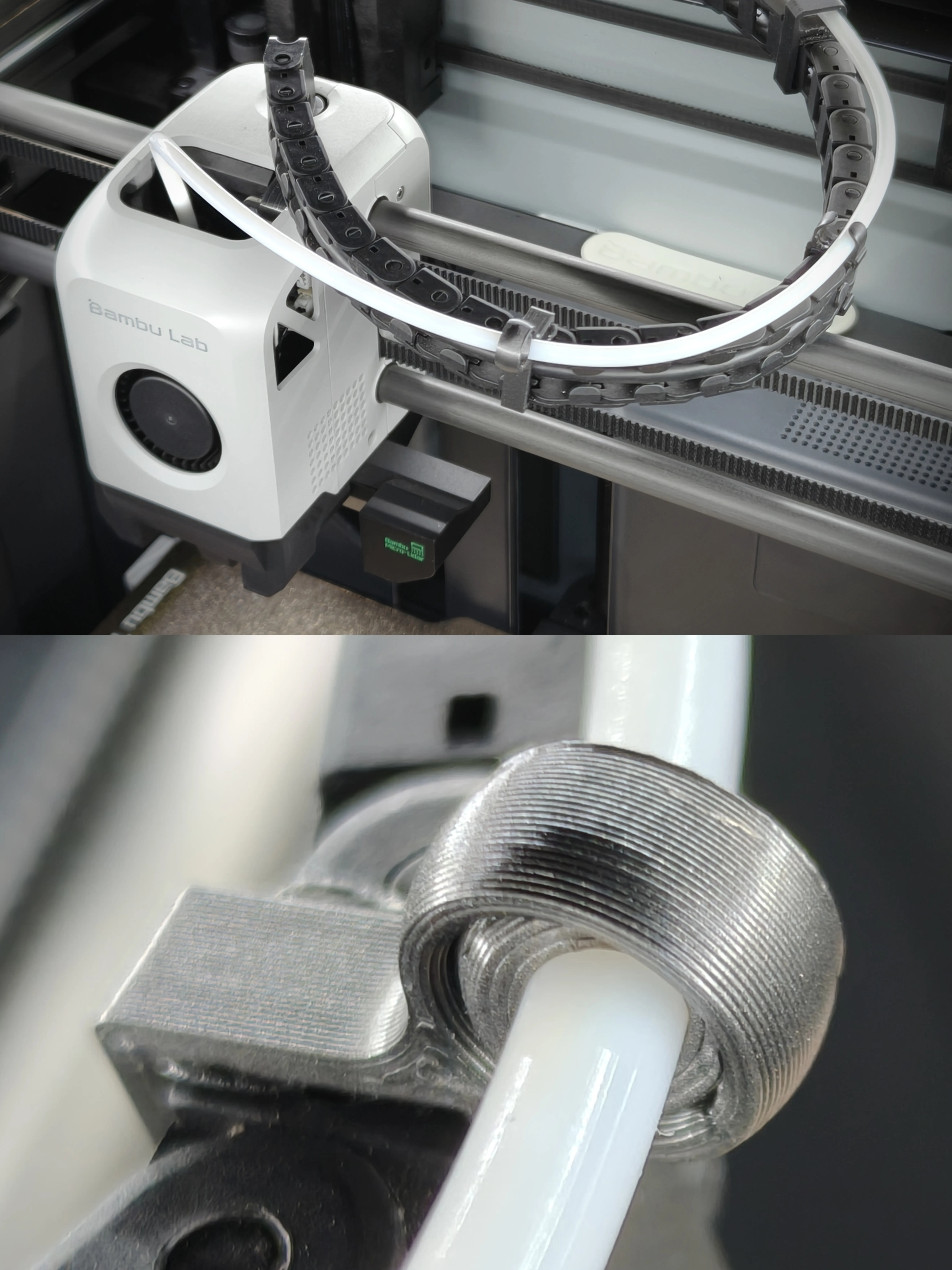

We only need to rely on the adaptive swing of the ball joint (perhaps keeping the PTFE tube loose is also feasible)

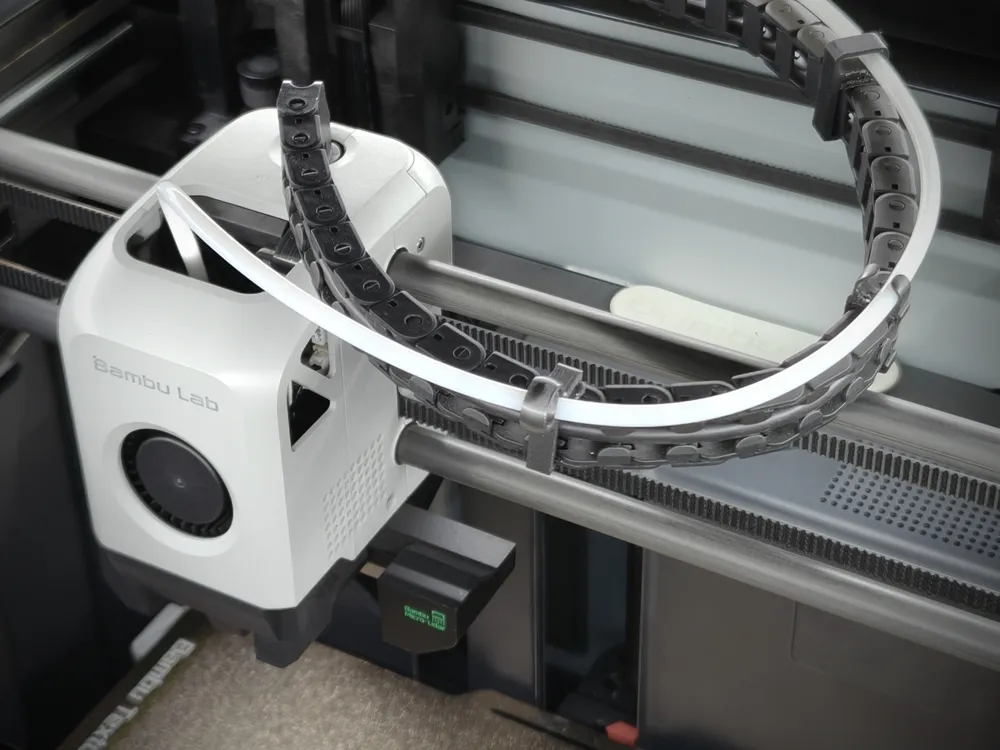

Drag the PTFE tube to reserve enough swing length - turn off the power - manually push the tool head to move freely to ensure the PTFE tube is not overtightened

(We only need the original PTFE tube length, no need to lengthen or shorten it)

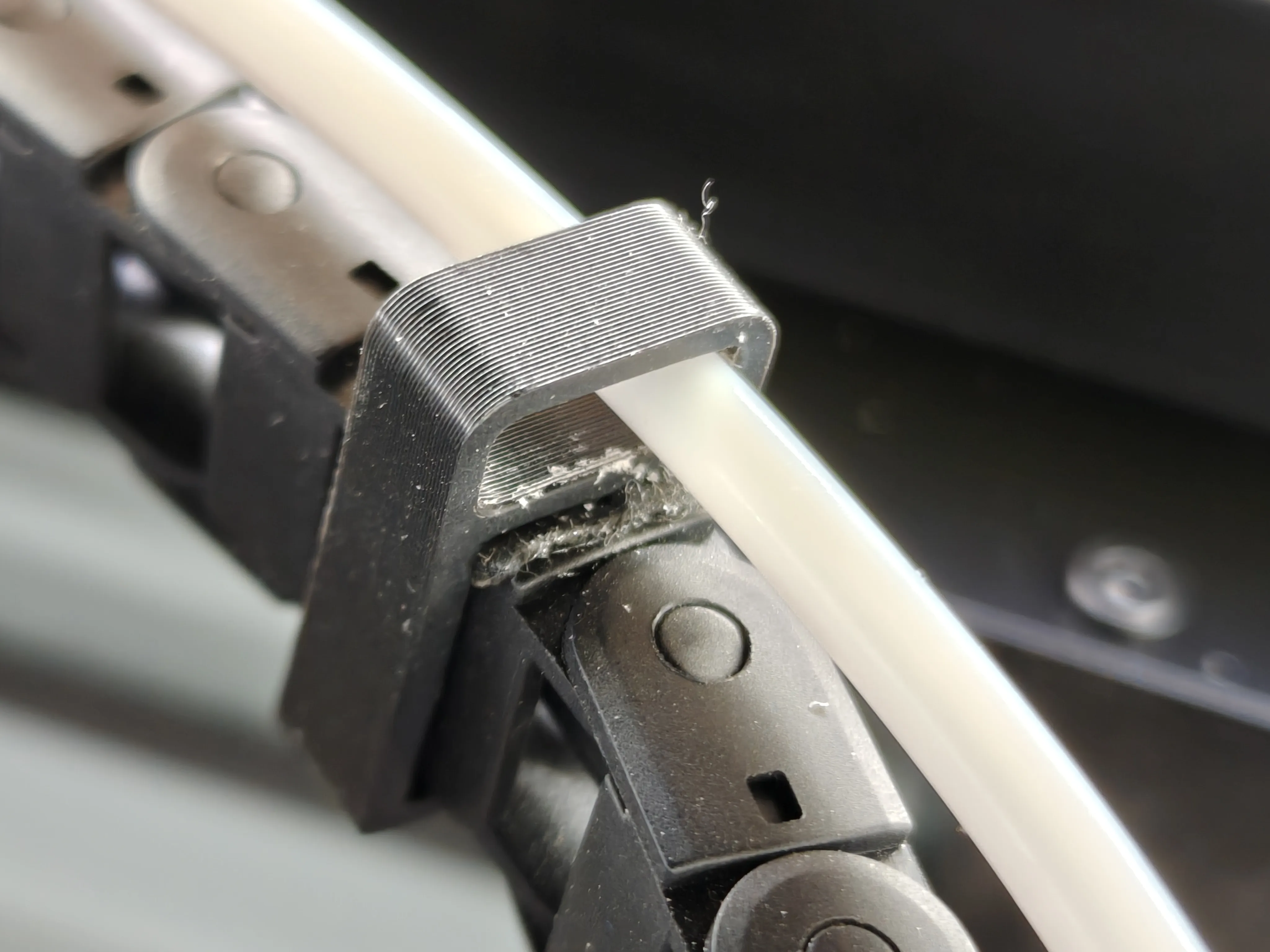

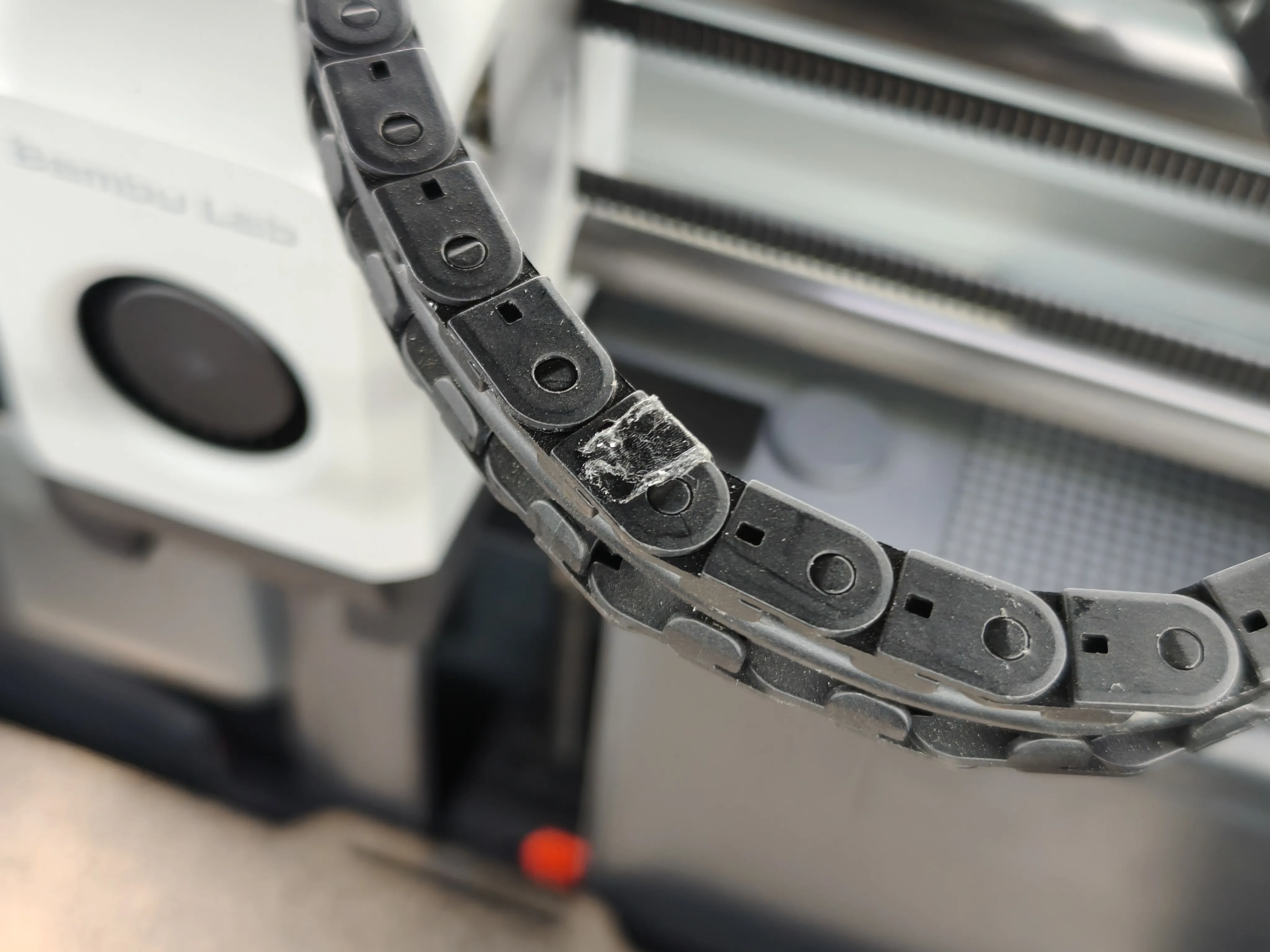

Double-sided tape, such as 'nano double-sided tape', needs to be added between the cable clip and the drag chain to prevent the cable clip from sliding

Perhaps this can avoid PTFE powder falling and scattering everywhere during long prints

Different compensation presets you need to find the version that has just the right amount of resistance
