USB-C Neo Geo CD Top

If you undertake this mod, it is at your own risk. I will not be responsible in any way for any damage you may cause to your console

If you have no soldering experience, do not hesitate to entrust your console to a professional

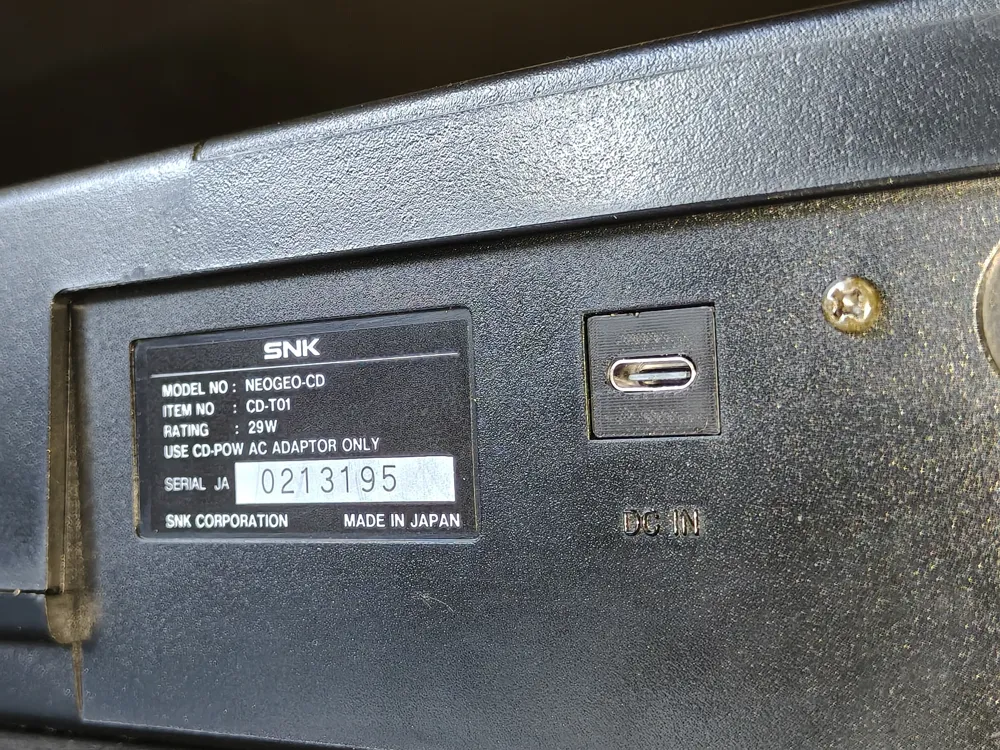

I was fed up with this proprietary, overpriced, and impossible-to-find power supply, so I created this low-cost USB-C mod

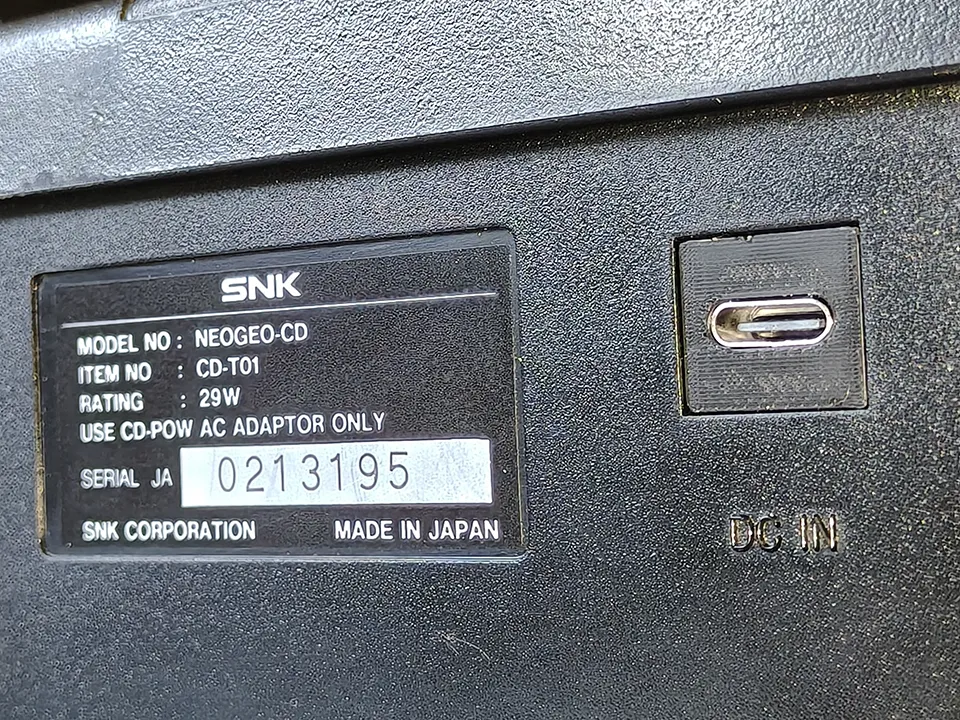

However, you will need to desolder the old power supply and cut the internal casing, as the connector is molded into it. Since it's the internal casing, it's invisible from the outside

I use this type of female USB-C socket to draw 5 V: https://s.click.aliexpress.com/e/_c32YENZx

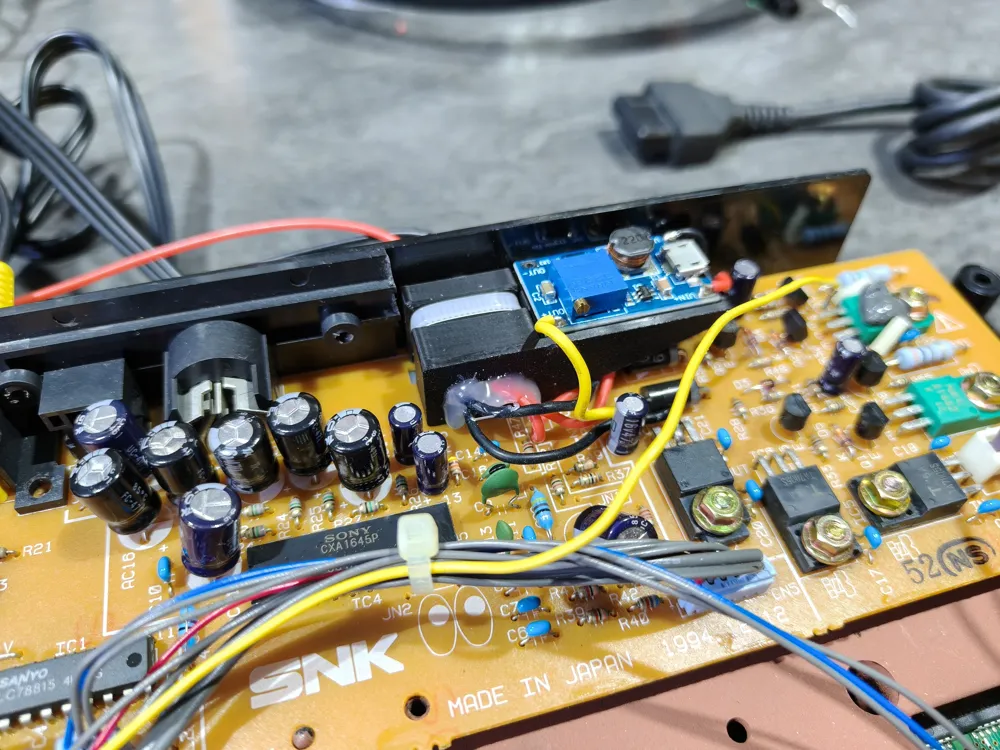

Then, I boost the 5 V to 10 V using an MT3608 step-up module: https://s.click.aliexpress.com/e/_c3K5xwkV

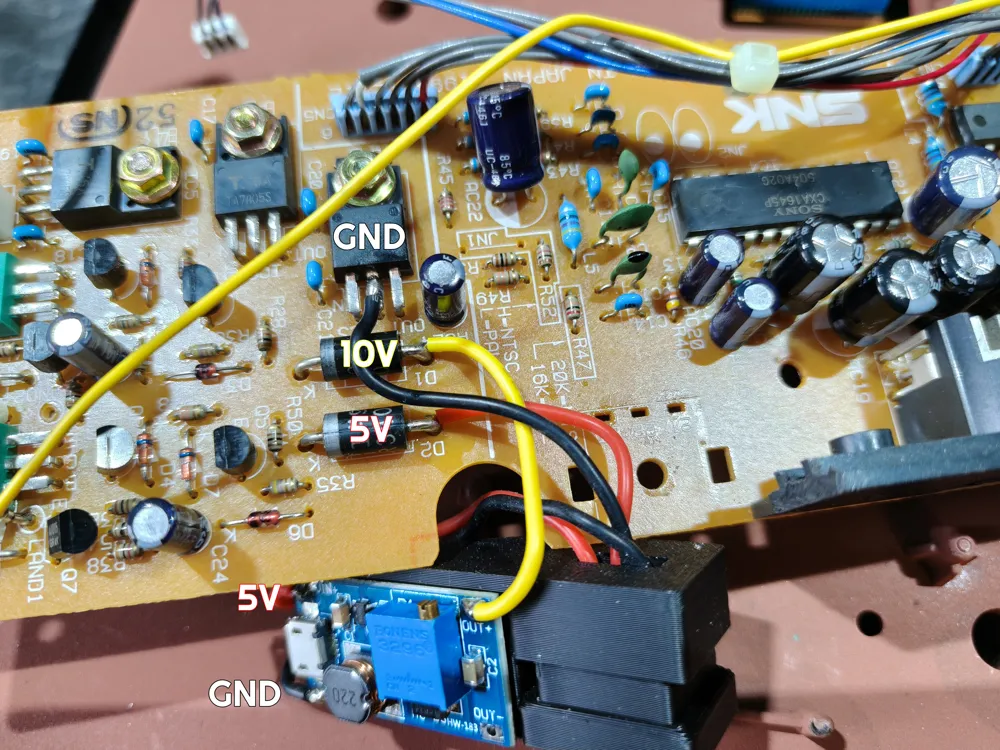

I then connect the 10 V to D1, the 5 V to D2, and the ground (GND) to the central pin of IC3. I use 22 AWG wire for this

To secure the support, I use a screw from underneath and a Rilsan-type cable tie. I also added hot glue around the USB-C port to prevent it from moving

When used with a CD, the console's consumption did not exceed 2.2 A. However, I recommend a good quality USB power supply of at least 5 V / 3 A

If the console does not receive at least 5.2 V, the CD will not start. If you use a poor quality power supply, there will be image interference

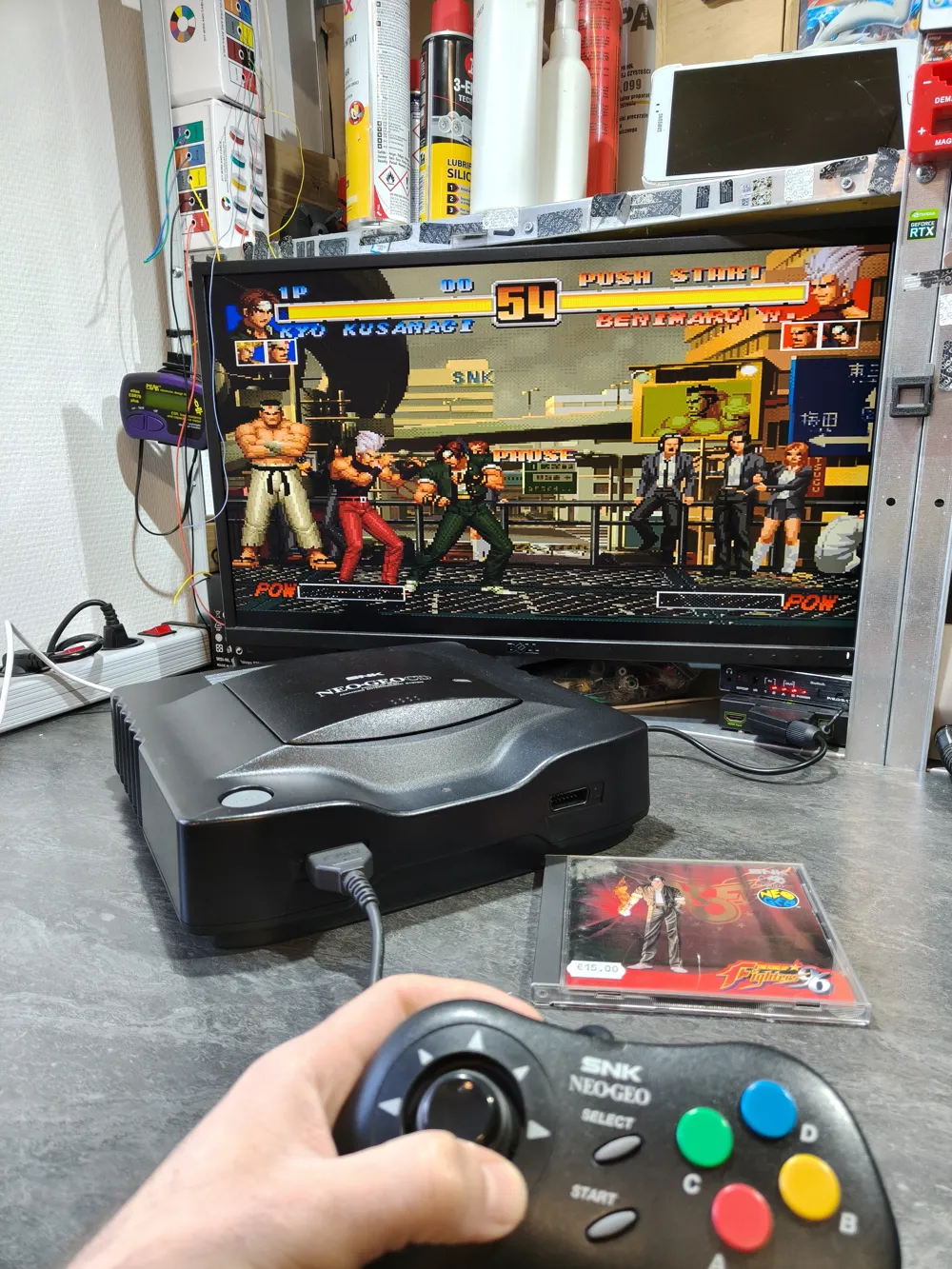

The console has been running for several hours without issue so far. If you embark on this mod, feel free to give me your feedback in the comments

Happy gaming :)
