Articulated 1:10 Chassis

Articulated Chassis/Display stand

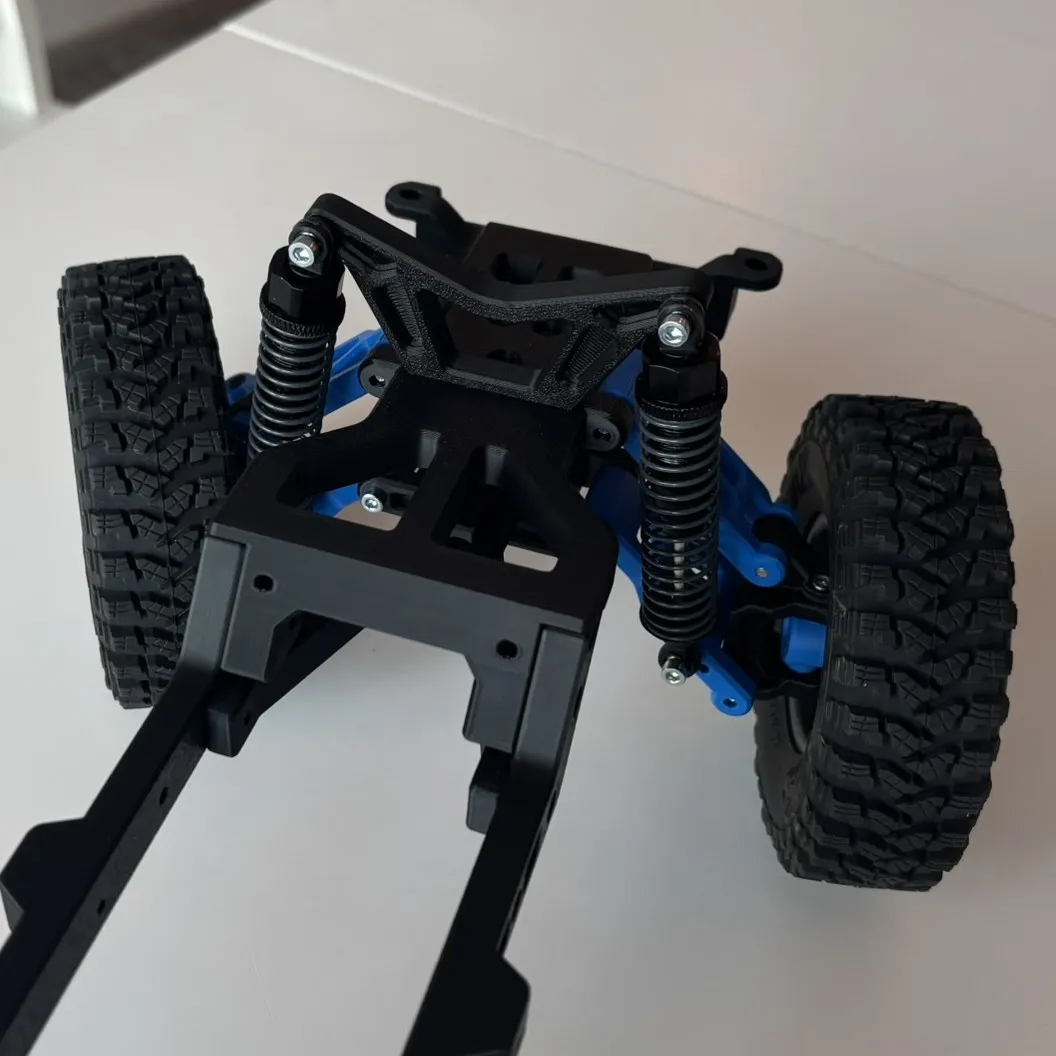

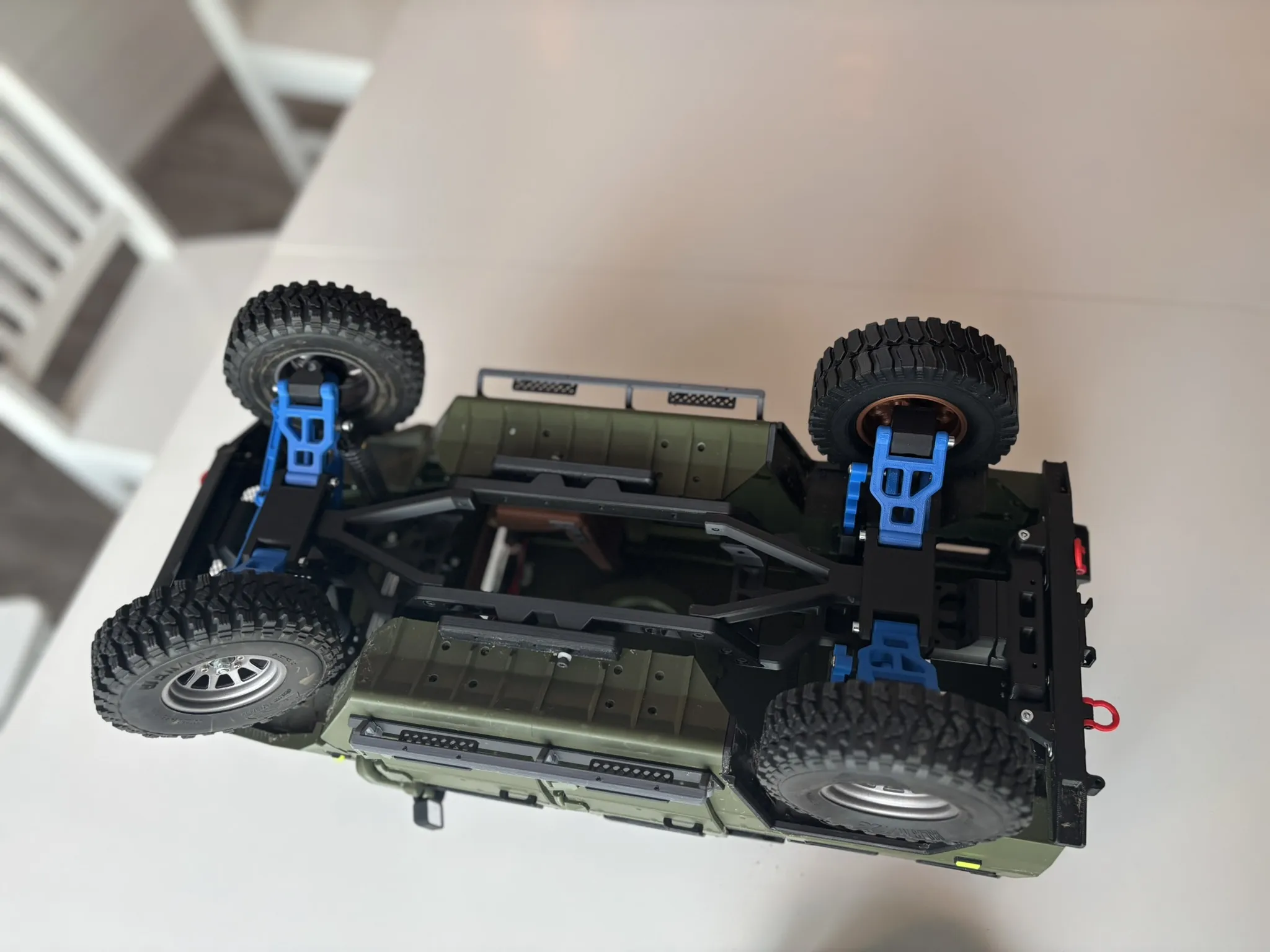

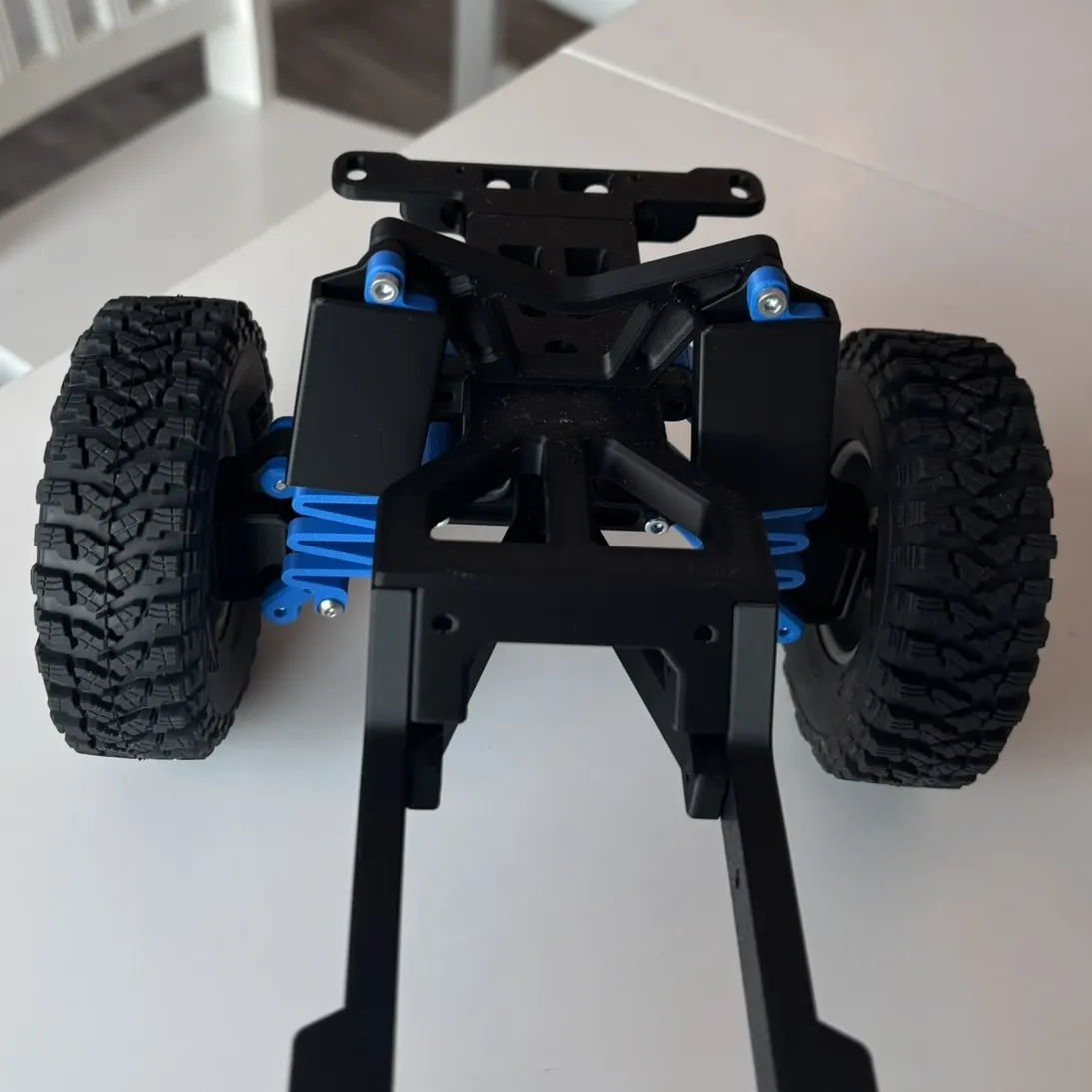

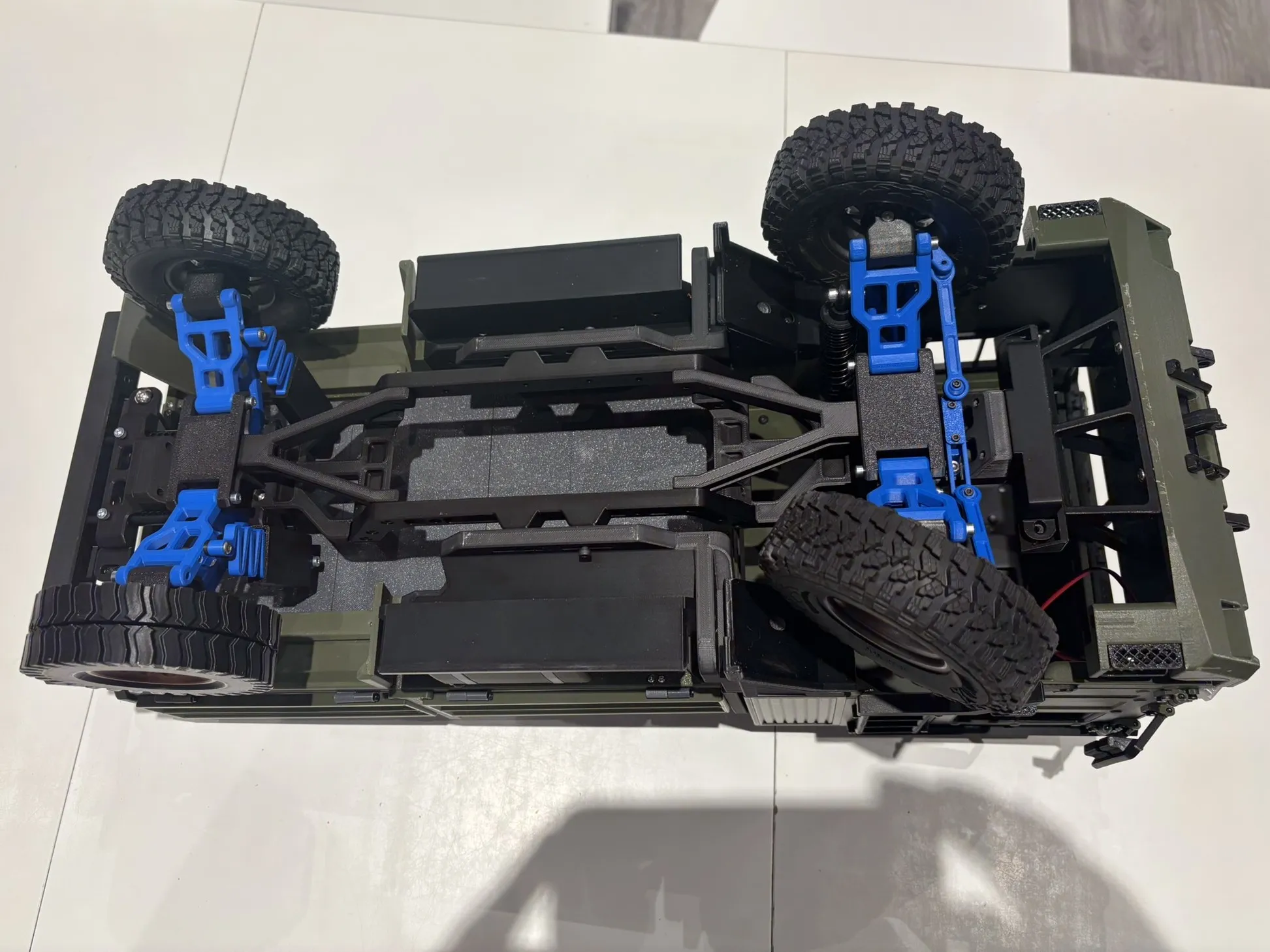

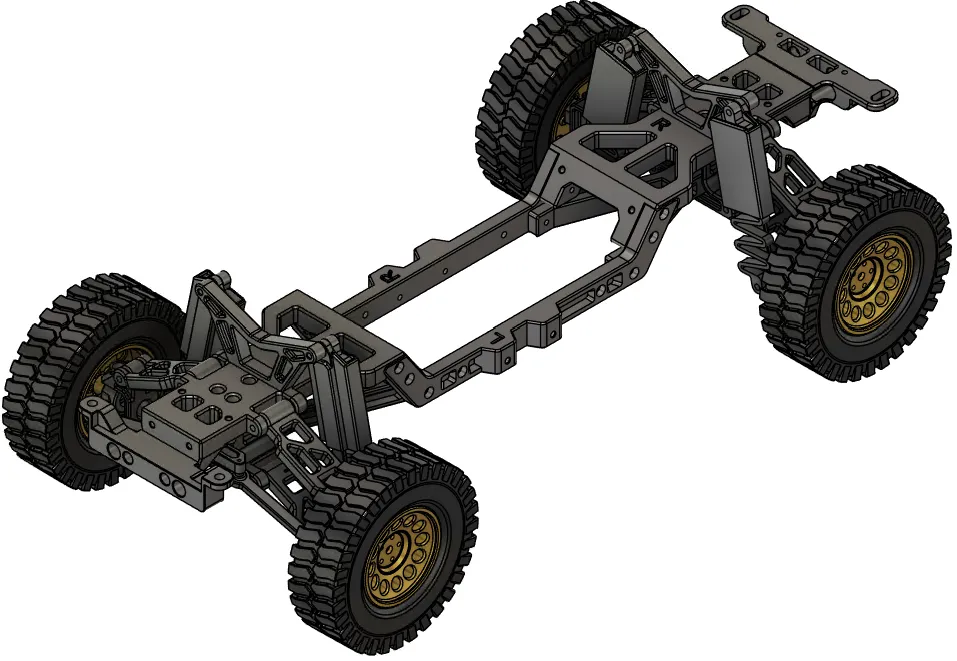

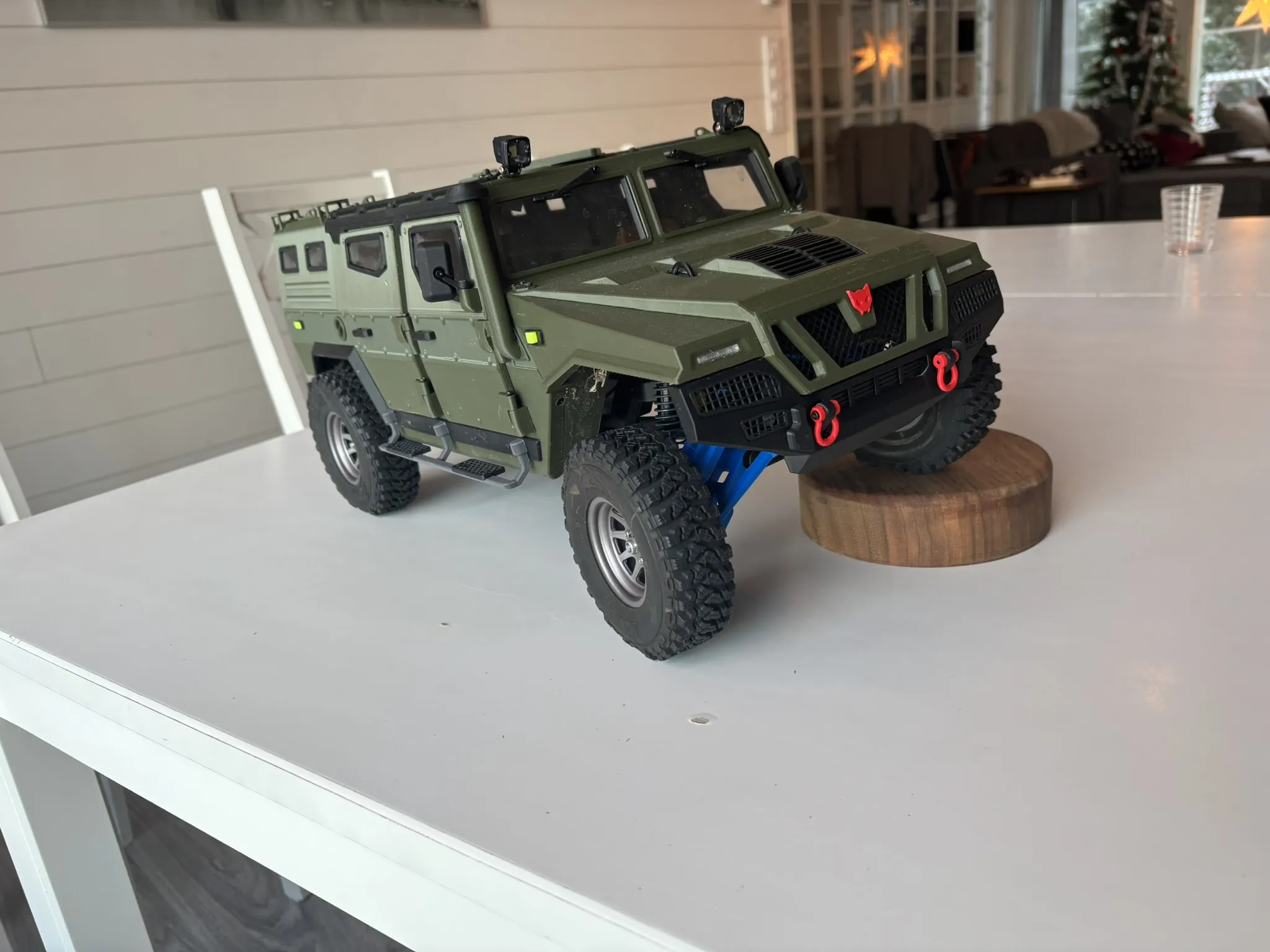

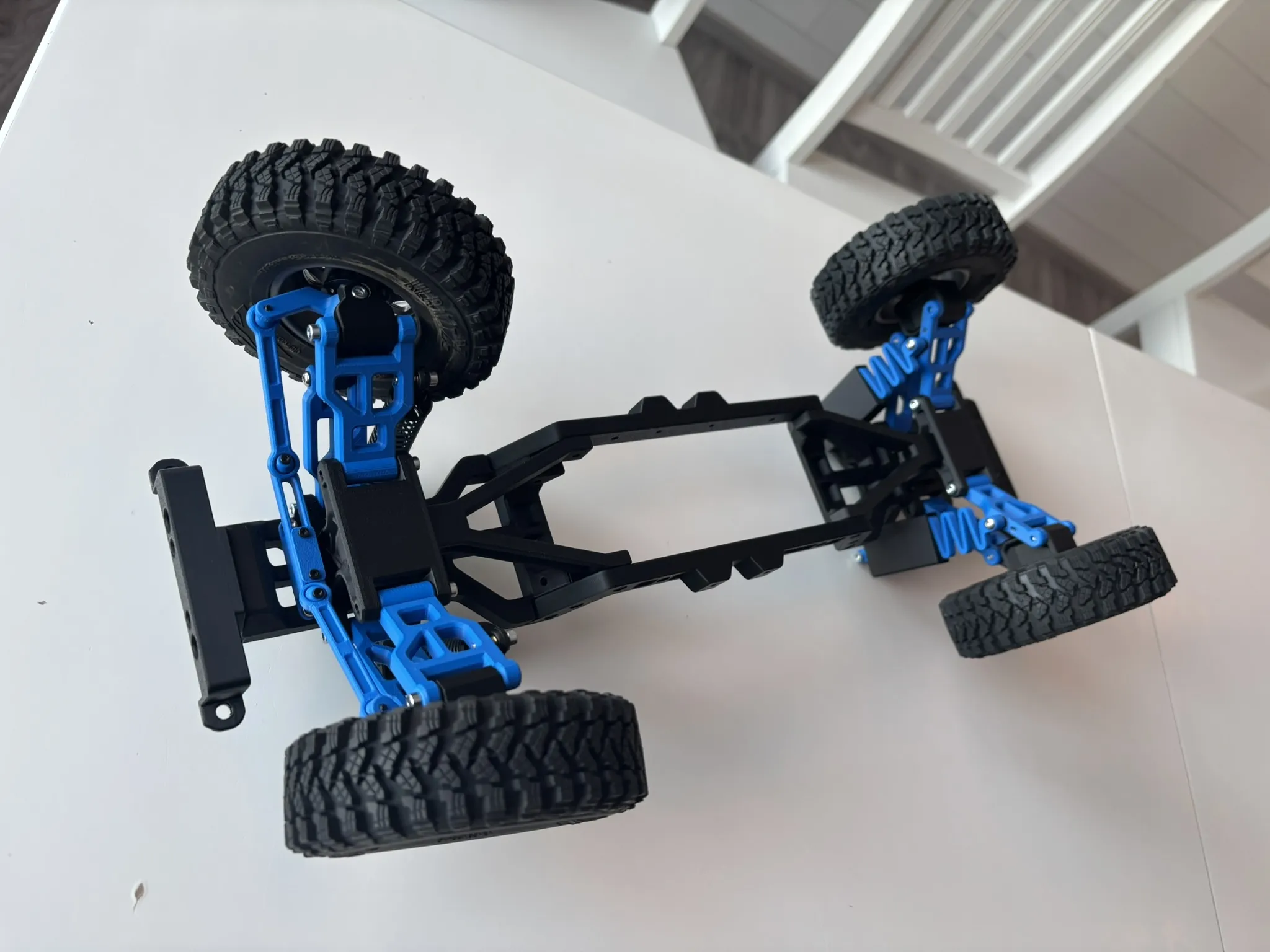

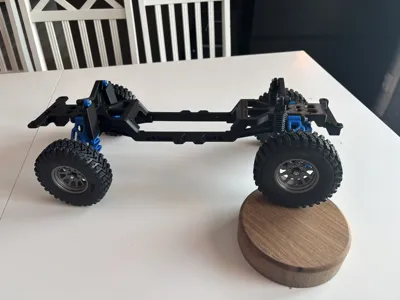

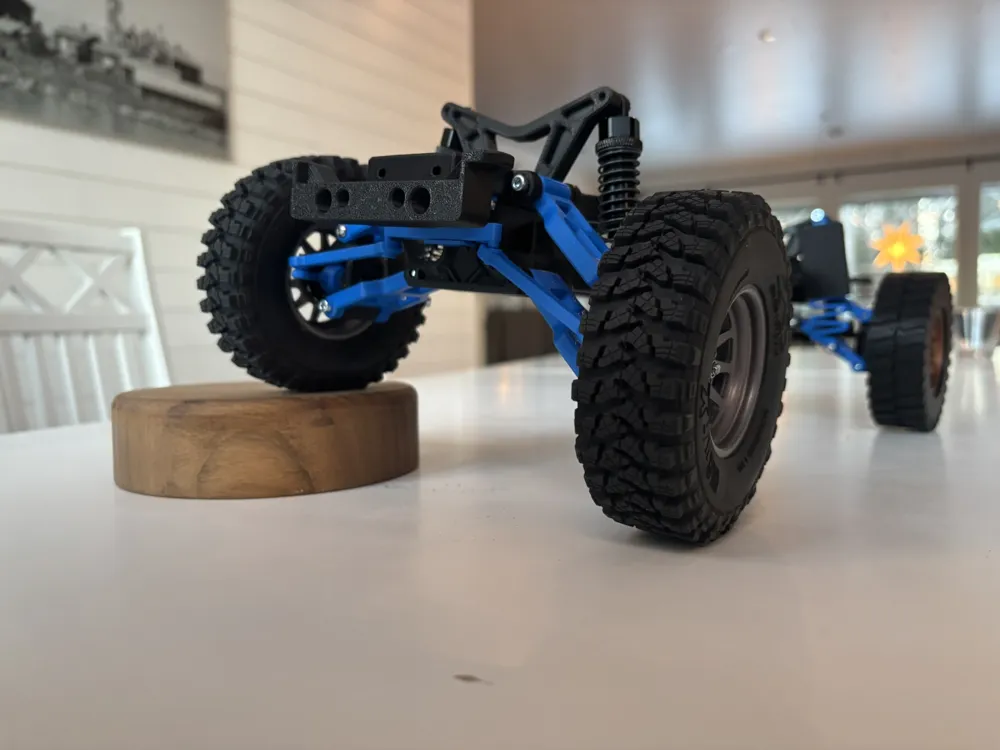

This is an articulated chassis/display stand for my current (and future) 1:10 scale vehicle models, wheelbase is 313mm. It features a working independent suspension for each wheel. Also front wheel can be turned/steered. This way you can pose the model in case you want to show it some certain scenario.

There is an detailed assembly guide available here:

https://docs.google.com/presentation/d/1N1Pkerxt7G4XsmuAu_Uh8otArxDh-zsSmn31CRTFhvk/edit?usp=sharing

Updates

18.12.2025

• Updated the print profile, the “L” and “R” markings where mirrored on the rear control arms. Could cause some confusion when assembling, otherwise the parts are identical/functionaly the same.

Different body models requires different spring strength, i.e. depending on how heavy the body is and if weight distribution is 50:50 or not and what material the spring is printed in. There are different spring strengths (2.0, 2.2, 2.4) included in the print profile that can be used to customize.

 For the Catmaw AFV and Armadillo I found these spring strengths to be quite good, (printed in PLA Basic)

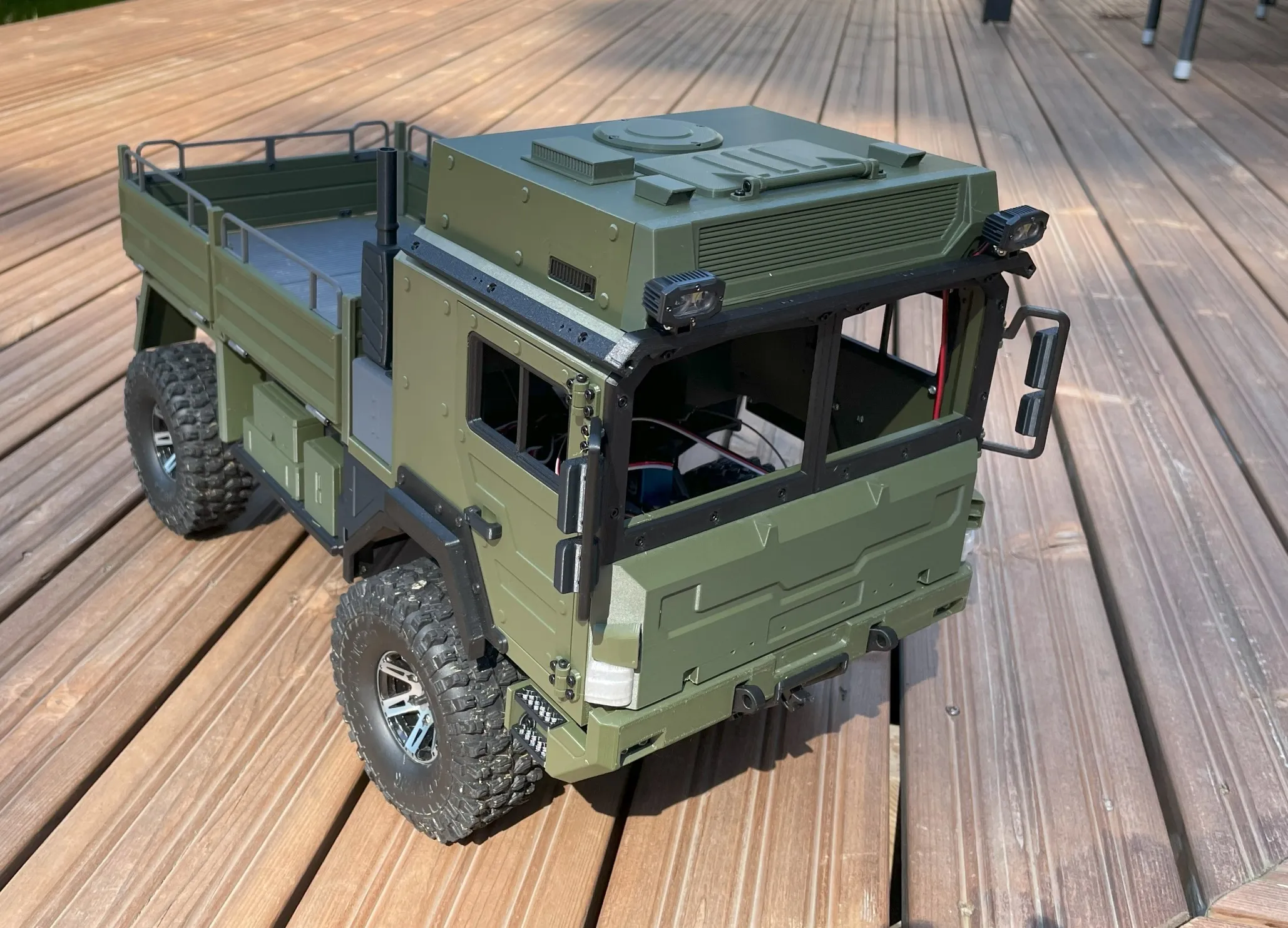

List of compatible Vehicles:

• Onyx Platform



  https://makerworld.com/en/models/2241400-onyx-vehicle-platform



• Catmaw AFV



  https://makerworld.com/en/models/621348-catmaw-afv-model-car-or-rc-car-body-for-scx10



• Armadillo



  https://makerworld.com/en/models/556645-armadillo-off-road-truck-display-car-or-rc-body



Features

• Supports the 1:10 scale Catmaw AFV and Armadillo models. And the new Onyx Vehicle Platform.

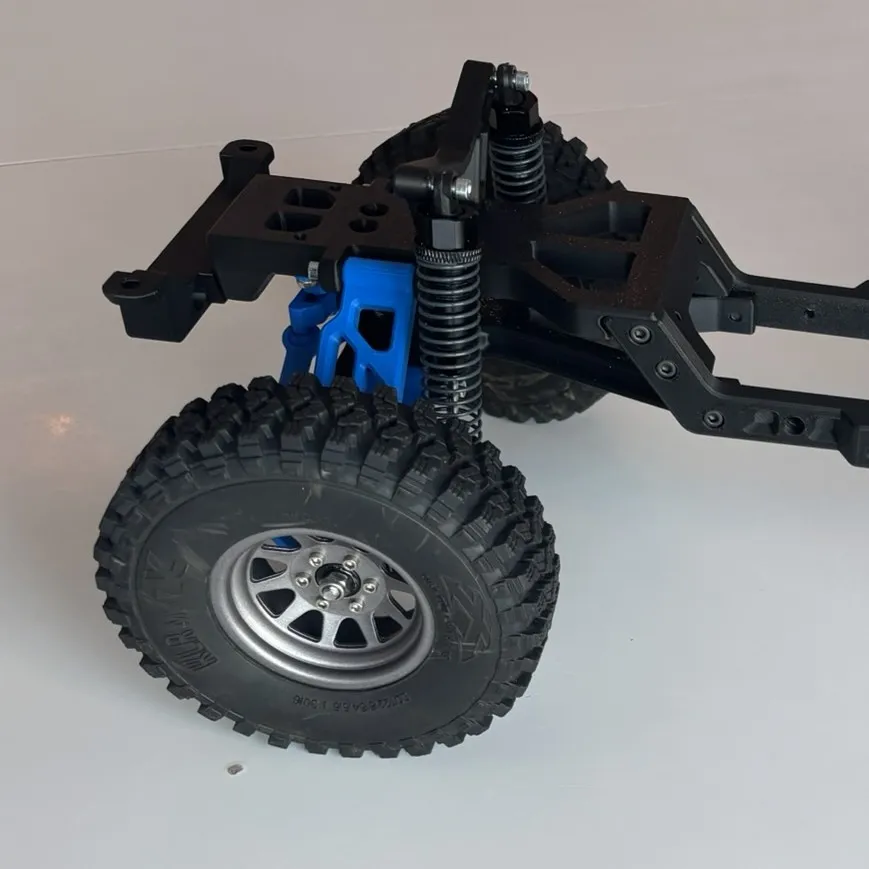

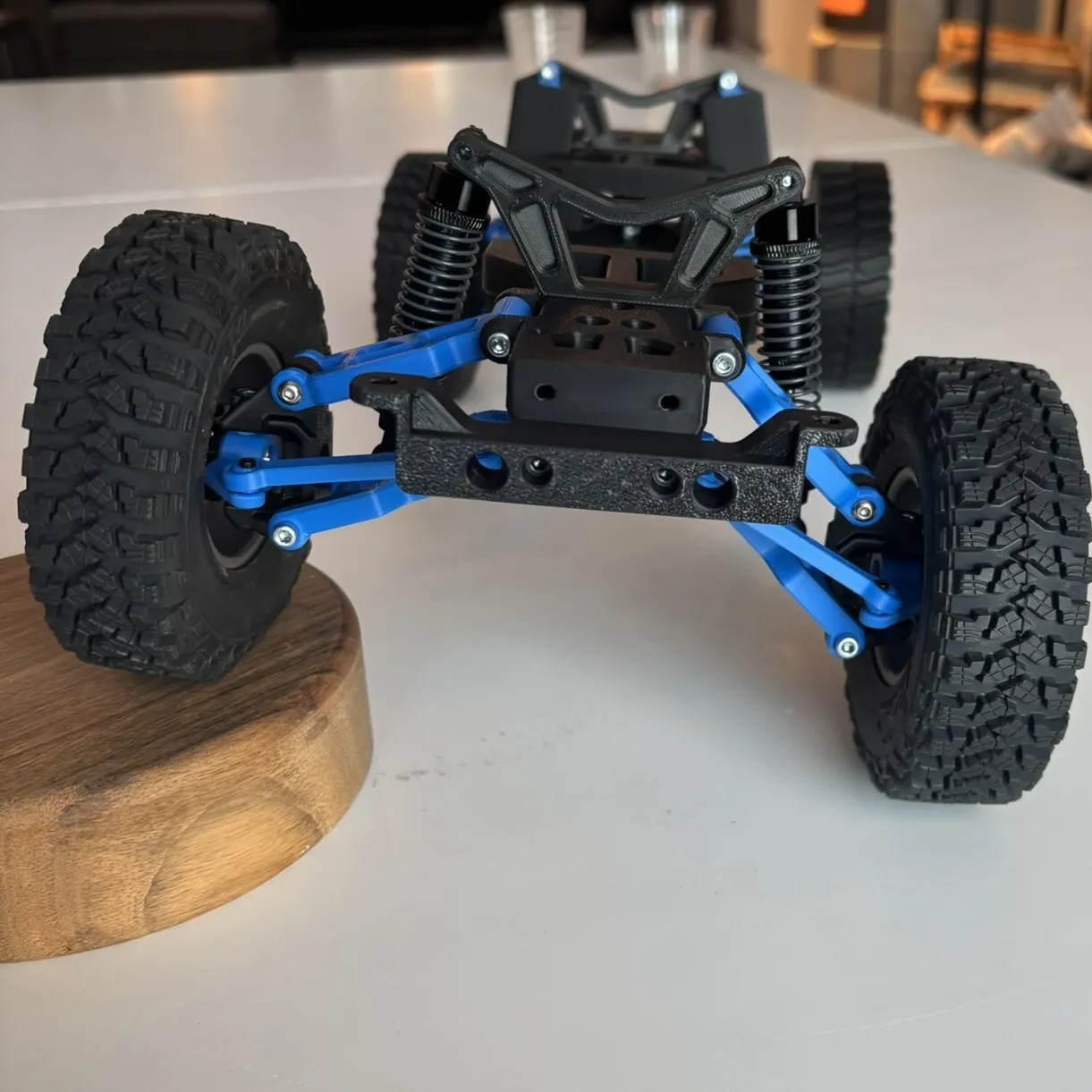

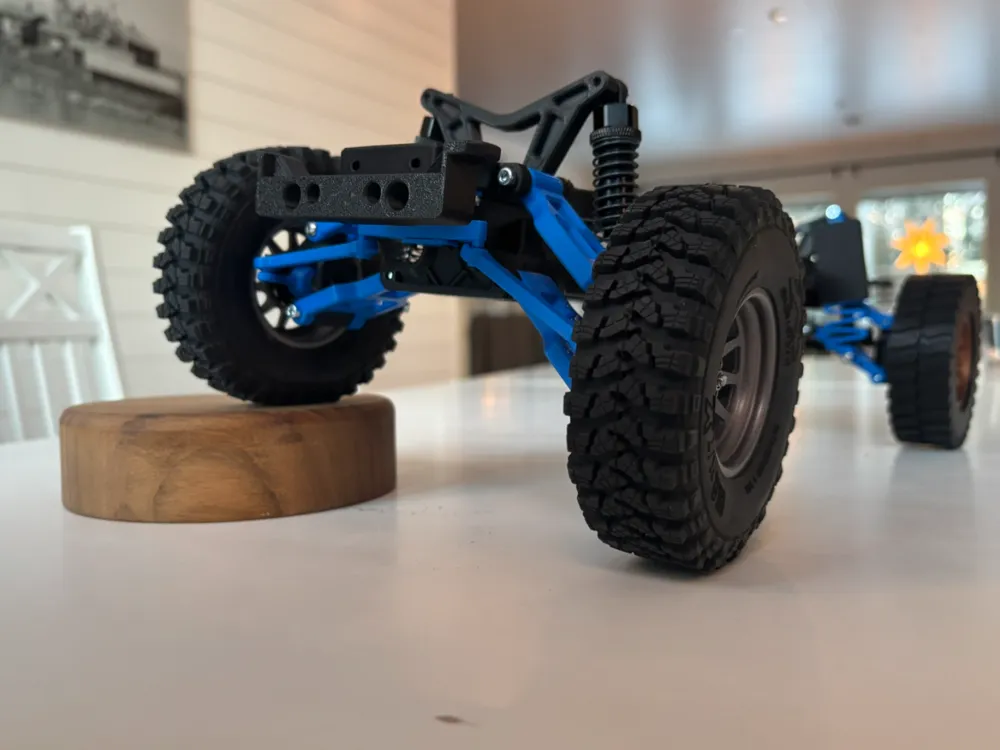

• Working independent suspension for each wheel

• Supports 3d printed shock absorbers or of market 90mm RC shock absorbers

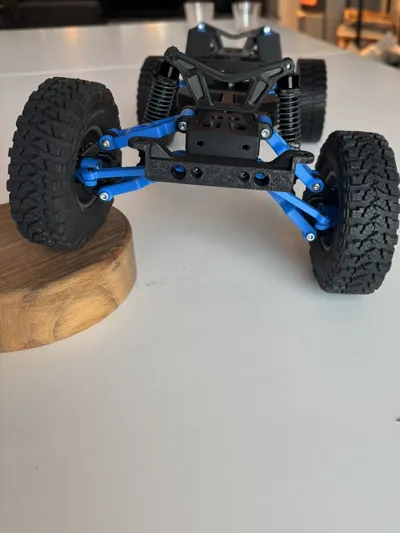

• Front wheel can be turned/steered

• You can use printed wheels or alternatively use some RC car wheels, there is an adapter included for wheels with 12mm hex center hub
