Skadis Vesa Mount 100x100 for Mini PC & Monitor
Print Profile(1)
Description

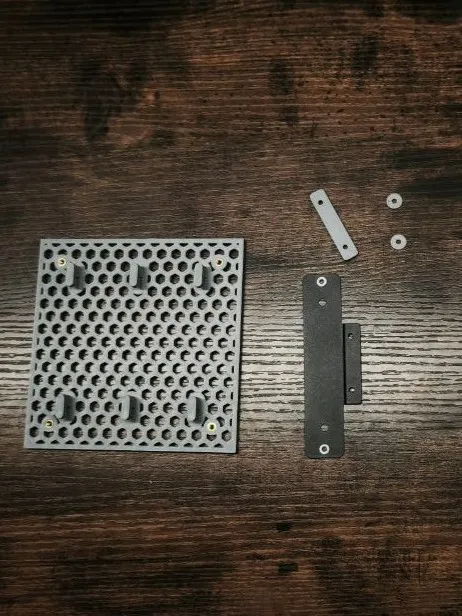

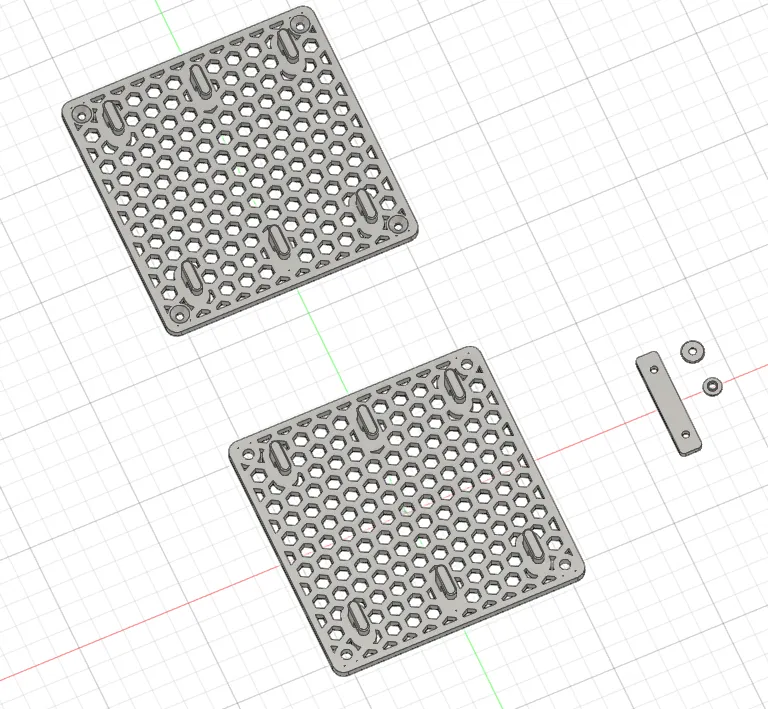

This Vesa Skadis mount can be printed in two versions. One version has an M4 thread for a monitor, the second variant is designed for M3 heat-set inserts and for the Vesa mount of a Mini PC. For this variant, I also use an M4 to M3 washer so that there is not too much play in the holes and the screws have a secure hold.
I have also included a spacer, which I need because I only had socket head screws and the distance to the Mini PC would otherwise not be sufficient.
4 x Heat-set inserts M3 x 4mm
