Festool pull-out bracket SYS-AZ
Print Profile(0)
Description
Boost Me (for free)
:)
Please pay attention to which profile you are using and download the corresponding file This component can only be mounted on the corresponding construction profile (30x30 groove 8, 40x40 groove 8, 40x40 groove 10)
You can take the dimensions for the cabinet from the drawings for profile changes from 30x30 to 40x40 the inner dimension must remain the same Therefore the cabinet will be slightly deeper (20mm) with 40x40 profiles

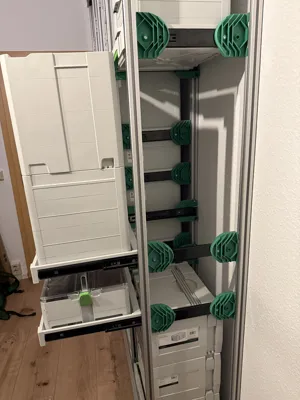

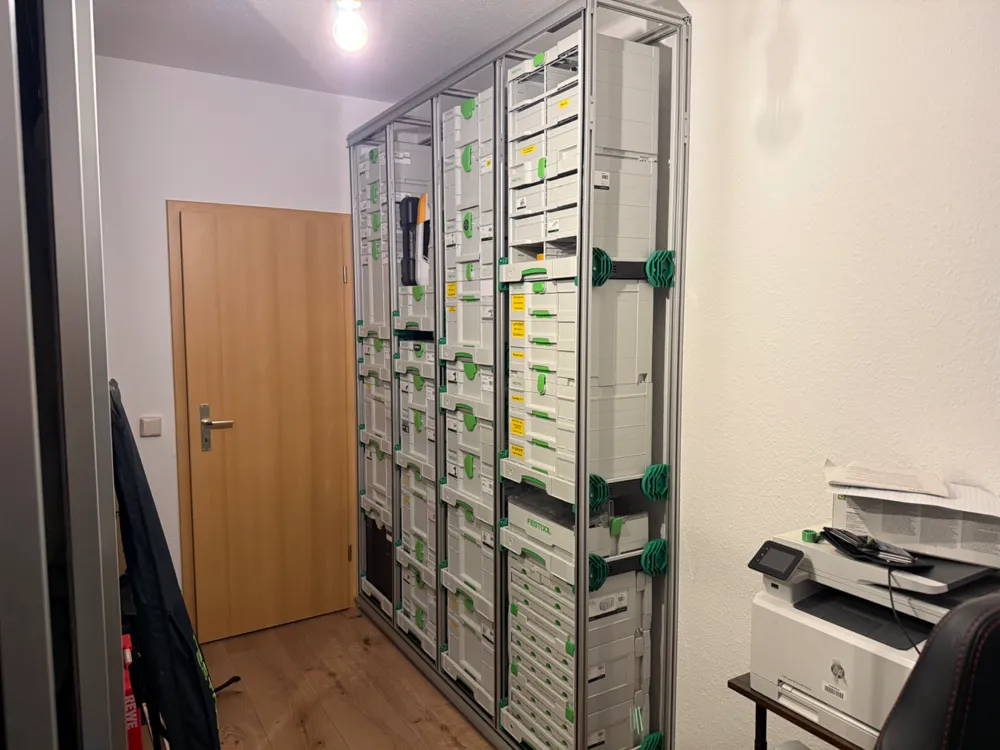

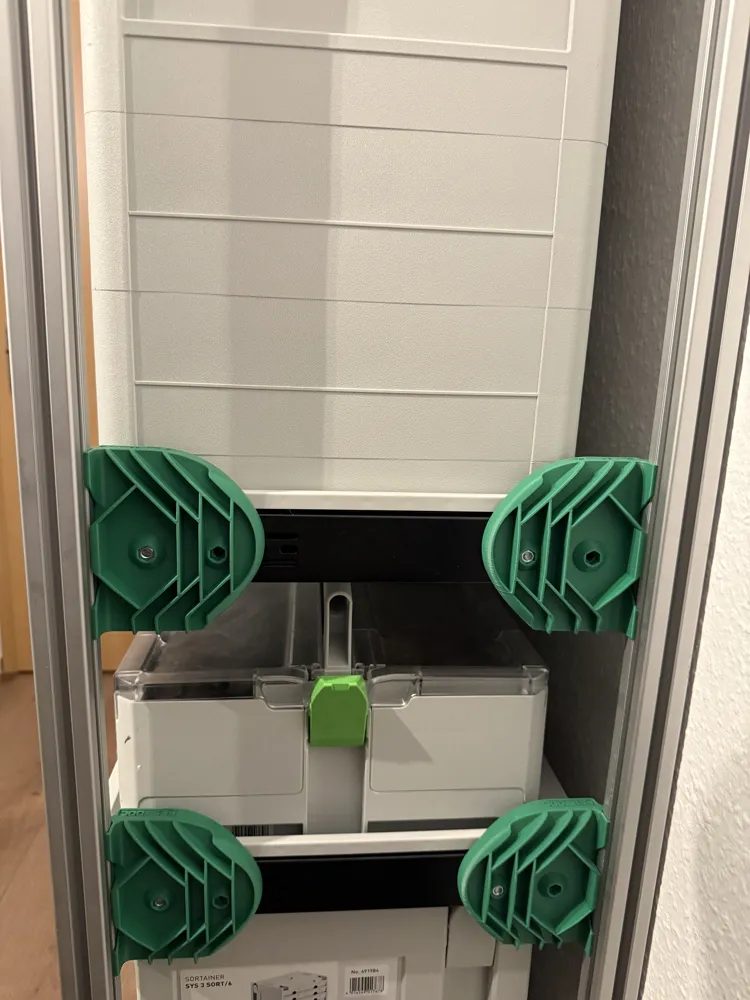

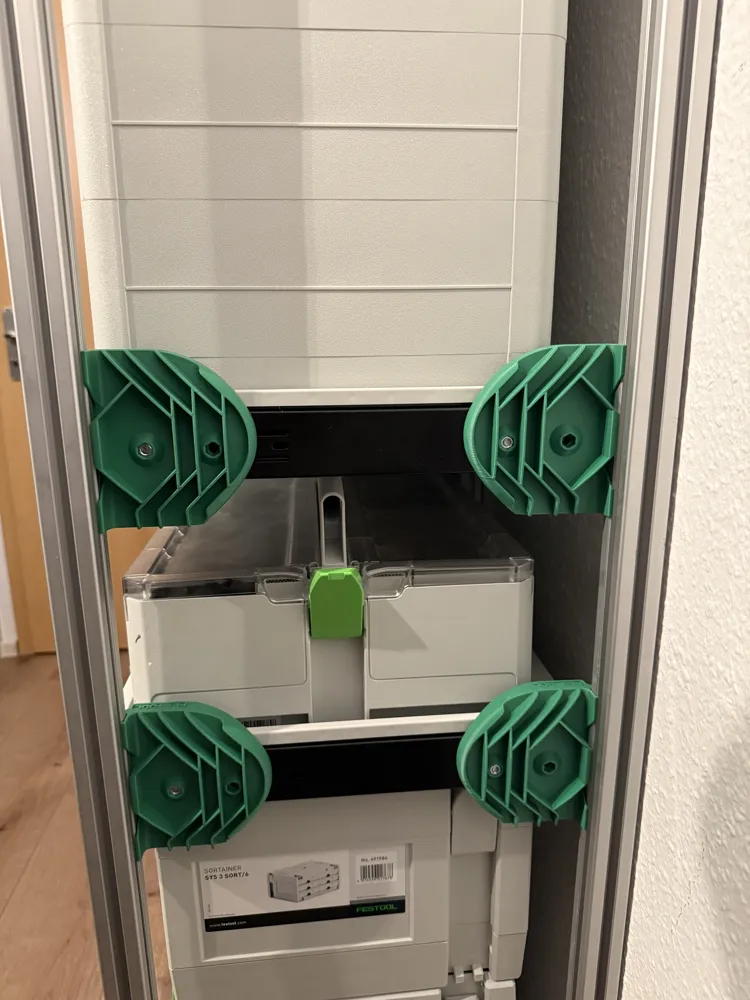

Thanks to the construction profile a very light yet robust cabinet can be built (ideal for vehicle conversions, rolling cabinets, etc)

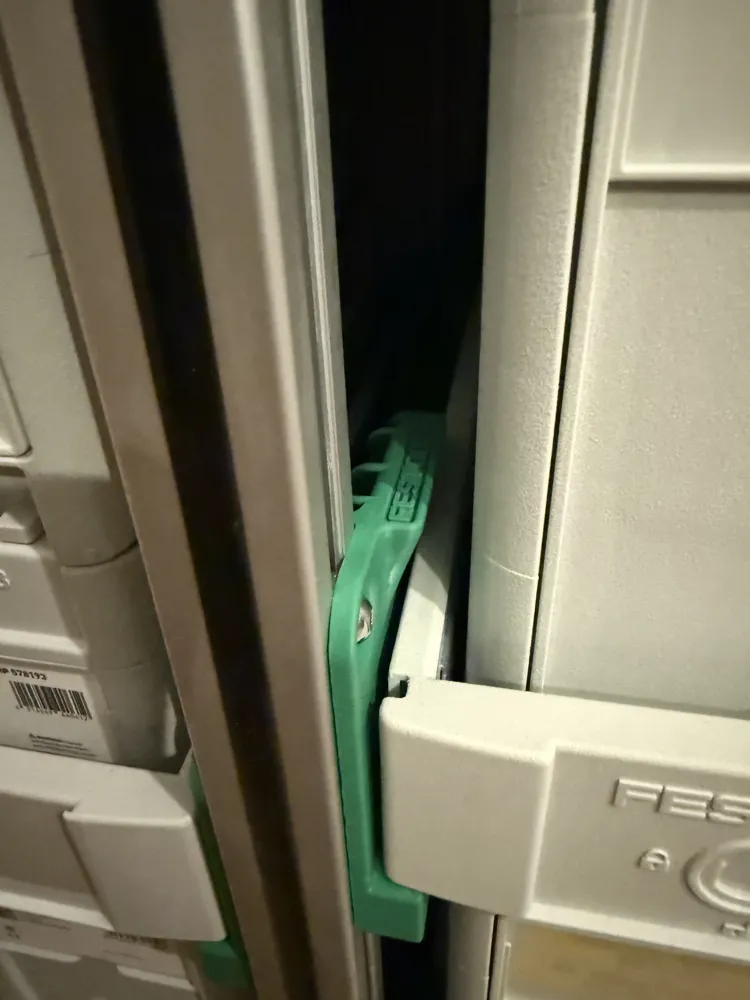

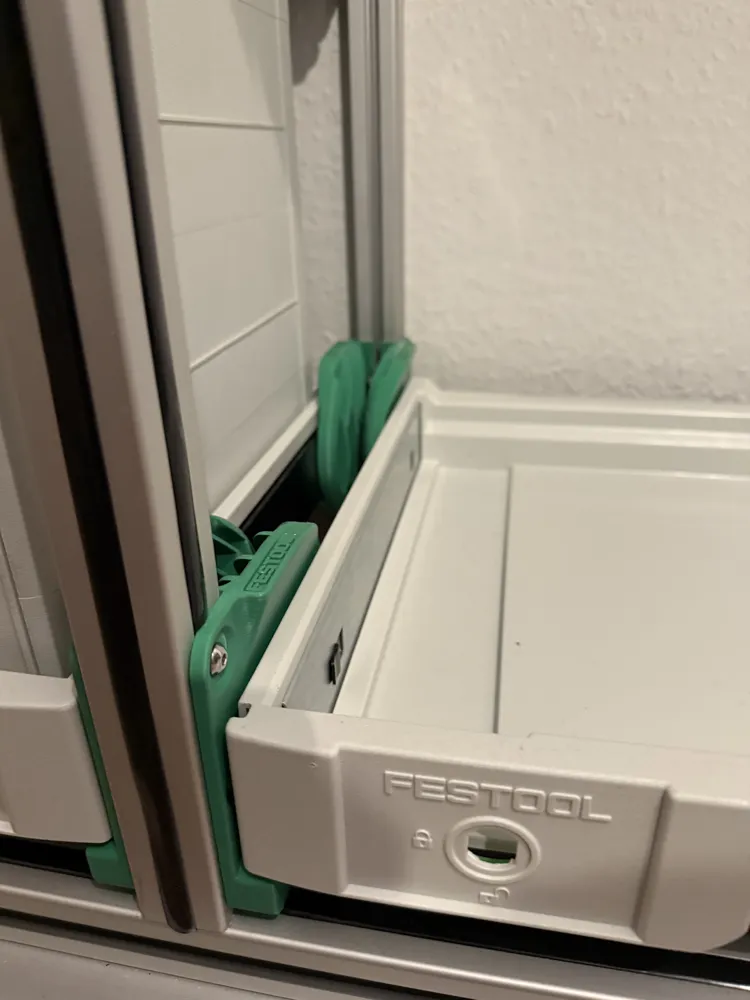

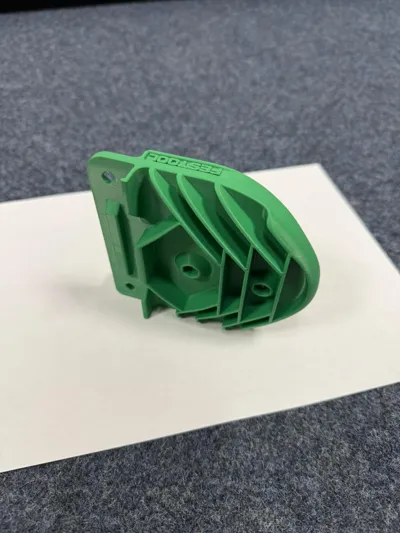

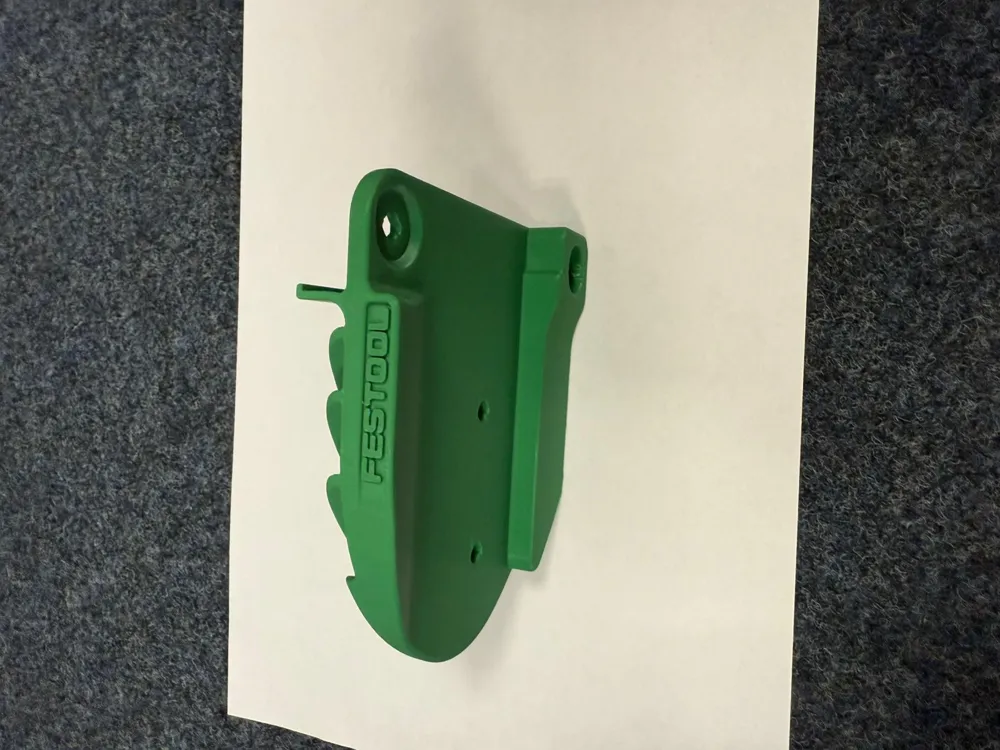

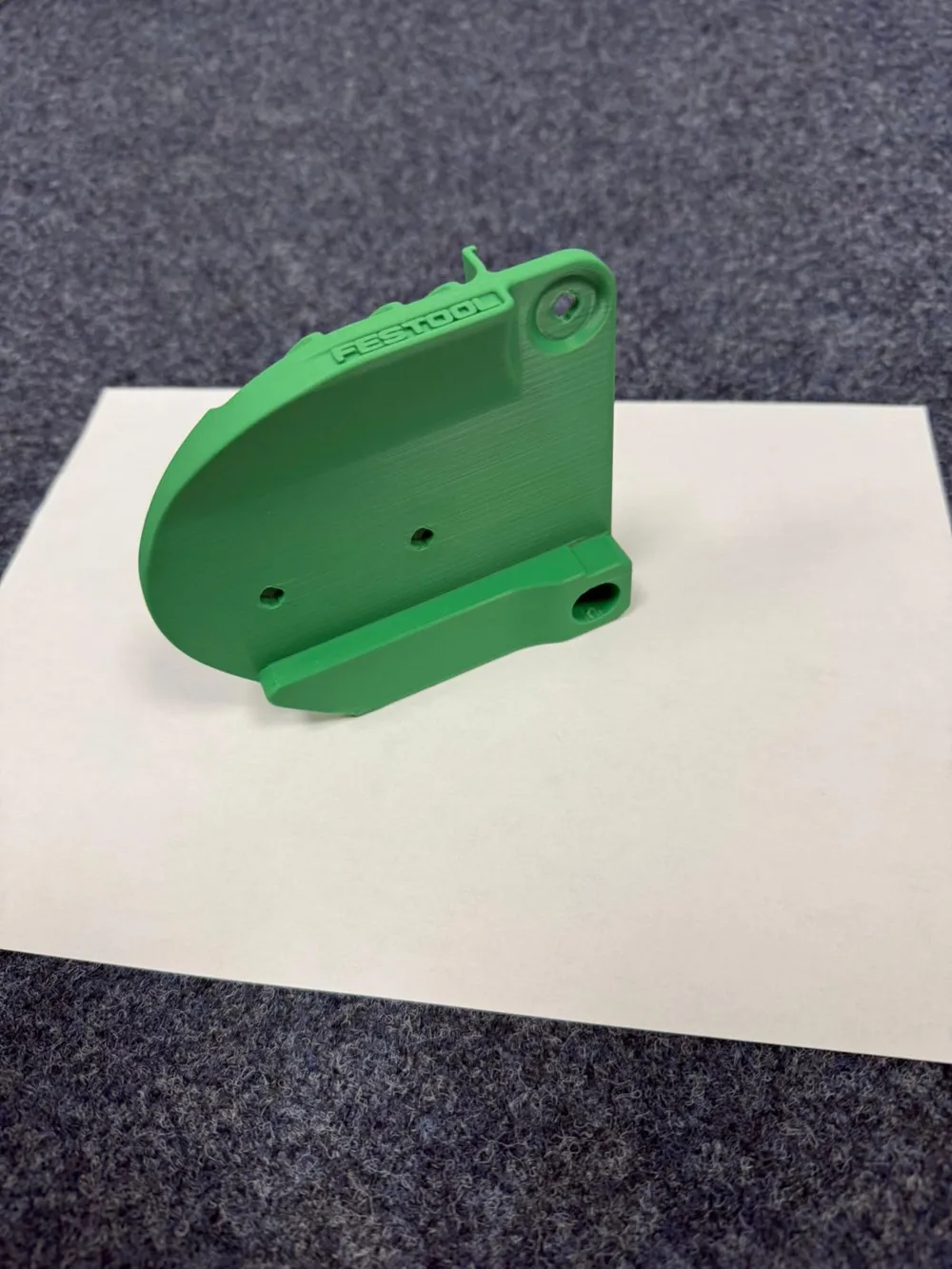

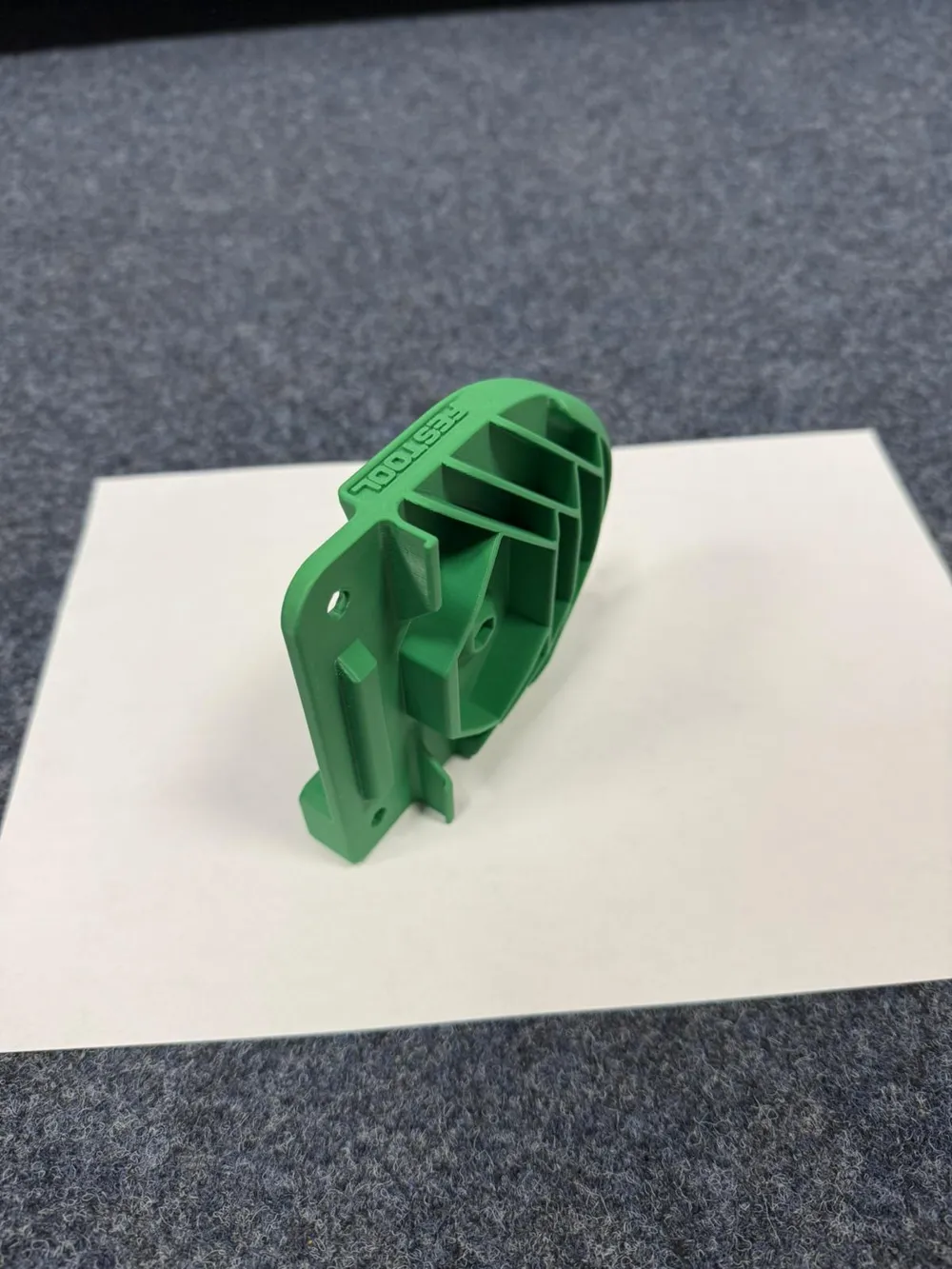

The component can be quickly installed and removed among other things it allows for flexible height adjustment of the drawer

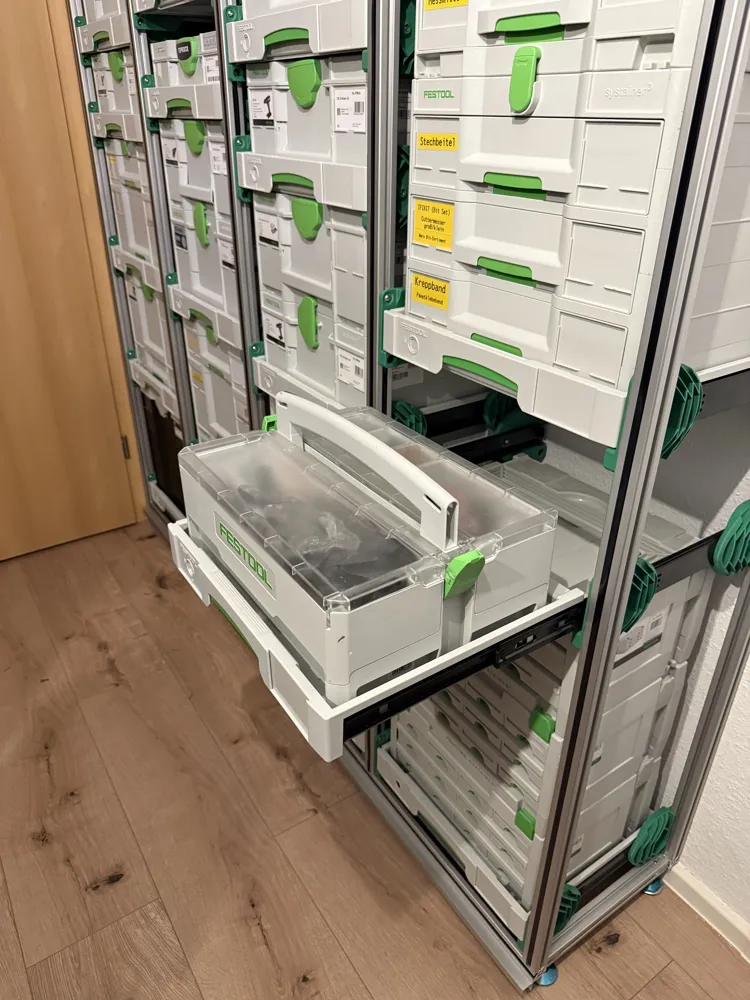

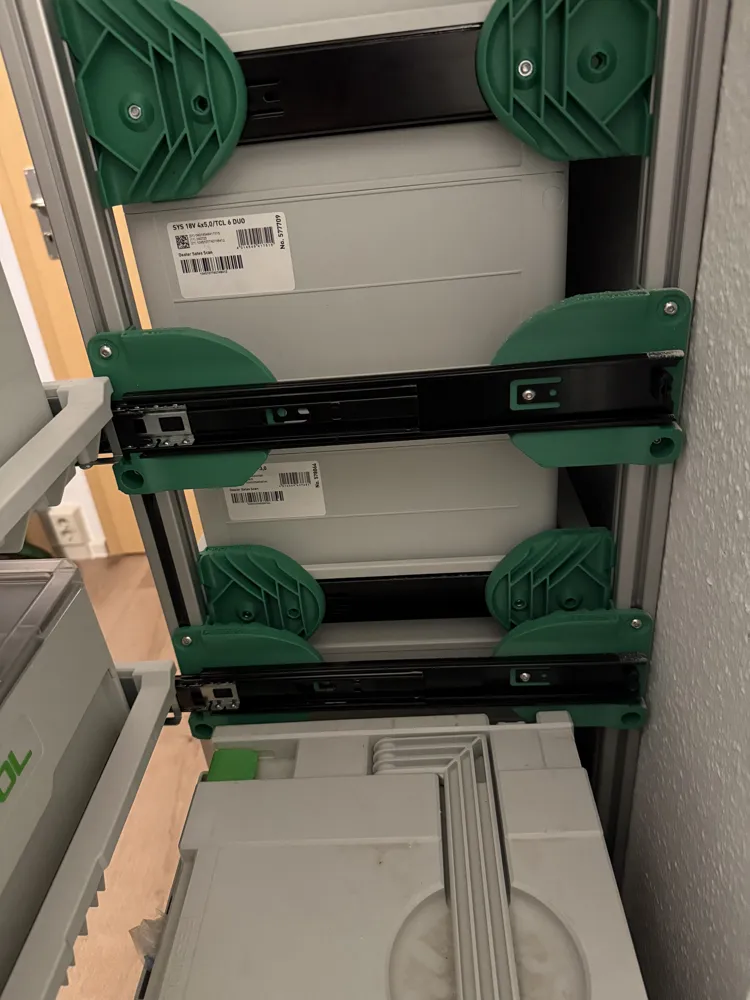

You can of course also mount other slides here ( 1 pair of full extension slides KV2-35-H45-L350-SE with self-closing length 350 mm height 45 mm drawer runner loadable up to 35 kg from SOTECH the specialist for drawer slides : Amazon.de: DIY & Tools )

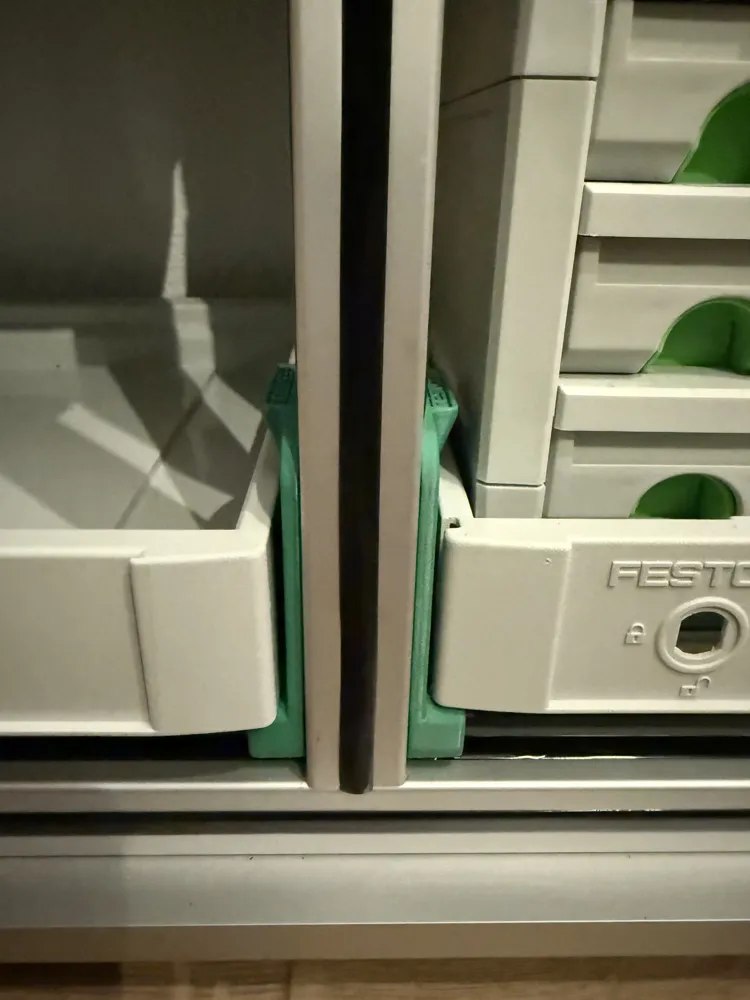

Depending on what your cabinet construction looks like the connectors for the bottom drawer might be in the way for this I have created a second bracket
You can of course also download this from me :) (Festool pull-out bracket SYS-AZ bottom)
Have fun crafting
