Achtung, alle Einheiten! A new unit has entered the field!

Achtung, alle Einheiten! A new unit has entered the field!

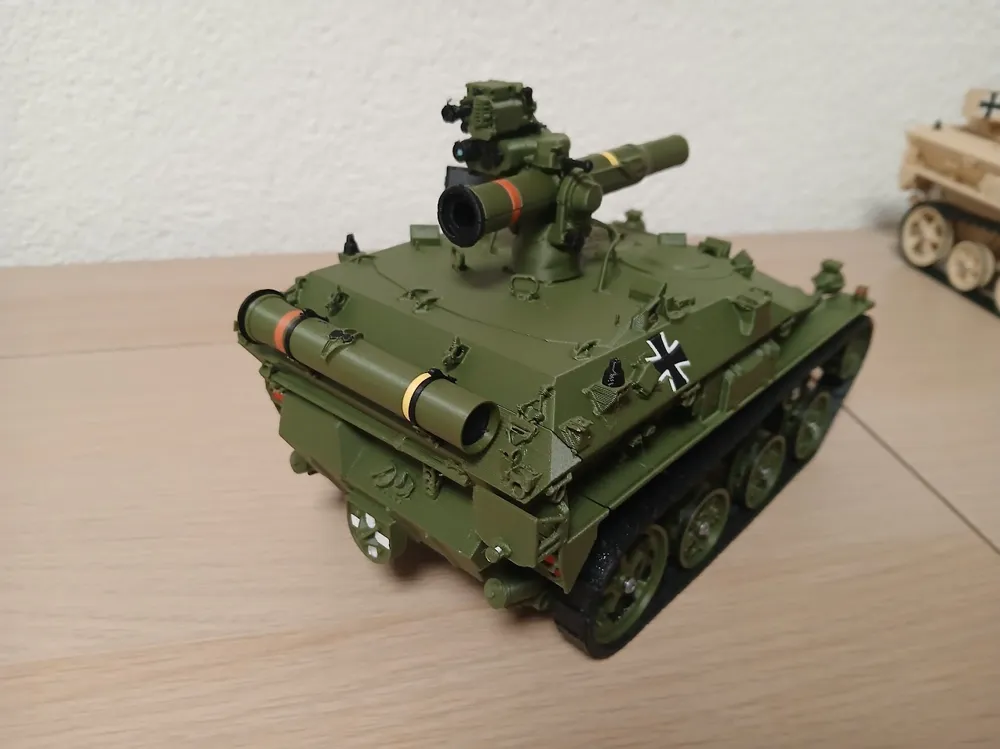

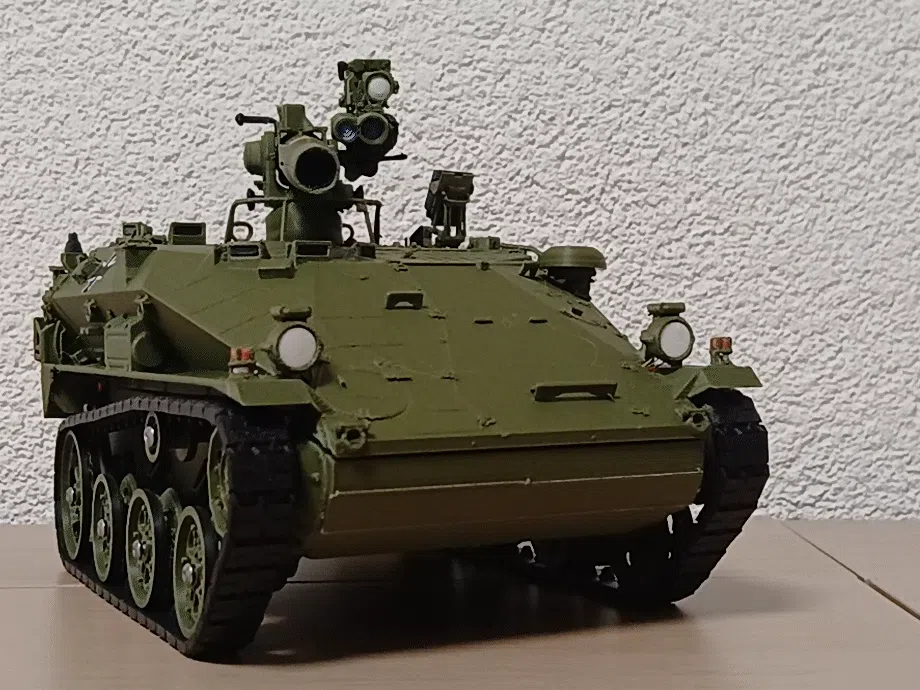

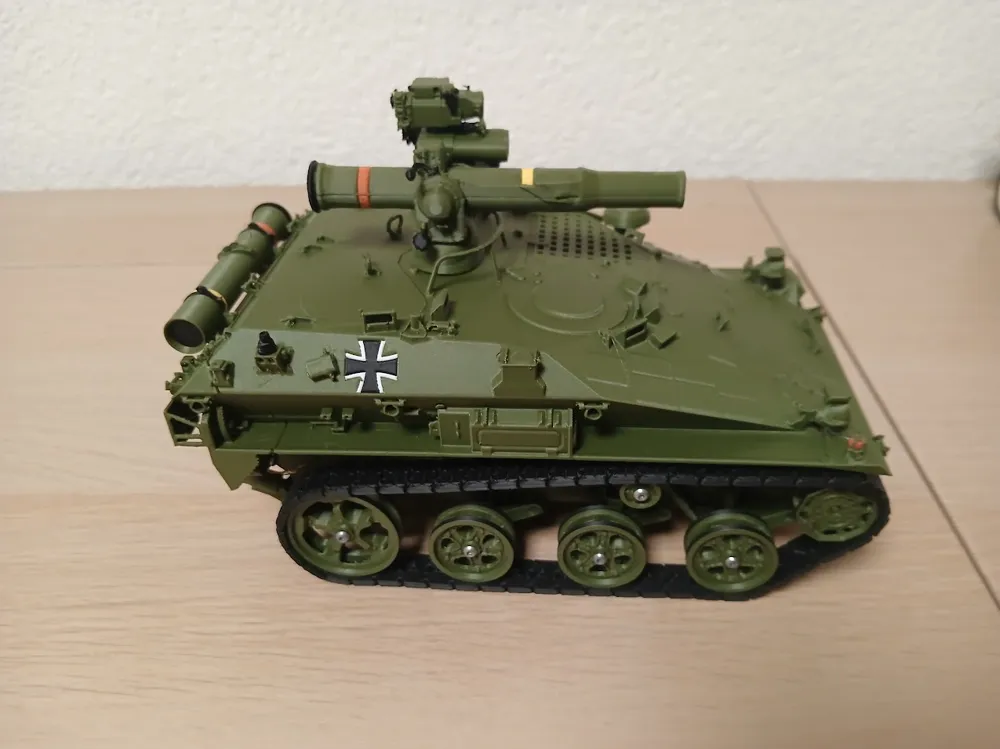

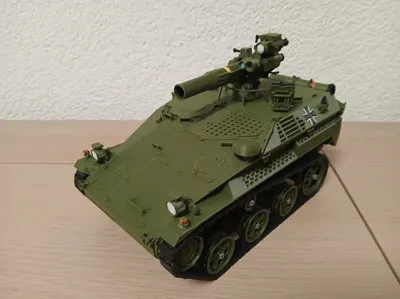

Introducing the Wiesel 1A2 the smallest armored vehicle's in service with the German Bundeswehr! Originally developed to replace the Kraka for airborne operations, the Wiesel is a lightweight, air-transportable weapon carrier now available in 1/16 scale!

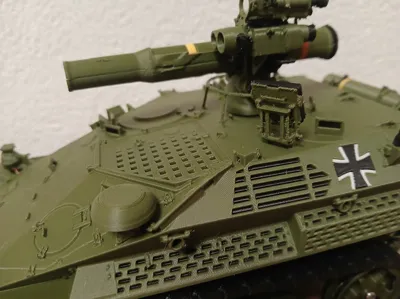

This detailed model features:

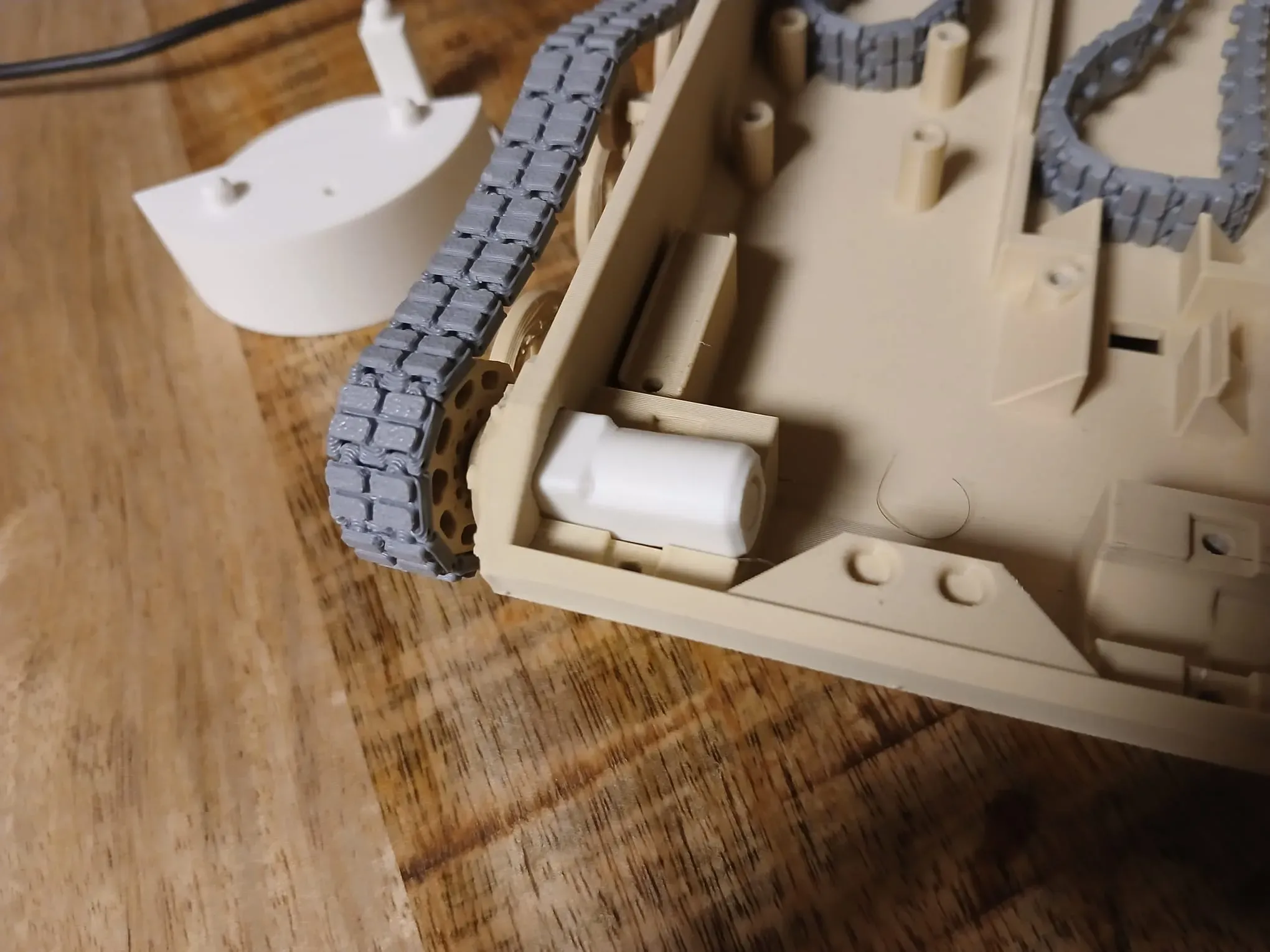

• Realistic, fully functional tracks

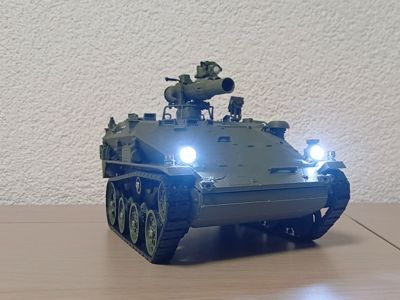

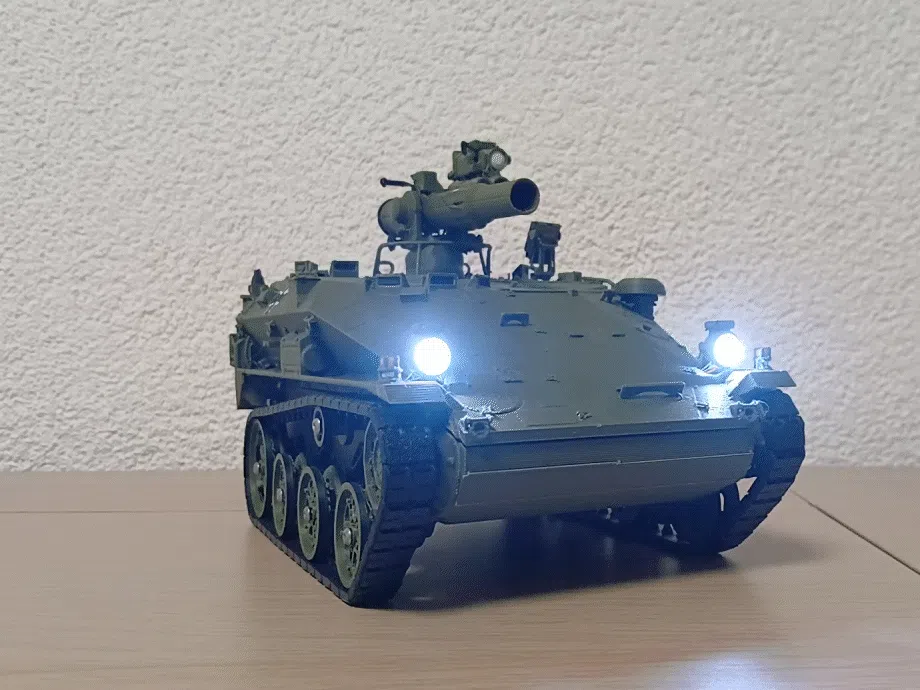

• Working lights
• Gun rotation of 45 degrees to each side

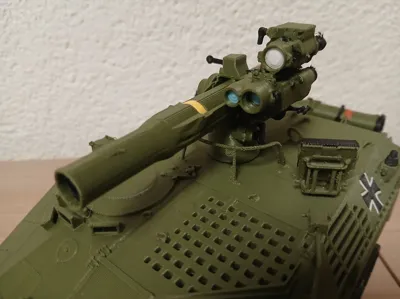

• Elevation and depression for the main gun



This model is something I’ve wanted to build for ages, and now, thanks to the new Cyberbrick system, it’s finally possible. Since I operate a small 1/16 scale RC tank fleet, the Wiesel was a must-build right from the start.

This is also the second RC vehicle I’ve ever built. Up until now, I mostly worked at a print farm designing lighting solutions and creating H0-scale wagons.

For questions, feel free to drop a comment or ping me on the Bambulab Discord: @privatemiku

IMPORTANT NOTES:

• This model is designed with the mindset of a scale model, not a toy. It contains small and fragile parts that may break if mishandled.
• Don’t change the layer height settings! For items like the gun for example, using a lower layer height might seem like it would improve the appearance, but in reality, it often makes the final print worse.
• Please note: Track printing may fail unless the correct filament settings are used. (Tests were conducted on a Bambu Lab Plei plate. Results may vary with other plates.)
   Be sure to:
     o    Use a layerheight of 0.1 as the objects standard.
     o    Set the initial layer speed to 25 mm/s.
     o    Set the initial layer infill to 50 mm/s.
     o    Use Bambu Lab Charcoal Black PLA Matte. (Tolerances may vary for other materials.)
• The “non-manifold edges” warning is a false alarm caused by using CAD files for 3D printing. This does not affect printability or functionality of the model. Running a repair may actually break things, such as dimensional accuracy and multi-color support. It is safe to proceed without repairing.

Want to print it as a display model? Or have you already built it but need the motors for a different project? Check out our Dummy N20 Print-in-Place with Rotatable Axle: https://makerworld.com/en/models/1703825-dummy-n20-print-in-place-with-rotatable-axle#profileId-1807092

See our other CyberBrick Products!

Bill Of Materials

Below you can order all the components needed to complete the Wiesel TOW build. You will need either the Standard or the Ultimate Cyberbrick Kit, and you may choose whichever option you prefer. We also recommend adding the Additional Battery Kit for your Cyberbrick remote.

TPU parts are optional and can be used for the tracks and light covers.
All other components are required to complete the model.

Please note:
It appears that Bambu Lab units now come with 50 mm cables instead of 100 mm on the motors. These shorter cables may not reach their connection points. To address this, our bill of materials now includes loose 100 mm cables for anyone who needs them.

DISCLAIMER

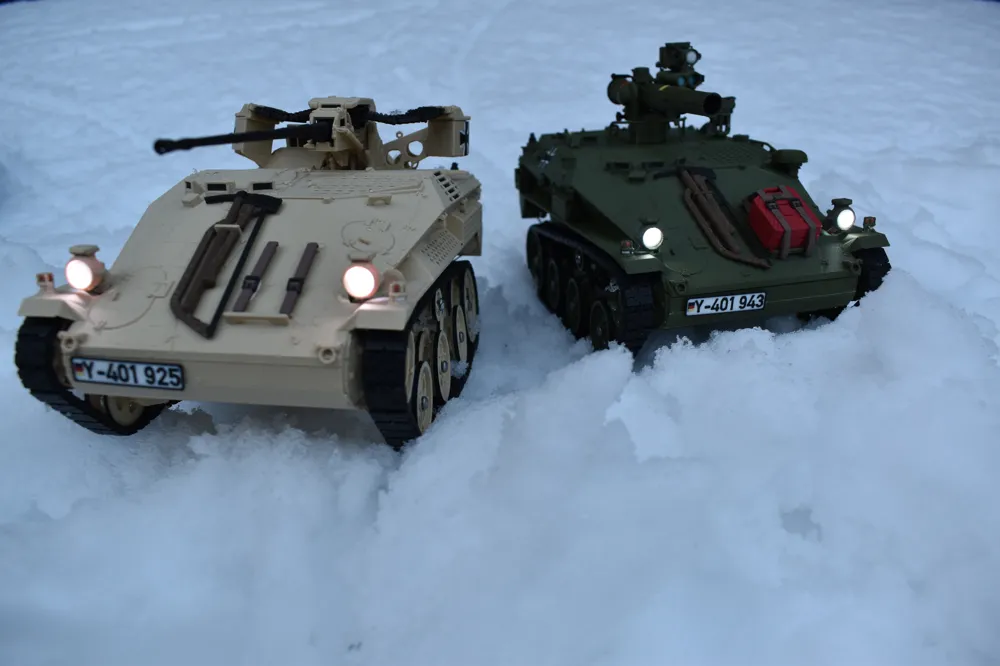

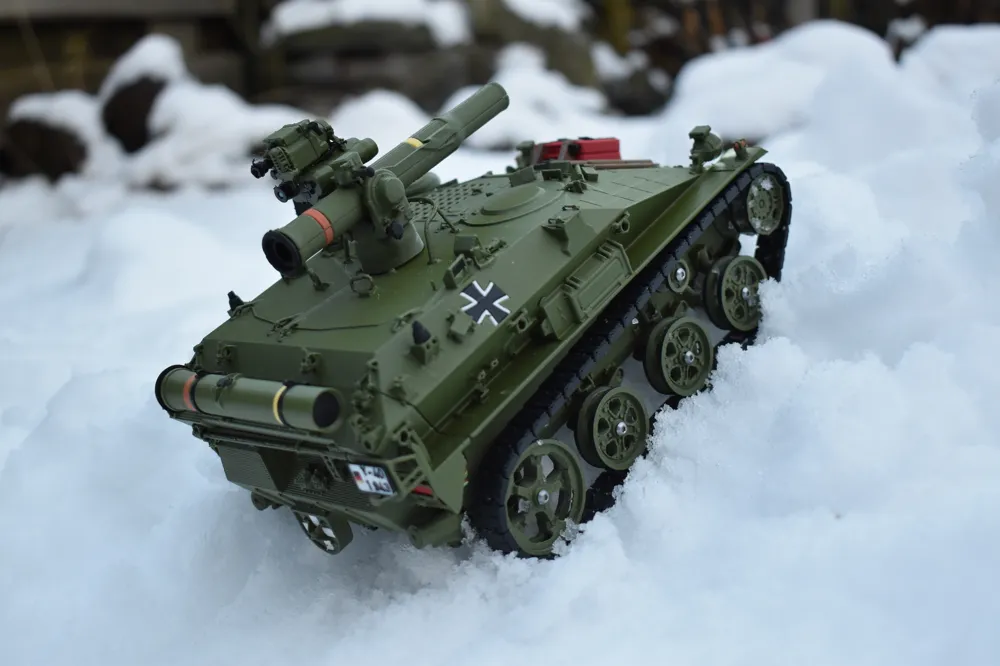

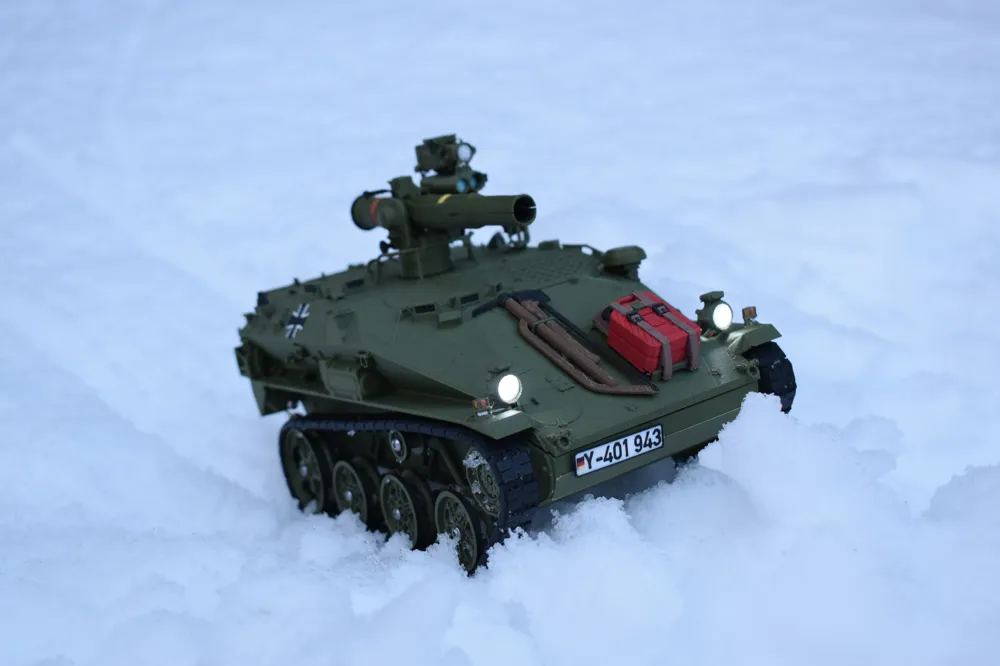

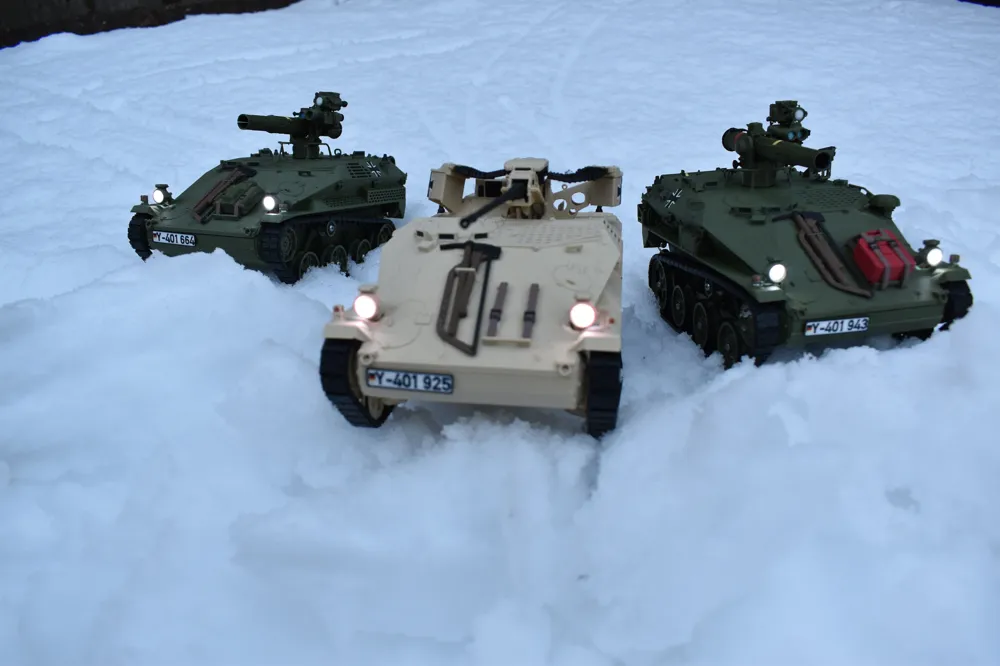

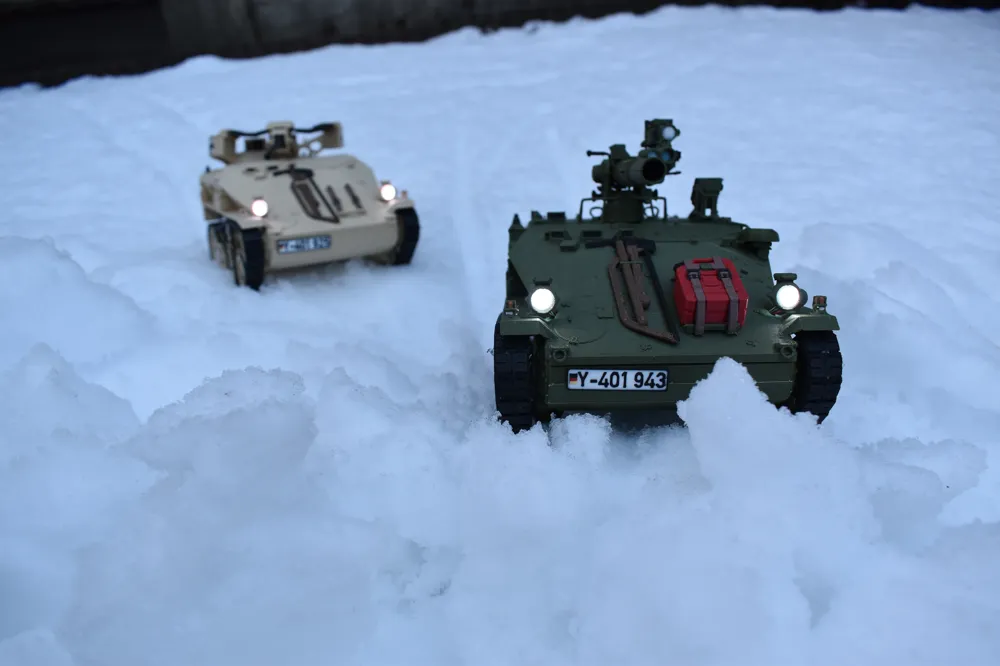

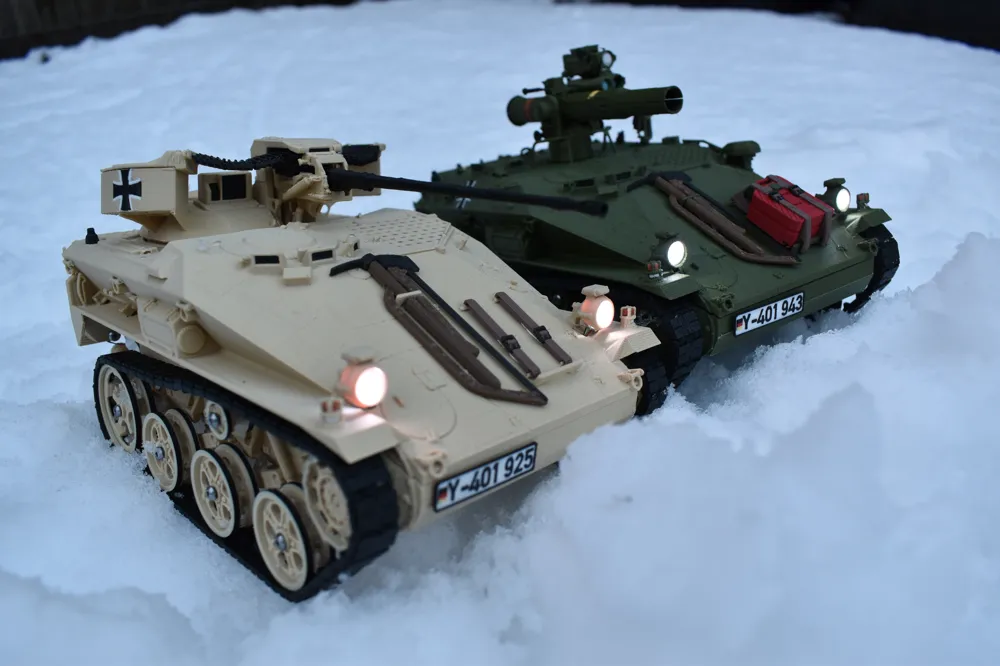

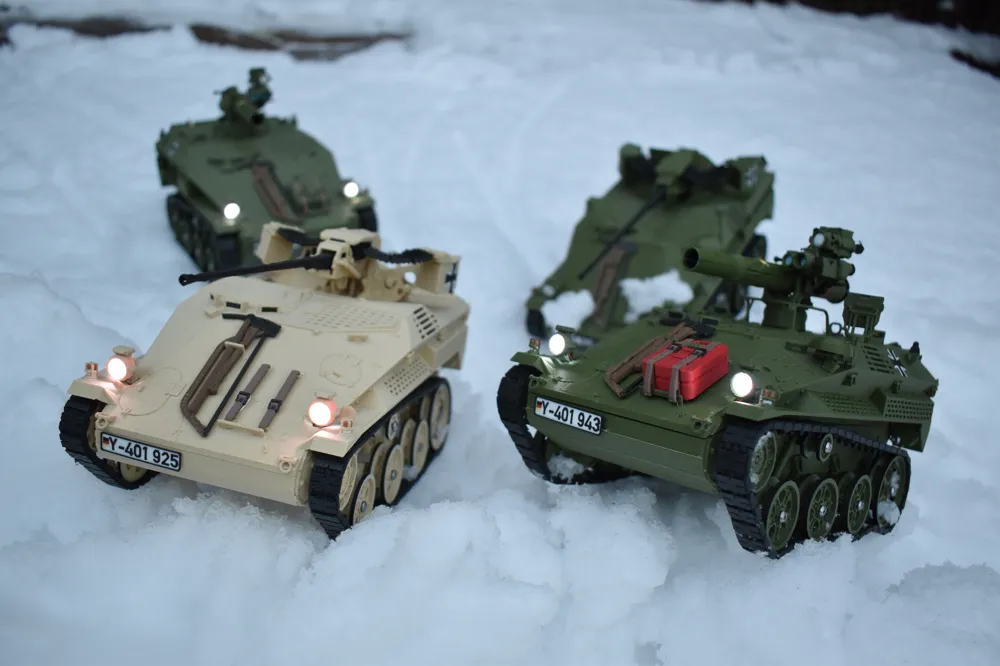

This package does not include custom options (license plates, bags, tools, etc.). All customizations are available exclusively in the Full Package. Pictures of snow are mainly for visual appeal. the thin tracks struggle in snow

Change Log

-=-23-6-2026-=-

• CyberBrick Code has been updated to be more reliable.

BugFixes (23-01-2026)

• Fixed missing supporters on the turretrings servo mount form the 1A1

Need Support?

To help us assist you more effectively, please include which printer and filament you’re using, along with any modified settings. If a manual is available for your model, we recommend reading it and starting with the stock settings for best results.
