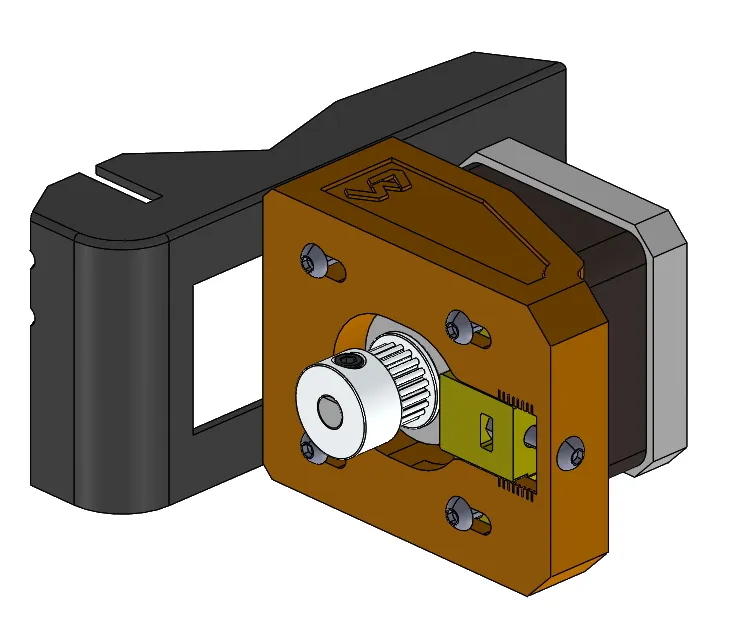

Y Belt Tensioner for Kingroon Kp3s
This is a belt tensioner design for kingroon Kp3s, it is easy to assembly.
Este es un nuevo diseño de tensor para el eje Y de la kingroon Kp3s, muy fácil de montar
You can help me make more upgrade with a donate. Puedes ayudarme a seguir haciendo actualizaciones realizando una donación Click to danate
Bill of materials:
- 4 units – Screw DIN 7380 M3x12
- 1 units – Screw DIN 7380 M3x16
- 1 units – Nut DIN 934 M3
Assembly instructions
1.Screw Base tensioner to printer
- 1 unit - Base_belt_tensioner
- 2 units - Old screw bracket
2. Belt tensioner
3. Tension adjusting screw
- 1 units – Screw DIN 7380 M3x16
- 1 units – Nut DIN 934 M3
4. Nema motor
- 4 units – Screw DIN 7380 M3x12
