Ammo Box CCI Tray Conversion for 22LR - 2X 50 Rnds

This is design allow you to use my Gen 3.0 22LR ammo boxes with a standard plastic CCI Ammo Trays (2x50).  I included two print profiles:

1. Conversion Tray only to be used if you already have my 22LR Box and works with 2x 50 Round CCI Trays

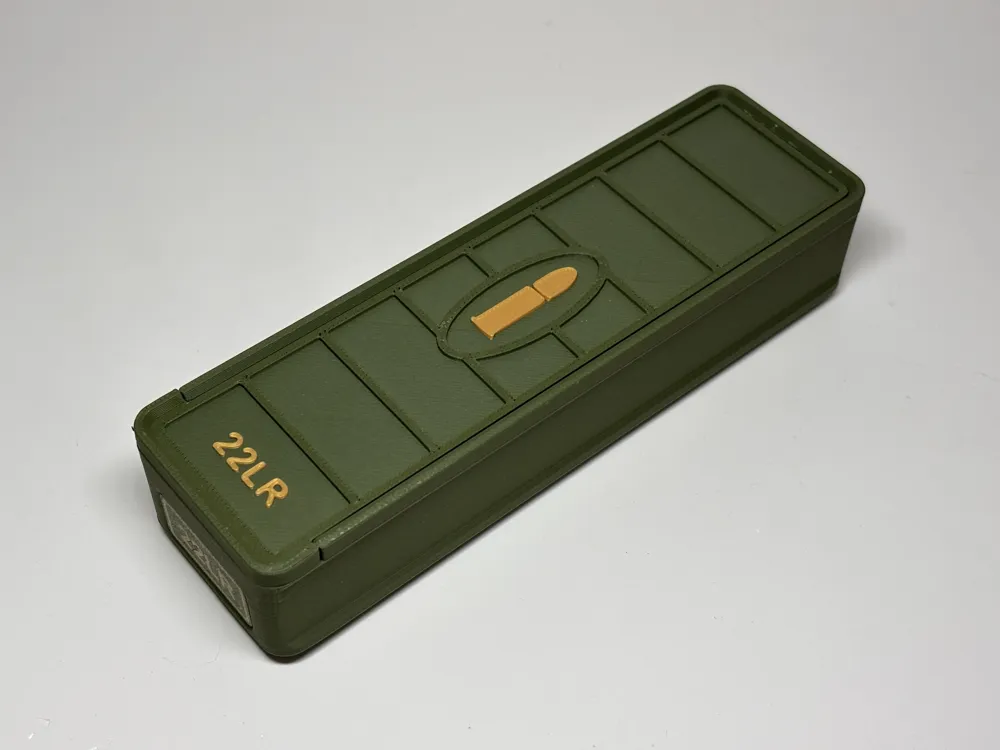

2. A complete Box with conversion tray.

Assembly:

1. Snap in side labels - I also put 3 recessed areas incase you want to add superglue for permeant mount of labels.

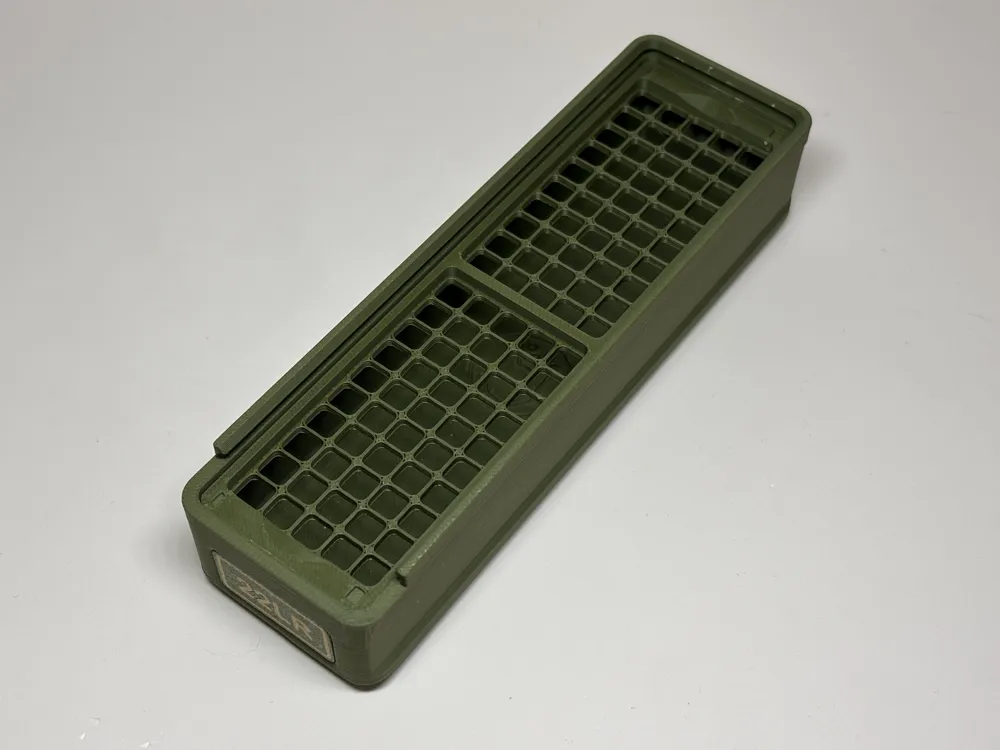

2. Snap in conversion tray  - It you need to remove this just use a pencil and gently pry it to disengage the snap feature.

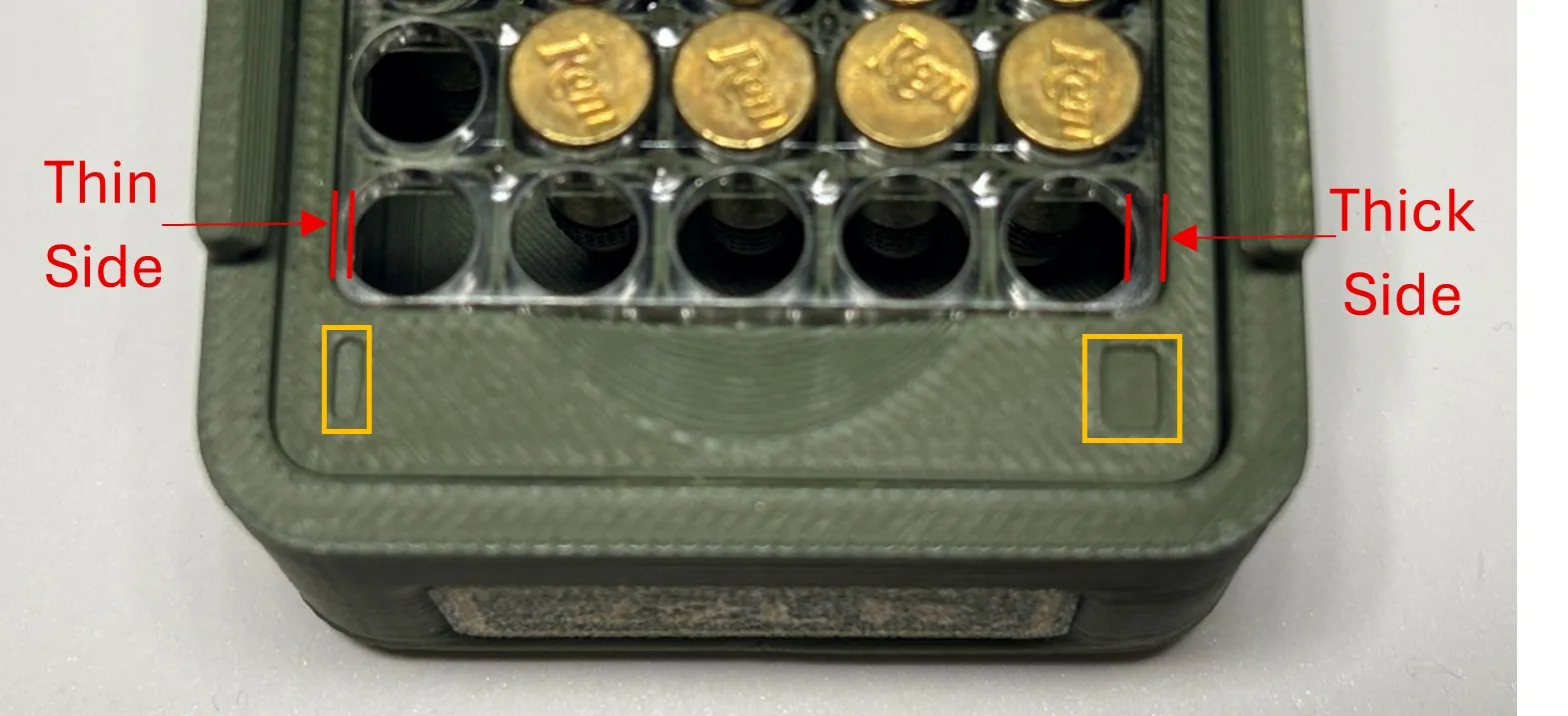

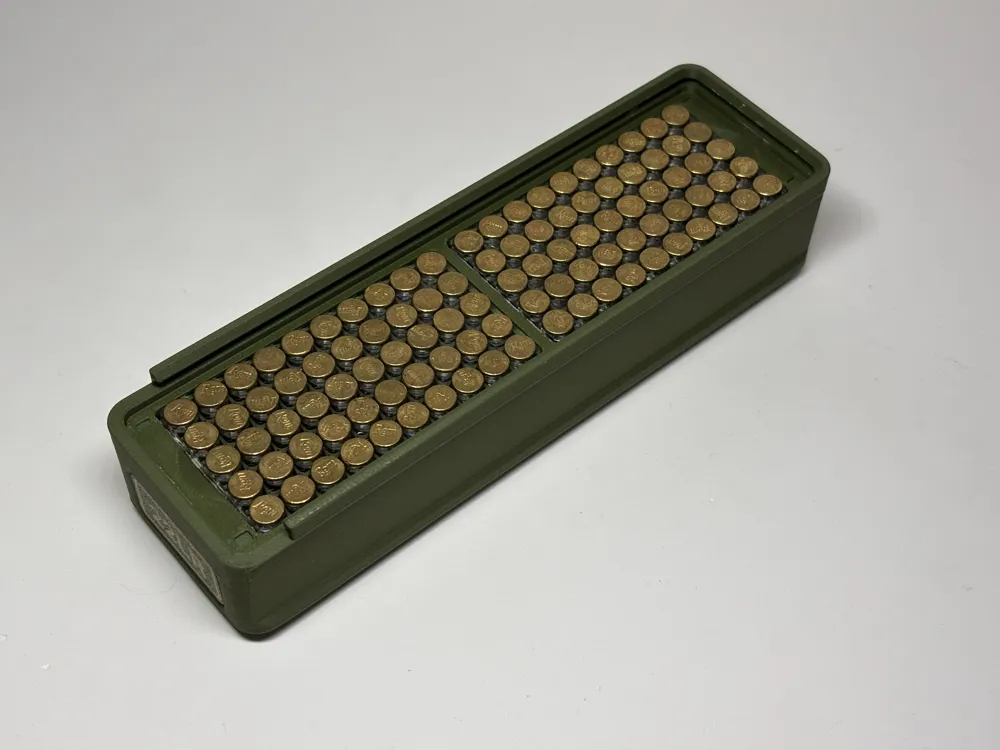

3. Drop CCI Tray into recess on conversion tray. You do not need to unload the CCI rounds. Just remove the tray with the rounds hanging from the ring and align it and place into the conversion tray (after it is assembled in the ammo box). Please note that the CCI tray is not symmetric. The rounds are shifted slightly to one side. The rectangular indicators on the top of the conversion tray shows the shift to one side. If you insert the CCI tray with rounds and they do not line up, just flip the CCI Tray 180 degrees. Repeat for the other 50 round tray.

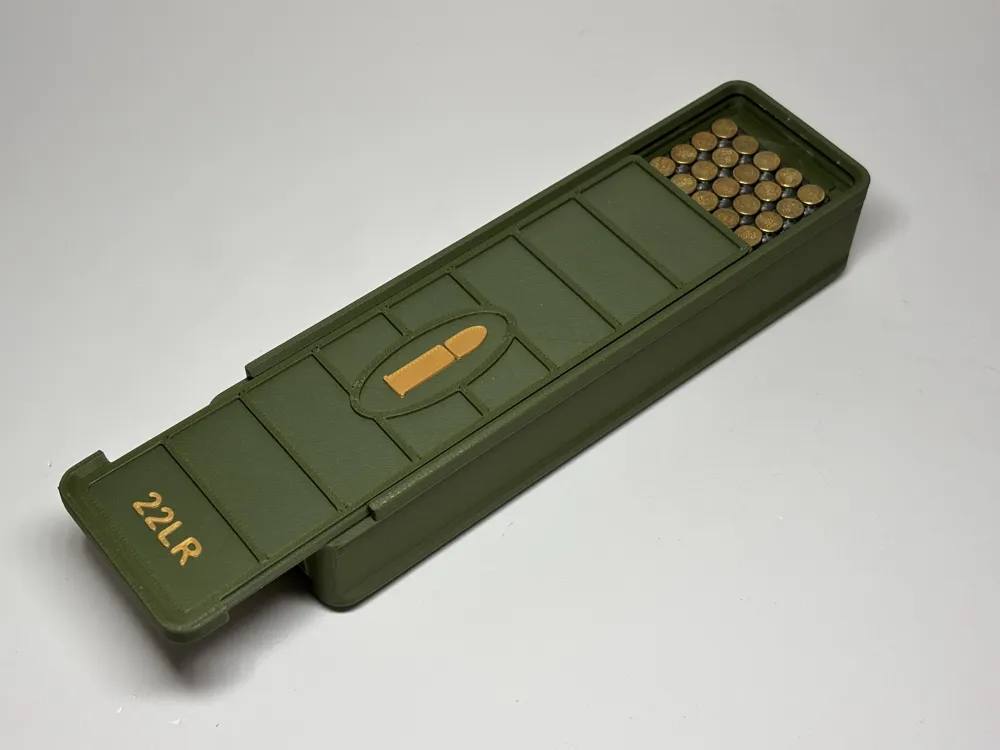

4. Slide Cover on - The first few snaps will be a little firm, but it will loosen after a few and it sits for couple days.
