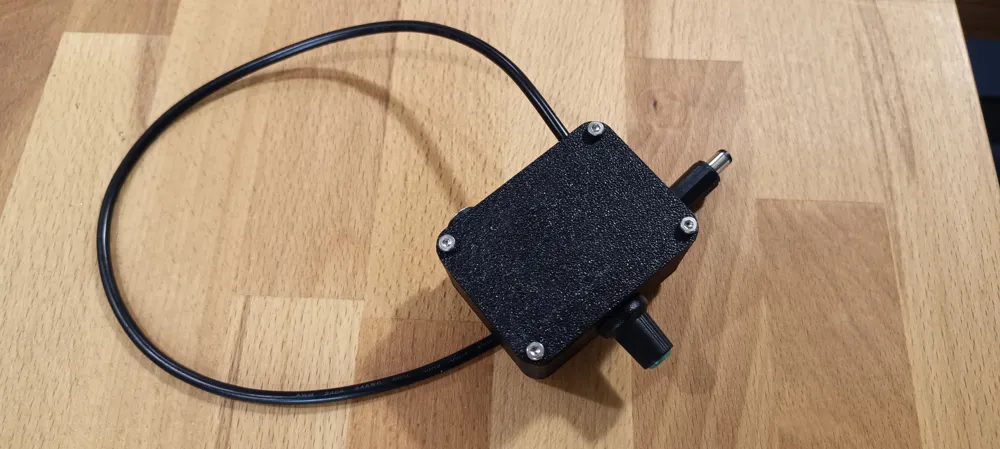

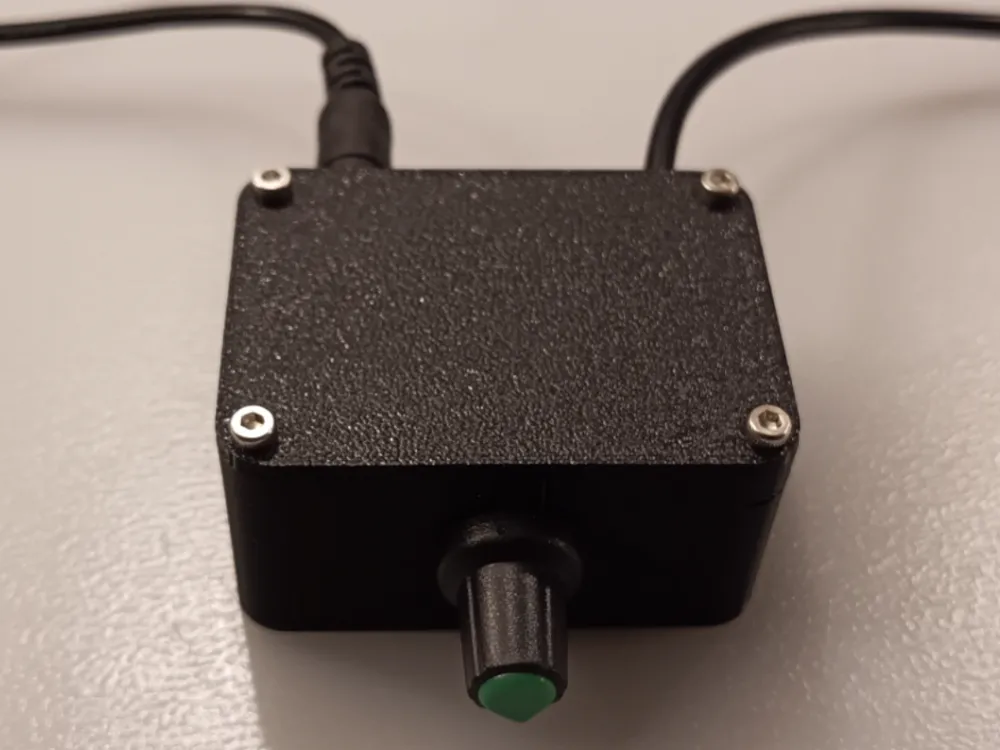

Case for Speed Controller
I needed a speed controller for my paint mixer
I found it very cheaply on Aliexpress:
For this, I had to design a case that could be easily connected between the power supply and the mixer

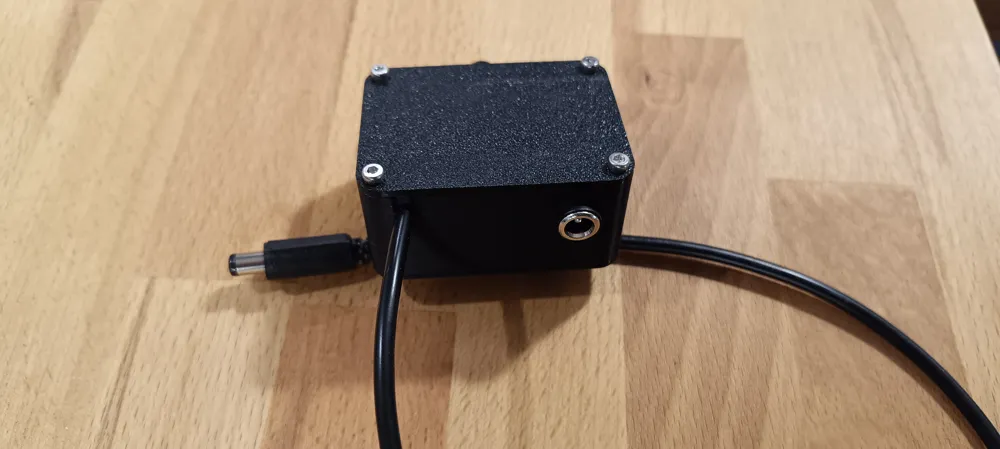

Therefore, I installed suitable 5.5 x 2.1 mm DC connectors, which I also found on Aliexpress:

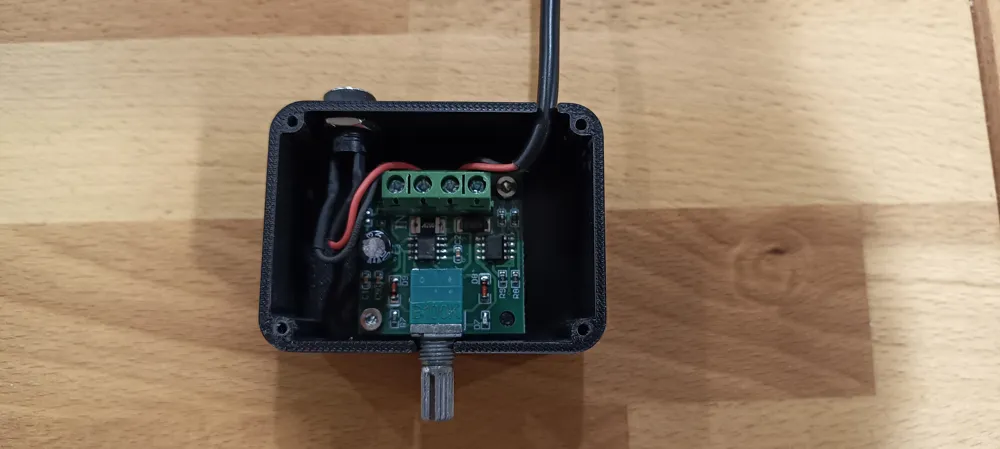

The controller is fastened in the case with two M2.5 x 6mm screws

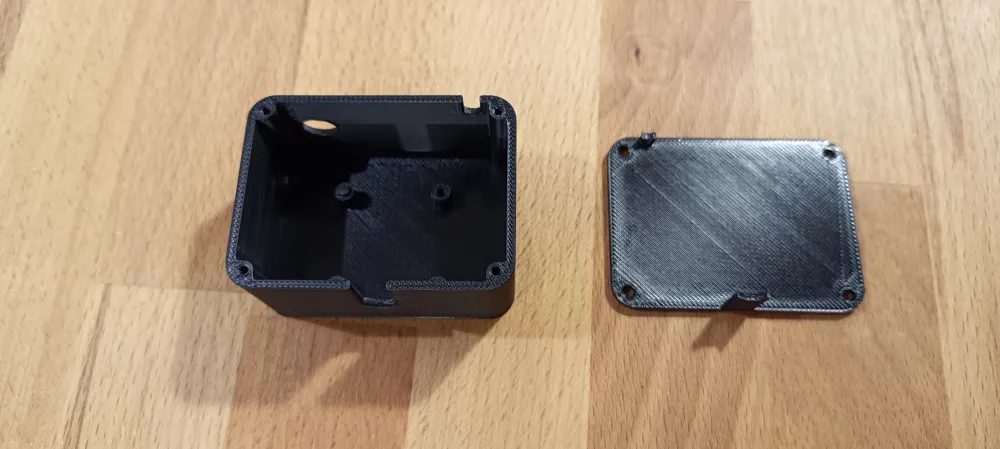

The lid is fastened to the case with four M2.5 x 8mm screws.
I screwed the screws in directly. If you do it carefully, it holds quite well
Printed in ABS
At this point, I would like to draw attention to the dangers associated with working on electrical components. Electrical work may only be carried out by qualified personnel. Unfortunately, I cannot assist you with electrical wiring
