Soporte 22mm voge 900

Vavegador Navifly

cover

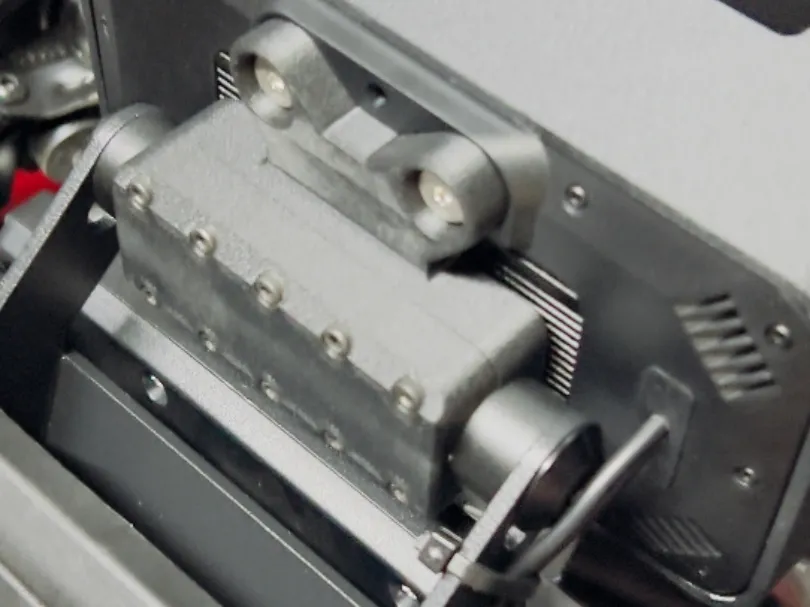

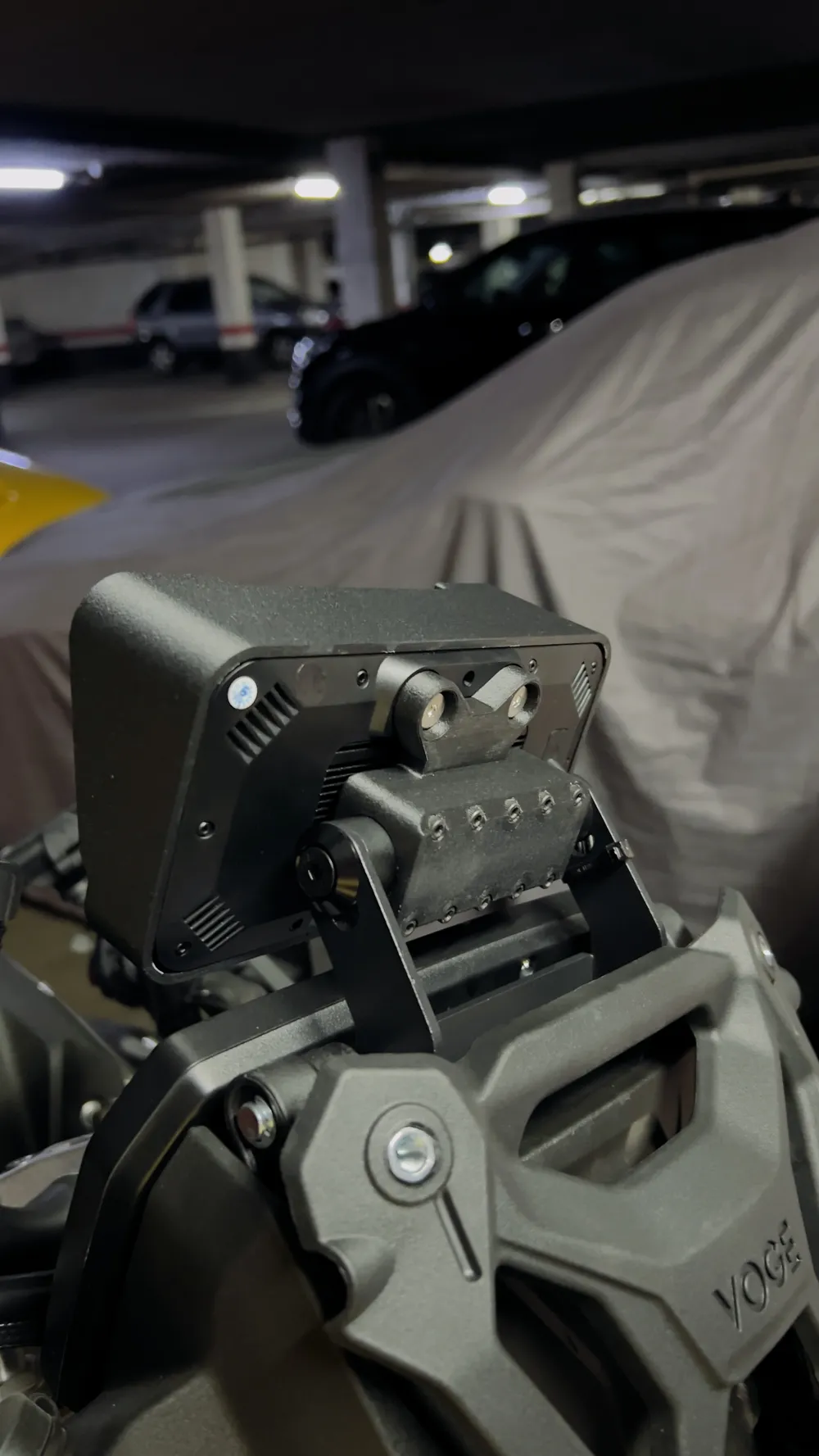

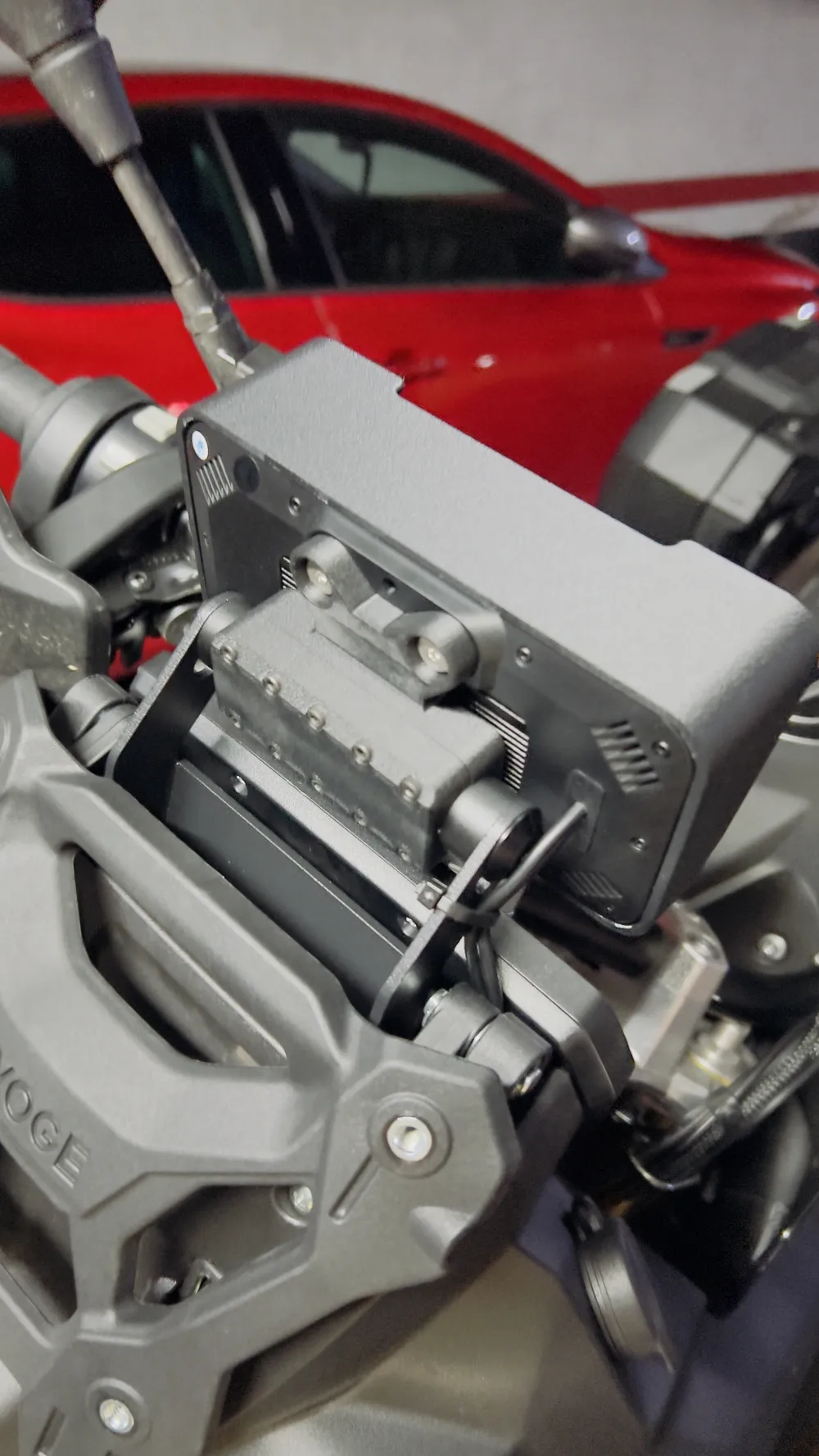

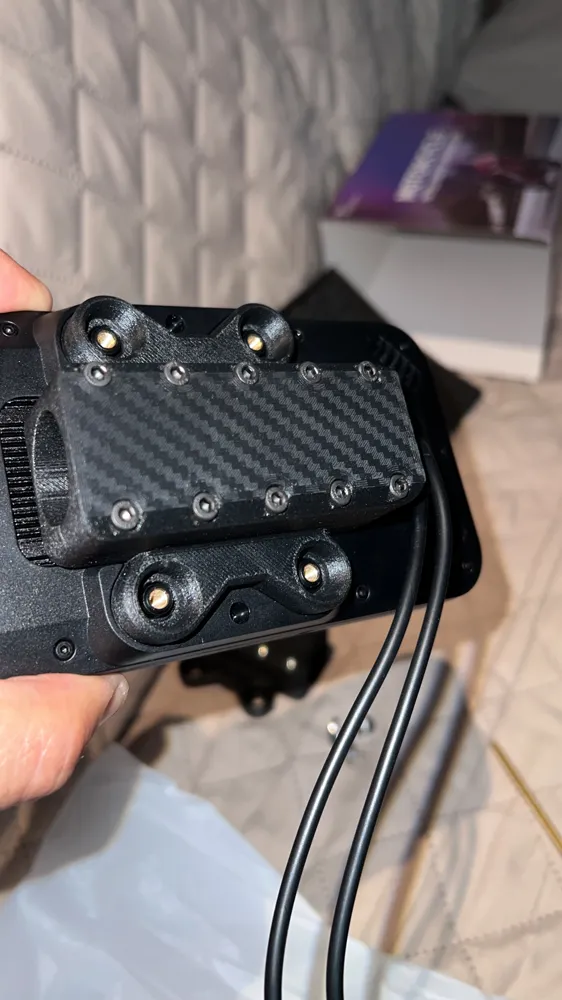

He diseñado un soporte que se ajusta perfectamente al navedador NaviFly para colocar en una barra de 22mm en la Voge 900. El soporte se ha impreso en Abs-Gf de bambulab, se necesitan 10 tuercas M3 y 10 tornillos allen de 25mm. Las tuercas están empotradas en mitad del diseño por lo que le he colocado una pausa a la impresión. También he añadido un juego de juntas que viene con el navegador por si se pierden las originales impresas en TPU.&nbsp;El soporte es el siguiente de aliexpress <a target="_blank" rel="noopener noreferrer ugc" href="https://es.aliexpress.com/item/1005007576726613.html?spm=a2g0o.order_list.order_list_main.328.66ac194dm6DeYQ&amp;gatewayAdapt=glo2esp">https://es.aliexpress.com/item/1005007576726613.html?spm=a2g0o.order_list.order_list_main.328.66ac194dm6DeYQ&amp;gatewayAdapt=glo2esp</a>El navegador de carpaly igualmente de aliexpress <a target="_blank" rel="noopener noreferrer ugc" href="https://es.aliexpress.com/item/1005007392437016.html?spm=a2g0o.order_list.order_list_main.313.66ac194dm6DeYQ&amp;gatewayAdapt=glo2esp">https://es.aliexpress.com/item/1005007392437016.html?spm=a2g0o.order_list.order_list_main.313.66ac194dm6DeYQ&amp;gatewayAdapt=glo2esp</a>&nbsp;

I designed a holder that perfectly fits the NaviFly navigator for a 22mm bar on the Voge 900. The holder was printed using Bambulab Abs-Gf, and requires 10 M3 nuts and 10 25mm Allen screws. The nuts are embedded midway through the design, so I added a pause to the print. I also included a set of gaskets that come with the navigator in case the original TPU printed ones are lost.&nbsp;The holder is the following from AliExpress <a target=\"_blank\" rel=\"noopener noreferrer ugc\" href=\"https://es.aliexpress.com/item/1005007576726613.html?spm=a2g0o.order_list.order_list_main.328.66ac194dm6DeYQ&amp;gatewayAdapt=glo2esp\">https://es.aliexpress.com/item/1005007576726613.html?spm=a2g0o.order_list.order_list_main.328.66ac194dm6DeYQ&amp;gatewayAdapt=glo2esp</a>The Carplay navigator is also from AliExpress <a target=\"_blank\" rel=\"noopener noreferrer ugc\" href=\"https://es.aliexpress.com/item/1005007392437016.html?spm=a2g0o.order_list.order_list_main.313.66ac194dm6DeYQ&amp;gatewayAdapt=glo2esp\">https://es.aliexpress.com/item/1005007392437016.html?spm=a2g0o.order_list.order_list_main.313.66ac194dm6DeYQ&amp;gatewayAdapt=glo2esp</a>&nbsp;

0.2mm layer, 4 walls, 25% infill

He diseñado un porte para el navegador Navifly para colocar en un soporte de 22mm en la voge 900.

I have designed a holder for the Navifly navigator to place on a 22mm mount on the Voge 900.

Navifly navigator holder
