Micro:Bit Expansion Tray

Micro:Bit Expansion Tray

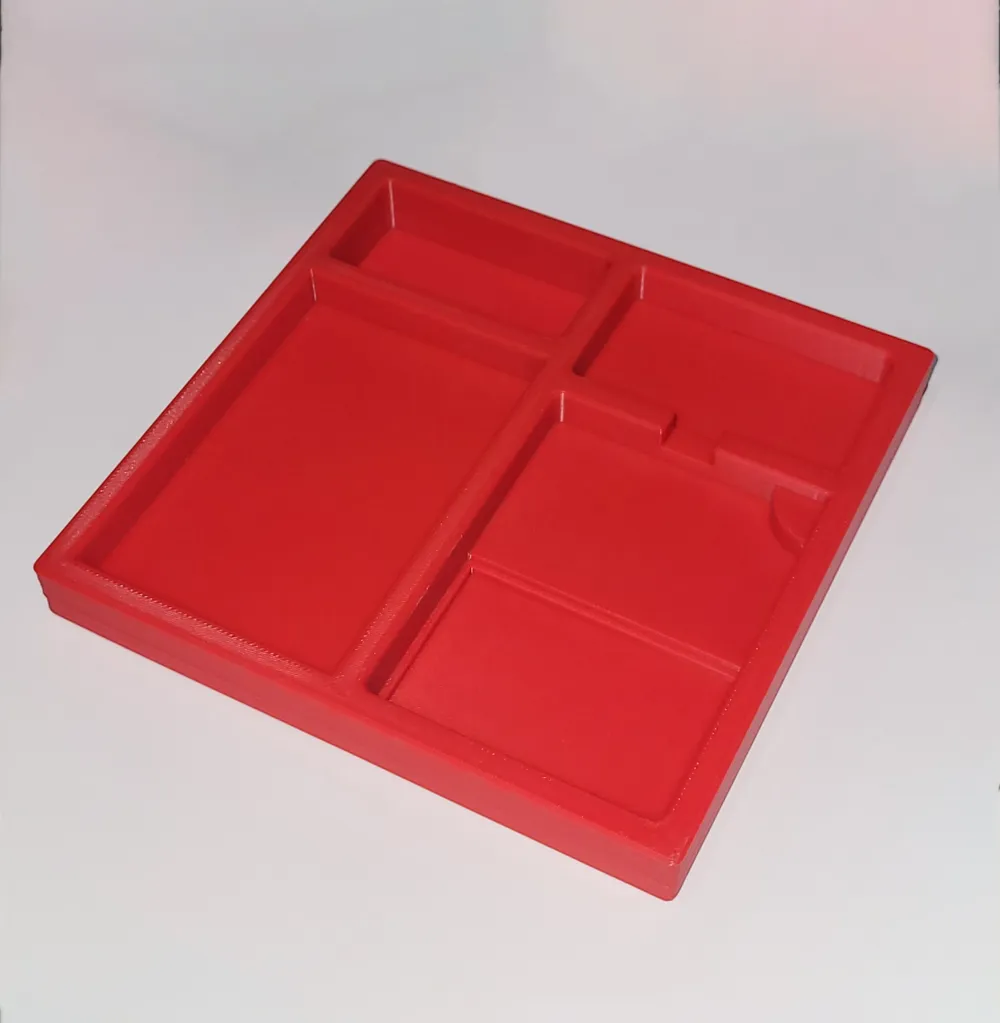

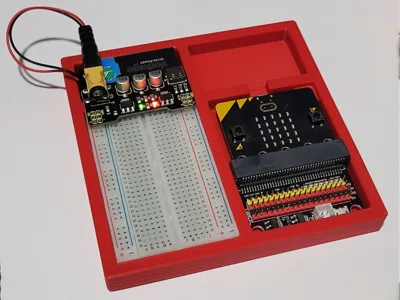

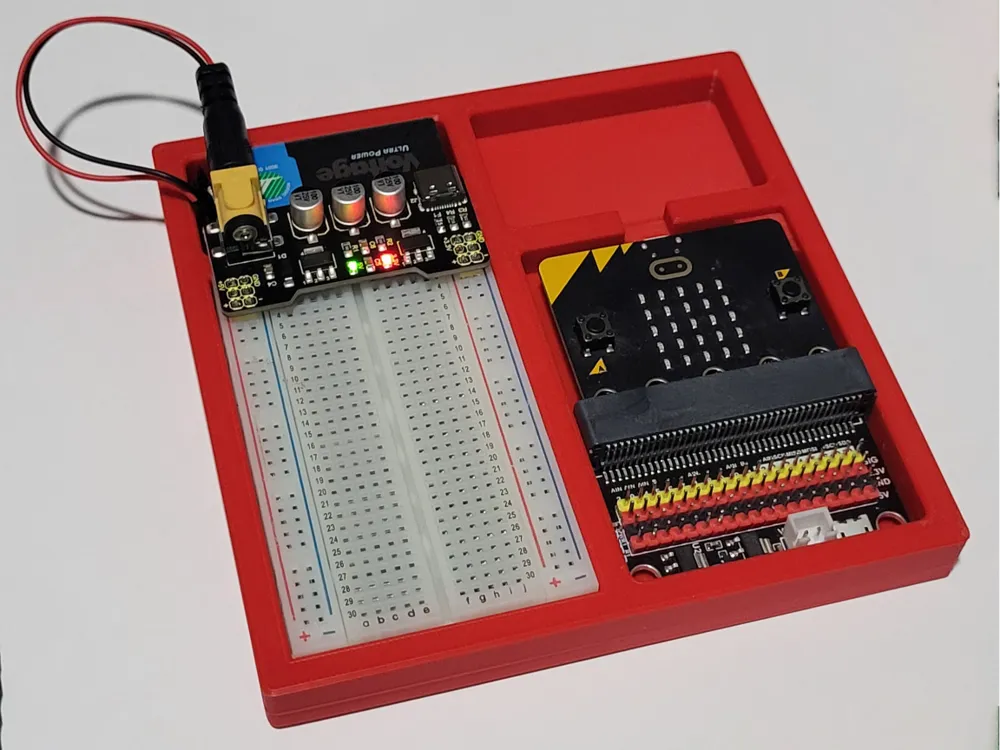

This Micro:Bit Expansion Tray is a compact workspace for organizing your BBC Micro:Bit, an IO Expansion Board, an 82×54 mm breadboard, and a 9V battery.
The Micro:Bit slot is press-fit, keeping the board secure while still easy to remove. A small pocket gives access to the USB port and doubles as storage for small components.

The tray includes a recessed area for a breadboard (you may need to trim off the side link tabs) and a compartment for a 9V 6LR61 battery.
On the underside, modular grooves allow stacking or attaching add-ons like extra trays or a jumper-wire holder.

An optional 45-degree stand is included for better visibility while working. It can be used with this tray or as a universal stand for other projects.

Features

• Press-fit Micro:Bit + IO Expansion Board slot
• Fits an 82 × 54 mm breadboard (after trimming side link tabs)
• Space for a 9V 6LR61 battery
• USB access pocket, doubles as component storage
• Modular underside grooves for adding extra trays or accessories
• Optional 45-degree stand for improved viewing angle
• Clean, organized workspace for prototyping, teaching, and experimentation

Suggested Use Cases

• Micro:Bit prototyping and electronics projects
• STEM classrooms and workshops
• Portable or desktop electronics stations
• Organized breadboard experimentation
• Maker demonstrations and training setups

Printing

• The tray can be printet with any settings and any material.

• The stand will be best in PETG and minimum 6 walls for the clip mechanism to work

Hardware i use

• Micro:Bit V2 IO Expansion board

• 400 Tie Points Breadboard

• Power module
• Jumper cables

More tools and modules are added regularly.
