Parametric Corner Connector for Rectangular Battens
Print Profile(1)
Description

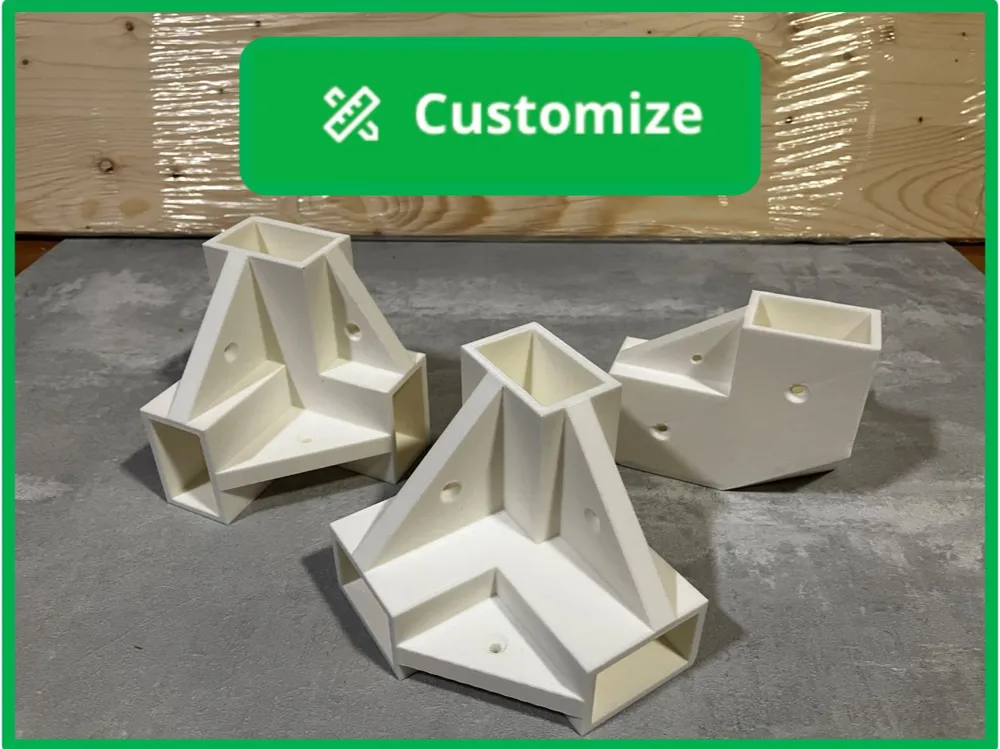

UPDATE: Uploaded as a parametric model. This means everyone can adapt the corner connector to their needs. To do this, you need to go to the MakerWorld website (not in the app or Bambu Studio) and select "Anpassen"/"Customize" there. Then you can first select the different model variants and then edit the parameters

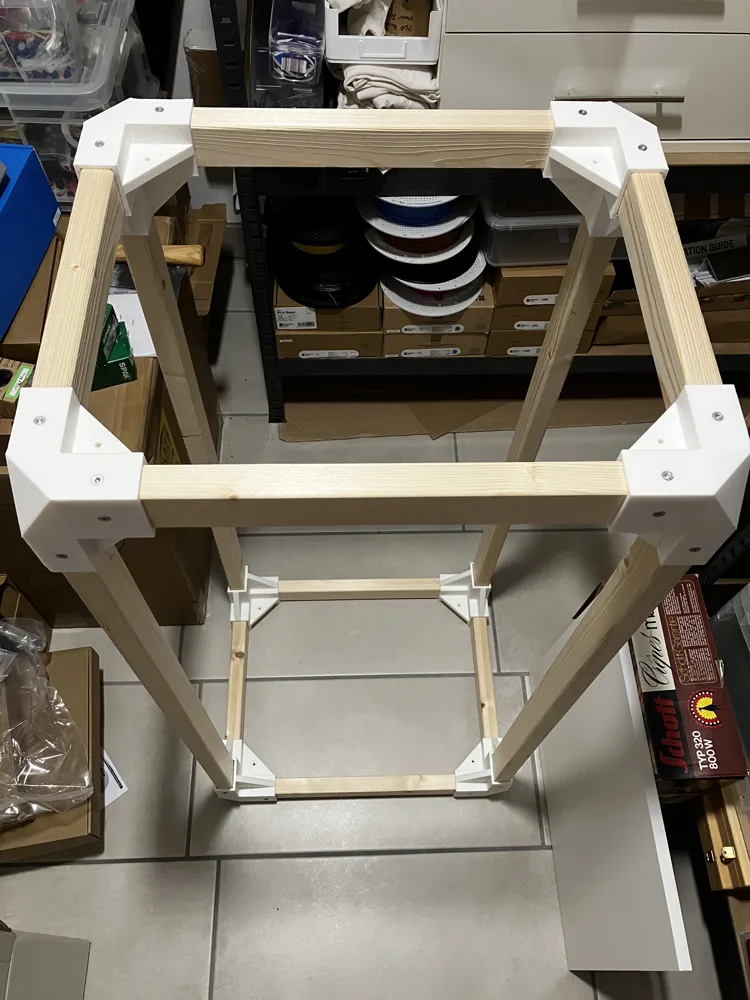

I wanted to build a small frame and unfortunately only found corner connectors for square wooden slats. These are unfortunately significantly more expensive in my hardware stores than rectangular slats. Furthermore, rectangular slats are sufficient for me in terms of stability. I was mainly inspired by the excellent design from blunt (definitely check it out and give him a like!). However, designing for rectangular slats was actually a bit tricky

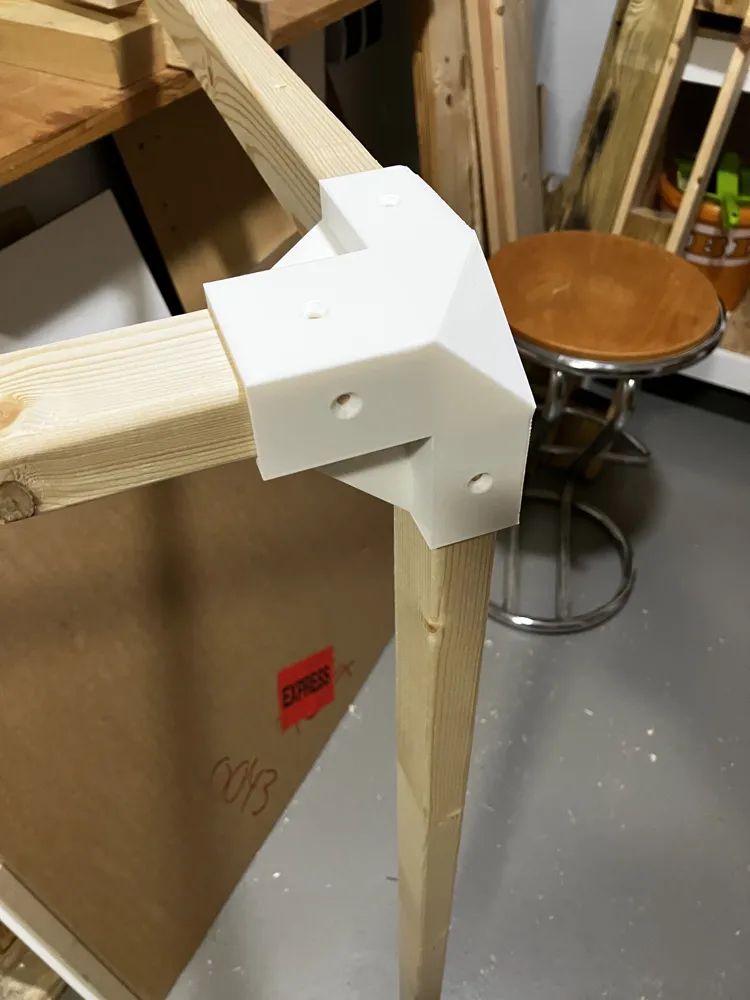

These corner connectors are designed for slats measuring 45mm x 27mm and fit them perfectly. If you need other sizes or a little more clearance, you can scale them accordingly or let me know, and I will gladly create new sizes
IMPORTANT NOTE: For the rectangular version, there is always a different left and right part. The generator creates a left part. You can then simply mirror it in the slicer along the X or Y axis! For a frame, you therefore need 2 left and 2 right parts. If this is unclear, please let me know and I will create a short description
