Quick-draw hip quiver, ambidextrous
Print Profile(1)
Description
Boost Me (for free)
If you like it, you can support me. Please leave a message if you need other arrow diameters

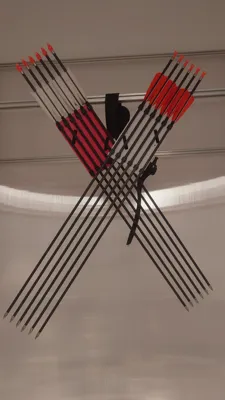

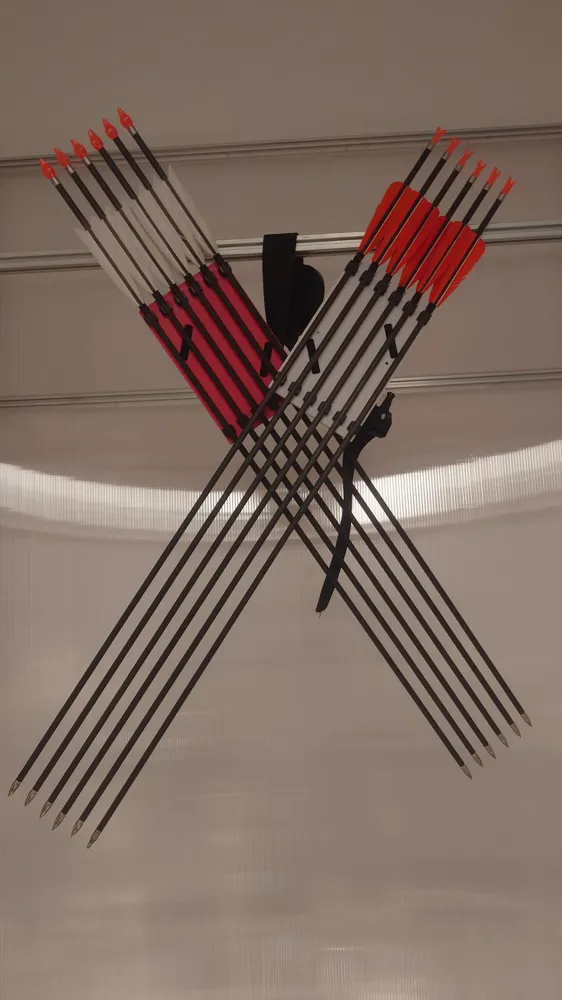

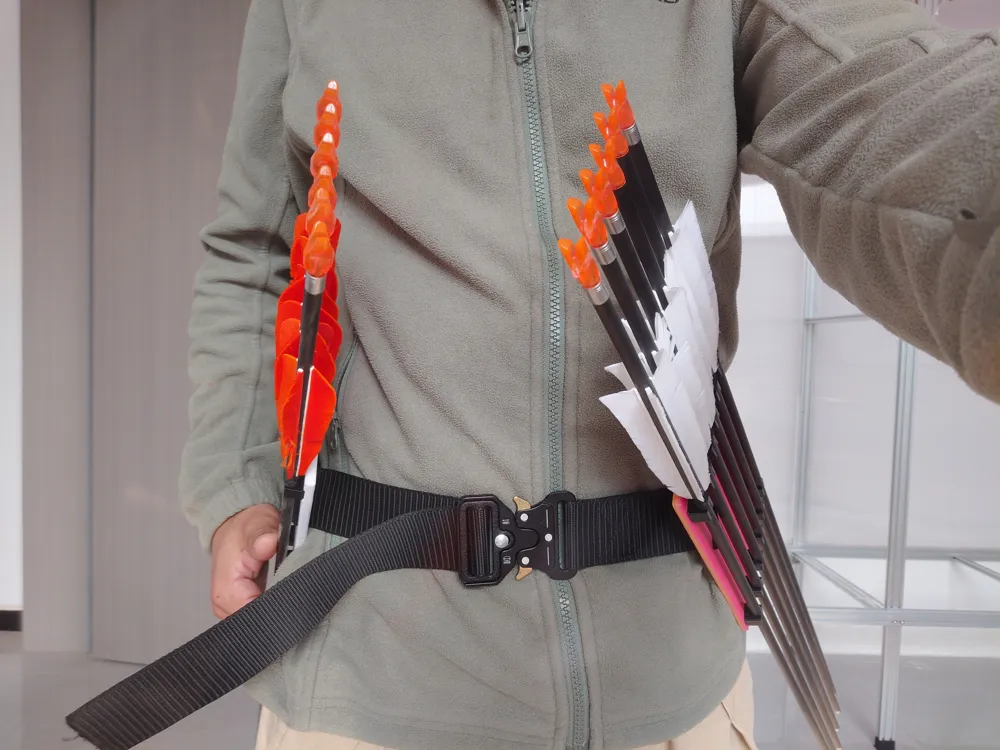

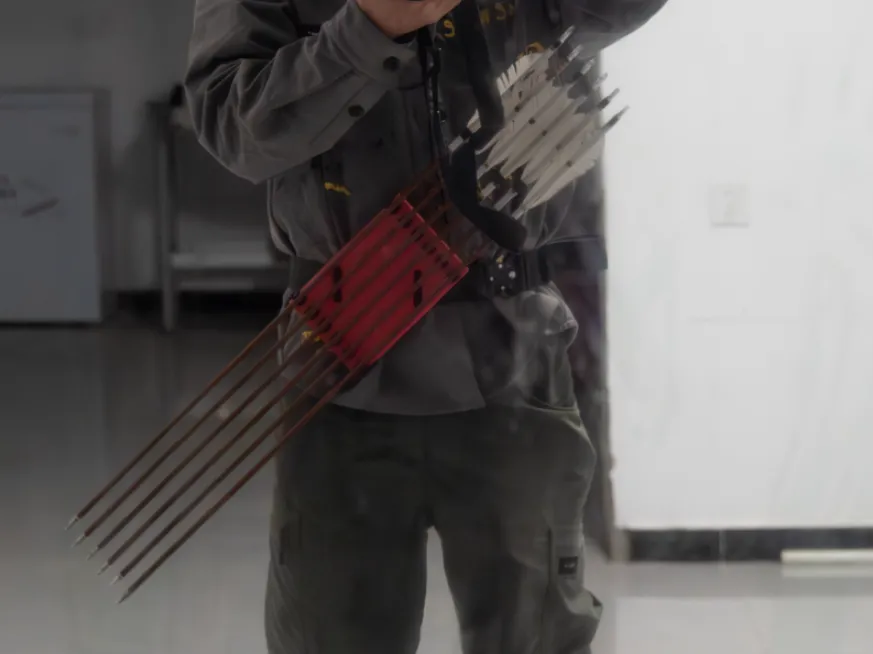

Quick-draw waist quiver, each holds 6 arrows, supports ambidextrous use, for a total capacity of 12 arrows
The arrow clip is 7.2 in diameter, suitable for arrows with an outer diameter around 7.2. It is recommended to print the clip with TPU95A; PETG/PLA will cause wear on the arrows, and drawing arrows will not be as smooth as with TPU

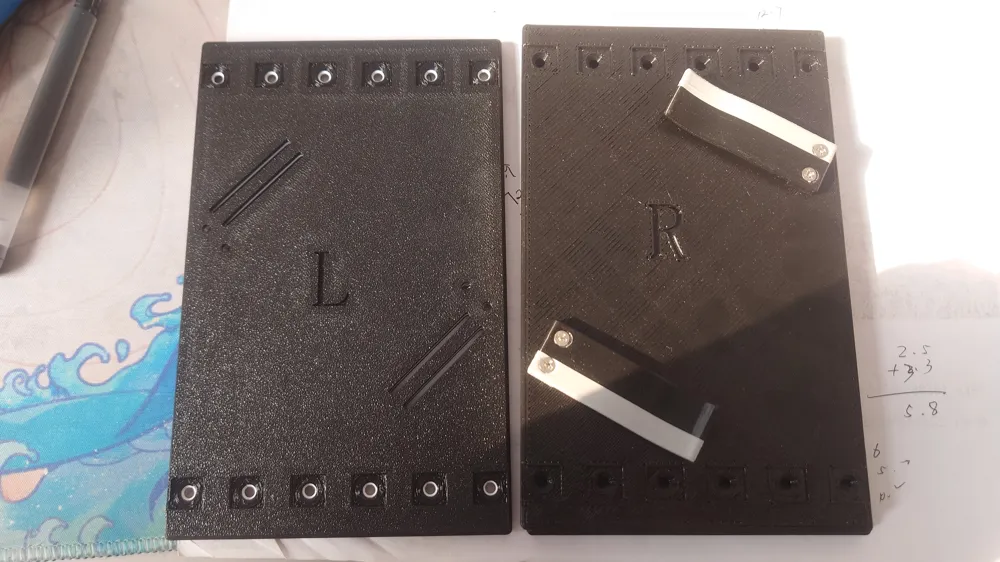

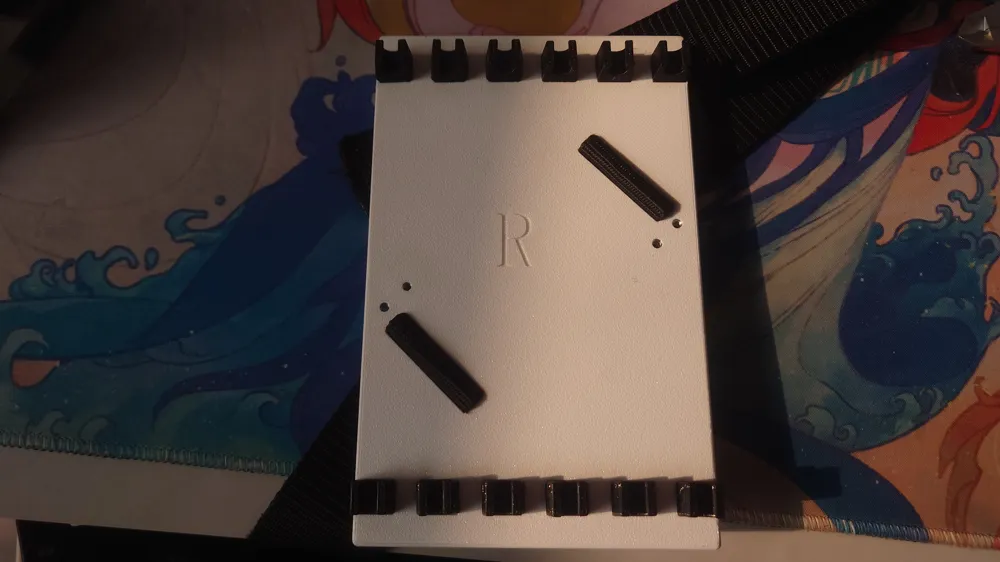

This design requires hardware. Below is the configuration for a single 6-arrow quiver: 16 M3 nuts, 12 M3*8 screws, 4 M3*10 screws (optional, required if using a quick-release belt clip to attach directly to the belt; not required if the belt is threaded directly through the plate). The nuts are embedded; pause printing has been added to the print profile, simply resume printing after inserting the nuts
