Tennis Ball Rocker Plate Feet for Garmin Tacx Neo 2T
Print Profile(2)
Description

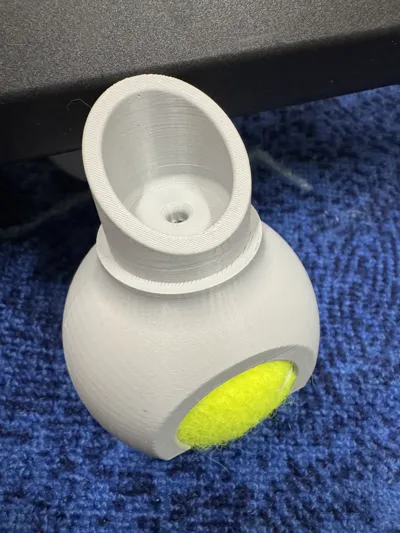

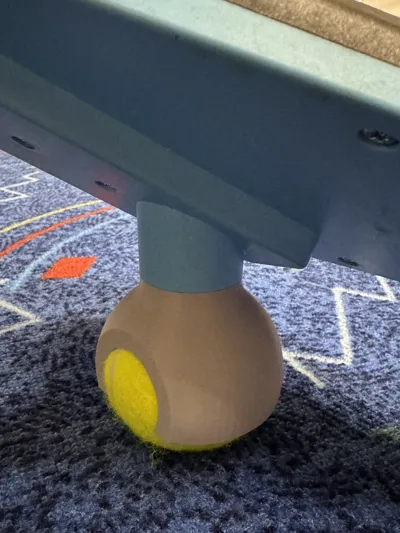

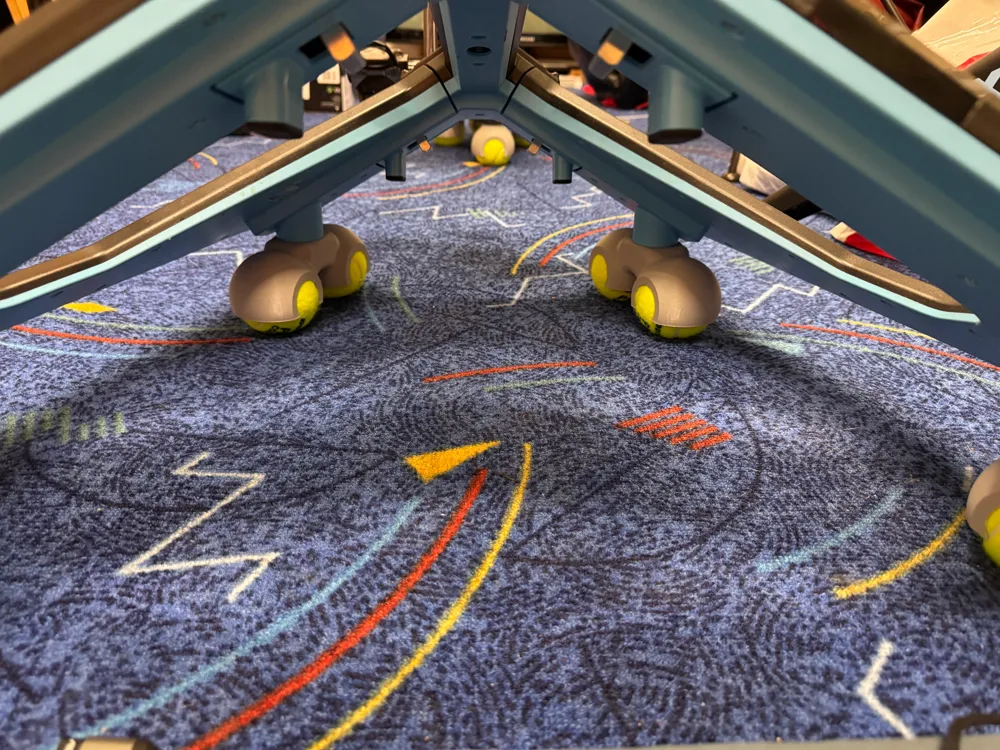

These precisely designed 3D feet allow the **Garmin Tacx Neo 2T** (and compatible NEO models) to be supported on tennis balls. This gives your trainer a softer, comfortably cushioned base and provides a significantly more natural, realistic riding experience during indoor training
The feet are available in two variants:
Variants
- ✔ **Single-Ball Foot** → 1 tennis ball per position • 4 balls total
▸ solid basic cushioning, compact design - ✔ **Double-Ball Foot** → 2 tennis balls per position • 8 balls total
▸ stronger cushioning & more even load distribution
This gives you a simple, effective, and cost-efficient comfort solution — without a complete Rocker Plate or Motion-Plates
Technical Details
| Parameter | Value |
|---|---|
| Mounting Diameter (Nominal Size) | **34 mm** |
| Print dimension optimized for | **34.3 mm** for a perfect fit after manufacturing |
| Recommended material | **PETG** (flexible + resilient) |
| Compatibility | **Tacx Neo / Neo 2 / Neo 2T – and matching front wheel support** |
| Required tennis balls | 4× Single or 8× Double Version + 4x Front Wheel Support |

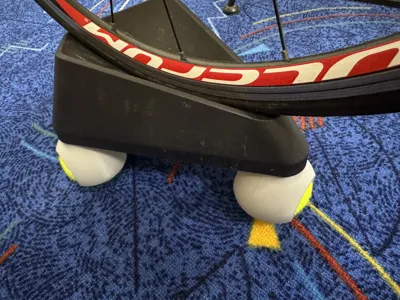

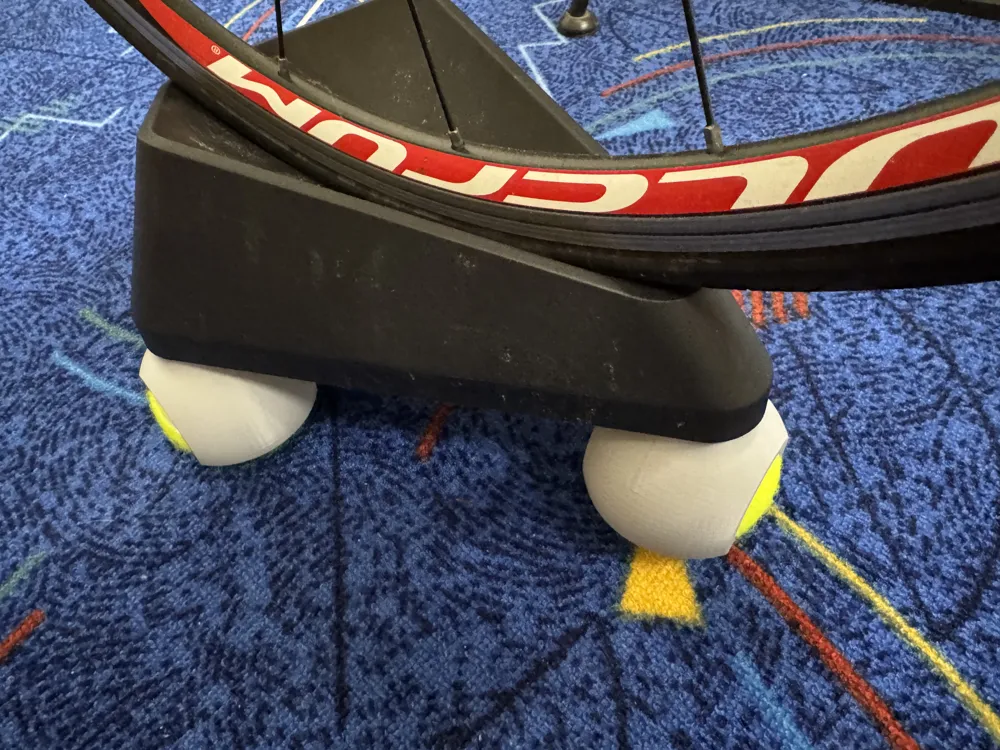

The feet not only fit under the roller trainer but **also into the original front wheel support**, allowing you to harmoniously cushion the entire system on tennis balls — front and back for even damping and movement
**Update 15.02.2026**
I have added a brim to the print profile to prevent possible warping and improve bed adhesion
**Matching TPU Balls (Individual Damping):** Don't feel like using real tennis balls? Here you can find suitable balls to 3D print yourself from TPU:
**Advantage:** Unlike regular tennis balls, you can determine the riding feel yourself here. Depending on the chosen infill, the balls can be printed **both softer and harder** than a standard tennis ball – perfect for precisely tuning the damping to your body weight and preferences
