BC250

Summary

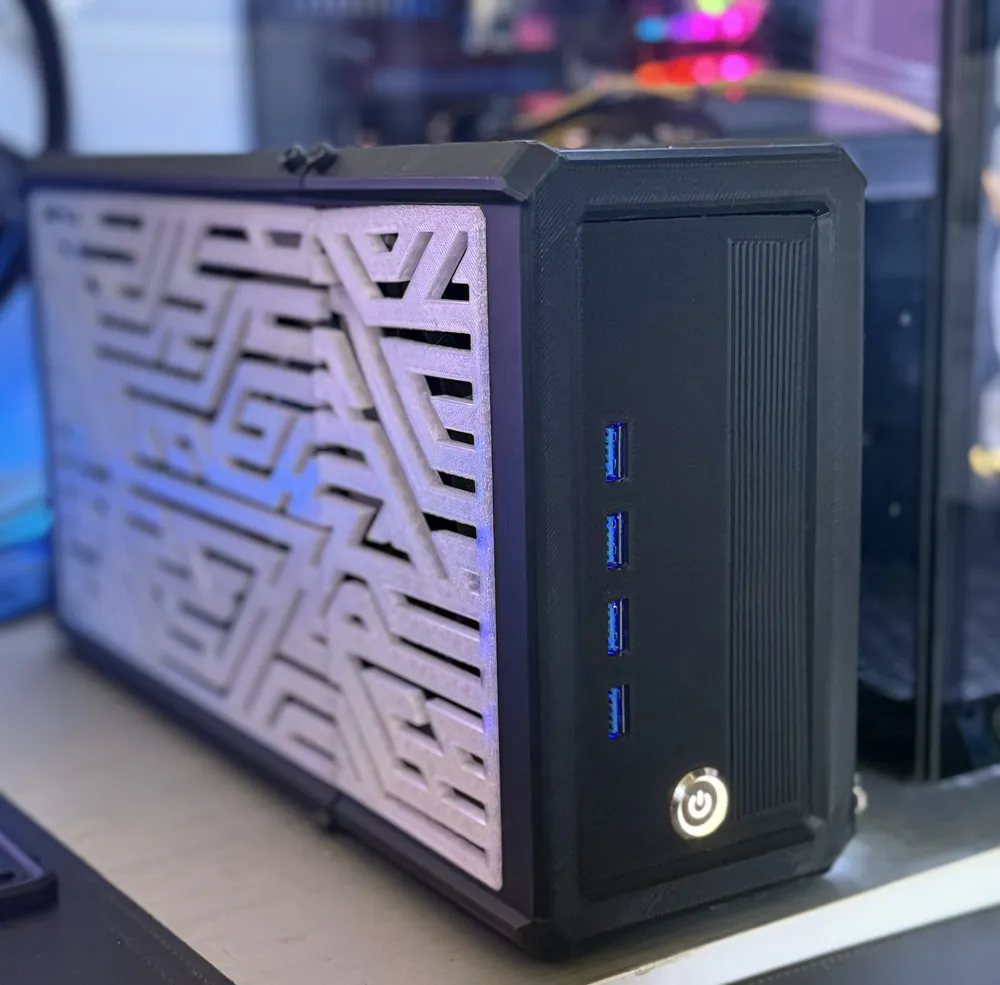

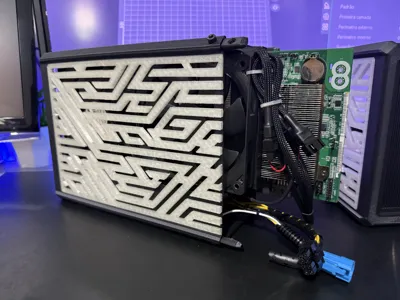

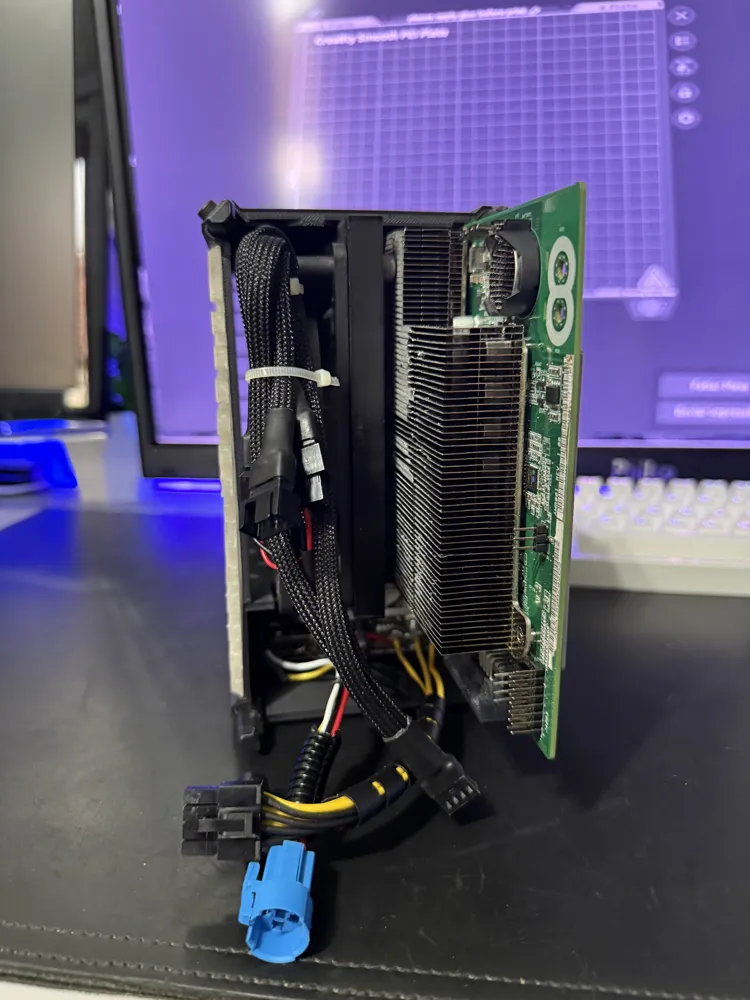

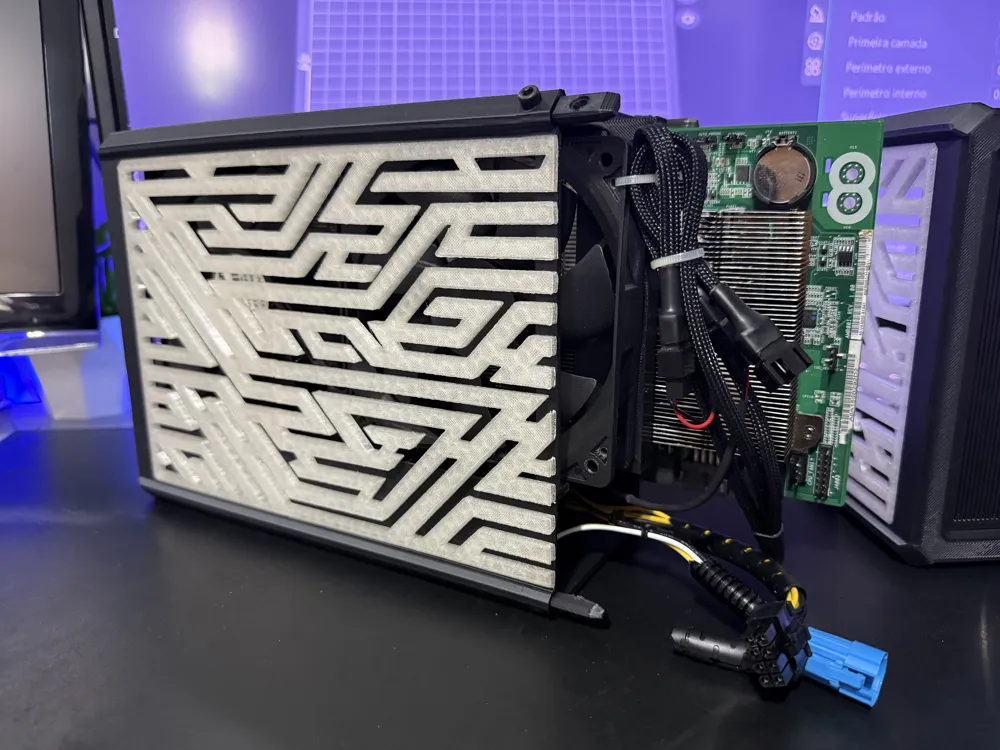

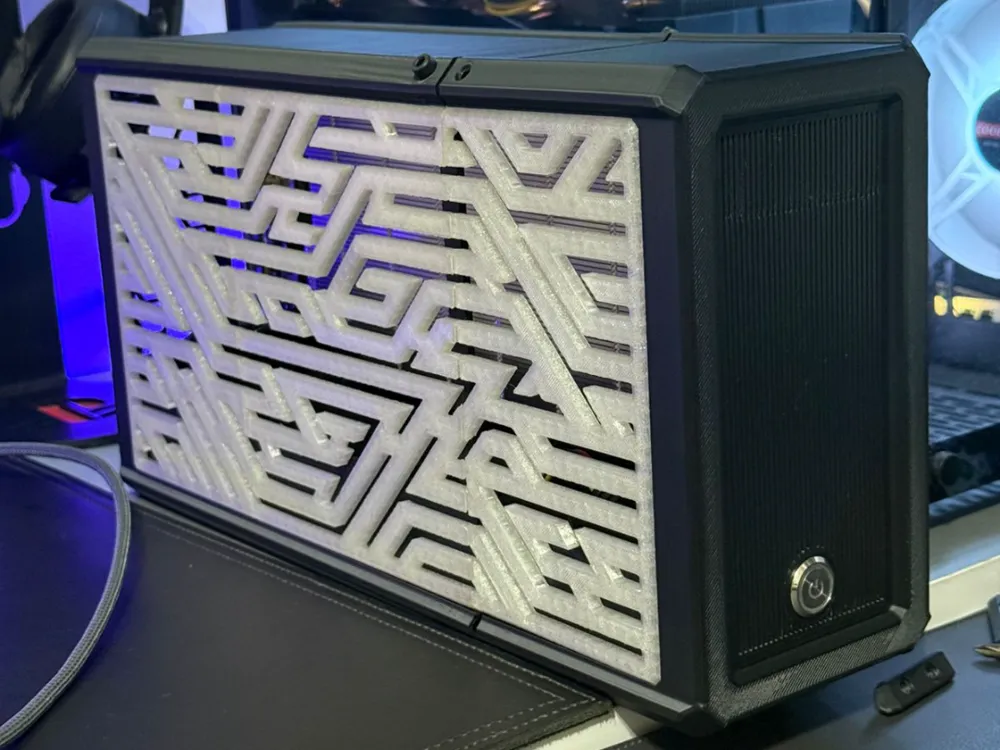

This version of a console-style case for the AMD BC-250 motherboard. This case is designed to accommodate the BC-250 board and a power supply. It includes space for a power button and several options with or without a front panel USB hub

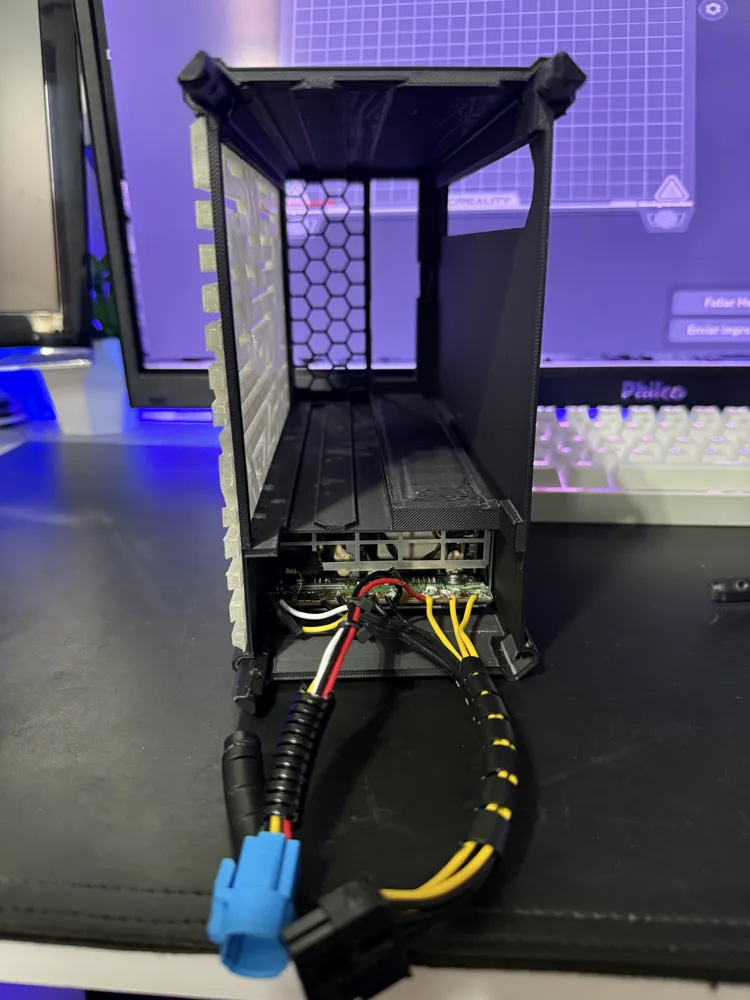

Power supply compatibility is limited to the HP server standard measuring 86.5mm x 40.5mm

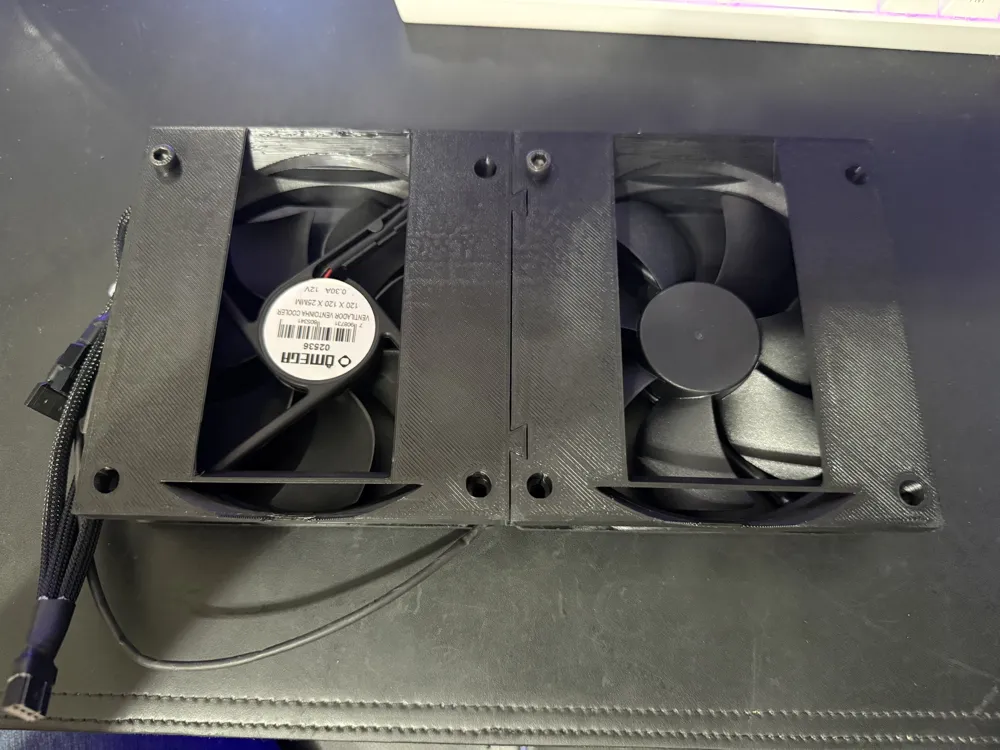

There is a fan frame for single 120mm fan configurations

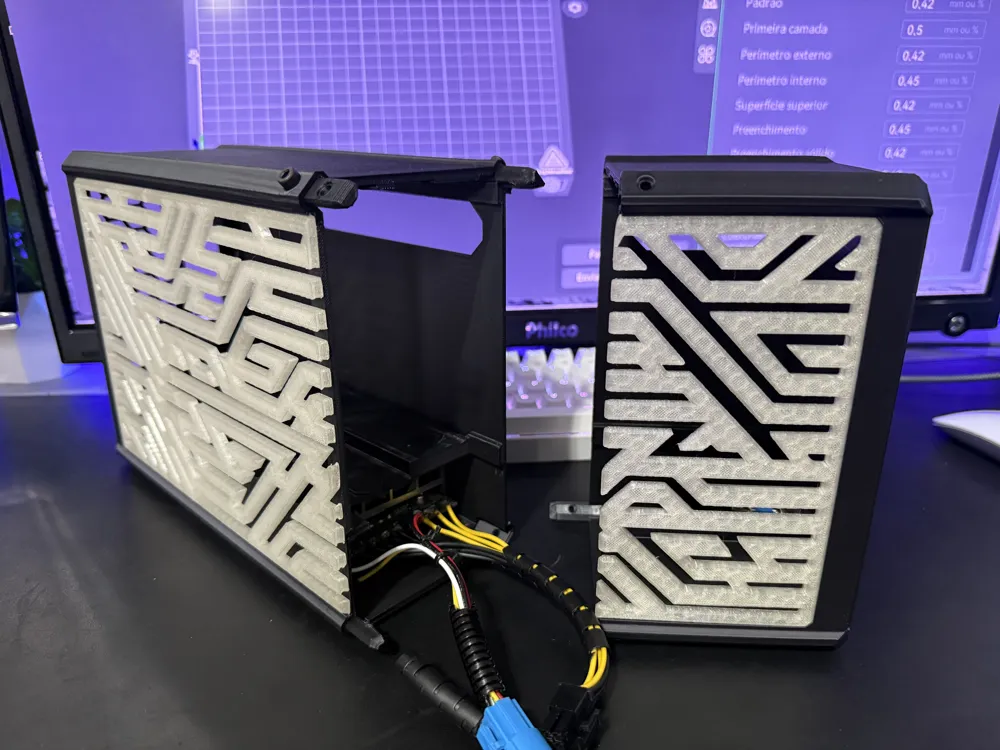

Print four PEG.stl files and use them to connect the front and rear halves of the body

All threaded inserts are M3x5x4
All screws are M3 recessed hex head
The front panel USB bracket screws should be 7mm long M2 self-tapping screws

Approximately 600g to 700g of PLA filament was spent

0.2 layer

15% infill

RECOMMENDED COMPONENTS:

M3x6 Screws (20 units)
https://pt.aliexpress.com/item/1005007345768217.html?spm=a2g0o.order_list.order_list_main.46.767b1802vPayci&gatewayAdapt=glo2bra

Insert for M3x6 (15 units)
https://pt.aliexpress.com/item/1005008301352294.html?spm=a2g0o.order_list.order_list_main.75.7f1a1802BXo2zk&gatewayAdapt=glo2bra

USB 3.0 Hub (1 unit)
https://produto.mercadolivre.com.br/MLB-2784269349-hub-usb-30-original-com-4-portas-super-velocidade-5gbps-_JM?quantity=2

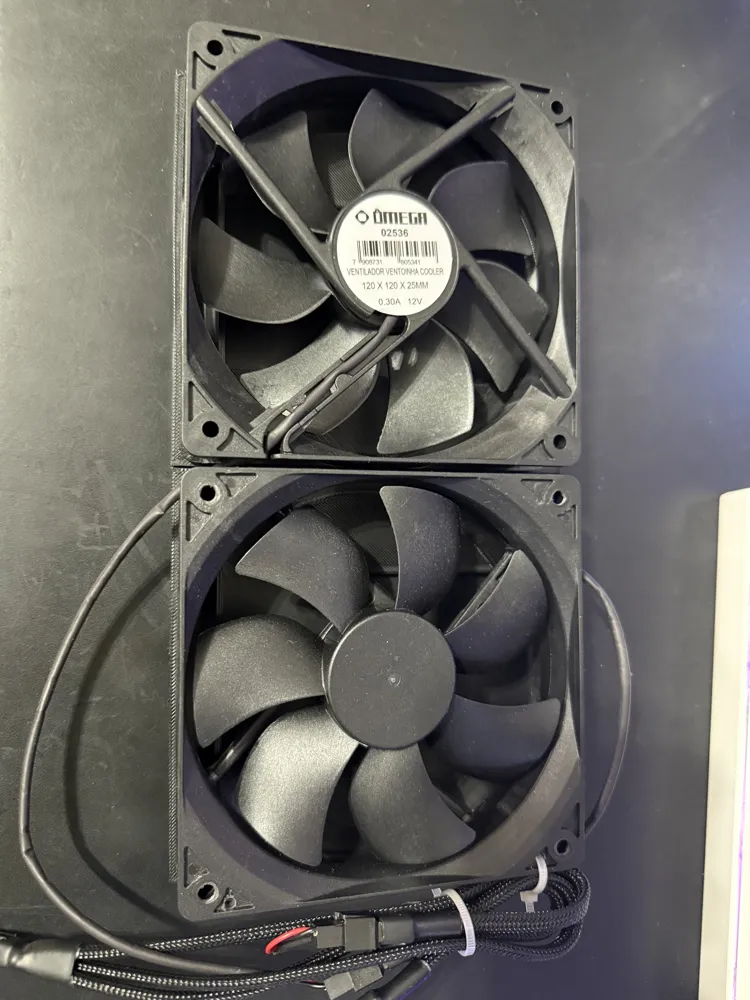

120mm PCIES Fan (2 units)
https://www.mercadolivre.com.br/cooler-fan-120mm-4-pinos-branco-2200-rpm-gabinete-pc-game/p/MLB45716756?pdp_filters=item_id:MLB4032133027

Multi Fan Hub (1 unit)
https://produto.mercadolivre.com.br/MLB-5547773828-cabo-adaptador-multi-fan-pwm-para-5-coolers-4-pinos-45-cm-_JM#polycard_client=search-nordic&search_layout=grid&position=49&type=item&tracking_id=29efdeff-4af5-429d-9d0f-ec984c1d2a15&wid=MLB5547773828&sid=search

WE'RE ALL TOGETHER MY BROTHERS!!!
