Rosca Latón M5 OD:7 L:5

🧰 Instrucciones de instalación del adaptador PXN V10 a 70 m.pdf

cover

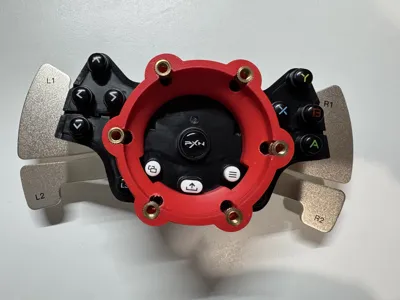

<p>Perfil para imprimir adaptador con insertos de latón M5 con diametro exterior 7mm y 5mm de alto.</p>

<p>Profile for printing adapter with M5 brass inserts with 7mm outer diameter and 5mm high.</p>

With Inserts 0.2mm layer, 2 walls, 15% infill


<p>Mismo diseño pero sin insertos, probablemente sea un poco menos firme pero igualmente funcional cuando todos los tornillos estén en su sitio. </p>

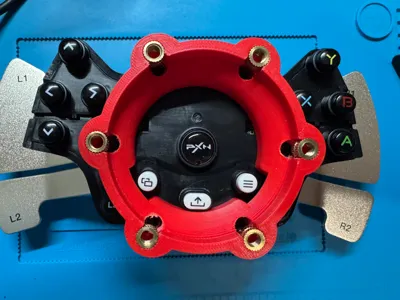

<p>Same design but without inserts, it might be a little less firm but equally functional when all screws are in place</p>

Without Inserts 0.2mm layer, 2 walls, 15% infill

You may create derivative works based on this object, provided that all such derivative works are published exclusively on the MakerWorld platform and include proper attribution to the original creator. You may not share, upload, host, distribute, or publish this object—or any derivative work of this object—on any other digital platform, marketplace, or distribution channel. Commercial use of this object and any derivative works is strictly prohibited. This includes, but is not limited to, selling, renting, sublicensing, or using the object in any context in which you receive monetary compensation or other financial benefits.

This user content is licensed under the MakerWorld Exclusive License.

<h3 style="text-align: center"><strong>Si lo imprimes, sube una foto o valóralo. Me ayudas muchísimo a mejorar el diseño y tan solo lleva unos segundos. </strong></h3><p>&nbsp;</p><p>Este modelo ha sido diseñado específicamente para ampliar la compatibilidad del simulador PXN V10 y V10 Pro, permitiendo la instalación de volantes estándar con patrón de montaje de 70 mm. Es una solución robusta y funcional para entusiastas del sim racing que desean personalizar su experiencia de conducción.</p><h3>🛠️ Características principales</h3><ul><li><strong>Compatibilidad universal</strong>: Adaptador diseñado para volantes con patrón de tornillos de 6x70 mm, el estándar más común en volantes aftermarket.</li><li><strong>Integración perfecta</strong>: Se acopla directamente al eje del PXN V10 sin necesidad de modificaciones permanentes. </li><li><strong>Montaje seguro</strong>: Impresión 3D con refuerzos, según versión, para garantizar durabilidad y precisión. Incorpora insertos roscados de latón para una fijación firme y confiable.</li><li><strong>Diseño optimizado</strong>: Perfil compacto que mantiene la ergonomía y estética del conjunto original, ofrece esa mayor distancia a las palancas de cambio tan necesaria aunque recomiendo buscar volantes planos, ya que uno desplazado aleja demasiado las palancas de cambio.</li></ul><h3>🎮 Aplicaciones</h3><p>Ideal para usuarios que desean instalar volantes personalizados, réplicas de competición o modelos clásicos en su simulador PXN V10, sin perder funcionalidad ni respuesta en la conducción.</p><p>&nbsp;</p><h3 style="text-align: center">Y si te ha resultado realmente útil y lo consideras oportuno aquí te dejo el botón de BOOST para que me regales uno. </h3><boostme><boosttitle>Boost Me</boosttitle></boostme><p>&nbsp;</p>

<h3 style="text-align: center"><strong>If you print it, upload a photo or rate it. You help me a lot to improve the design and it only takes a few seconds. </strong></h3><p>&nbsp;</p><p>This model has been specifically designed to extend the compatibility of the PXN V10 and V10 Pro simulator, allowing the installation of standard steering wheels with a 70 mm mounting pattern. It is a robust and functional solution for sim racing enthusiasts who wish to personalize their driving experience</p><h3>🛠️ Main features</h3><ul><li><strong>Universal compatibility</strong>: Adapter designed for steering wheels with a 6x70 mm bolt pattern, the most common standard for aftermarket steering wheels</li><li><strong>Perfect integration</strong>: It attaches directly to the PXN V10 shaft without the need for permanent modifications</li><li><strong>Secure mounting</strong>: 3D Printed with reinforcements, depending on the version, to ensure durability and precision. It incorporates brass threaded inserts for a firm and reliable attachment</li><li><strong>Optimized design</strong>: Compact profile that maintains the ergonomics and aesthetics of the original assembly, offering that much-needed greater distance to the shifter paddles, although I recommend looking for flat steering wheels, as an offset one moves the shifter paddles too far away</li></ul><h3>🎮 Applications</h3><p>Ideal for users who wish to install custom steering wheels, competition replicas, or classic models on their PXN V10 simulator, without losing functionality or driving response</p><p>&nbsp;</p><h3 style="text-align: center">And if you found it really useful and consider it appropriate, here is the BOOST button for you to give me one. </h3><boostme><boosttitle>Boost Me</boosttitle></boostme><p>&nbsp;</p>
