ToolBox r0

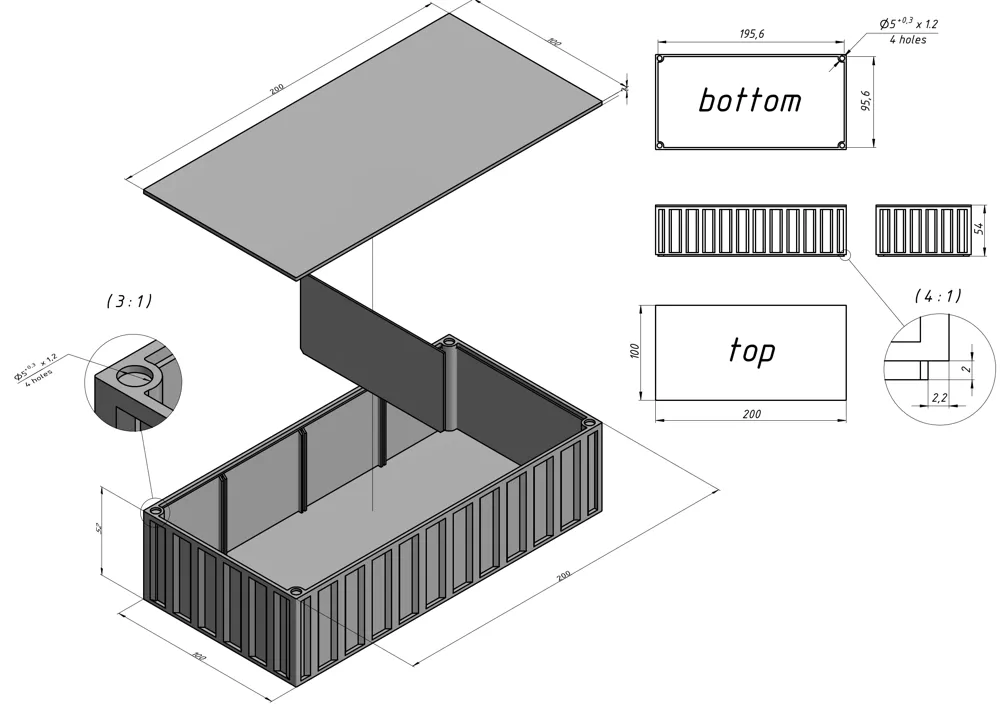

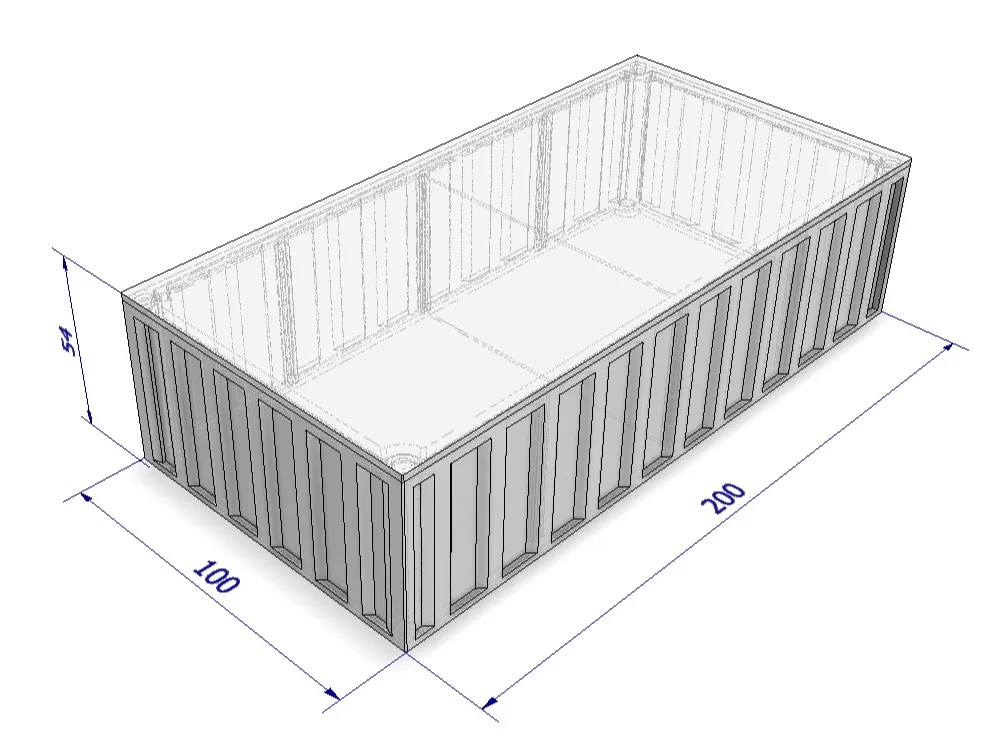

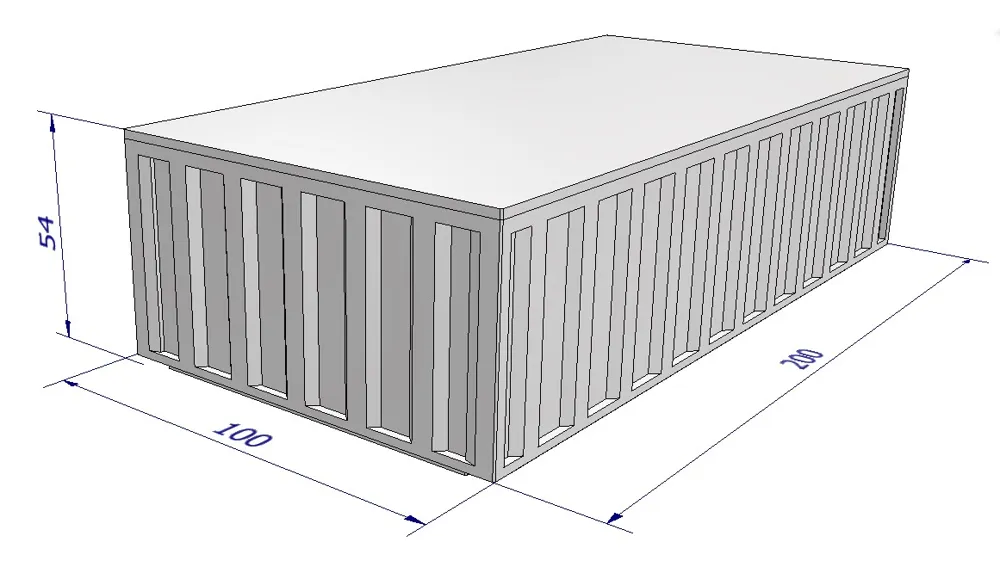

A small (100 x 200 x 54 mm) toolbox designed in the style of a shipping container.

This model is modular:
1) internal partitions can be installed in 1:3, 1:2, and 2:3 ratios.

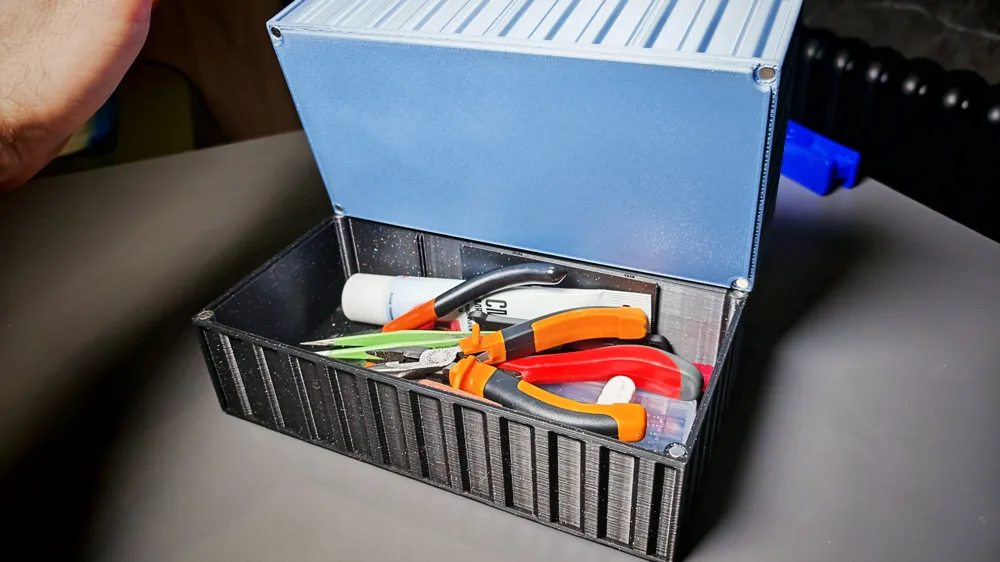

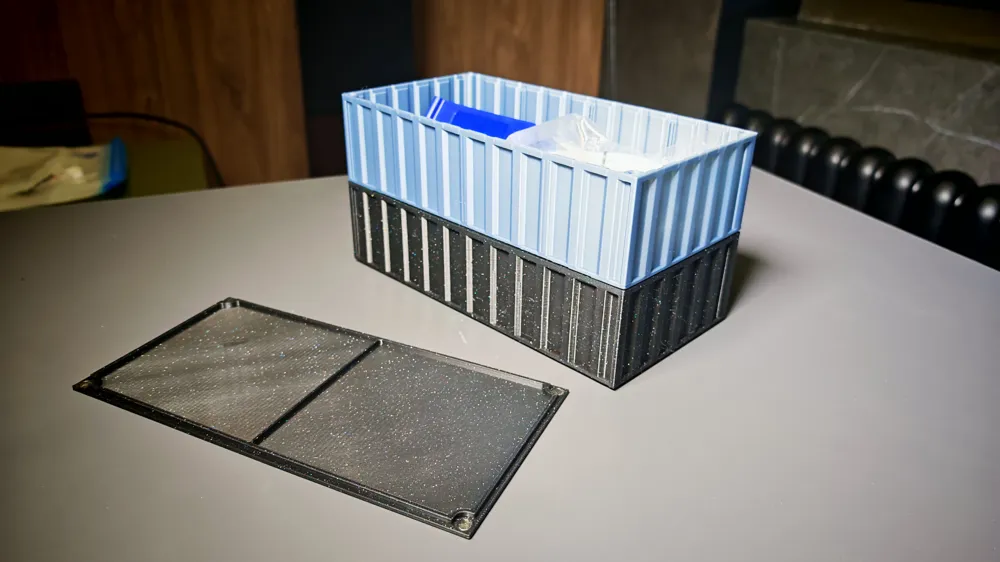

2) the base shape allows for stacking drawers.

The base and top are pre-drilled for mounting round magnets with a diameter of 5 mm and a height of 1 mm.

Printing requires the use of supports (overhang at the bottom).

Scaling up the model is not recommended as the walls are already thin. For a larger model, the walls will need to be reinforced (a reinforced model may be developed).
